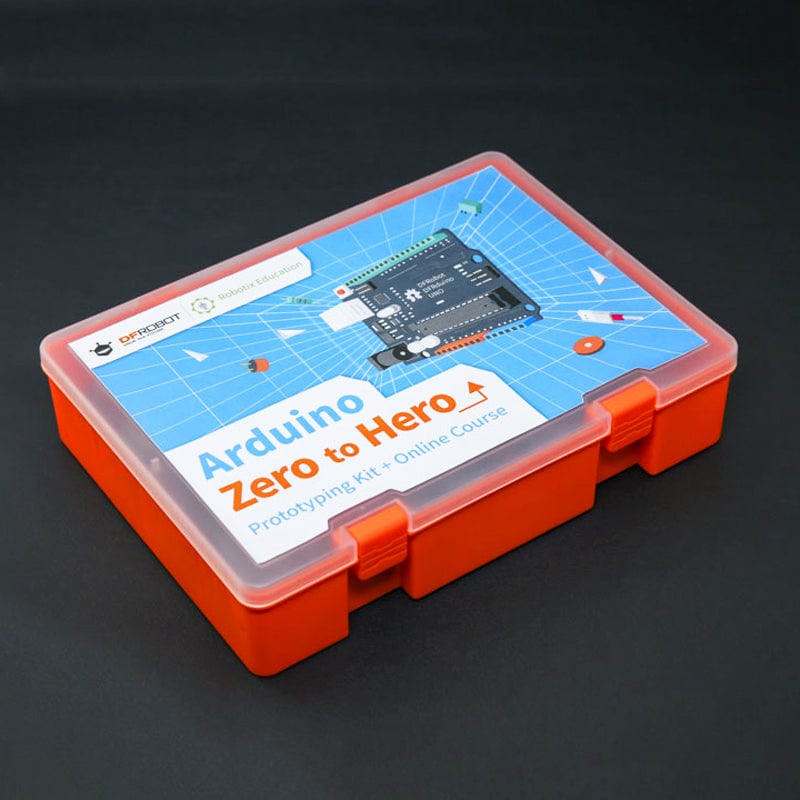

Gravity: Arduino Zero to Hero Kit

An open-source, plug & play electronics toolkit for learning the Arduino platform, including an entry code for an online course created by Sanjin Dedić!

Welcome to the world of electronics and programming! DFRobot proudly presents the Arduino Zero to Hero E-learning Kit which comes complete with an online course created by a well-known Australian Robotics Engineer and Teacher: Sanjin Dedić.

The online course is perfect for ambitious beginners and intermediate Arduino users trying to take their circuitry and programming to the next level.

See the video preview and tutorial list below:

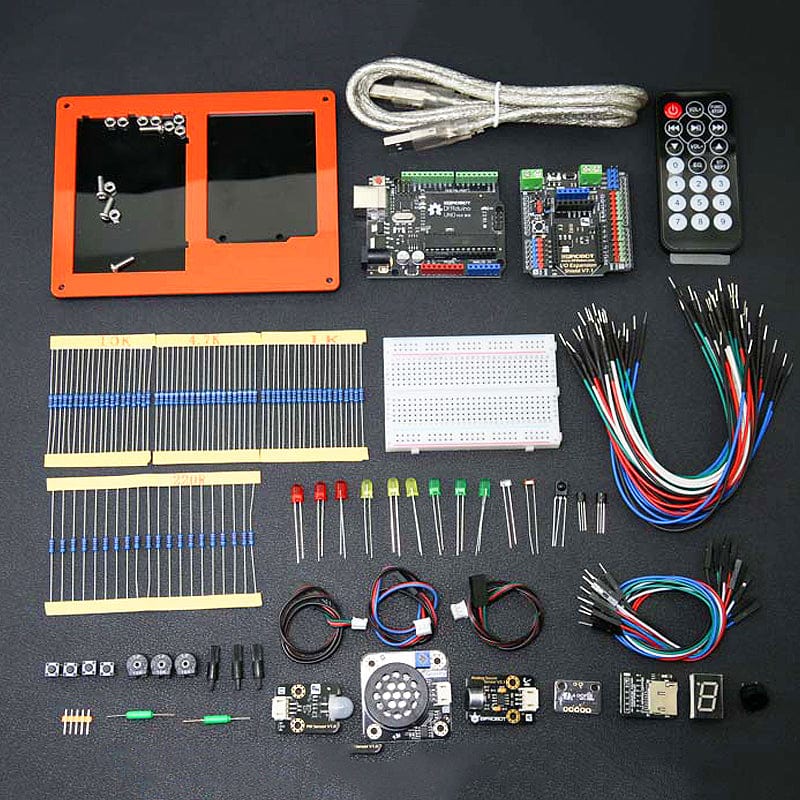

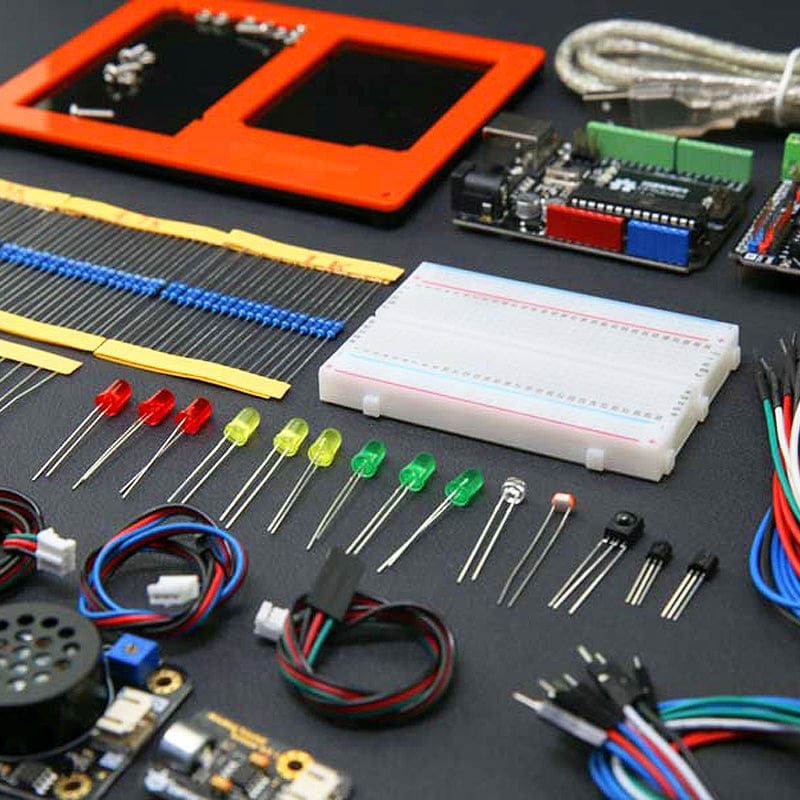

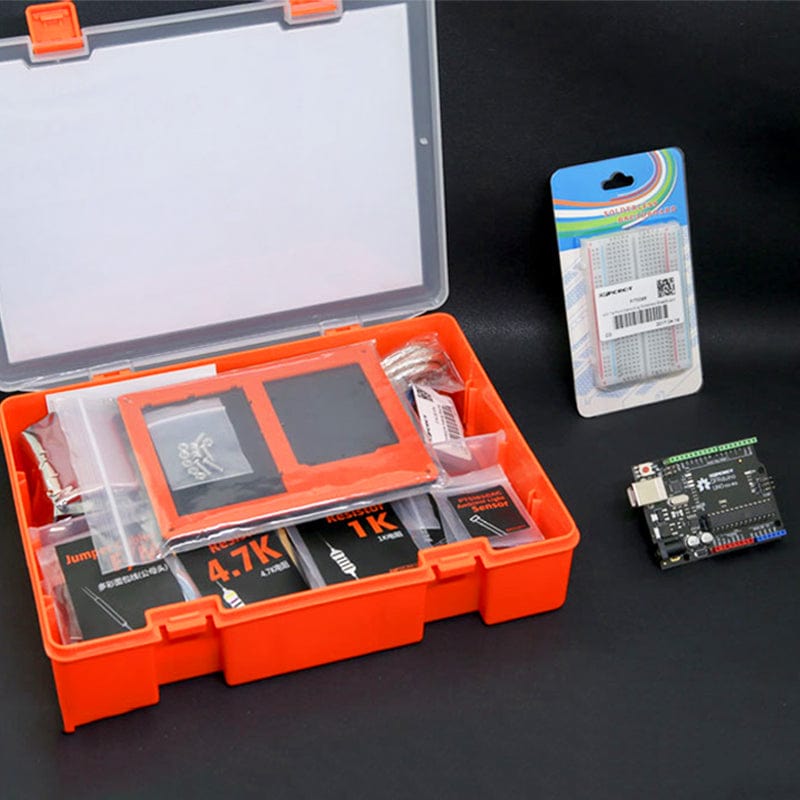

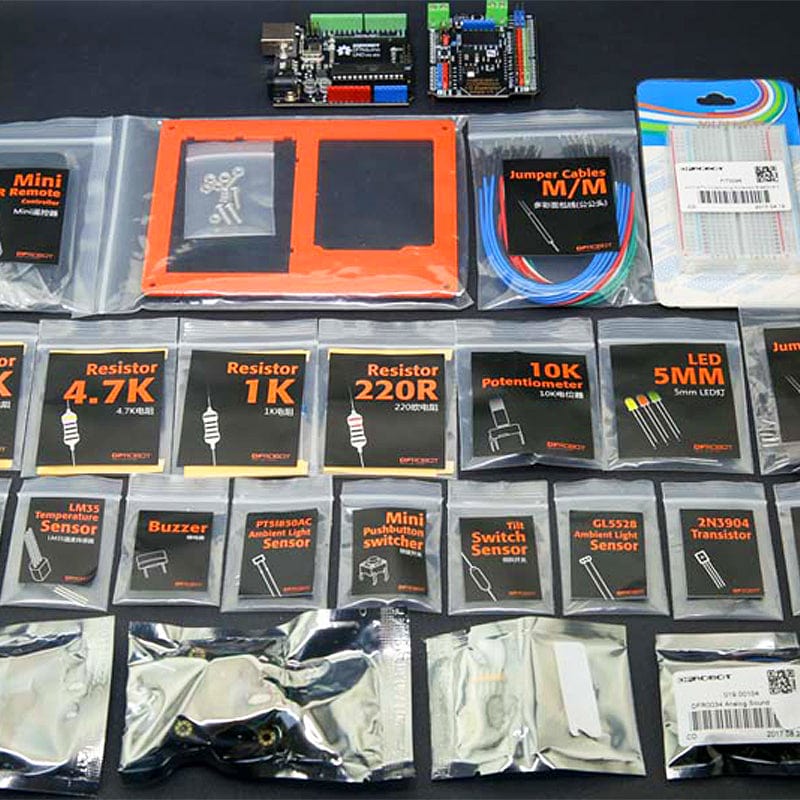

What's Included?

• DFRduino UNO R3 x1
• USB Cable A-B x1

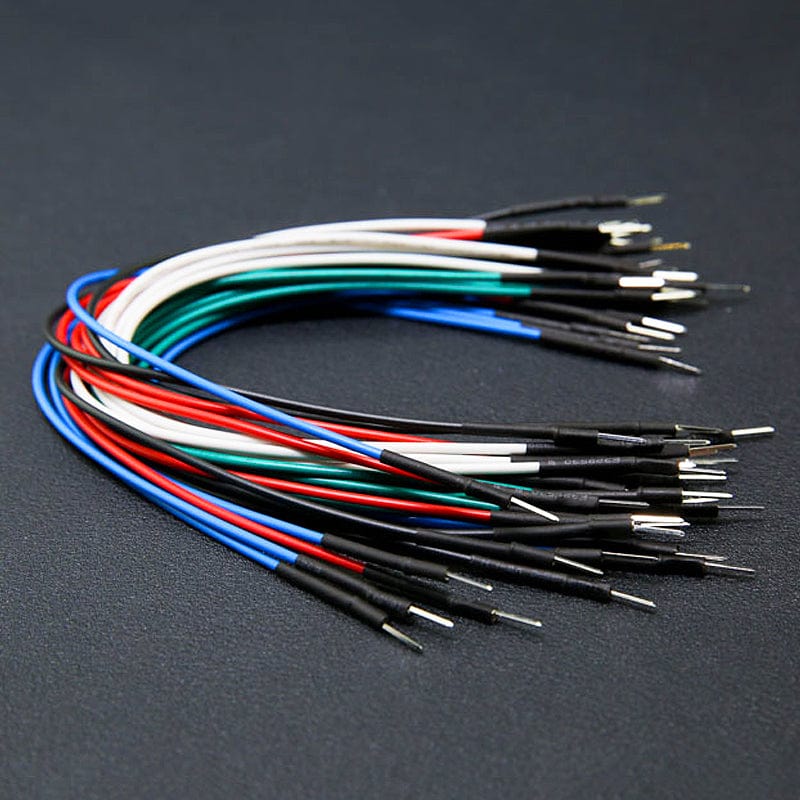

• Jumper Cables M/M x30

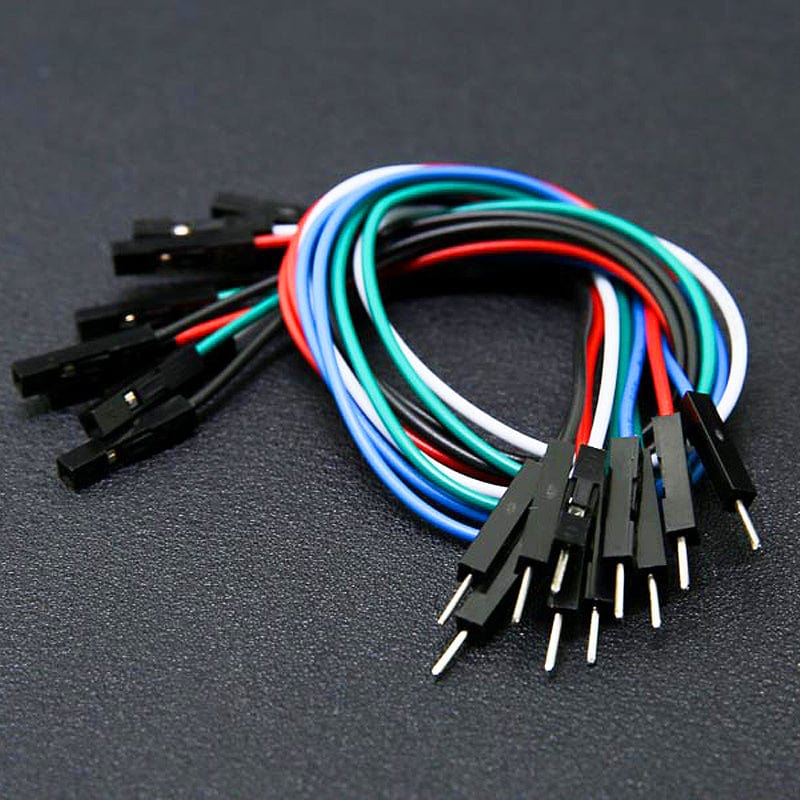

• Jumper Cables F/M x10

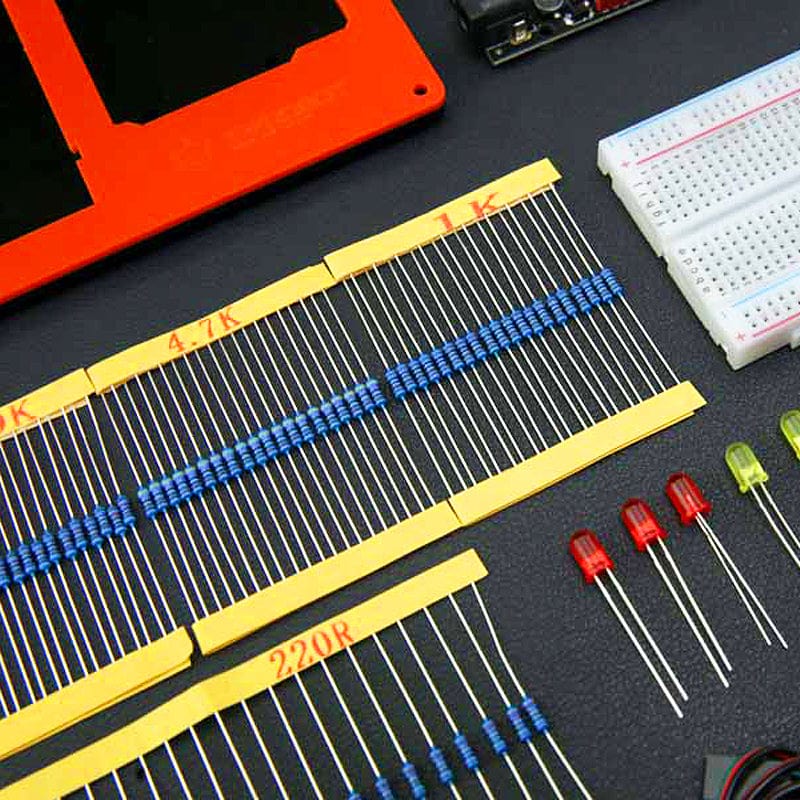

• Resistor 220R x20
• Resistor 4.7K x20
• Resistor 10K x20
• Resistor 1K x20
• 5mm LED x10
• IR Receiver Diode x1
• Mini Push Button x4
• PT5I850AC Ambient Light Sensor x1
• GL5528 Ambient Light Sensor x1
• 2N3904 Transistor x1
• Tilt Switch Sensor x1
• 8-Segment LED x1
• LM35 Temperature Sensor x1
• Buzzer x1
• 10K Potentiometer x3
• Mini Controller (with battery CR2025 inside) x1
• 400 Tie Point Interlocking Solderless Breadboard x1
• Acrylic breadboard holder for Arduino x1
• Gravity IO Expansion Shield for Arduino V7.1 x1
• Gravity: Analog Sound sensor for Arduino x1
• Gravity: Digital Speaker Module x1
• Gravity: Digital PIR (Motion) Sensor for Arduino x1
• 6 DOF Sensor - MPU6050 x1
• MicroSD card module for Arduino x1

Tutorial Content List

CIRCUITRY ONLY TUTORIALS:

1. LED Button Circuit
2. Potentiometer LED Control
3. Simple Current Amplifier
4. Darlington Bridge Current Amplifier
5. Glow in the Dark Circuit
6. AND Logic Gate
7. OR Logic Gate
8. NOT Logic Gate

BASIC TUTORIALS

9. LED Blink Rate Investigation
10. Using Random To Select LED’s Control Delays
11. Programming Input / Output with Push Buttons

INTERMEDIATE TUTORIALS

12. Analog Input Demonstrations with Voltage Dividers
13. Photodiodes and LDR in Voltage Divider Light Sensing Circuits
14. Arduino Light Theremin
15. LM 35 Temperature Sensor with Graph Plotting
16. Maxwell Colour Wheel with RGB LED
17. RGB LED Colour Mixer with 3 Potentiometers
18. Microphone Clap Switch
19. Microphone Calibrated Double Clap Switch
20. Sound / Music Reacting Circuit
21. Button Controlled Frequency Generator
22. Piano Circuit with 4 Tones
23. Sound Effects Generator (Fibonacci, Space Guns etc…)
24. Temperature Plotting Program
25. 7 Segment Display Circuit
26. 7 Segment Guess The Number Game
27. Reaction Time Measuring Circuit (using LED and Sound Triggers)

ADVANCED TUTORIALS:

28. Creating Arrays to Store Reaction Time Results
29. Saving Reaction Time Results to SD Card
30. Plotting the SD Card Results in Excel
31. Memory Training Game
32. Infrared Remote Control Circuit
33. Infrared Remote Controlling a Speaker and LED Panel
34. Reading Accelerometer and Gyroscope Values
35. Connecting Arduino to Processing
36. Control LED’s via Computer Mouse (using Processing)
37. Visualising Gyroscope and Accelerometer Values (using Processing)

How to redeem the course:

• Step 1: Go to https://robotix.com.au/#/course and enter the code above
• Step 2: After you enter code, the link to course access will open
• Step 3: Sign up IMMEDIATELY (because the link will expire in 1 hour!)
• If you have trouble redeeming, email sanjin@headstartacademy.com.au
