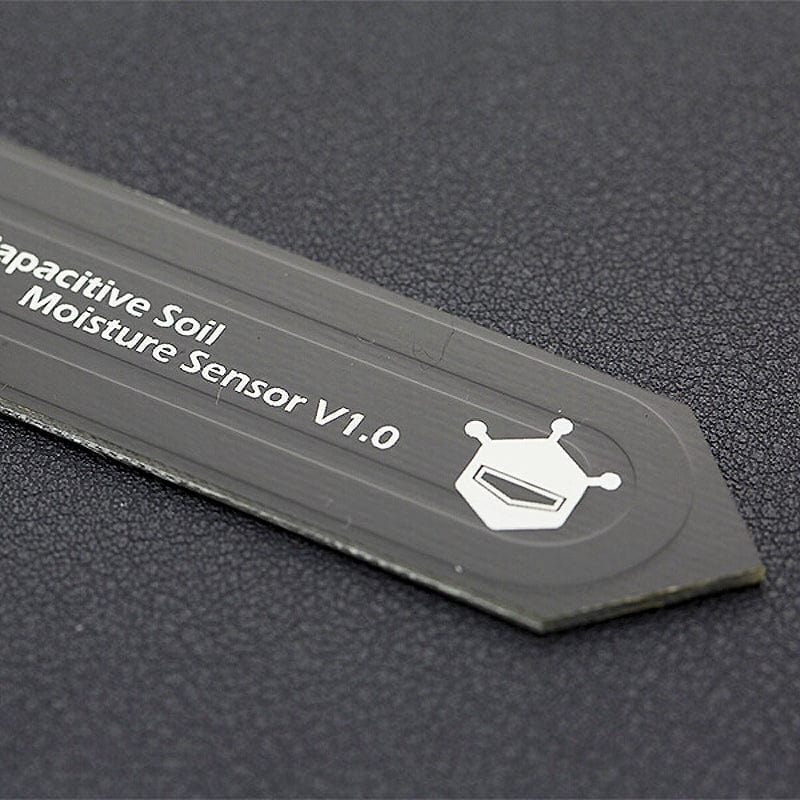

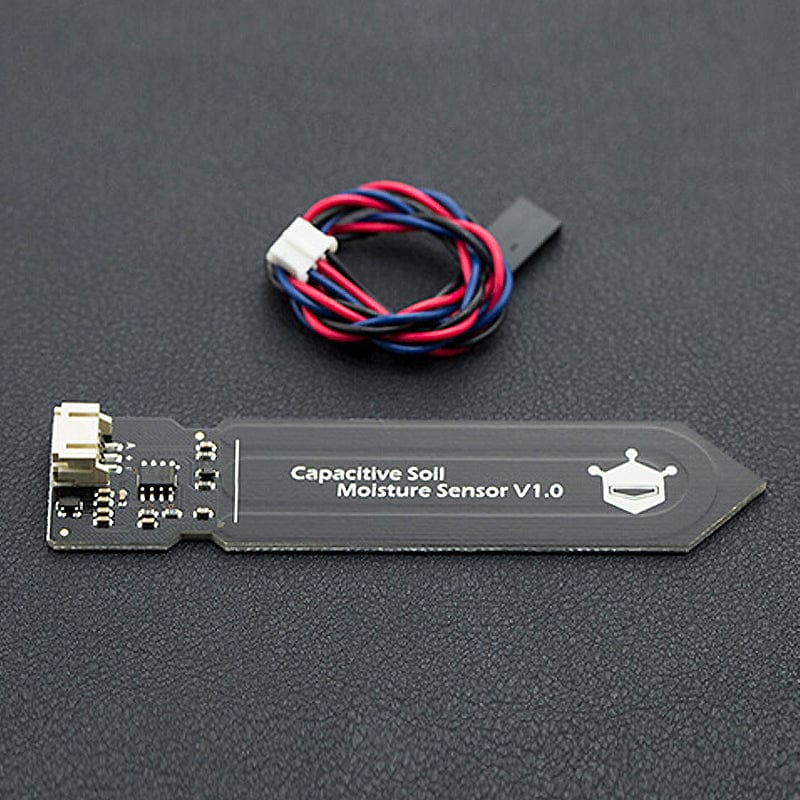

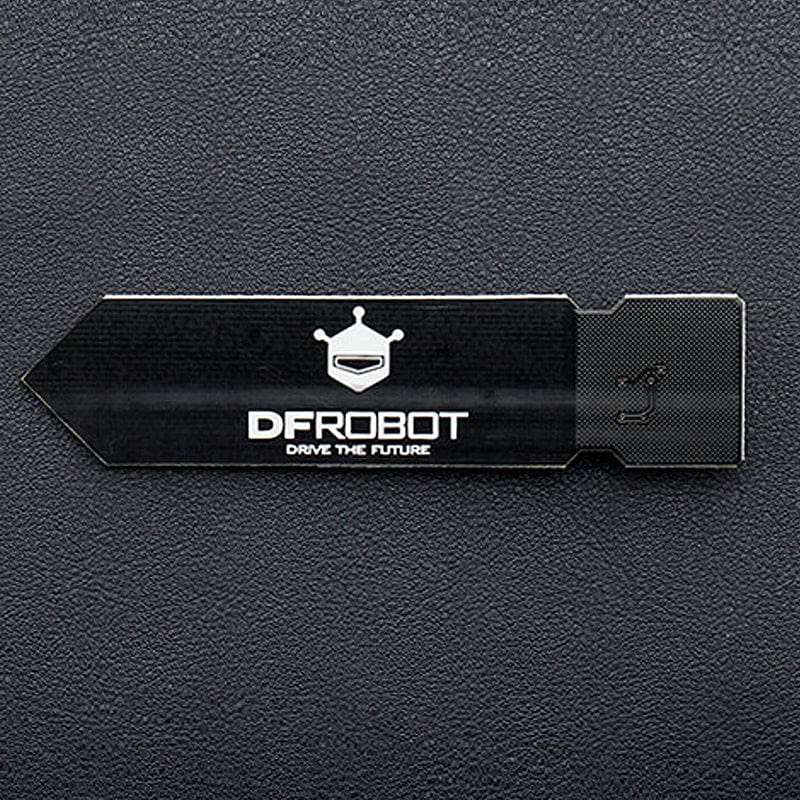

Gravity: Analog Capacitive Soil Moisture Sensor

DFRobotSKU: SEN0193
Price:
Sale price £6.30
incl. VAT
excl. VAT
Stock:
Only 3 units left
Quantity:

Awesome Extras

Gravity: IO Expansion Shield for Arduino V7.1 - The Pi HutGravity: IO Expansion Shield for Arduino V7.1 - The Pi Hut
DFRobotGravity: IO Expansion Shield for Arduino V7.1
Sale price £4.50 incl. VAT excl. VAT
DFRduino Uno R3 - The Pi HutDFRduino Uno R3 - The Pi Hut
DFRobotDFRduino Uno R3
Sale price £16 incl. VAT excl. VAT
Gravity: 4-Digit Green Seven-Segment LED Display Module - The Pi HutGravity: 4-Digit Green Seven-Segment LED Display Module - The Pi Hut

This sensor measures soil moisture levels by capacitive sensing, rather than resistive sensing like traditional moisture sensors. It is made of a corrosion-resistant material giving it long service life. Insert it into the soil and keep an eye on your plants with real-time soil moisture data!

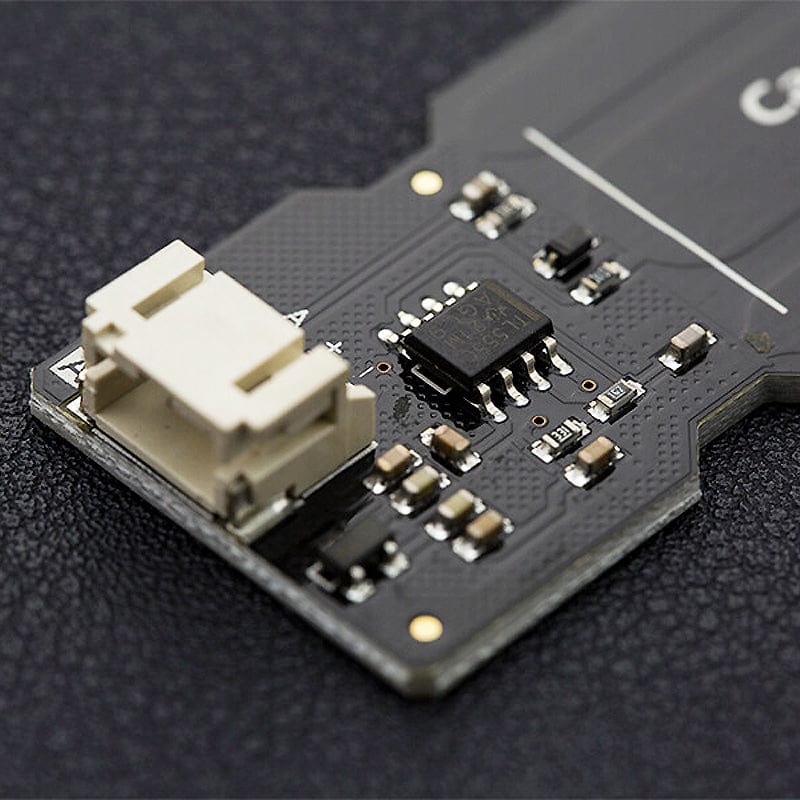

The sensor includes an on-board voltage regulator which gives it an operating voltage range of 3.3-5.5V making it compatible with low-voltage development boards (both 3.3V and 5V logic). To make it compatible with a Raspberry Pi, an ADC converter is required.

This sensor is compatible with the DFRobot 3-pin Gravity interface, which means it can be directly connected to the Gravity I/O Expansion Shield.

The following image shows an example project - a device that notifies you when a plant needs to be watered:

Connection Example - Arduino

Features

  • Corrosion resistant
  • Supports Gravity 3-Pin Interface
  • Analog Output

Specifications

  • Operating Voltage: 3.3 ~ 5.5 VDC
  • Output Voltage: 1.2 ~ 2.5V
  • Interface: PH2.0-3P
  • Dimension: 98mm x 23mm
  • Weight: 15g

Resources

Package Contents

  • 1x Capacitive Soil Moisture Sensor
  • 1x Analog Sensor Cable
