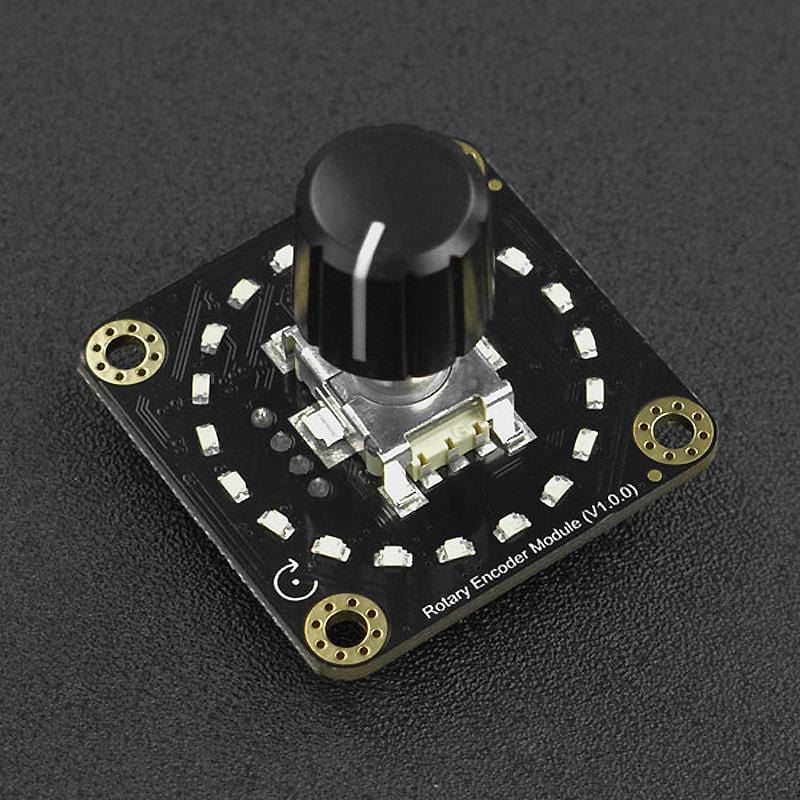

Gravity: 360 Degree Rotary Encoder Module

DFRobotSKU: SEN0502
Price:
Sale price £9.50
incl. VAT
excl. VAT
Stock:
Only 4 units left
Quantity:

Awesome Extras

DFRduino Uno R3 - The Pi HutDFRduino Uno R3 - The Pi Hut
DFRobotDFRduino Uno R3
Sale price £16 incl. VAT excl. VAT
The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi HutThe Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut
NeoPixel Ring - 12 x 5050 RGB LED with Integrated DriversNeoPixel Ring - 12 x 5050 RGB LED with Integrated Drivers

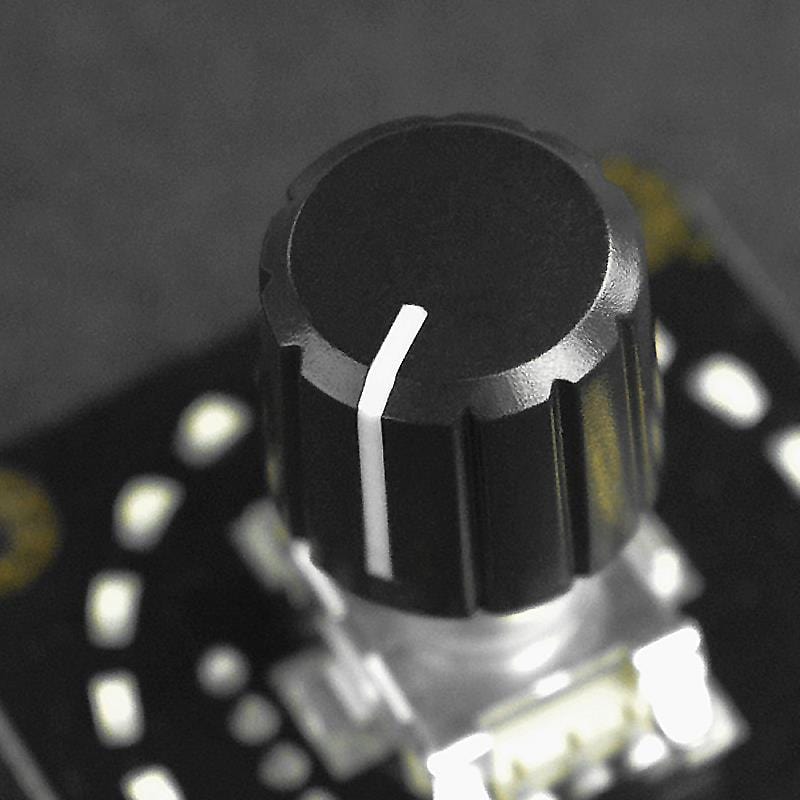

This looks like a potentiometer, but it’s actually an encoder switch!

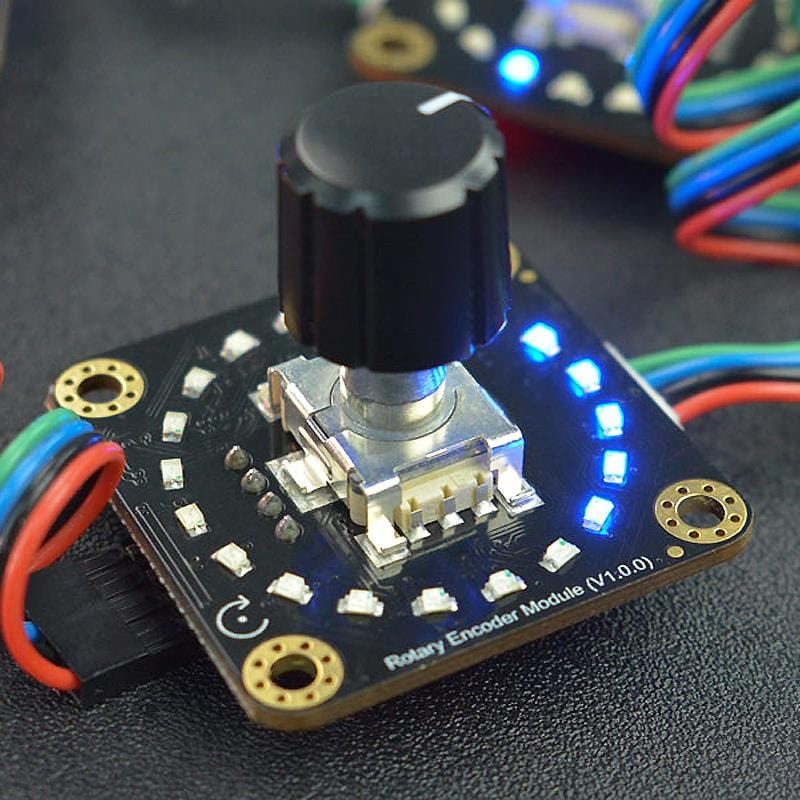

It's a cascadable 360 ° rotary encoder switch with 20 pulses per revolution, and each pulse corresponds to a detent. There are LED lights set for each detent to allow users visually check the real-time status of the encoder.

For ease of use, the module is designed with I2C data output and configurable accuracy within 1~51 for every detent (set in the program). For instance, when it is set to 1, turn on one LED light by rotating 2.5 revolutions; when set to 51, then one LED light can be switched on by rotating one detent.

In order to apply to more scenarios, the encoder is equipped with a cascade function that enables the control of multiple output devices by occupying only one I2C interface, such as, simultaneously controlling light brightness, colour, volume, speed etc.

Example Diagram (Control RGB LEDs using three encoders)

Features

  • Pluggable cascade
  • I2C Data output, forward to increase, reverse to decrease
  • Onboard LED detent indicator

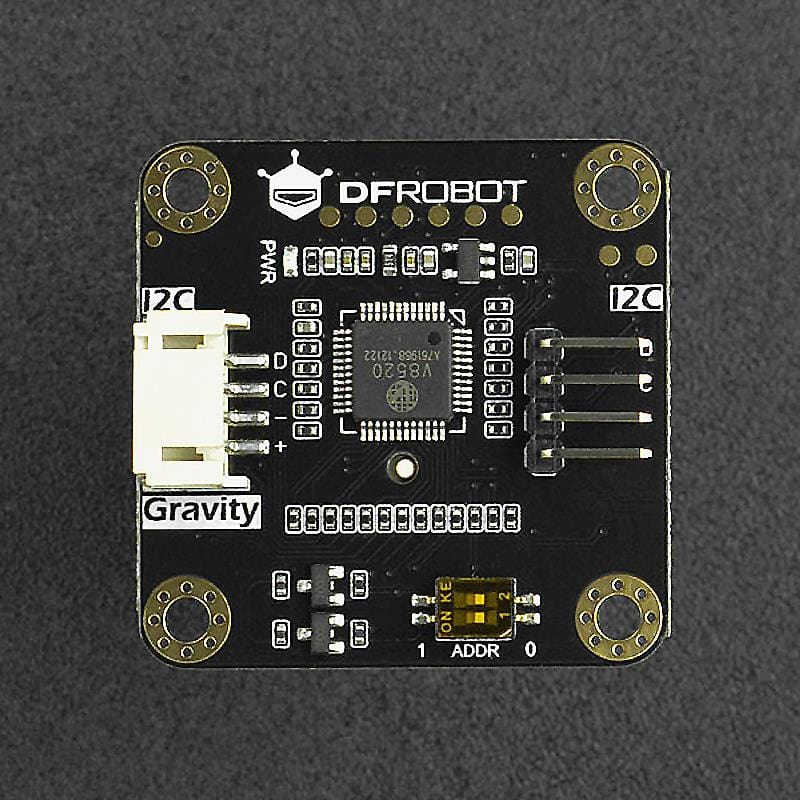

  • Allows setting 4 different I2C addresses by address switch

Specifications

  • Operating Voltage: 3.3V~5V
  • Total Rotating Angle: 360°
  • Pulses Per Revolution: 20
  • Interface: two Gravity connectors; I2C
  • Cascadable Device Number: 4
  • Rotation Lifespan: 30000±200 Cycles
  • Contact Resistance: ≤100mΩ
  • Insulation Impedance: 100MΩ above
  • Oscillation: <10ms press
  • Operating Temperature: -30℃~+80℃
  • Accuracy: 1~51
  • Minimum Settable Value: 1(Light up one LED when rotating 2.5 turns)
  • Maximum Settable Value: 51(Light up one LED when rotating 1 detent)
  • Storage: 0~1023

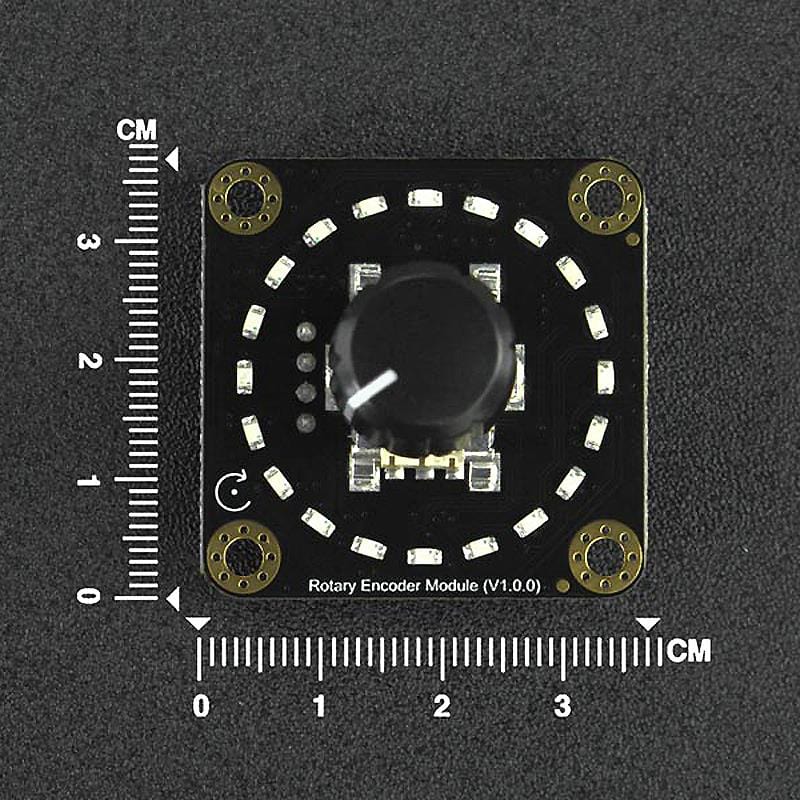

  • Dimension: 37*37mm/1.46*1.46”

Resources

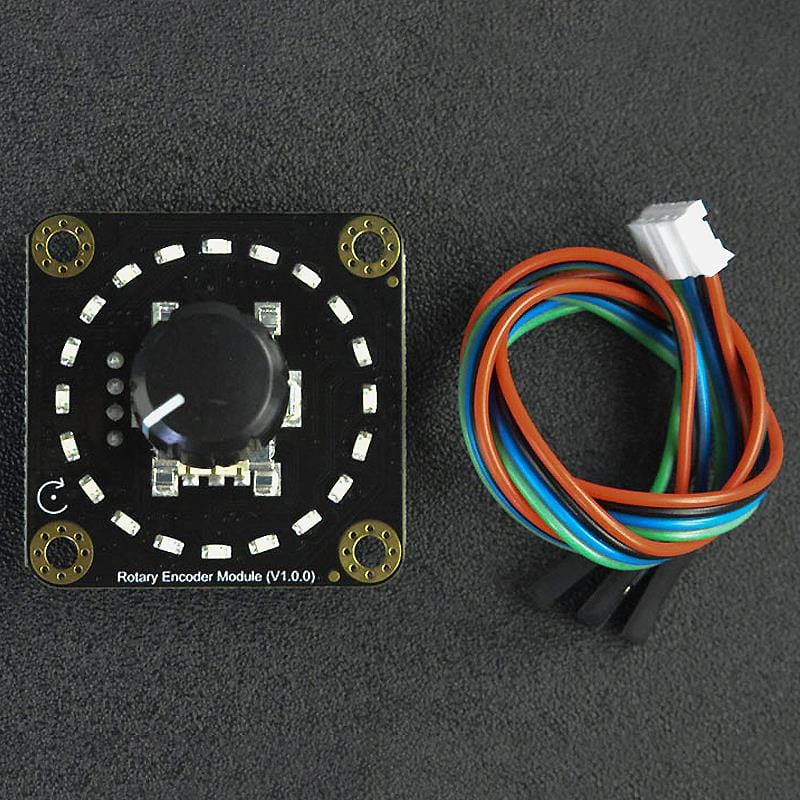

Package Contents

  • 1x Gravity: Rotary Encoder Module
  • 1x Gravity I2C/UART Sensor Connector
