Google Coral Dev Board Mini

GoogleSKU: 104063
(1 Reviews)
Price:
Sale price £102
incl. VAT
excl. VAT
Stock:
Only 2 units left
Quantity:

Awesome Extras

(7 Reviews)
The Pi HutUniversal USB-C Power Supply - 5.1V 3A
Sale price £9 incl. VAT excl. VAT
(8 Reviews)
The Pi HutUSB to USB-C Cable - Black
Sale priceFrom £4 incl. VAT excl. VAT
GoogleGoogle Coral Camera
Sale price £19.50 incl. VAT excl. VAT

A development board to quickly prototype on-device ML products.

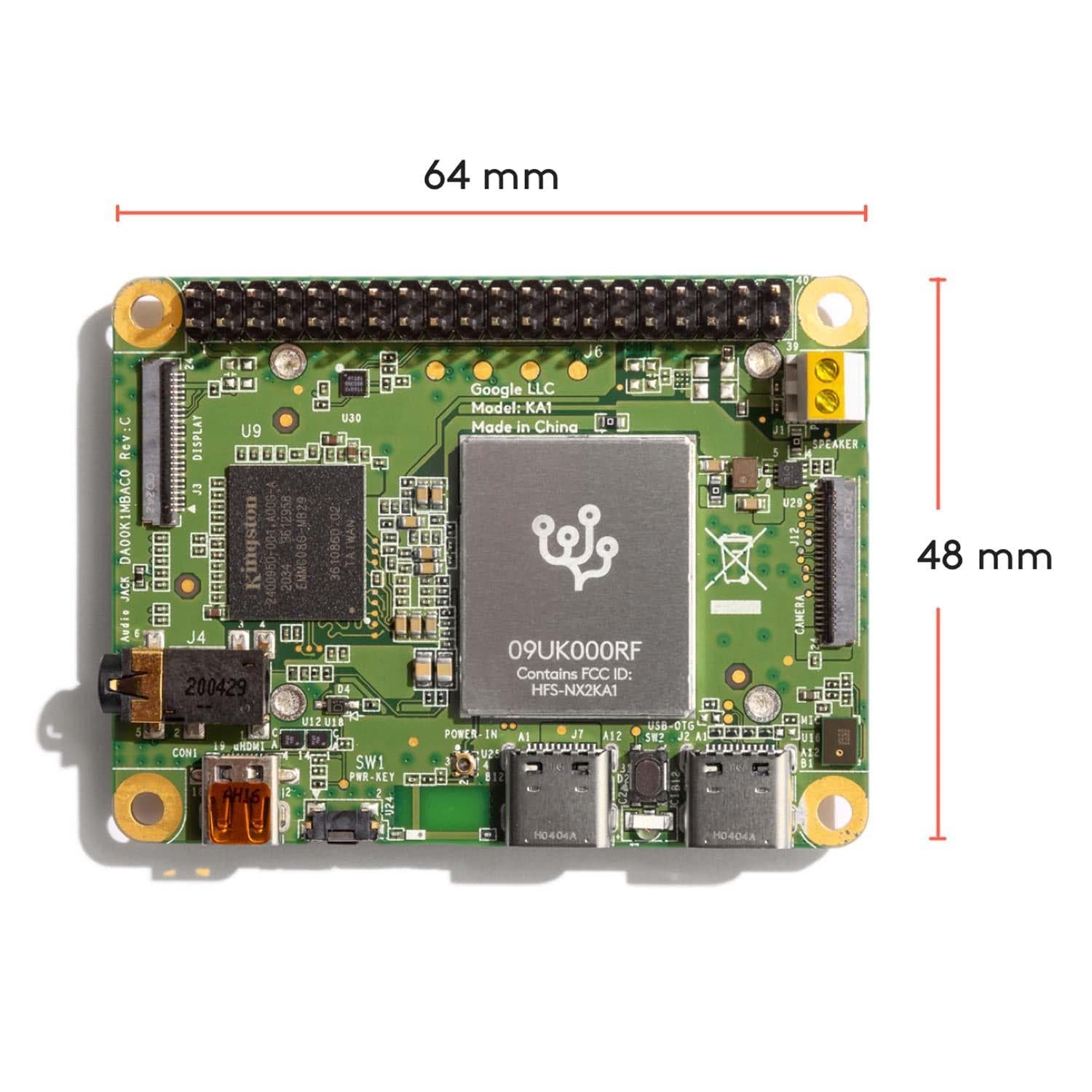

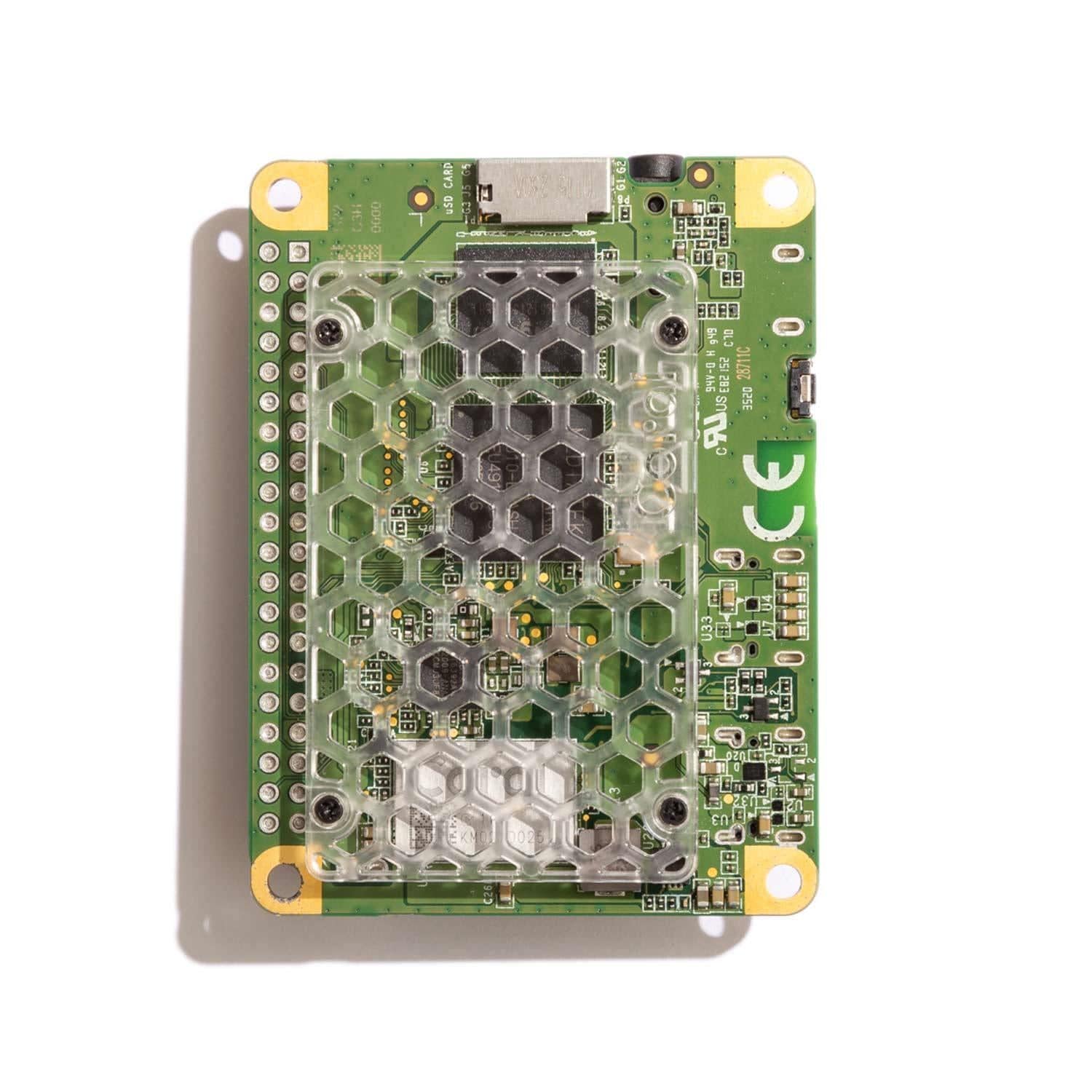

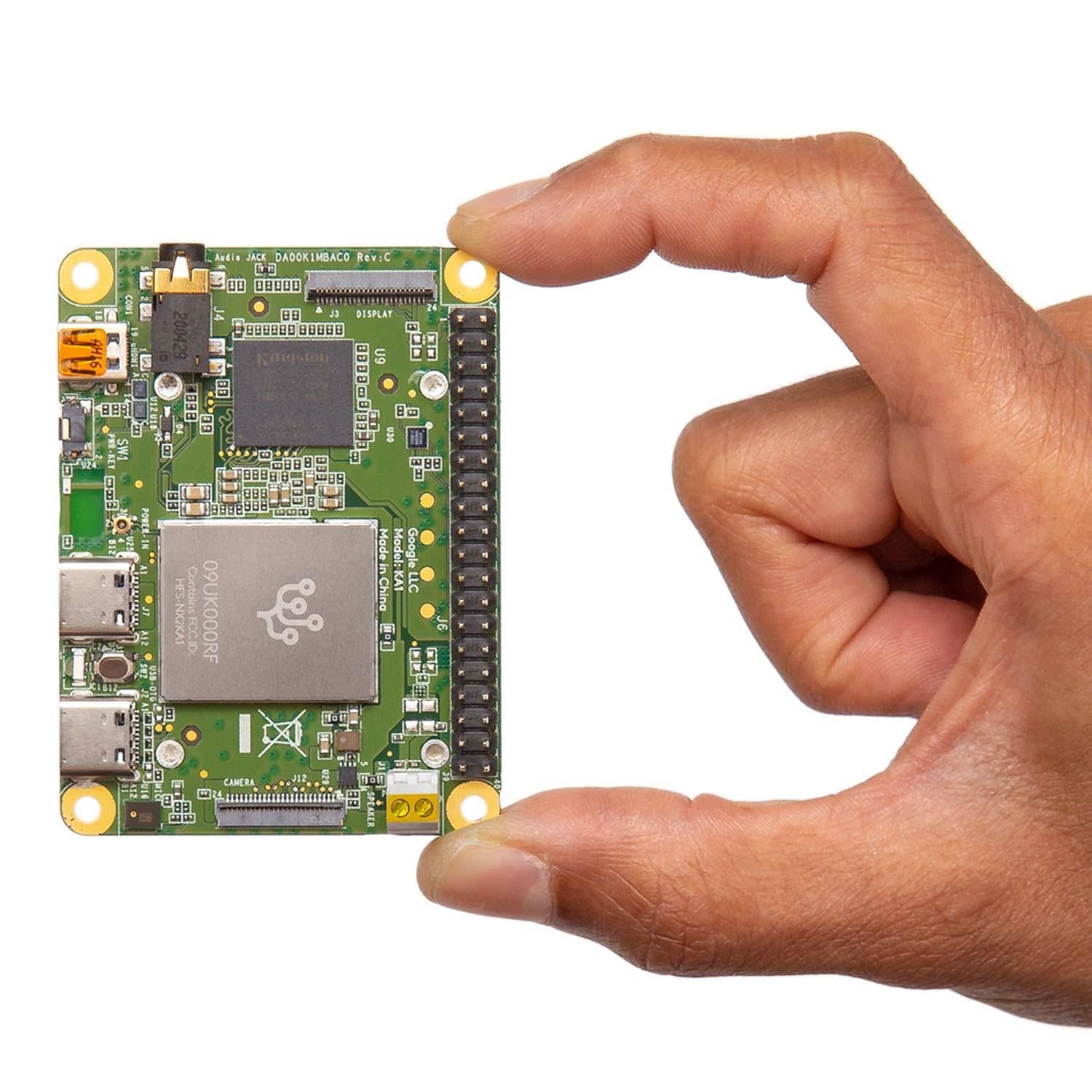

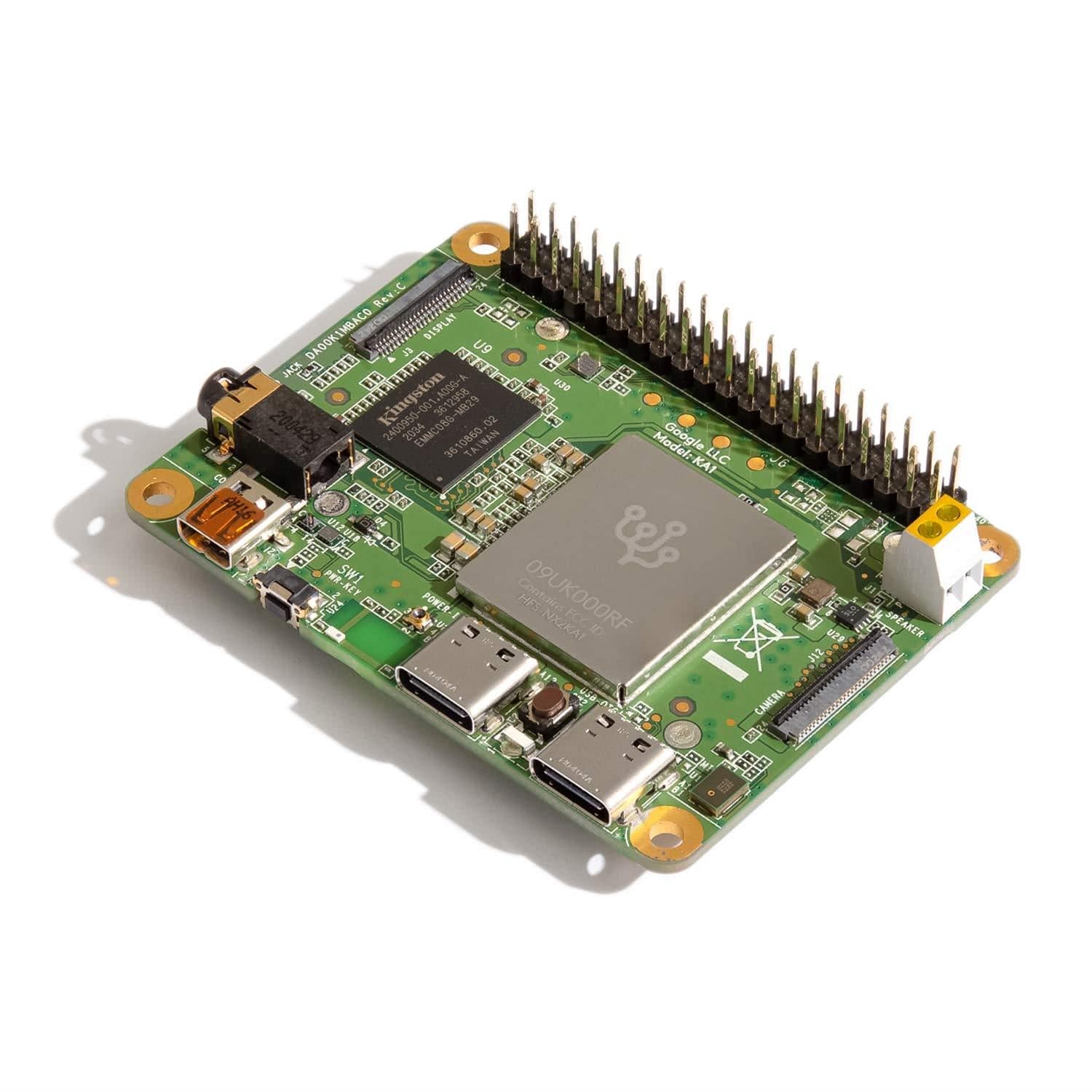

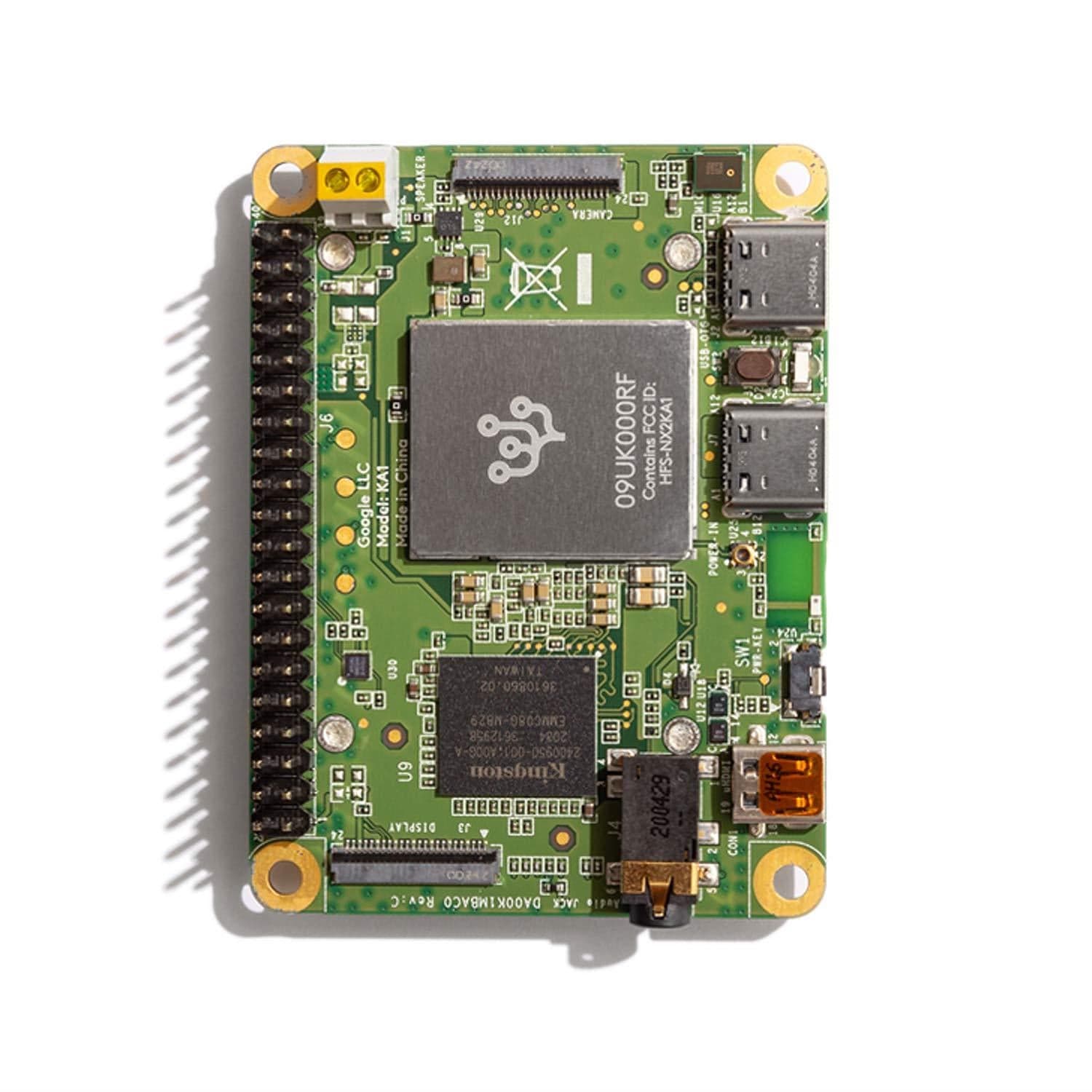

The Google Coral Dev Board Mini is a single-board computer that provides fast machine learning (ML) inferencing in a small form factor. It's primarily designed as an evaluation device for the Accelerator Module (a surface-mounted module that provides the Edge TPU), but it's also a fully-functional embedded system you can use for various on-device ML projects.

A camera module designed specifically for the Google Coral range is available here.

Performs high-speed ML inferencing

The on-board Edge TPU coprocessor is capable of performing 4 trillion operations (tera-operations) per second (TOPS), using 0.5 watts for each TOPS (2 TOPS per watt). For example, it can execute state-of-the-art mobile vision models such as MobileNet v2 at almost 400 FPS, in a power efficient manner. See more performance benchmarks.

Provides a complete system

A single-board computer with SoC + ML + wireless connectivity, all on the board running a derivative of Debian Linux we call Mendel, so you can run your favorite Linux tools with this board.

Supports TensorFlow Lite

No need to build models from the ground up. TensorFlow Lite models can be compiled to run on the Edge TPU.

Supports AutoML Vision Edge

Easily build and deploy fast, high-accuracy custom image classification models to your device with AutoML Vision Edge.

Specifications

CPU MediaTek 8167s SoC (Quad-core Arm Cortex-A35)
GPU IMG PowerVR GE8300 (integrated in SoC)
ML accelerator Google Edge TPU coprocessor:
4 TOPS (int8); 2 TOPS per watt
RAM 2 GB LPDDR3
Flash memory 8 GB eMMC
Wireless Wi-Fi 5 (802.11a/b/g/n/ac); Bluetooth 5.0
Audio/video 3.5mm audio jack; digital PDM microphone; 2.54mm 2-pin speaker terminal; micro HDMI (1.4); 24-pin FFC connector for MIPI-CSI2 camera (4-lane); 24-pin FFC connector for MIPI-DSI display (4-lane)
Input/output 40-pin GPIO header; 2x USB Type-C (USB 2.0)
