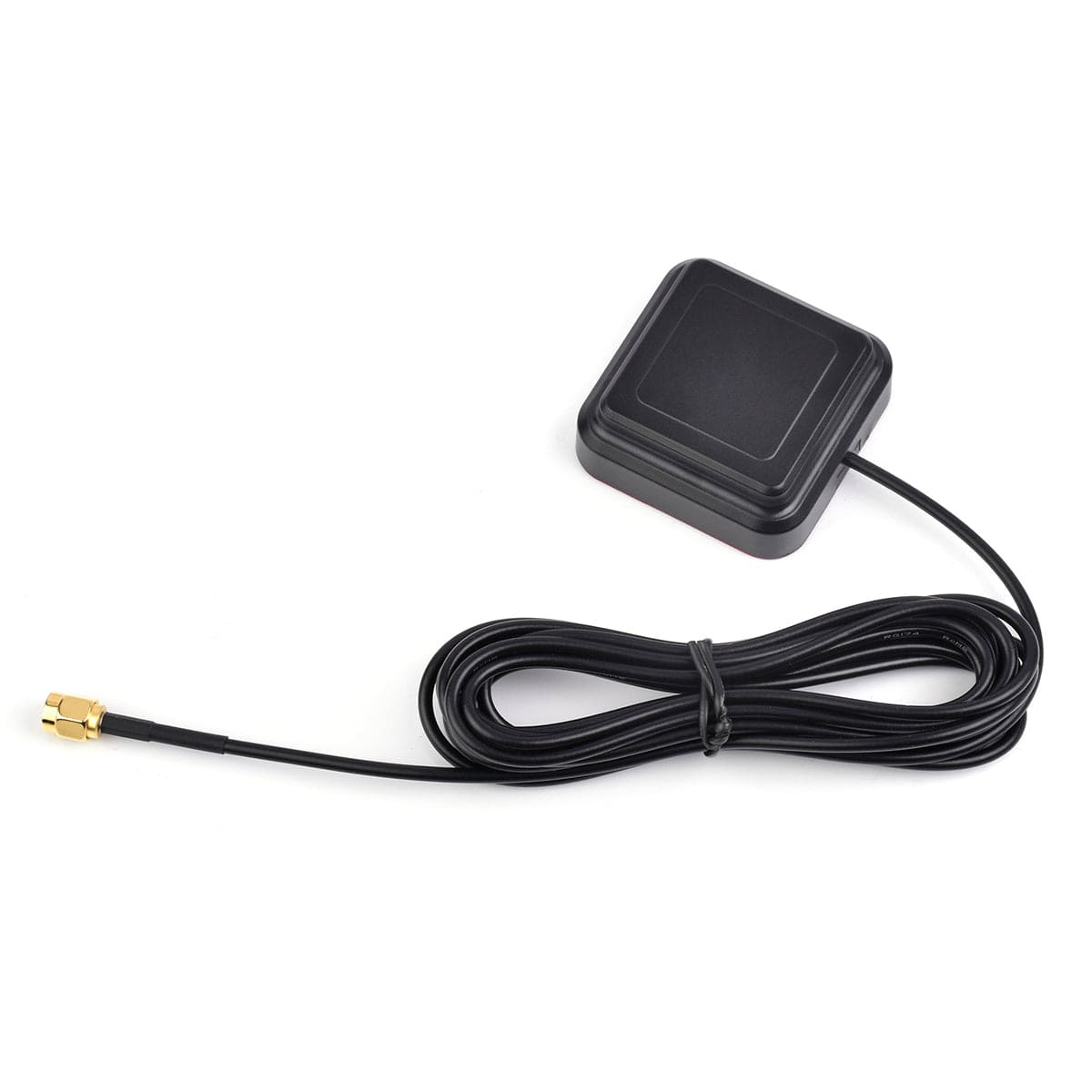

GNSS L1+L5 Dual-Frequency Active Antenna

WaveshareSKU: WAV-25346
Price:
Sale price £16.10
incl. VAT
excl. VAT
Stock:
Only 9 units left
Quantity:

Awesome Extras

Raspberry PiRaspberry Pi 5
Sale priceFrom £57.60 incl. VAT excl. VAT
Coming Soon
WaveshareLC29H(AA) GPS HAT for Raspberry Pi
Sale price £37.90 incl. VAT excl. VAT
The Pi HutSMA to uFL/u.FL/IPX/IPEX RF Adapter Cable
Sale price £3.40 incl. VAT excl. VAT

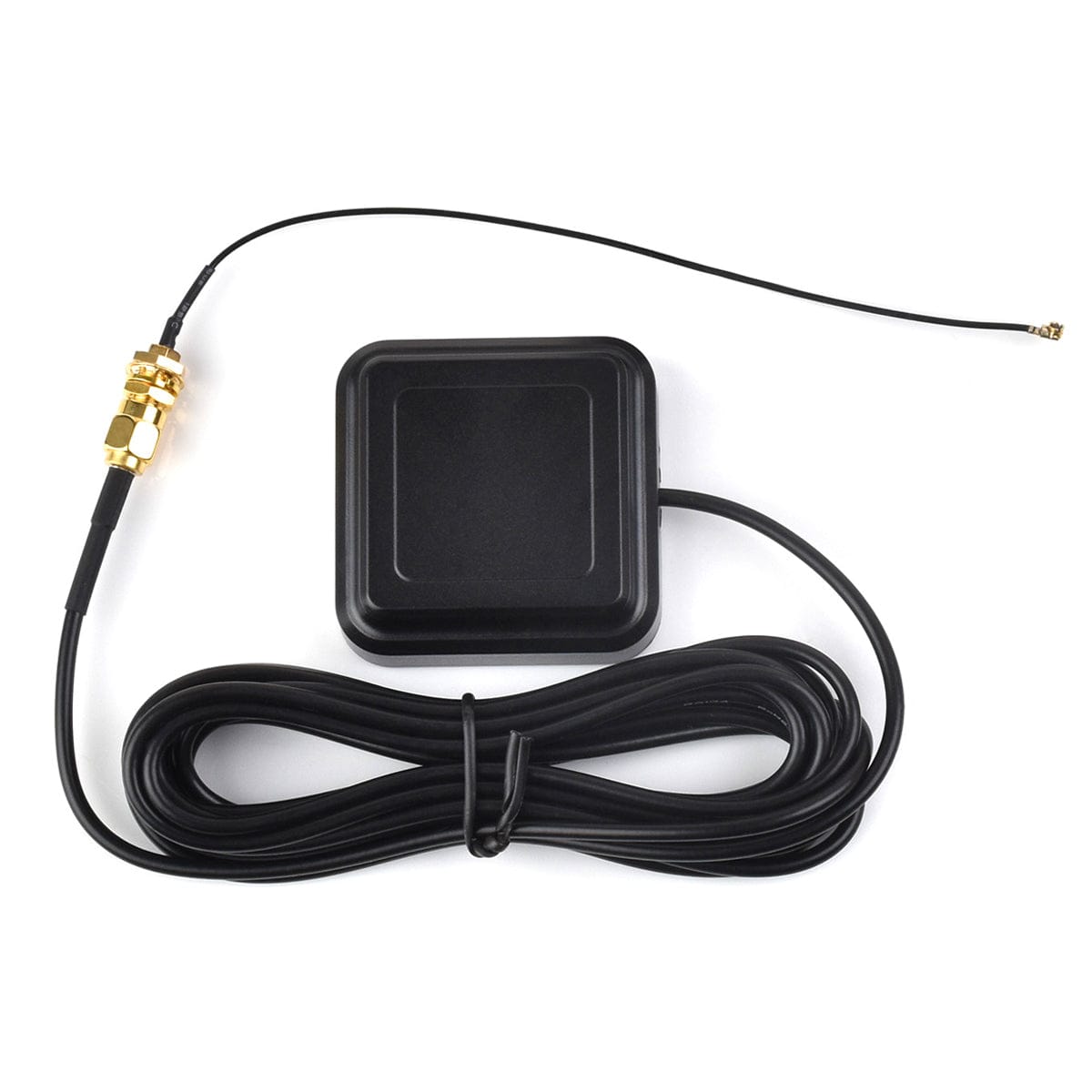

This SMA-J dual-frequency antenna supports dual-frequency GNSS on L1 and L5 bands and is compatible with multiple positioning systems including Beidou (BD), GPS, Galileo, QZSS, and IRNSS. It is ideal for improving the accuracy of navigation and tracking systems, and it offers a magnetic base for easy mounting and a high gain for improved signal reliability.

Note: Raspberry Pi board and GPS HAT are NOT included

Specifications

Frequency Range BDS B1I/B1C/B2a
GPS L1/L1C/L5C
GALILEO E1/E5a
QZSS L5
IRNSS S-L5
LNA Gain 28±2dB
Gain 2dBi
VSWR ≤2.0
Output Impedance 50Ω
Working Current ≤20mA
Working Voltage DC 3.0~18.0V
Axial Ratio ≤3.0dB
Noise Figure ≤2dB
Phase Center Error ±2mm
Polarisation Right-Hand Circular Polarisation
Connector SMA-J

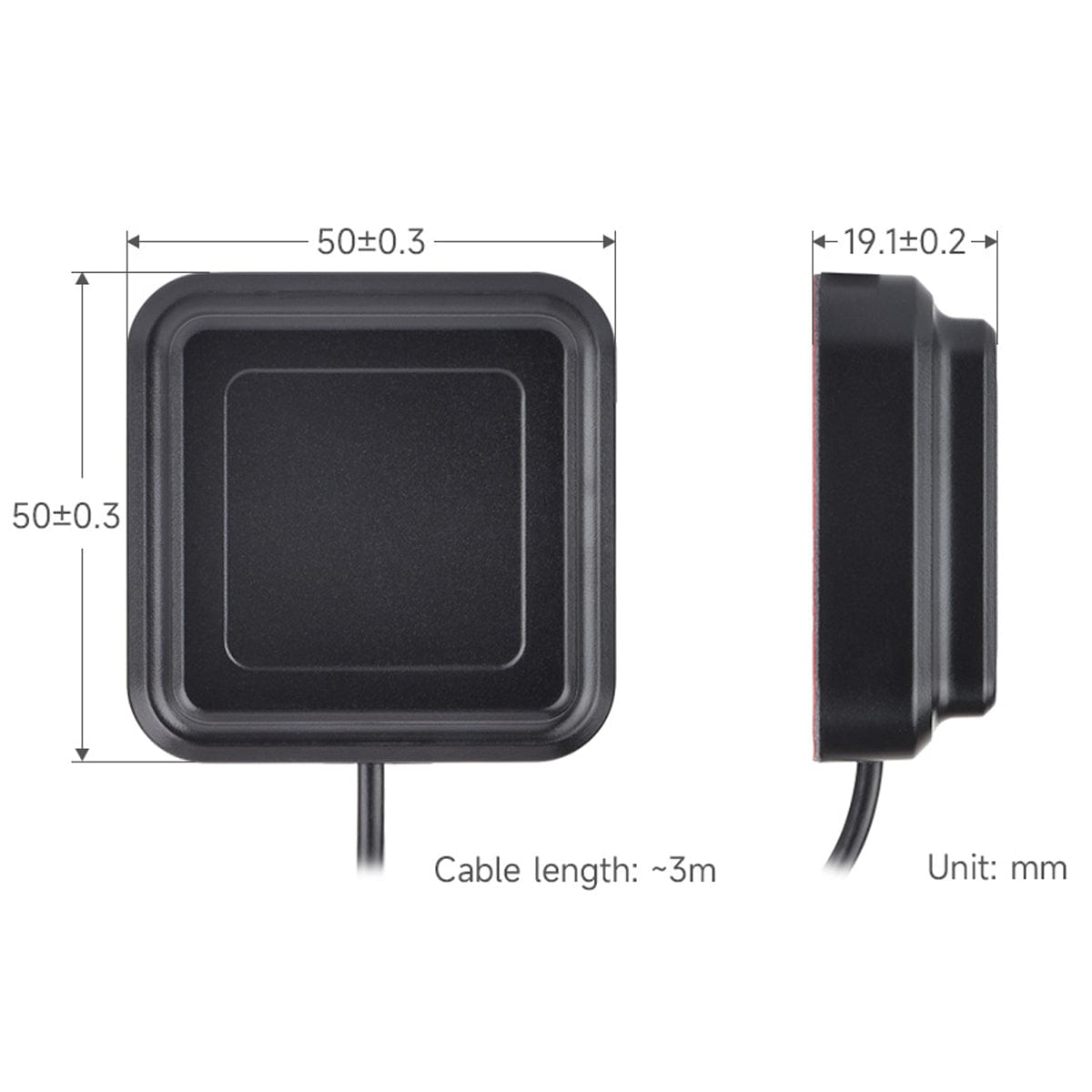

Antenna Size 50.0 x 50.0 x 19.1mm
Cable RG174
Cable Length 3m
Working Temperature -40~85˚C
Storage Temperature -55~85˚C
Mounting Magnetic base/Double-sided tape

Connection Example - Raspberry Pi & GPS HAT

Package Contents

  • 1x GPS External Antenna
