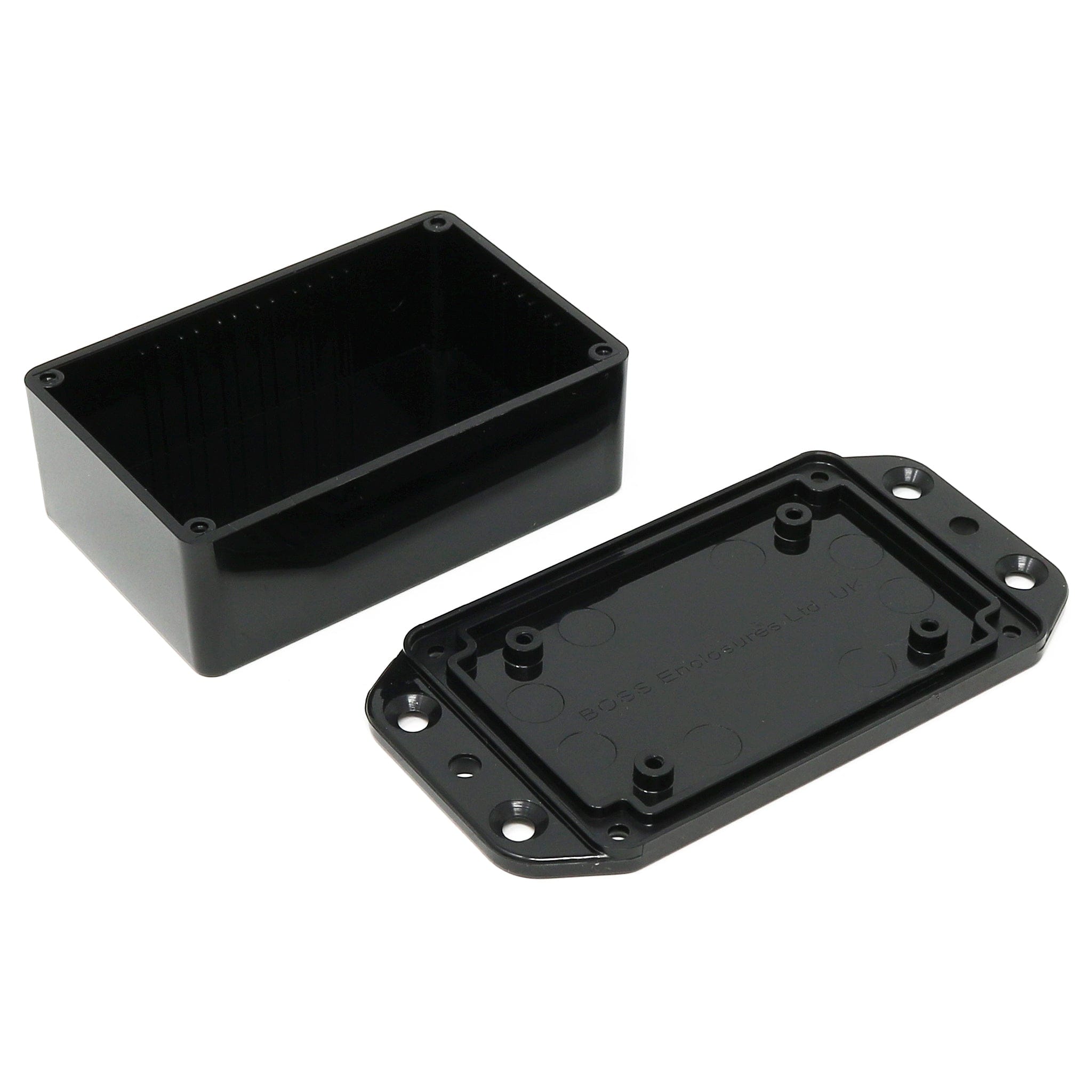

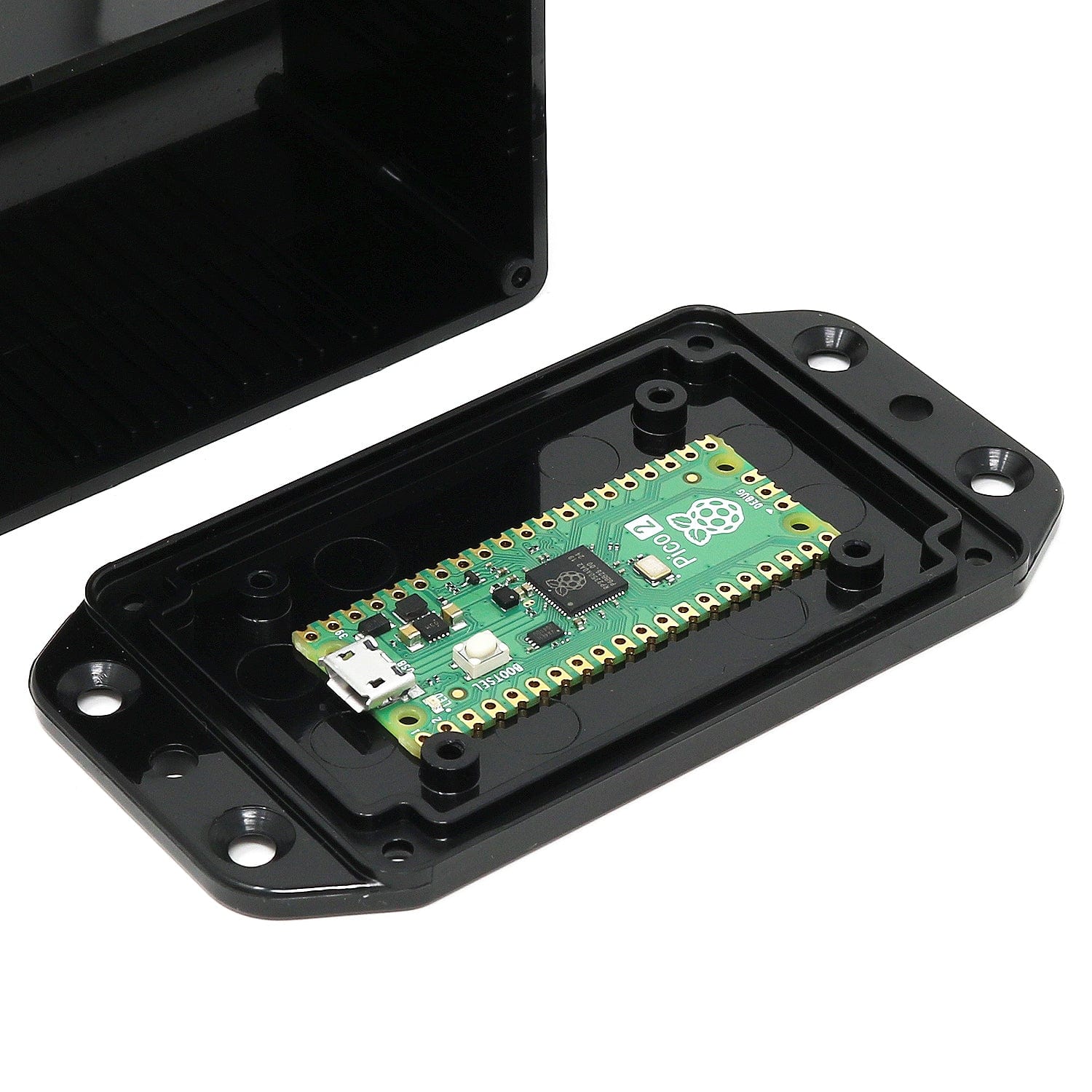

This enclosure is the Camdenboss BIM2000/IP which measures 99mm long, 52mm wide and 28mm high and comes with flanges. If you take a look at the product images, we've included a shot showing the Raspberry Pi Pico 2 to give you a 'real' idea of the size of this project box.
The enclosure is made from high-gloss, high-impact ABS (UL94-HB) which is easy to cut, drill, machine and modify for your project. The enclosure is assembled using four included cross-head screws which drive into the plastic threaded lid, and has been designed to meet the requirements of IP54.
The lid section also includes several integral mounting guides to accept 1.6mm PCBs and the base features PCB standoff mounts - great for those of you making your own PCBs.
