We now stock a new range of general-purpose project enclosures from Camdenboss, offering you a wide range of sizes and styles to fit your project.

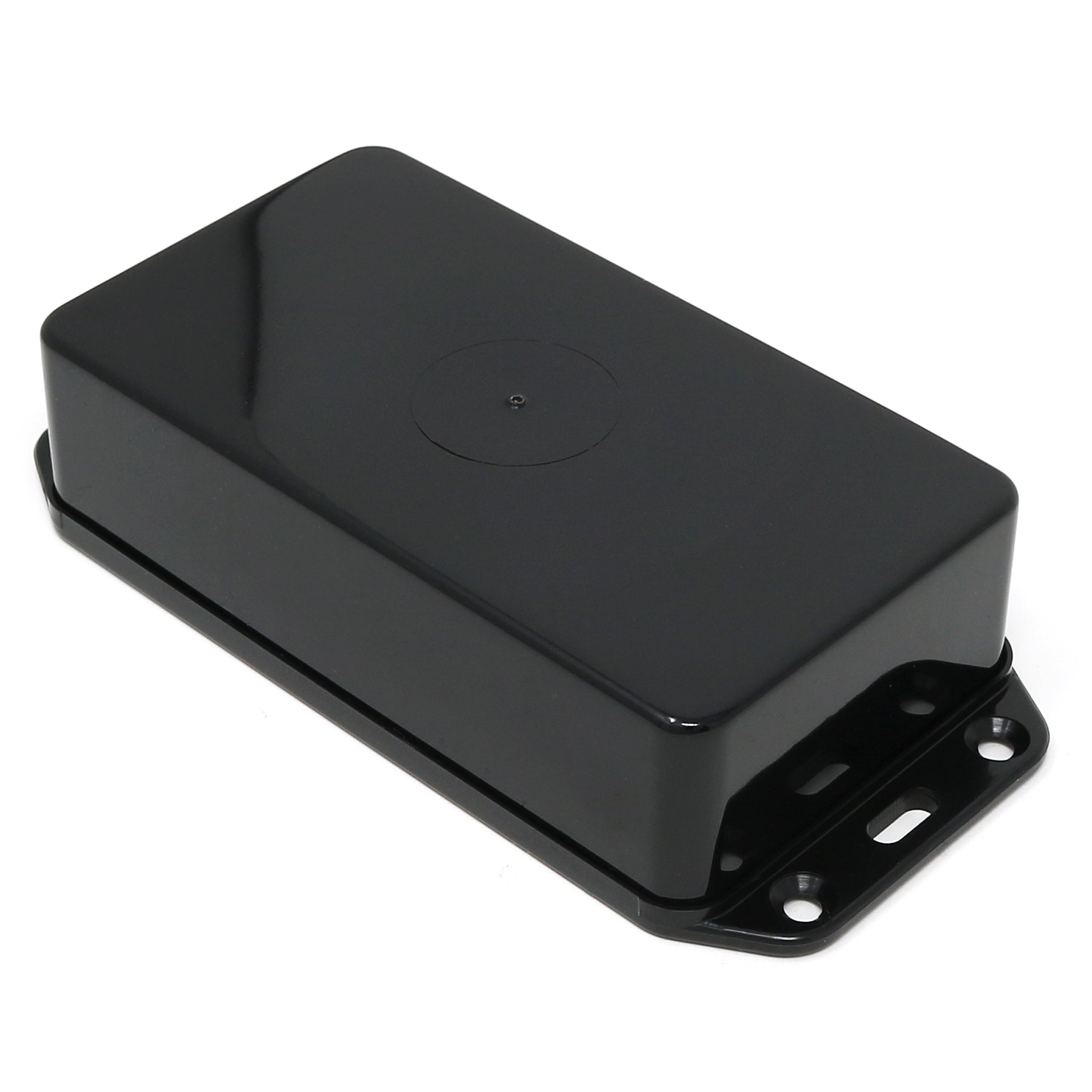

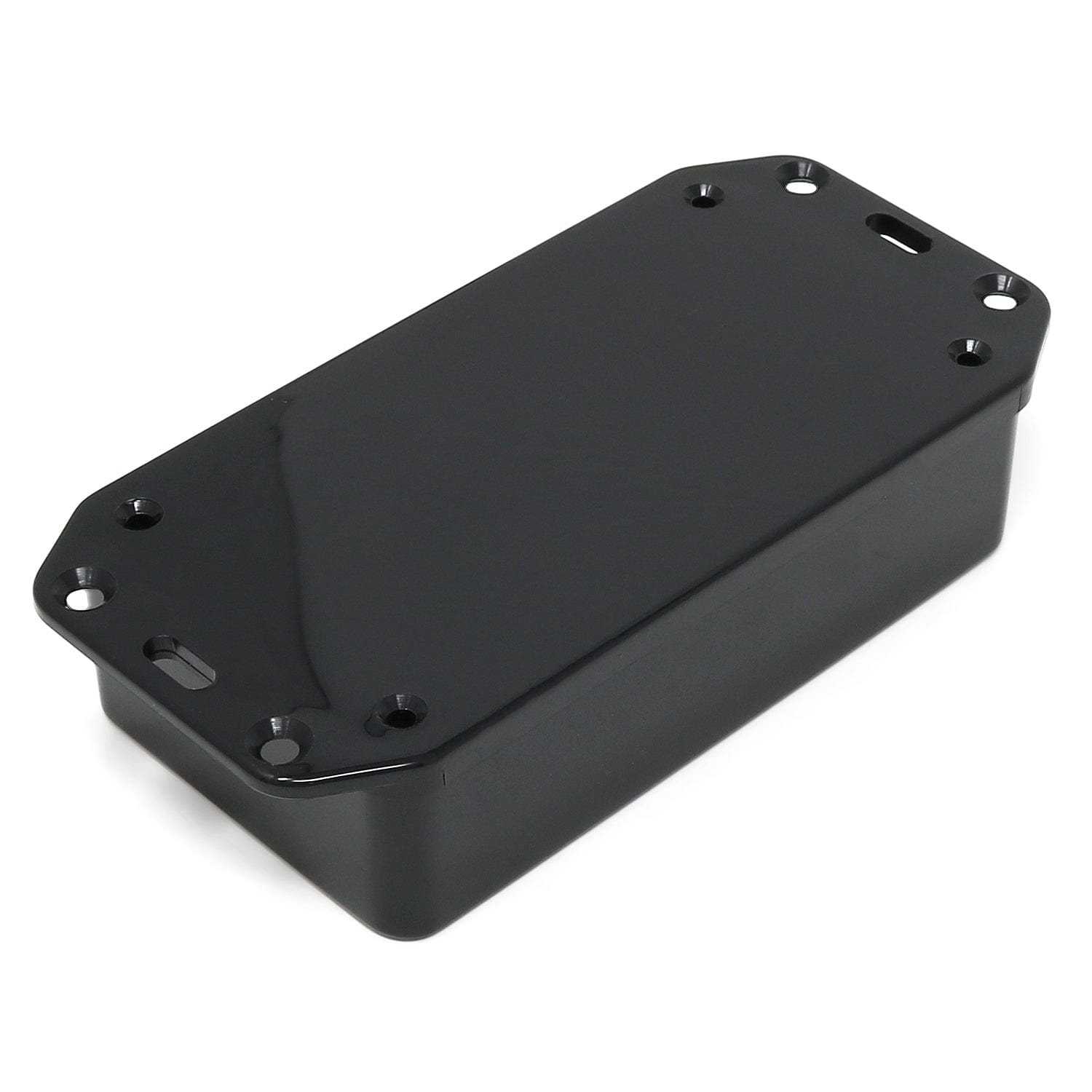

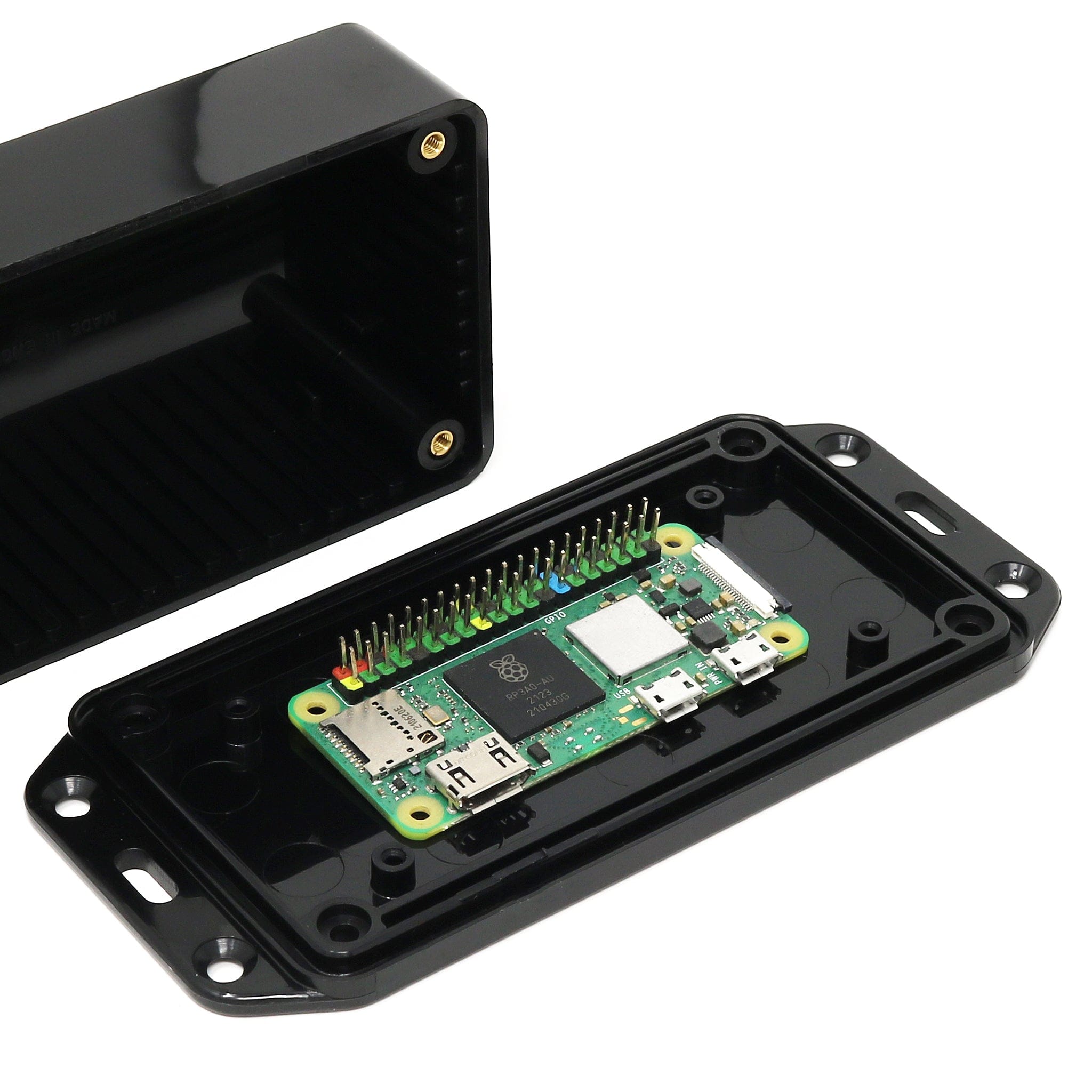

This enclosure is the Camdenboss BIM2003/IP which measures 136mm long, 64mm wide and 32mm high and comes with flanges. If you take a look at the product images, we've included a shot showing the Raspberry Pi Zero 2 to give you a 'real' idea of the size of this project box.

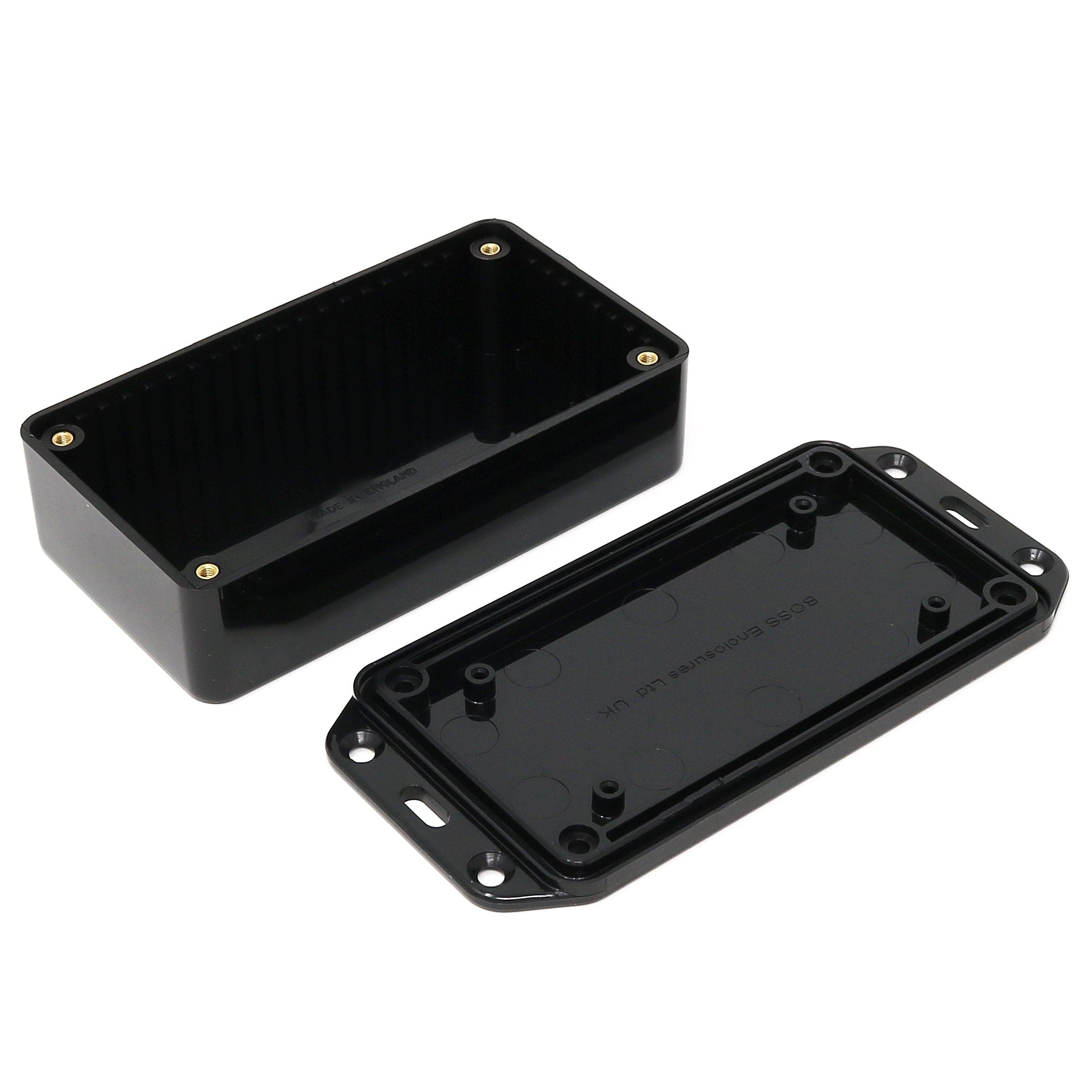

The enclosure is made from high-gloss, high-impact ABS (UL94-HB) which is easy to cut, drill, machine and modify for your project. The enclosure is assembled using four included machine screws which drive into the brass inserts in the lid, and has been designed to meet the requirements of IP54.
The lid section also includes several integral mounting guides to accept 1.6mm PCBs and the base features PCB standoff mounts - great for those of you making your own PCBs.
We also stock a standard version of this enclosure.
