These servos add a splash of colour and fun to your projects, whilst also having building brick compatible mounting points! This model is a continuous servo, meaning it'll keep spinning and spinning until the cows come home (or you turn it off...).

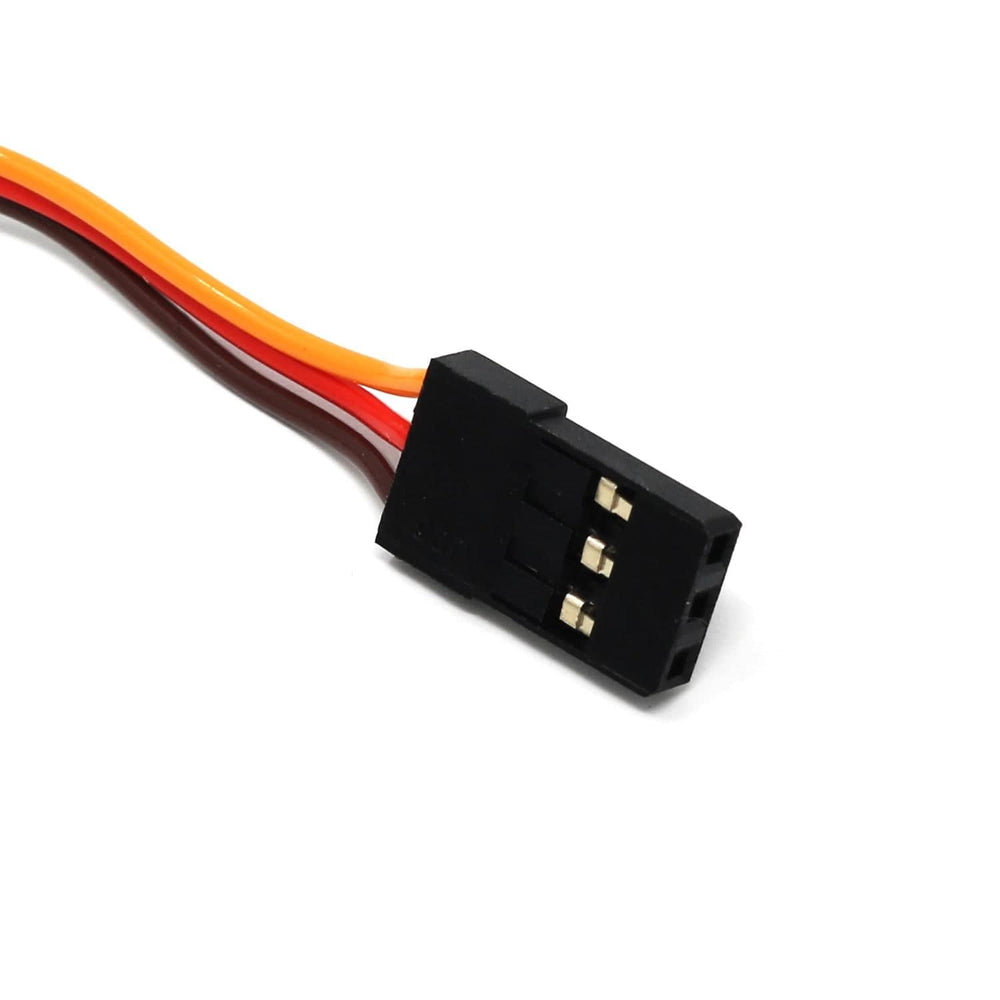

These servos use a traditional 3-pin connection found on almost all servos/servo controllers:
- Brown = GND
- Red = VCC
- Yellow = Signal

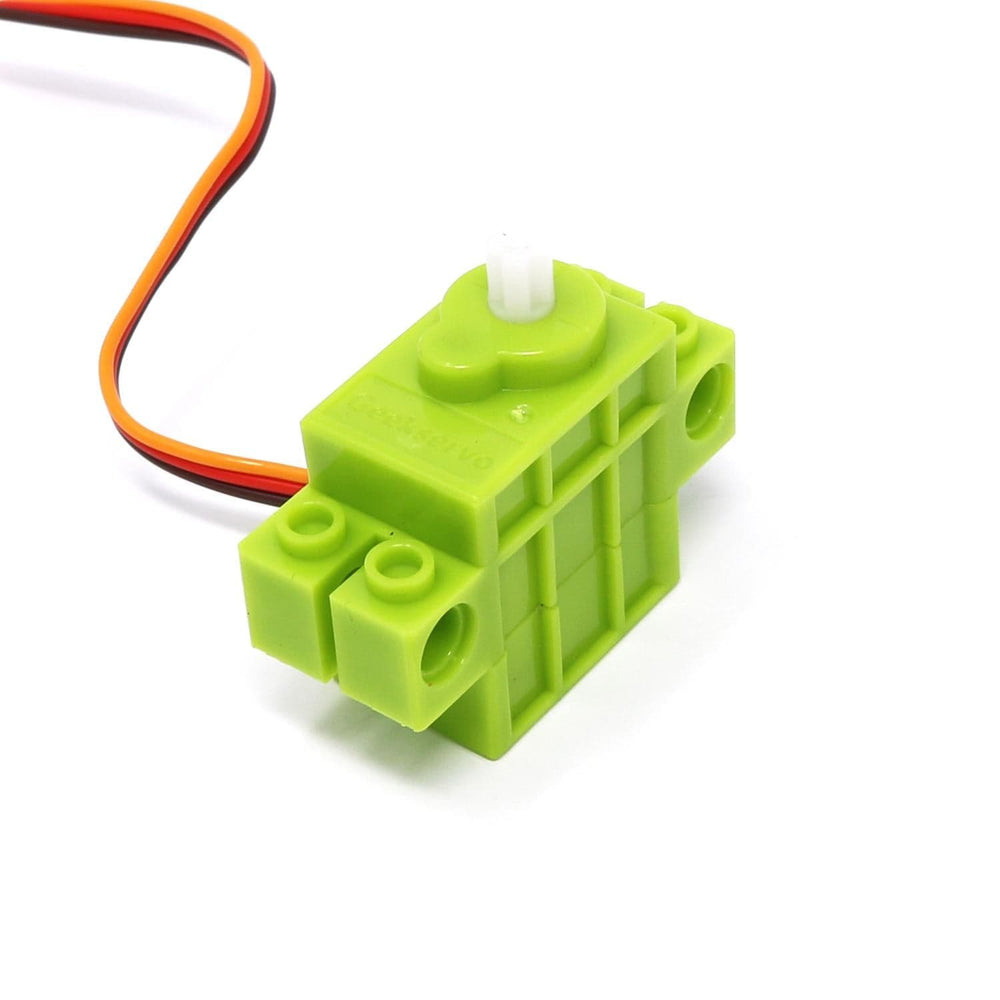

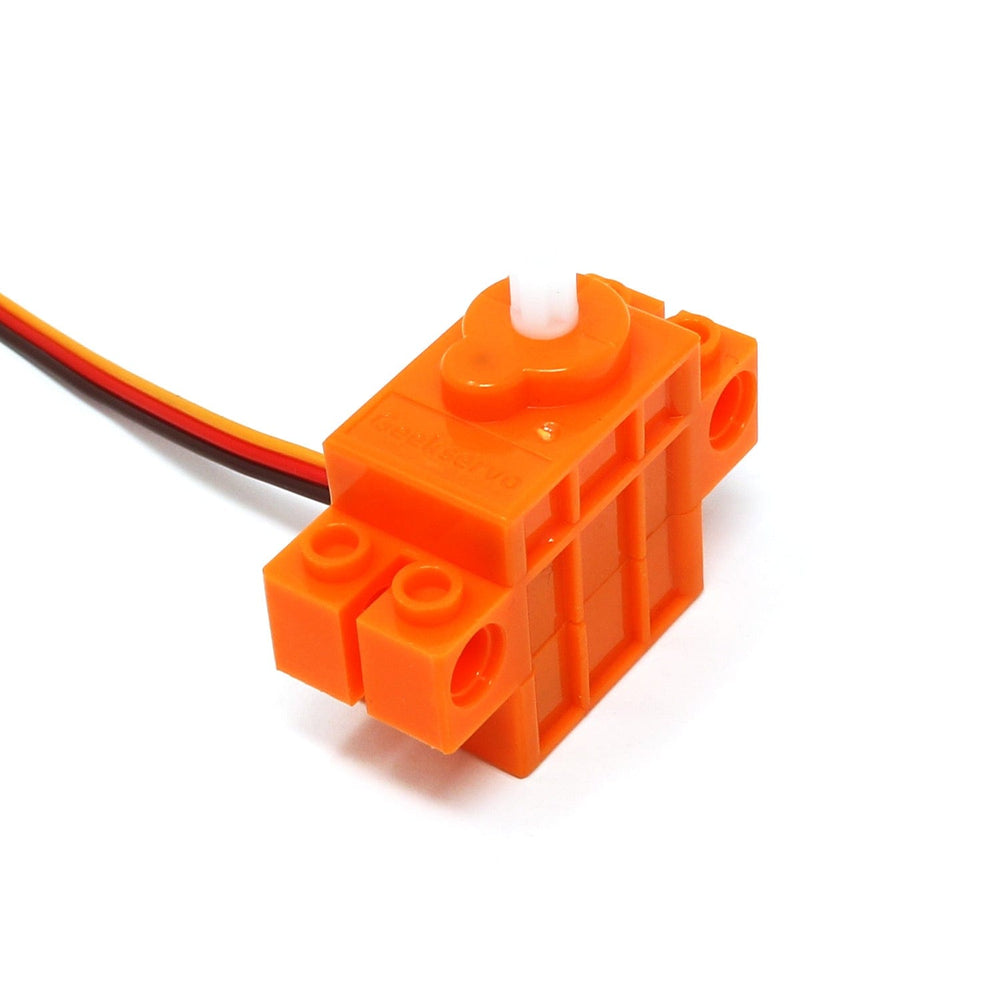

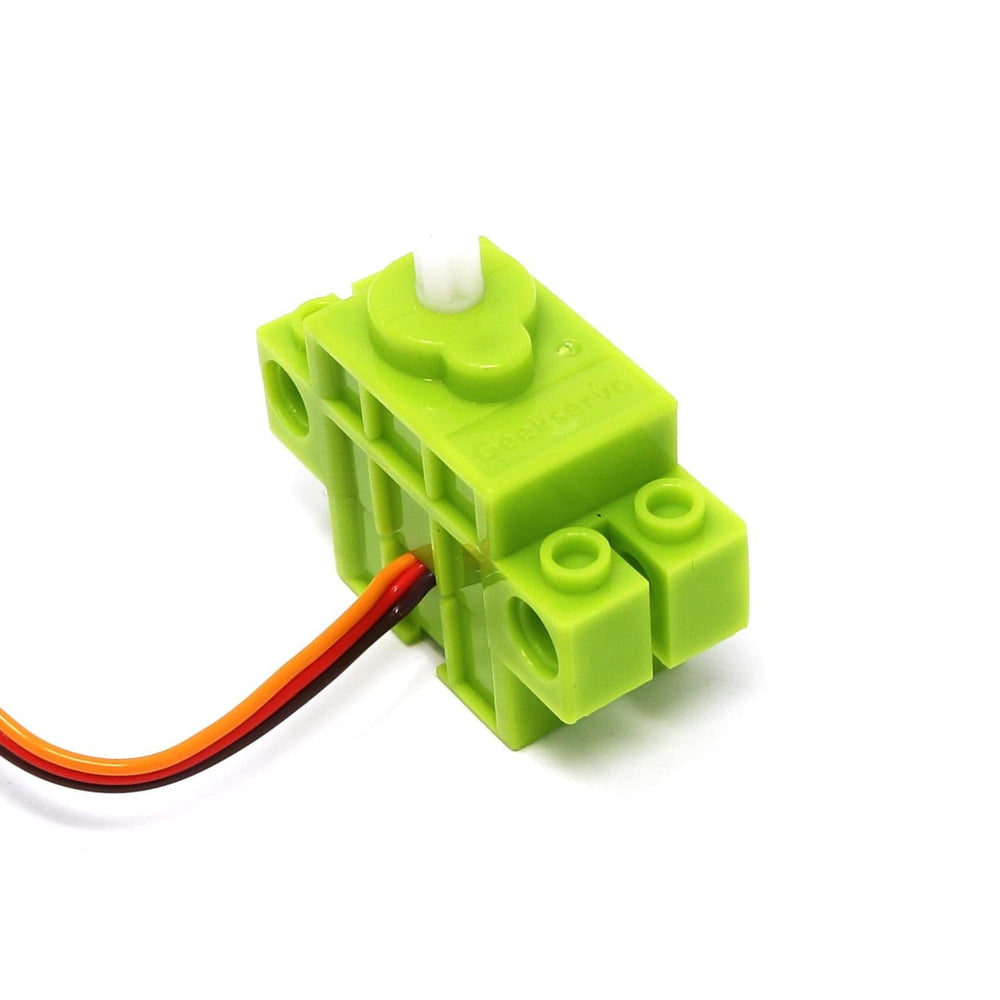

Available in green or orange (select above).
Check out the full range of GeekServo motors and servos here!
Building Brick Compatible!

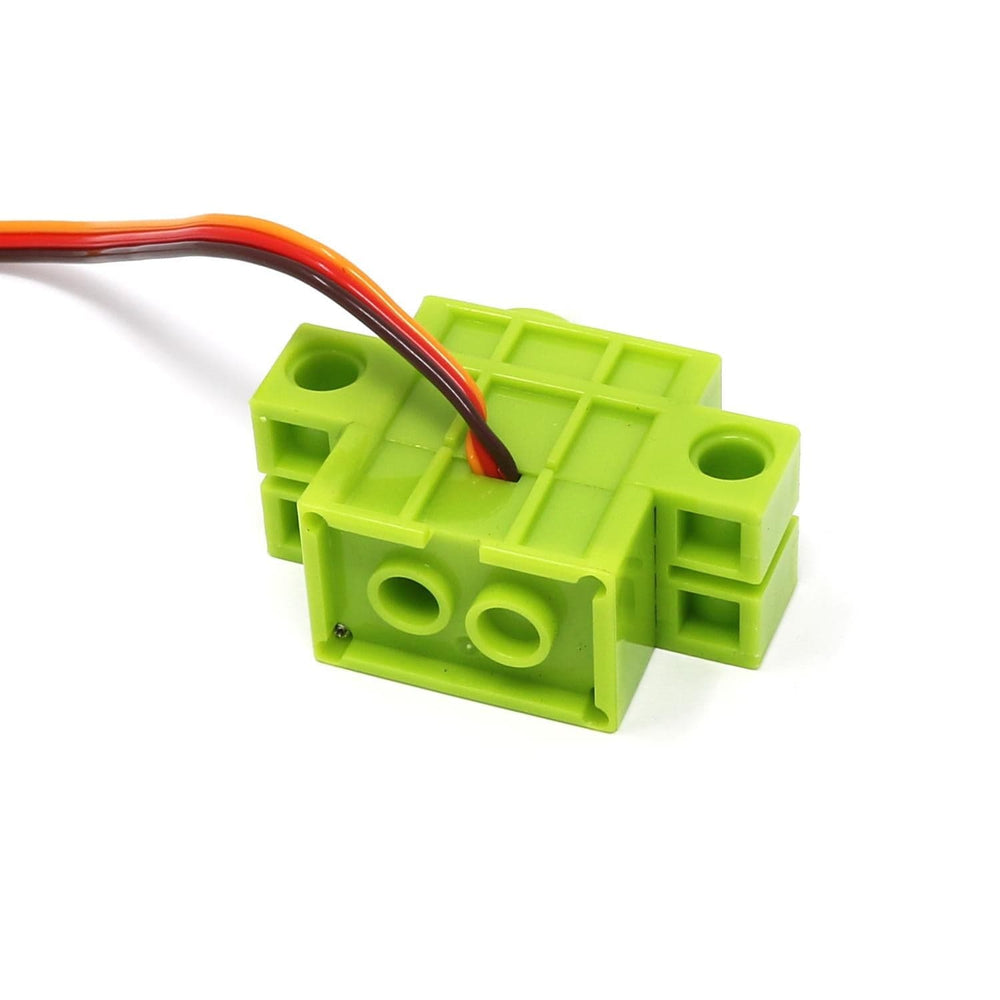

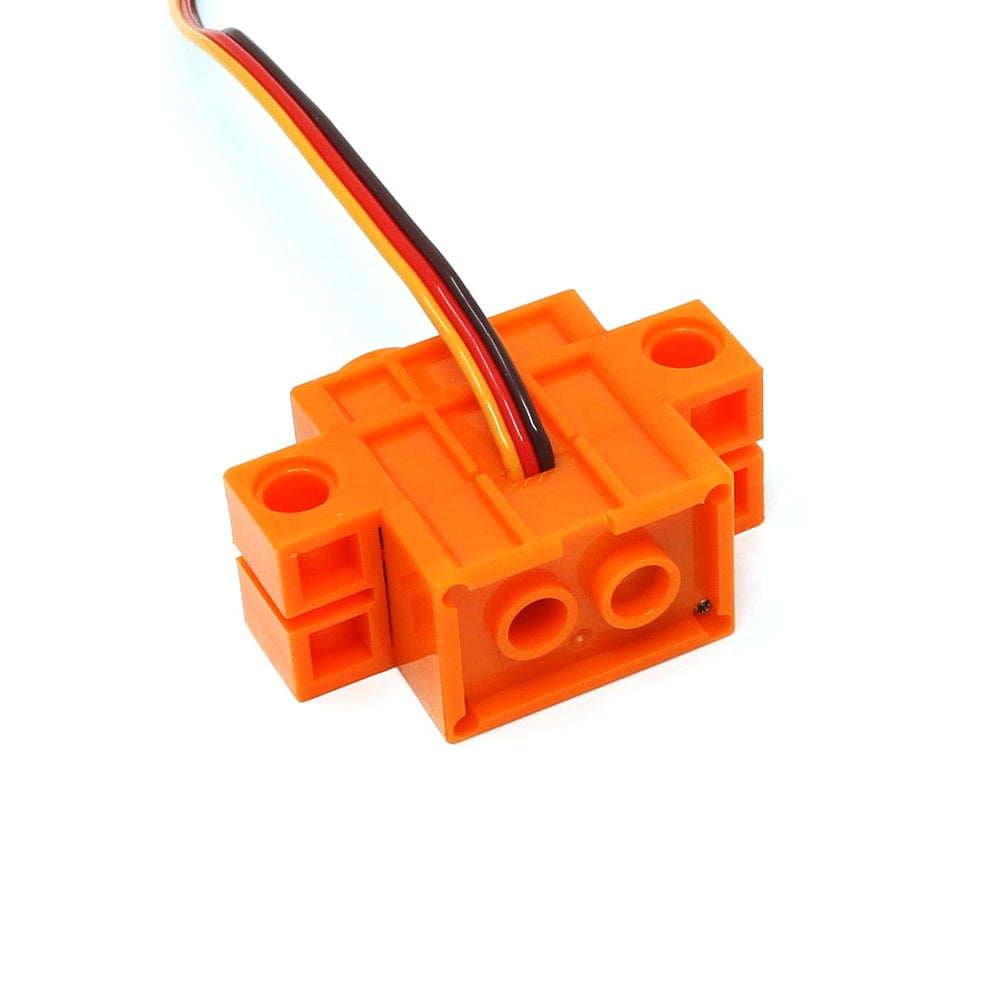

Simply sit the servo side mounts onto the nobbly part of building brick bricks, or lay the servo sideways for side mounting! The servos also have building brick axle mounting holes for a different way to make your project.
These servos don't use standard servo horns, instead, they're rocking a building brick axle fitment meaning you can fit gears, wheels or other compatible axle mount parts!
- Rotation: 360 Degree
- Start Voltage: 2.5V
- Working Voltage: 3.3-6.0V
- Rated Voltage: 4.8V
- Rated Current: 100mA
- Stall Current: 550mA
- Stall Torque (max): 500g.cm
- Colour: Green or Orange (select above)
