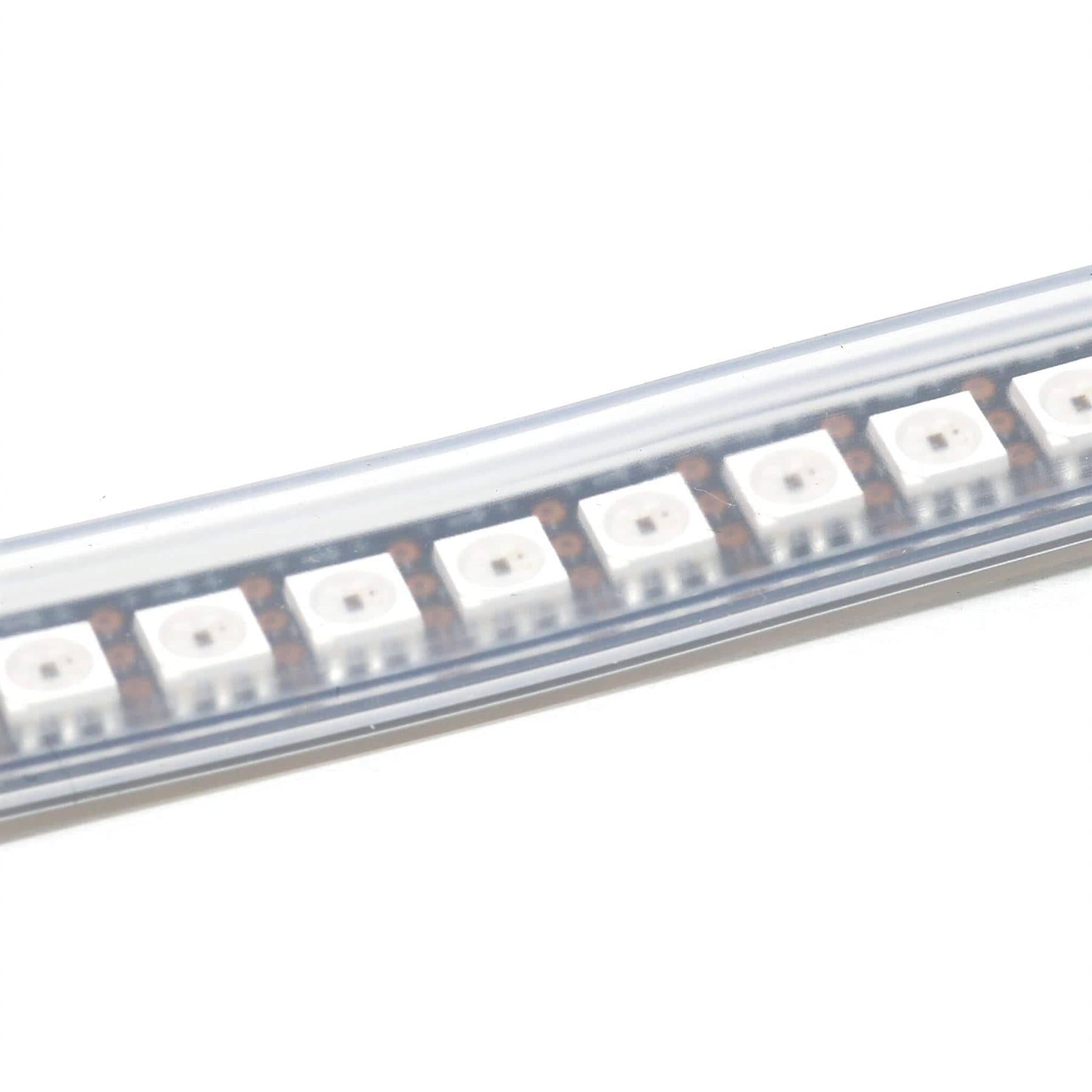

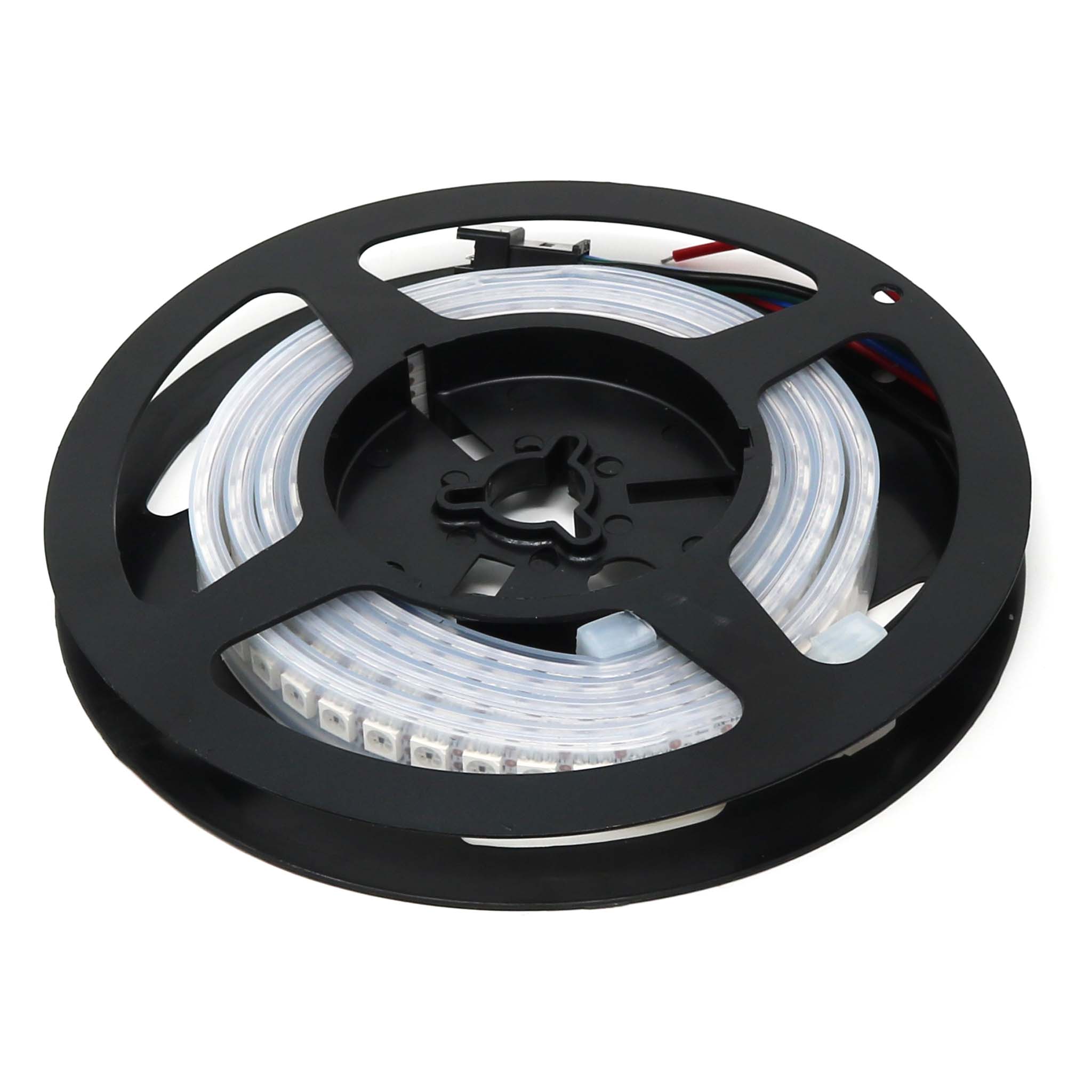

Part of our Illuminate range of LED strips and accessories, these flexible RGB LED strips are packed with no less than 144 RGB LEDs per metre giving you a HUGE amount of blinky for your project! Great for advancing from basic LEDs, learning how to code, lighting projects, art and many many more uses.

They use APA102 LEDs which are the same types used in the popular 'DotStar' range. These work in the exact same way and can be easily controlled using the same libraries, such as the well-established FastLED Arduino library.

The LEDs used in these strips are much more forgiving than WS2801 (the type used in NeoPixels) as they don't have the same fussy timing or pin requirements. Just two pins are needed - one for clock and one for data, making them very easy to get started with.

The strips have a female JST-SM connector and require a 5V power supply. They can consume up to 60mA peak per LED, so using your microcontroller's 5V line isn't going to work well unless you're running a very short strip. We recommend a separate power supply such as our 5V 5A PSU. See the wiring section below for more information.

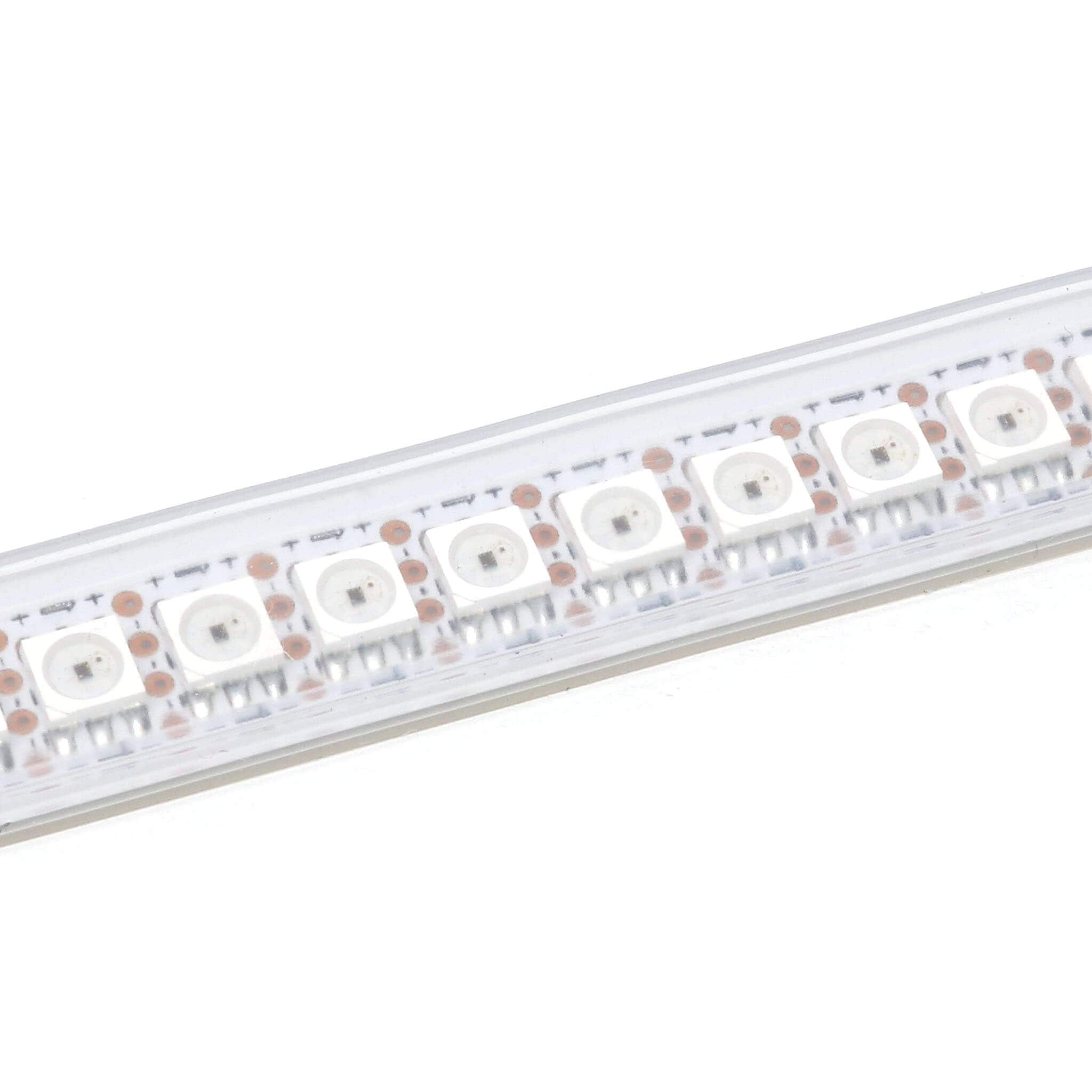

You can cut the flex PCB at the cut lines anywhere on the strip - handy if you want to join multiple strips together with connectors, shorten strips or add your own wiring. When doing this, keep the current requirements mentioned above in mind and be aware that there's only so far you can go before you'll start seeing dimming/brown-out at the end.

Note: The LEDs may sometimes be SK9822 depending on the batch, but they function in the exact same way as APA102 LEDs. We cannot accept returns on modified strips.

Options Available

We have these APA102 LED strips available in 3 versions (select above before adding to cart):

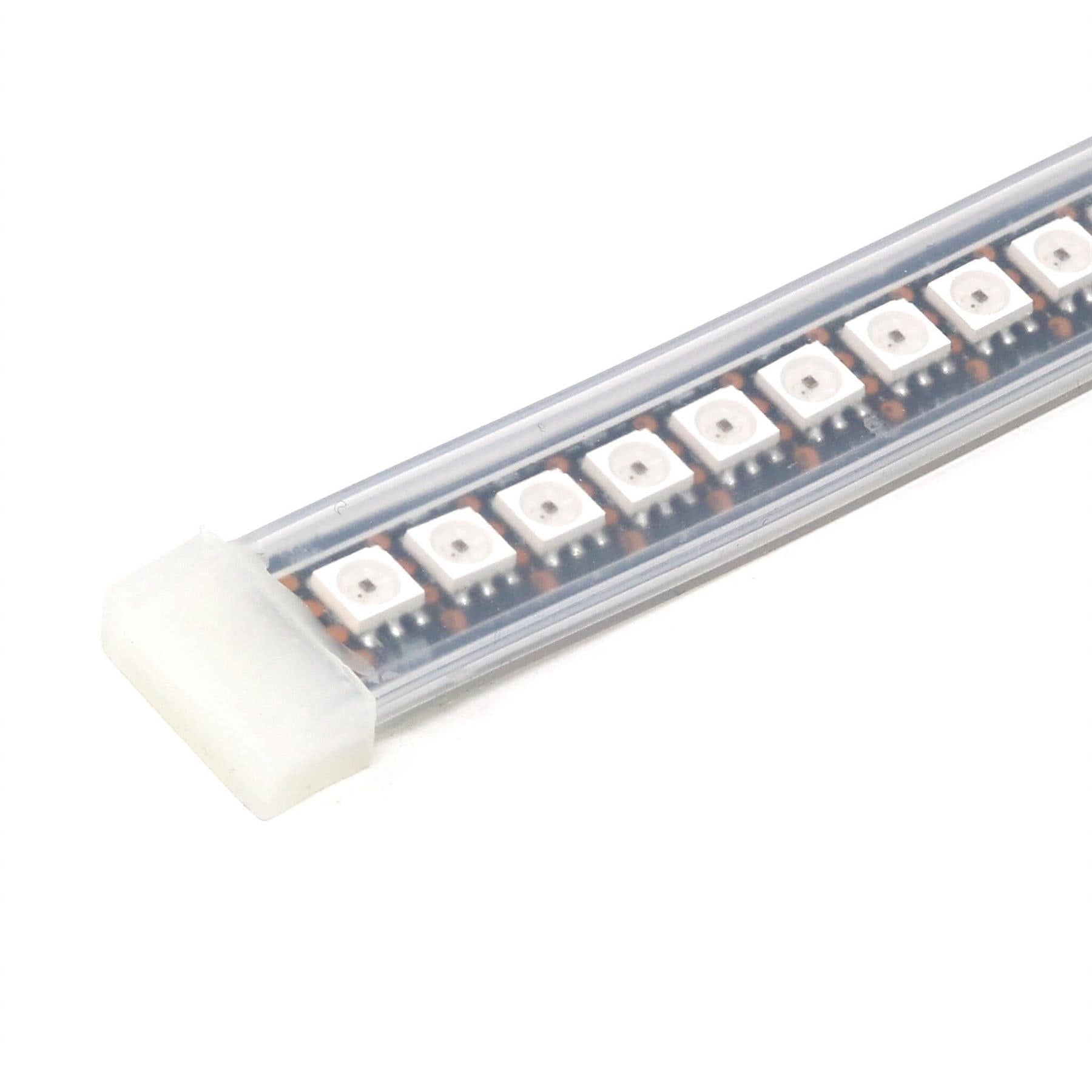

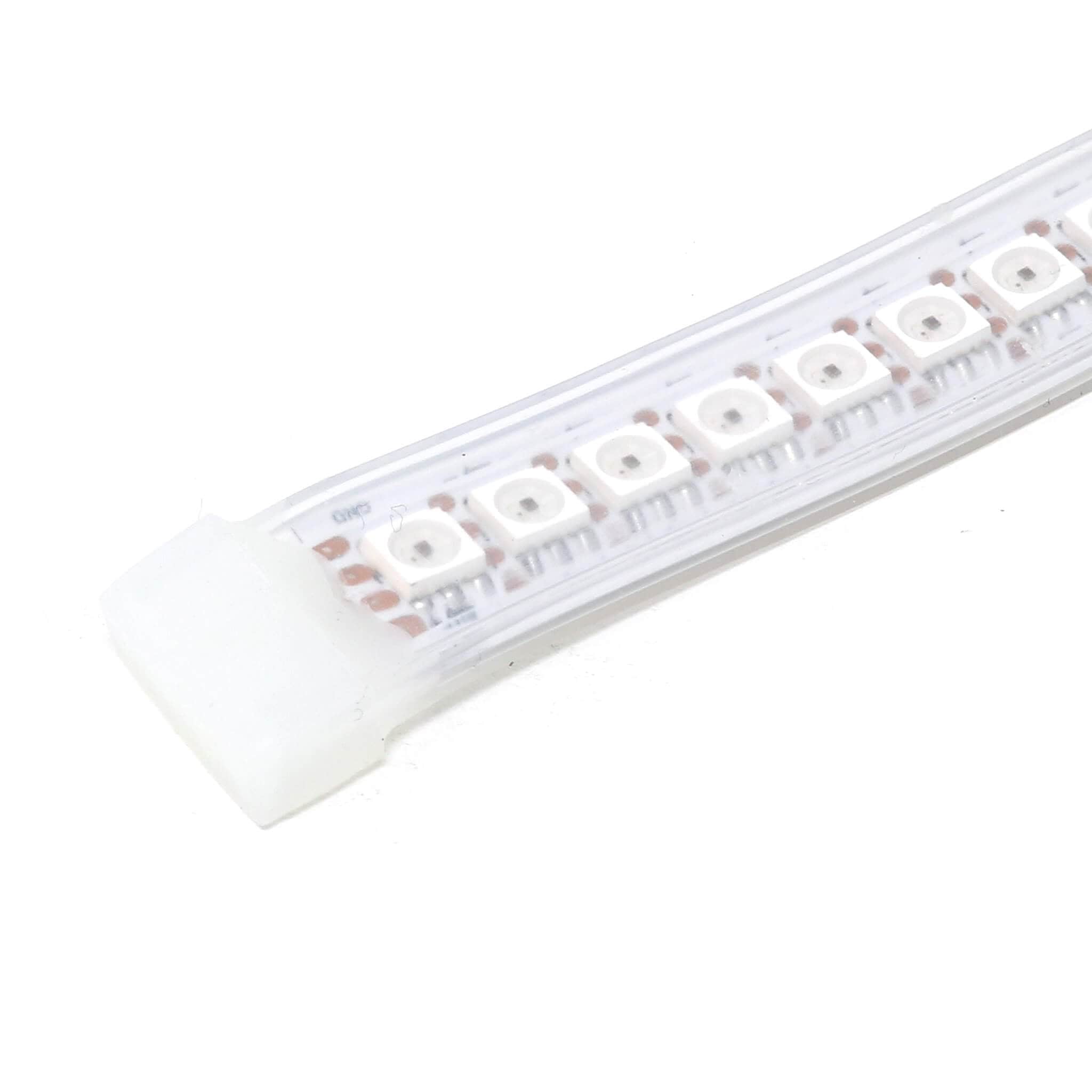

  • 1m with black PCB and sealed end
  • 1m with white PCB and sealed end
  • 0.5m with black PCB and JST-SM male end

How to Wire Up APA102/SK9822 LED Strips

Firstly, some important points on power, and we'll assume you're using a separate power supply:

  • Only power these LED strips with a quality regulated 5V power supply - anything above 5V will damage the strip!
  • You must ensure a common ground between your microcontroller and the LED Strip power supply
  • Estimate for around 60mA (peak) per LED

LED Strip Connector

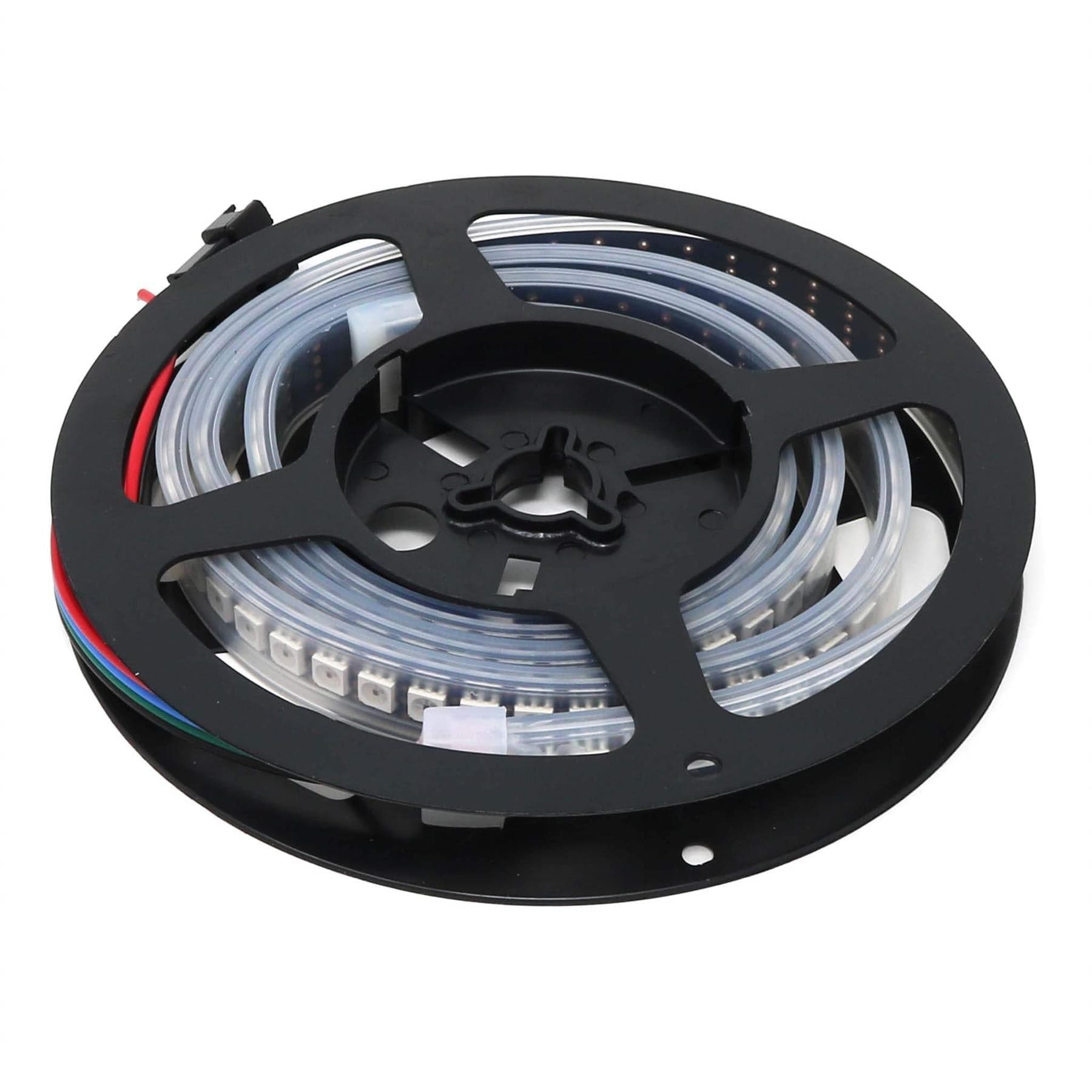

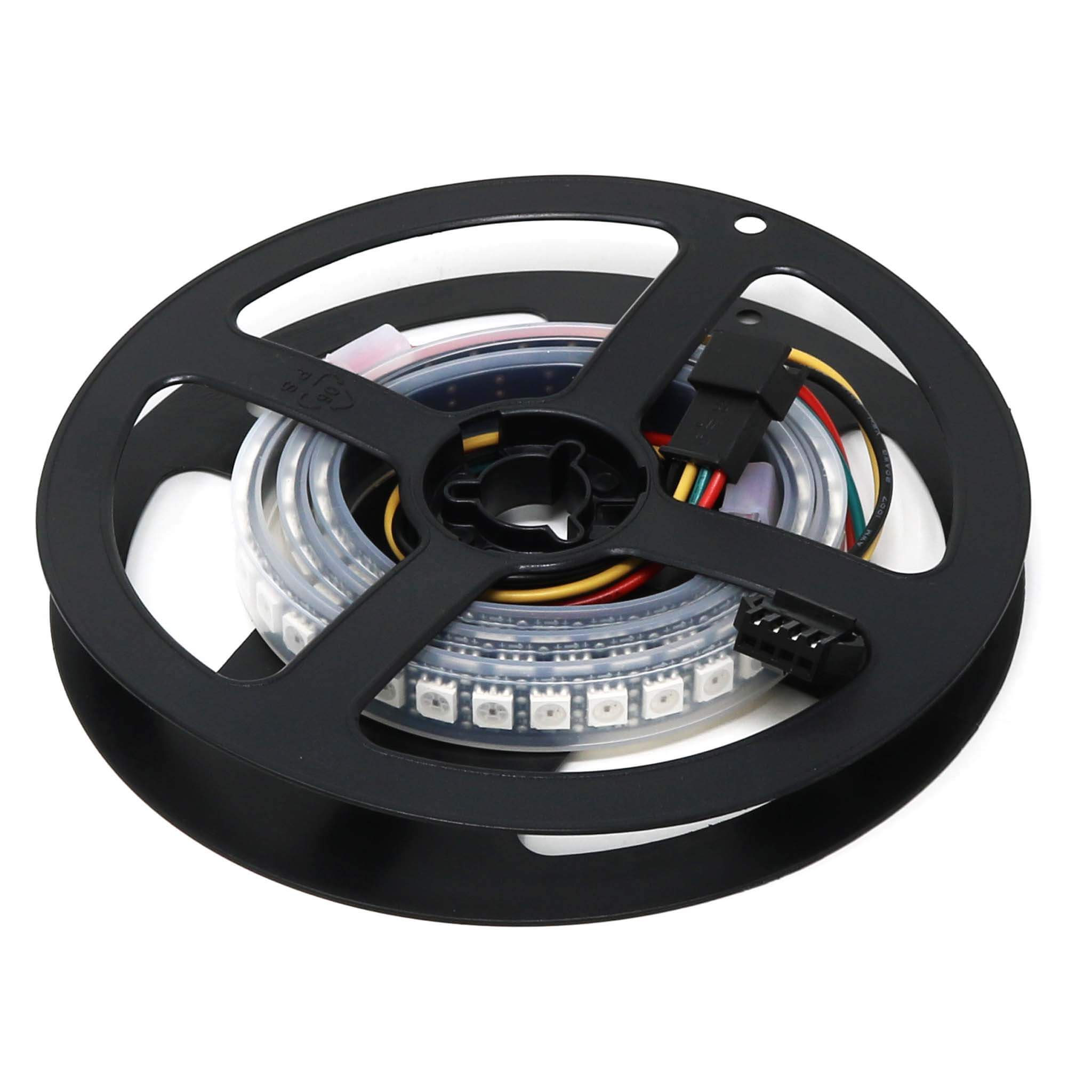

These strips have a 4-pin female JST-SM connector, which includes 4 coloured wires which we've indicated in the table below.

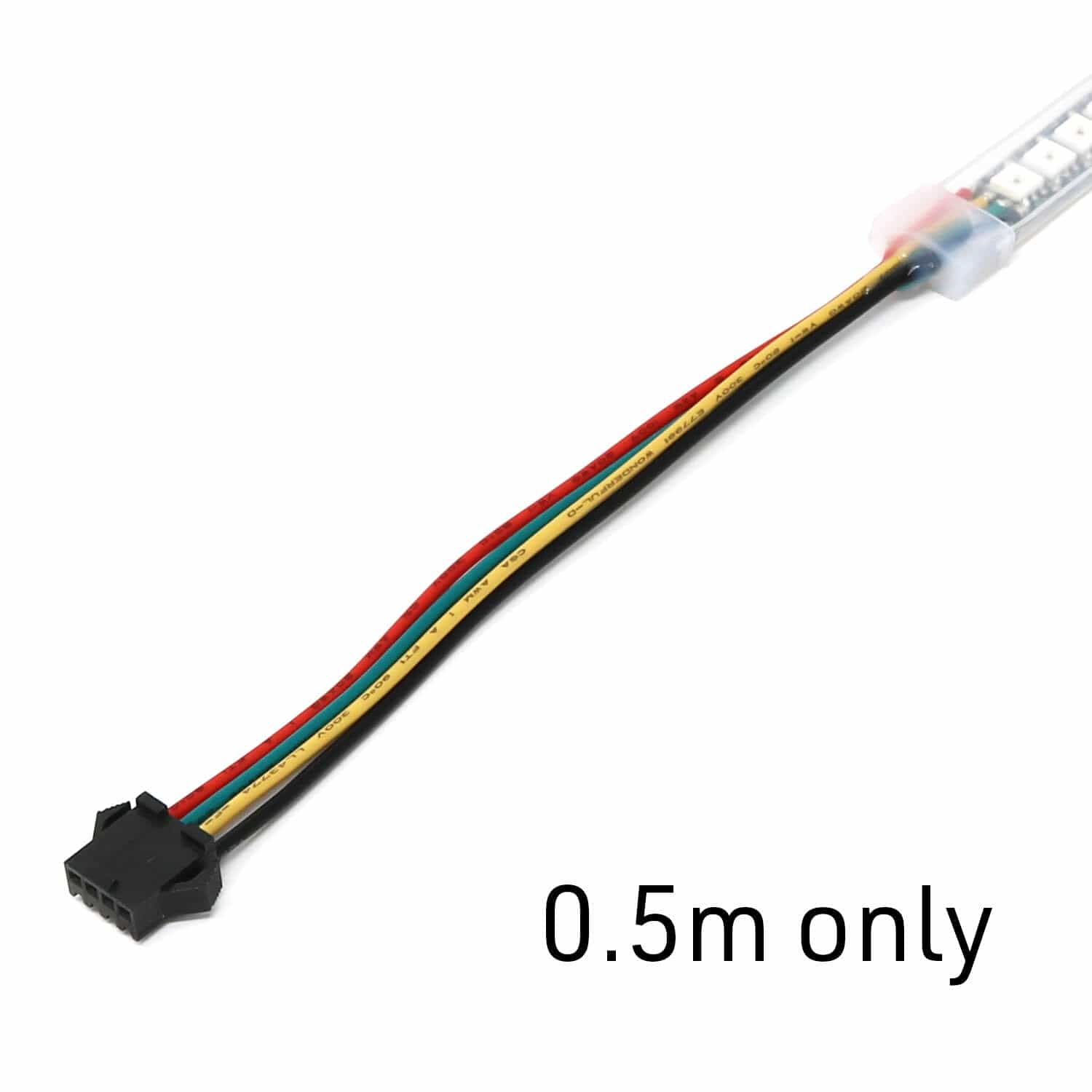

On our 0.5m versions only, the end has another JST-SM connector (male) instead of being sealed. You'll need to look at the tiny arrows on the LED strip to identify which side connections should be made.

Wire colour Function
BLACK GND
GREEN Data
BLUE Clock
RED 5V

There are also additional red and black (5V and GND) wires next to this connector. These are the same 5V and GND lines - these just offer an alternative way to externally wire power to the strips.

When using an external power supply, we suggest using a DC terminal block power adapter to allow you to easily wire in the power lines from the strip and join the GND lines from the power supply and microcontroller. You will also need to ensure there is a common ground (GND) connection between your microcontroller and the LED strip power supply (see wiring section below for more info).

You may want to pick up some 4-pin JST-SM Plug + Receptacle sets for your project.

Arduino Wiring

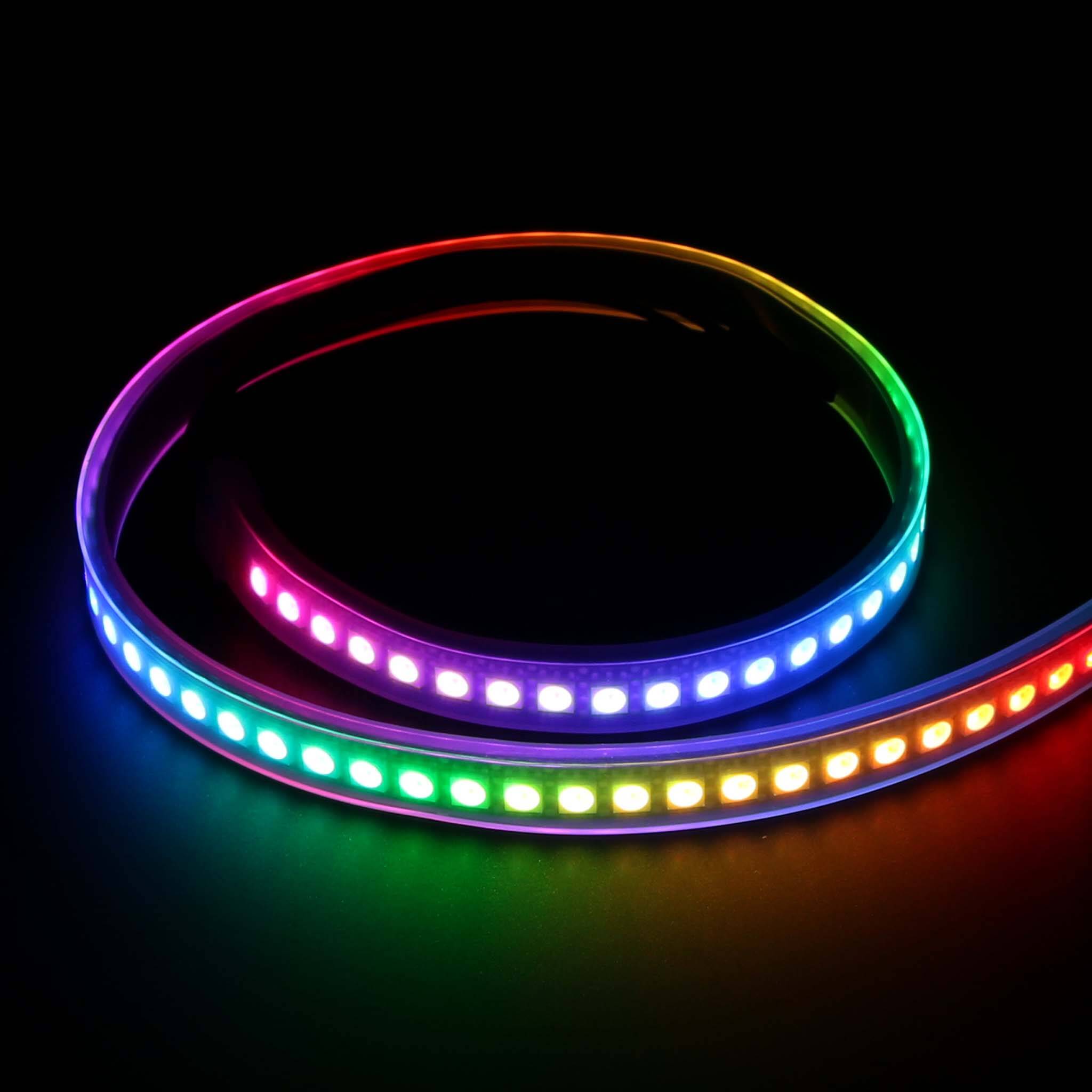

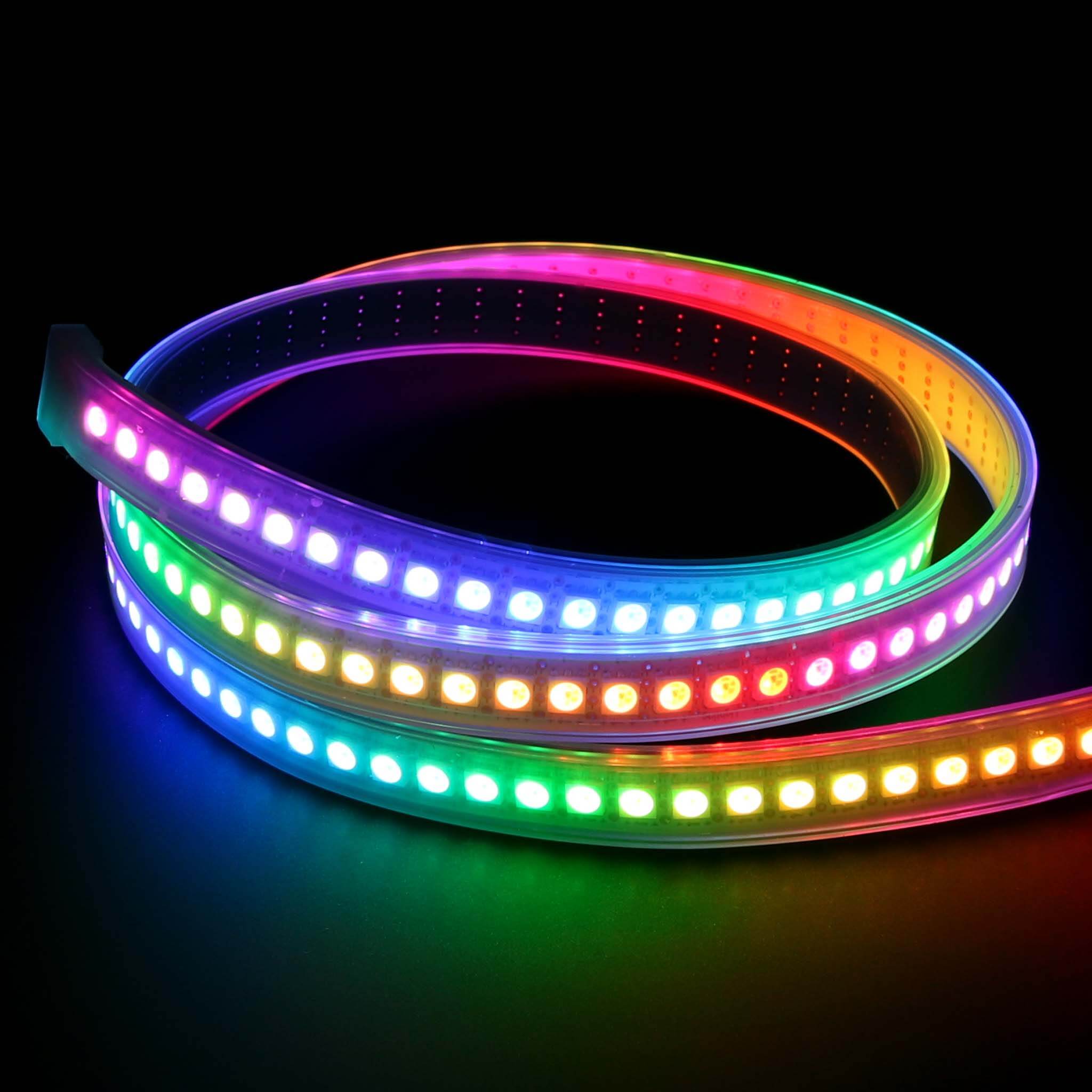

Here's an example for the Arduino UNO, using the same pins and wiring as we used when taking the colourful product photos further up the page:

Wire colour Function Power Supply Arduino
BLACK GND GND GND
GREEN Data - Digital Pin 4
BLUE Clock - Digital Pin 5
RED 5V 5V -

    Arduino Code

    We're big fans of the excellent FastLED Arduino library which can be installed on the Arduino IDE. The documentation is detailed, easy to follow and there are lots of example scripts available in the library to get you started.

    We highly recommend grabbing a coffee and reading the FastLED documentation fully before continuing.

    Arduino Library Install

    To install the FastLED library in your Arduino IDE, go to Sketch --> Include Library --> Manage Libraries.

    The search for "FastLED" and install the FastLED option as seen below (already installed for us). Once installed, close the window and restart your Arduino IDE.

    FastLED Library Install

    As an example, for the blinky product photo you can see above we used the 'DemoReel100' example sketch from File --> Examples --> FastLED --> DemoReel100.

    We then modified the sections below to match the 144 LED strip, the pins we used on our Arduino and the order of the RGB wiring (more on that below):

    #define DATA_PIN 4
    #define CLK_PIN 5
    #define LED_TYPE APA102
    #define COLOR_ORDER BGR
    #define NUM_LEDS 144
    // tell FastLED about the LED strip configuration
    //FastLED.addLeds(leds, NUM_LEDS);
    FastLED.addLeds(leds, NUM_LEDS).setCorrection(TypicalLEDStrip);

    RGB or BGR?

    Depending on how our suppliers wire the strips (which can change between batches) the RGB colour order can be reversed.

    From our testing, at the time of writing our APA102 strips are 'BGR' so you'll need to set this in your scripts to get the right colours showing. This page explains this in more detail.

    Resources

    Package Contents

    • 1x 144 LED (per metre) APA102 RGB LED strip (select length and style before adding to cart)

    If you purchase more than one, you will receive multiple separate strips (not a combined length)
