The Qwiic to breadboard cable adapts I2C devices directly into prototyping circuits without custom wiring.

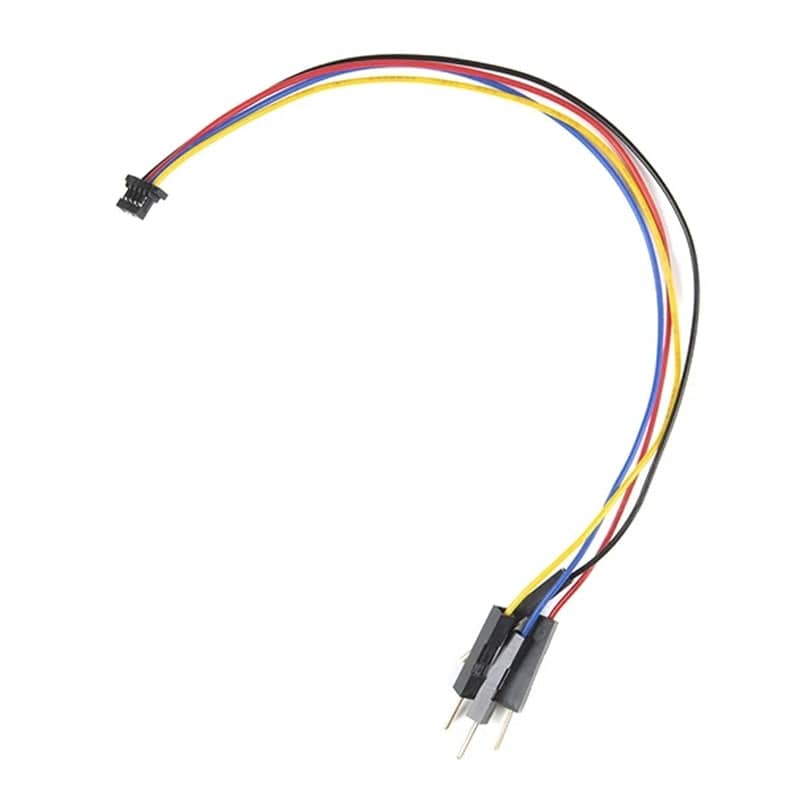

This is a jumper adapter cable that comes pre-terminated with a female Qwiic JST connector on one end and a breadboard hook-up pigtail on the other. The cable insulation is made from a highly malleable material making it more flexible than our original Qwiic cable particularly in tight spaces or enclosures. This cable makes it easy to connect components with a Qwiic connector to a breadboard or an Arduino-based device’s pins.

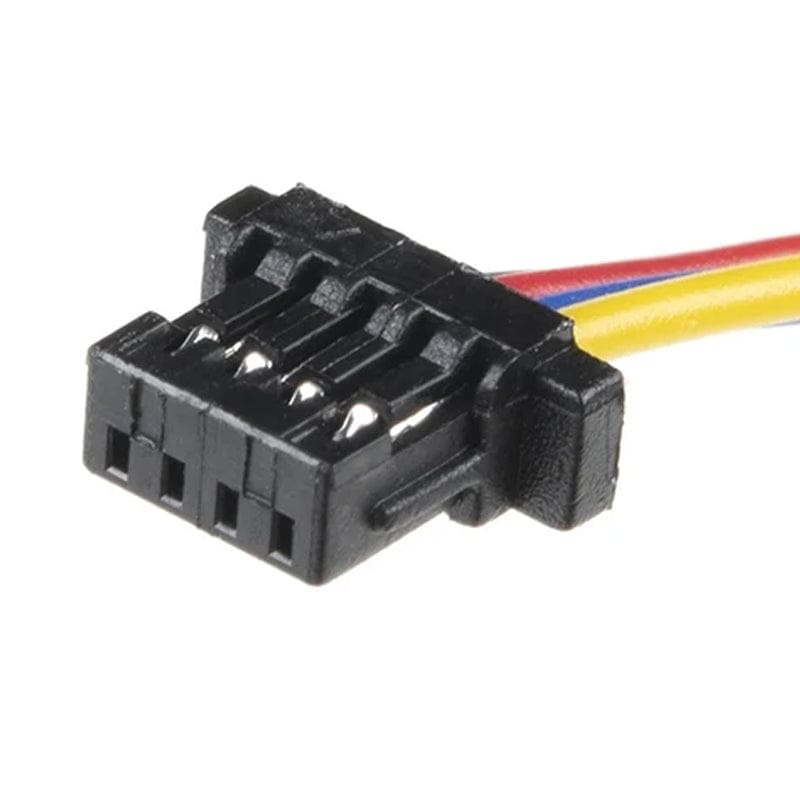

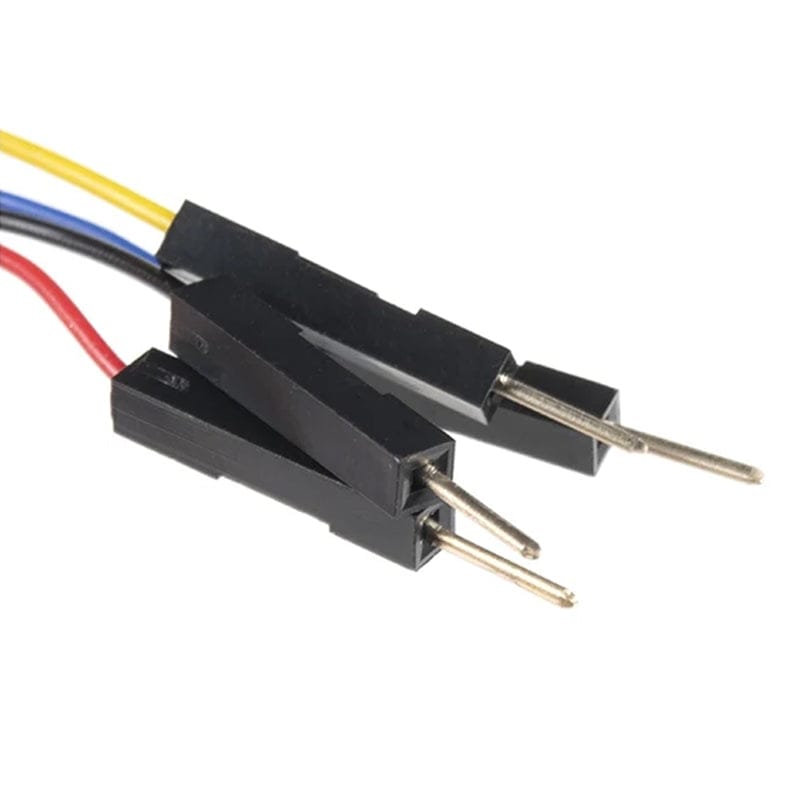

The 28AWG wire's length is 150mm (about 5.9 inches). The adapter’s wires have been colour coded to red, black, blue and yellow. Additionally, the female Qwiic connector features a basic 1mm pitch, while the male hook-up pins can easily insert into a standard 0.1" connector.
All Qwiic cables have the following colour scheme and arrangement:
Black = GND
Red = 3.3V
Blue = SDA
Yellow = SCL
We sell a whole range of Qwiic cables in our store. Don't forget to grab one of our Qwiic Breakouts or Qwiic Hubs for connecting multiple Qwiic devices to a single Qwiic cable!
Features
Pre-terminated female Qwiic JST connector on one end
Breadboard hook-up pigtail on opposite end
150mm cable length
28AWG wire gauge
Highly flexible, malleable insulation for tight spaces and enclosures
Color-coded wires: Red (3.3V), Black (GND), Blue (SDA), Yellow (SCL)
Female Qwiic connector with 1mm pitch
Male hook-u pins compatible with standard 0.1" connectors
Connects Qwiic-enabled components to breadboards and Arduino devices
