FireBeetle Covers - Gravity I/O Expansion Shield

DFRobotSKU: DFR0483
£6.60
incl. VAT
excl. VAT
Only 4 units left

Awesome Extras

FireBeetle ESP8266 IoT Microcontroller - The Pi HutFireBeetle ESP8266 IoT Microcontroller - The Pi Hut
DFRobotFireBeetle ESP8266 IoT Microcontroller
£7.20 incl. VAT excl. VAT
FireBeetle Board-328P with BLE4.1 - The Pi HutFireBeetle Board-328P with BLE4.1 - The Pi Hut
DFRobotFireBeetle 328P with BLE 4.1
£18.10 incl. VAT excl. VAT
FireBeetle ESP32 IoT Microcontroller (Supports Wi-Fi & Bluetooth) - The Pi HutFireBeetle ESP32 IoT Microcontroller (Supports Wi-Fi & Bluetooth) - The Pi Hut
(5 Reviews)
DFRobotFireBeetle ESP32 IoT Microcontroller
£11 incl. VAT excl. VAT

The DFRobot FireBeetle series are low-power development boards designed for IoT projects. FireBeetle Covers are hardware modules designed to fit onto your FireBeetle to give you convenient, flexible and affordable functionality.

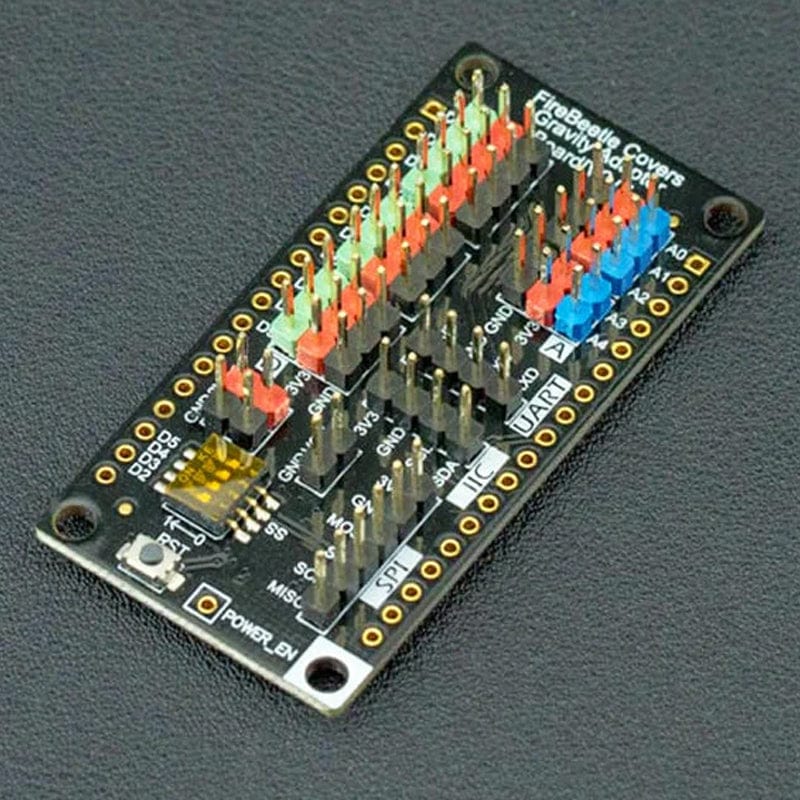

This is the FireBeetle Covers Gravity I/O Expansion Shield. This Cover is an adapter for Gravity sensors and modules.

With this shield, you can achieve convenient connections between Gravity sensors and FireBeetles. Every sensor will have its independent power pins. Note: Working voltage is 3.3V only (red pins)

Features

  • DFRobot FireBeetle Compatible
  • Gravity interface, plug and play, easy to use
  • Cost-effective
  • Small size, convenient to install

Specification

  • Input voltage: 3.7V~5.5V (VCC)
  • Output voltage: 3.3V
  • Supports low-power consumption Mode: POWER_EN = LOW
  • Support maximum discharge current: 600mA(Output voltage: LDO-3.3V )
  • Interface: Gravity standard interface
  • Digital I/O Pins: 10
  • Analog Input Pins: 5
  • Supports I2C x1
  • Supports UART x1
  • Supports SPI x1

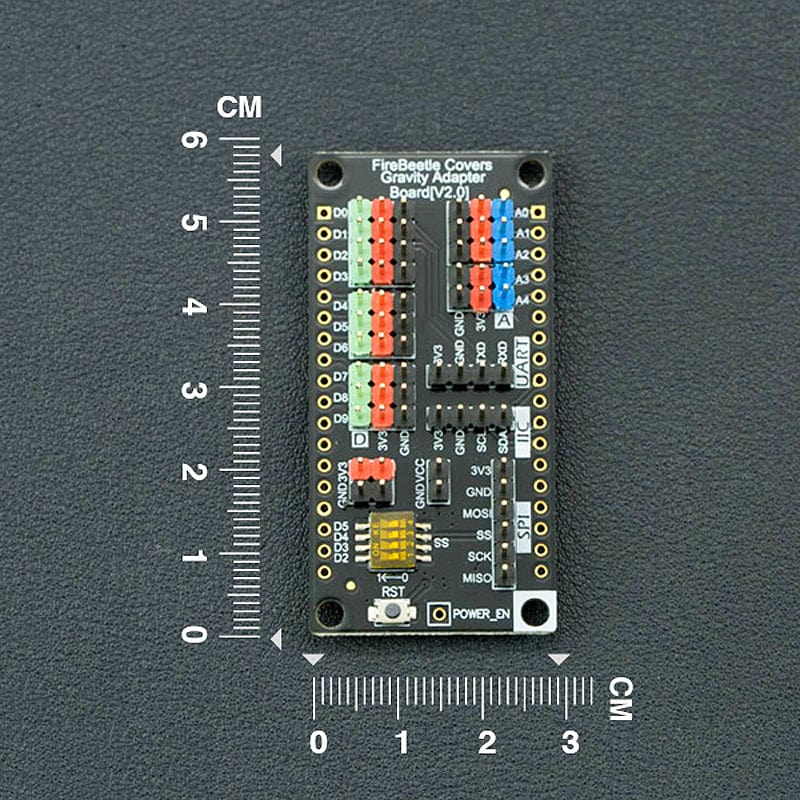

  • Dimension: 29.00×58.00mm/1.14 x 2.28ches

Documents

Shipping List

  • 1x FireBeetle Covers-Gravity I/O Expansion Shield
  • 2x 18 pin-2.54mm pin
  • 2x 18 pin-2.54mm long pin header
