Fermion: Voice Recorder Module (Breakout)

DFRobotSKU: DFR0745
£6.90
incl. VAT
excl. VAT
Only 1 unit left

Awesome Extras

USB-A to USB-C Cable - Black - The Pi Hut
The Pi HutUSB-A to USB-C Cable - Black
From £2.25 incl. VAT excl. VAT
USB-C to USB-C Cable - Black - The Pi Hut
The Pi HutUSB-C to USB-C Cable - Black
From £2.25 incl. VAT excl. VAT
Arduino Uno Rev3 - The Pi HutArduino Uno Rev3 - The Pi Hut
ArduinoArduino Uno Rev3
£24.50 incl. VAT excl. VAT

Wanna buy a simple & practical voice recorder? This one is right for you! The voice recorder module supports 4 controlling modes (Arduino, AT command, on-board buttons, and ADKEY), and multi-segment voice recording.

You can directly press the onboard buttons to record or play voice without using a controller.

Moreover, the 16MB storage on the module can store up to 40 minutes of voice recording and the recorded files can be copied to your computer via the type-C interface.

Features

  • Support about 40 minutes voice recording
  • Support multi-segment voice recording
  • Voice recording/playing via onboard buttons
  • On-board power amplifier
  • Support analogue U-disk

Applications

  • DIY Plush Toys
  • Handmade Personalized Gift
  • Event Voice Memo

Specification

  • Operating Voltage: 3.3~5V
  • Operating Current: >10mA
  • Storage: 16MB
  • Sampling Rate: 48kbs
  • Communication: UART
  • Dimension: 26*30mm/1.02*1.18”

Documents

  • Product wiki

    • Shipping List

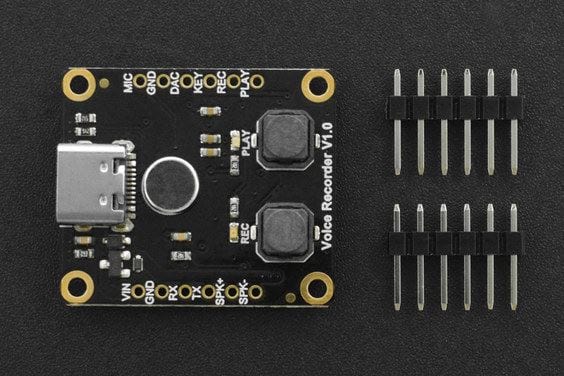

  • Voice Recorder Module-Breakout x1
  • 2.54-6P Single-Row-Pin Black x2
    •
