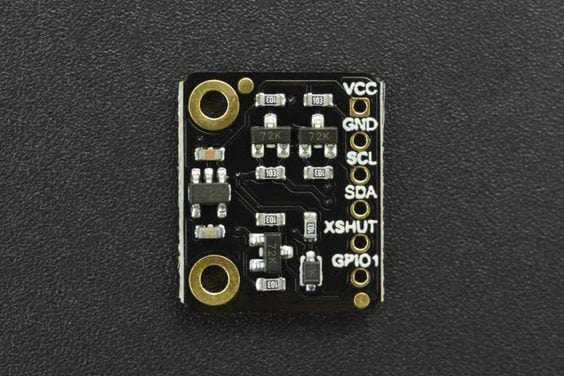

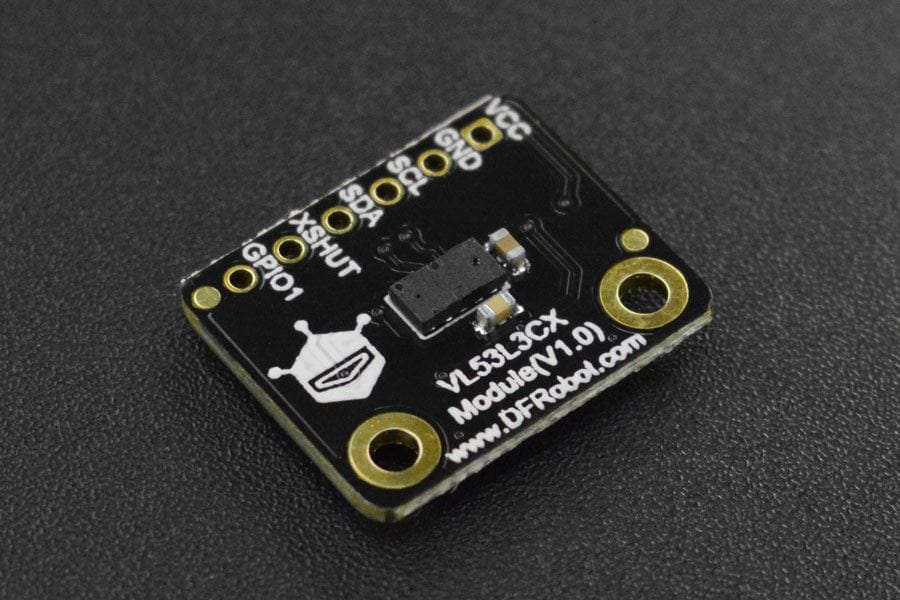

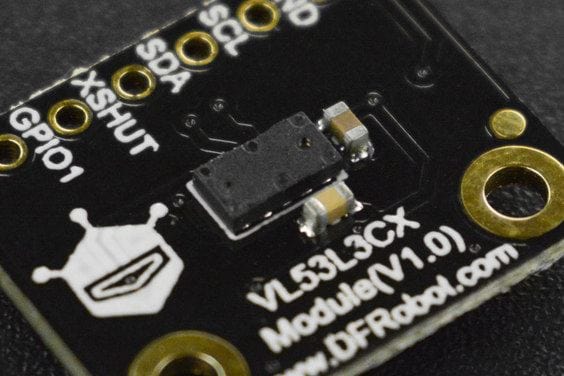

Fermion: VL53L3CX ToF Distance Ranging Sensor (Breakout)

DFRobotSKU: SEN0378
£8.50
incl. VAT
excl. VAT
Only 5 units left

Awesome Extras

The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi HutThe Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut
The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)
£6 incl. VAT excl. VAT
Full-Size Breadboard - Transparent - The Pi HutFull-Size Breadboard - Transparent - The Pi Hut
The Pi HutFull-Size Breadboard - Transparent
£5 incl. VAT excl. VAT
Prototyping Wire Spool Set - The Pi HutPrototyping Wire Spool Set - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
£12 incl. VAT excl. VAT

The VL53L3CX is the latest Time-of-Flight (ToF) product from STMicroelectronics and embeds ST’s third-generation FlightSense technology.

With the improved detection accuracy, the sensor features a 25~3000mm sensing range, automatic smudge correction, and glass cross-talk immunity.

With special algorithms and ingenious module construction, the VL53L3CX is also able to detect different objects within the field of view (FoV) with depth understanding.

Note 1: The product has only been verified on M0 and ESP32 due to the large size of its algorithm files.

Note 2: Multi-target distance measurement can only be triggered under certain conditions. Please refer to their official Website for more details.

Features

  • High accuracy distance measurement
  • Long-distance and accurate ranging up to 300 cm
  • Typical full FoV 25°
  • Multi-target distance ranging
  • Immune to glass cross-talk
  • Smudge compensation function

    • Specification

  • Power Supply: 3.3V~5V
  • Operating Current: ＜20mA
  • Detection Range: 25-3000mm
  • Emitter: 940nm invisible laser(VCSEL)
  • FOV: 25°
  • I2C Address: 0x29
  • Operating Temperature Range: -20℃~85℃

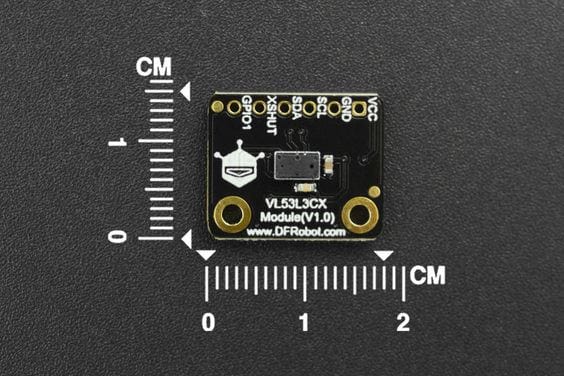

  • Dimension: 18x15mm/0.71x0.59"

    • Documents

  • Product wiki

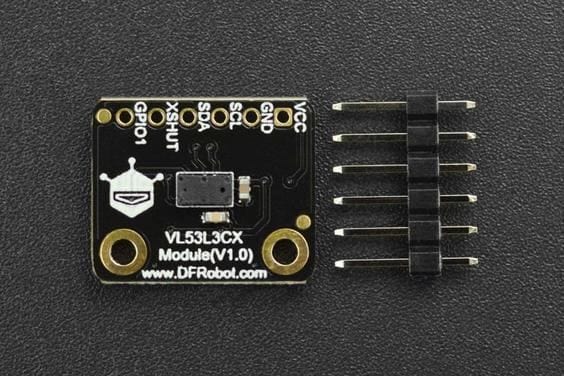

    • Shipping List

  • Fermion:VL53L3CX ToF Distance Ranging Sensor(Breakout) x1
  • 2.54-6P Black Single Row Connector x1
    •
