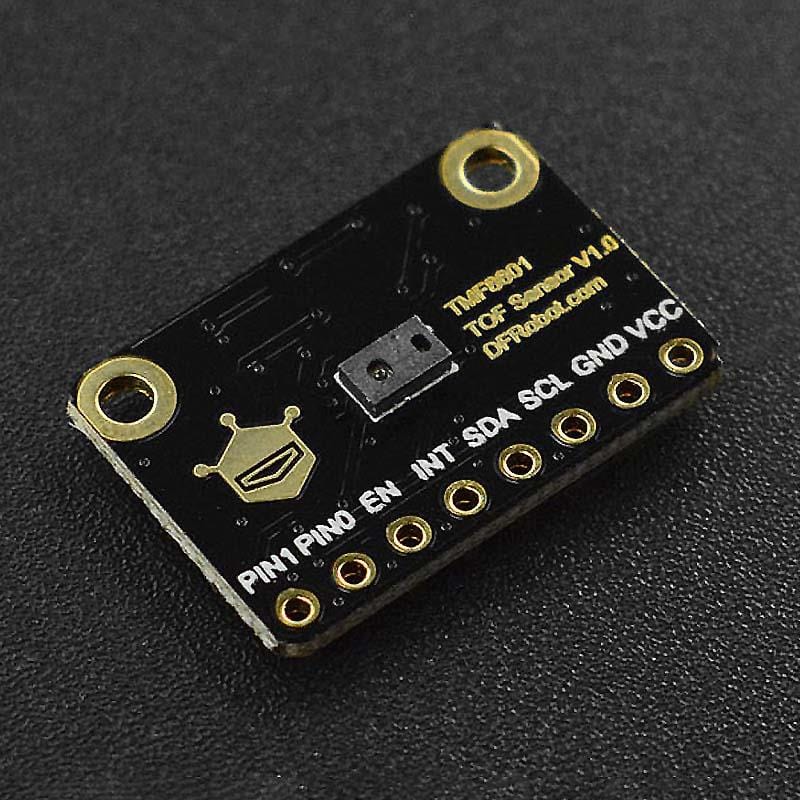

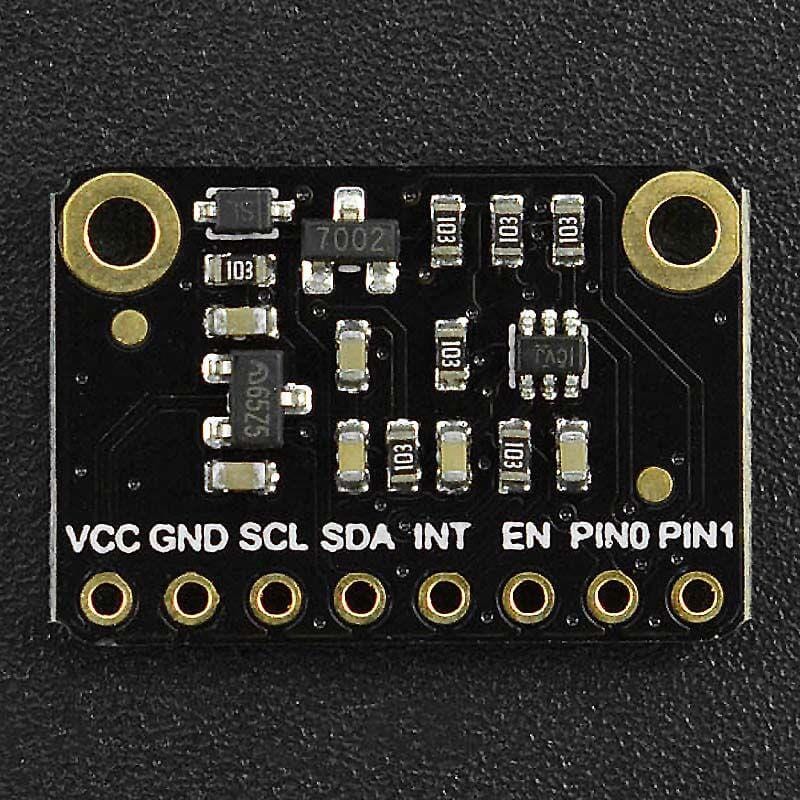

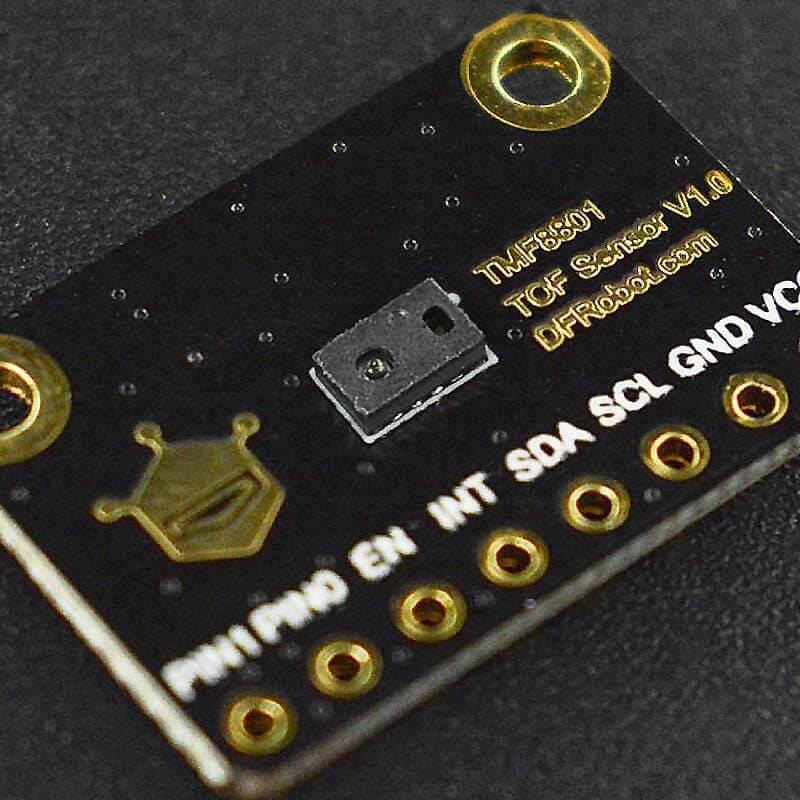

Fermion: TMF8801 ToF Distance Ranging Sensor (20-2500mm)

The TMF8801 is a time-of-flight (ToF) distance ranging sensor that uses the time difference between light pulses to measure distance. It provides single-zone detection of an object irrespective of the colour, reflectivity and texture of the object.

The TMF8801 offers a high dynamic range and detection sensing measurements from 2-250cm distances. The device can make highly accurate distance measurements within ±5% and is capable of operation in dark environments and in the presence of sunlight.

A built-in histogram is featured to deliver dynamic cover glass calibration and crosstalk compensation and background light noise is minimized through on-chip sunlight rejection filters.

The TMF8801 outputs data through an I2C fast-mode communications interface and an integrated microcontroller, which is featured with all algorithms included on-chip with no need for external optics.

Features

• 21º FOI, detect the object closest to the center
• 20–2500mm distance sensing
• Enables dark and sunlight environment distance measurement within ±5%
• A built-in histogram for compensating for dirt and smudges on the cover glass
• 940nm VCSEL Class 1 Eye Safety
• Low power consumption:
  • 940μA power consumption at 10Hz(proximity mode)
  • 26mA power consumption at 60Hz (distance and proximity mode)
  • 0.26μA power-down current consumption (EN=0)

Connection Example (Arduino)

Specification

• Operating Voltage: 2.7~3.3V
• Operating Current: ＜1.5mA
• Proximity Detection Range: 20-100mm
• Distance Sensing Range: 100-2500mm
• Operating Temperature: -30~60℃
• Communication Interface: Breakout 2.54mm-8Pin I2C

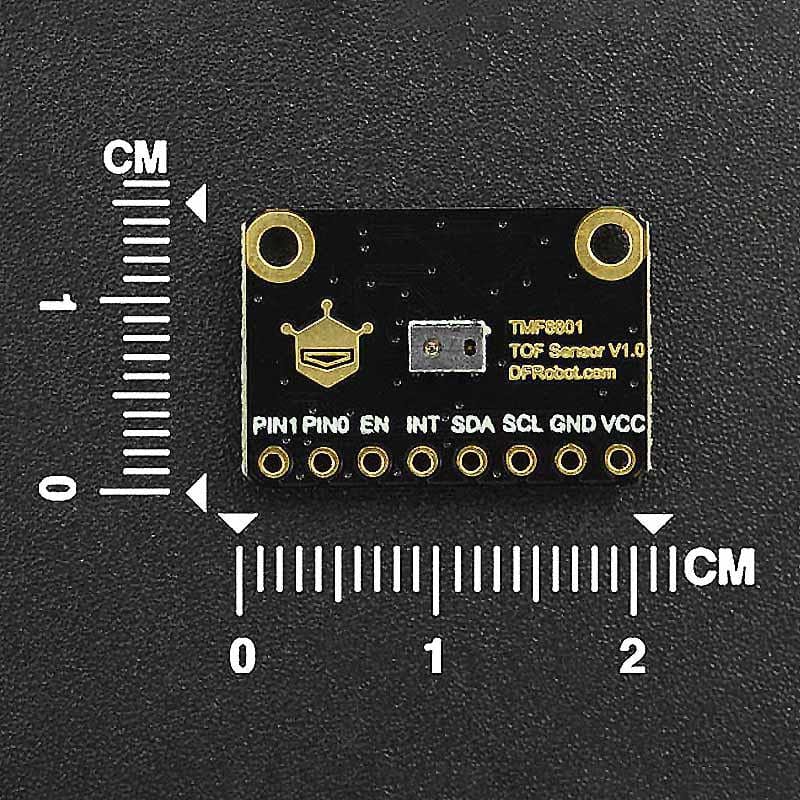

• Dimension: 21*14.5mm/0.83*0.57"
• Mounting Hole Size: 2.0mm
• Mounting Hole Pitch: 17mm

Package Contents

• 1x Fermion: TMF8801 ToF Distance Ranging Sensor (20-2500mm)

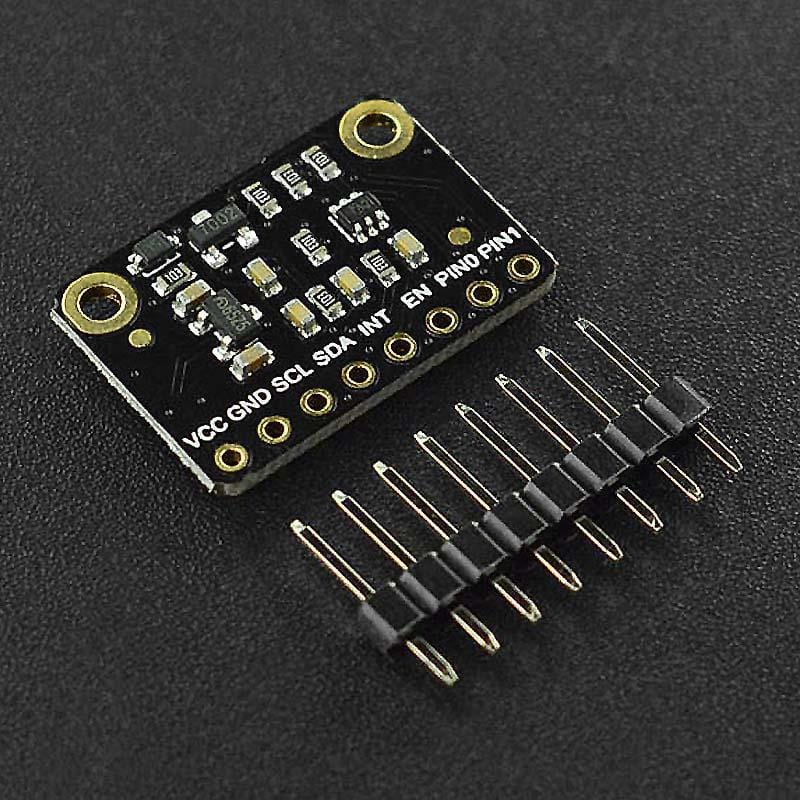

• 1x 2.54-8P Black Single-row Connector

Resources

• Product wiki
• Schematics
• Datasheet
