Fermion: TB6612FNG 2x1.2A DC Motor Driver
Price:
Sale price
£4.50
Stock:
Quantity:
Awesome Extras

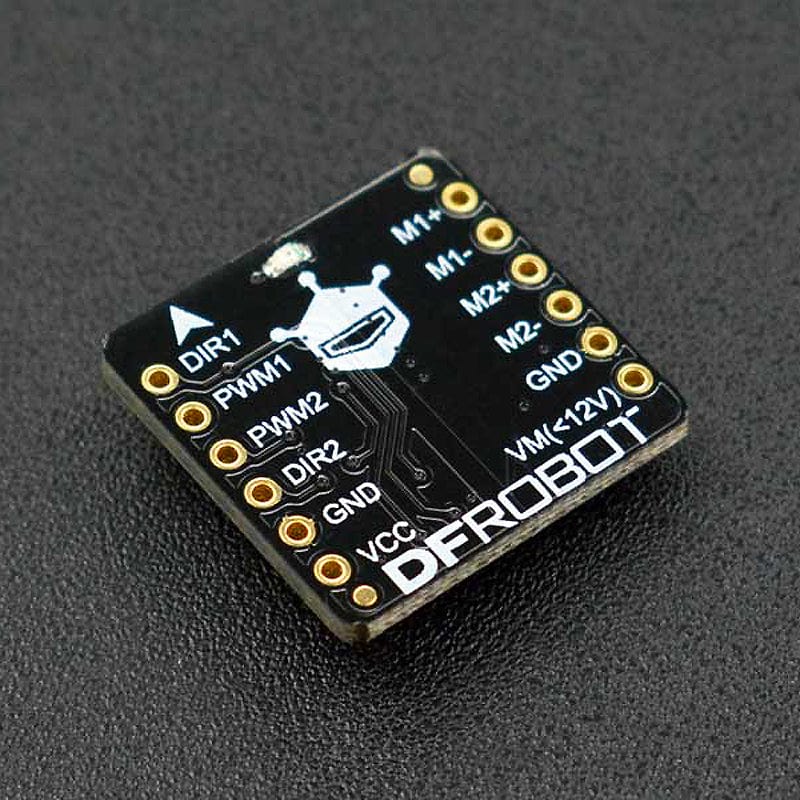

This DFRobot micro dual-way DC motor driver is designed based on the TB6612FNG motor driver IC.
It inherits DFRobot L298N motor control logic, which only needs four pins to drive two motors. Compared with the IC Breakout, it saves two precious GPIO resources!

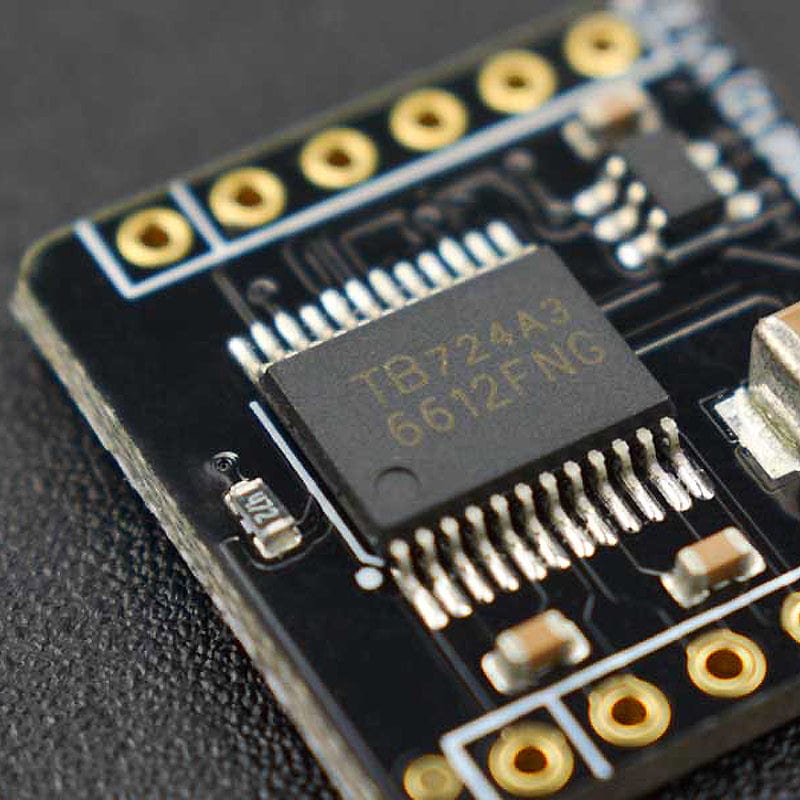

The TB612FNG is a dual-channel full-bridge motor driver chip. The maximum continuous drive current of a single channel can reach 1.2A, with a peak value of 2A/3.2A (continuous pulse / single pulse), which can drive a range of micro DC motors.
The control logic is similar to the popular L299N, the code can be directly compatible with the DFRobot L298N motor driver. Standard XH2.54 pins can be inserted directly into the breadboard (two are included!).
Connection Example - Arduino
Specifications
- VCC Operating Voltage: 2.7V~5.5V
- VM Input Power: 2.5V~12V
- Driver Channel: 2 channel
- Output Current: 1.2A (single-channel continuous drive current)
- Start / Peak Current: 2A (continuous pulse) / 3.2A (single pulse)

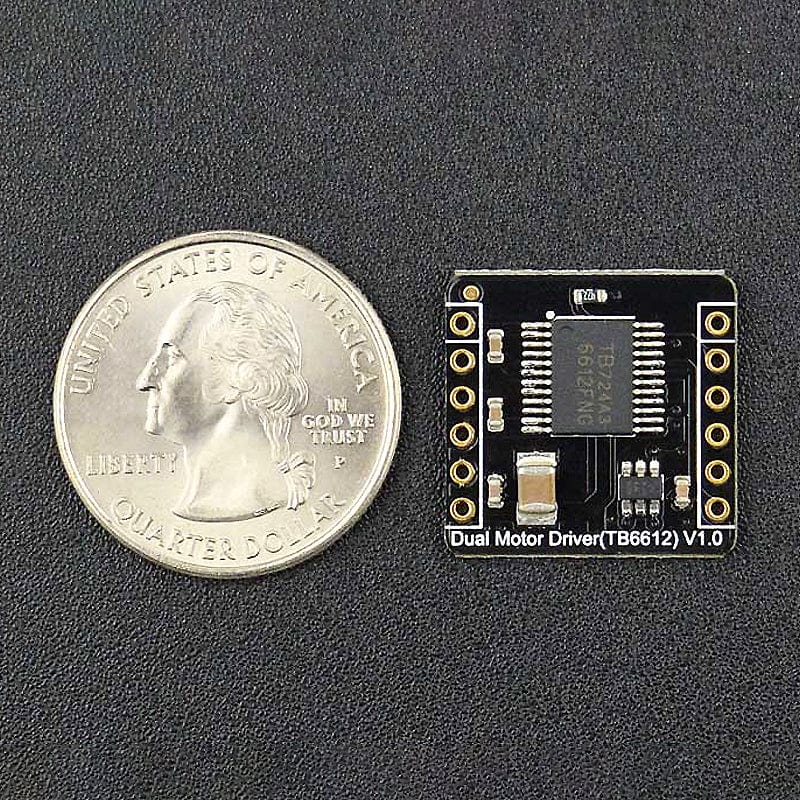

- Dimension: 20 x 19.50mm
Resources

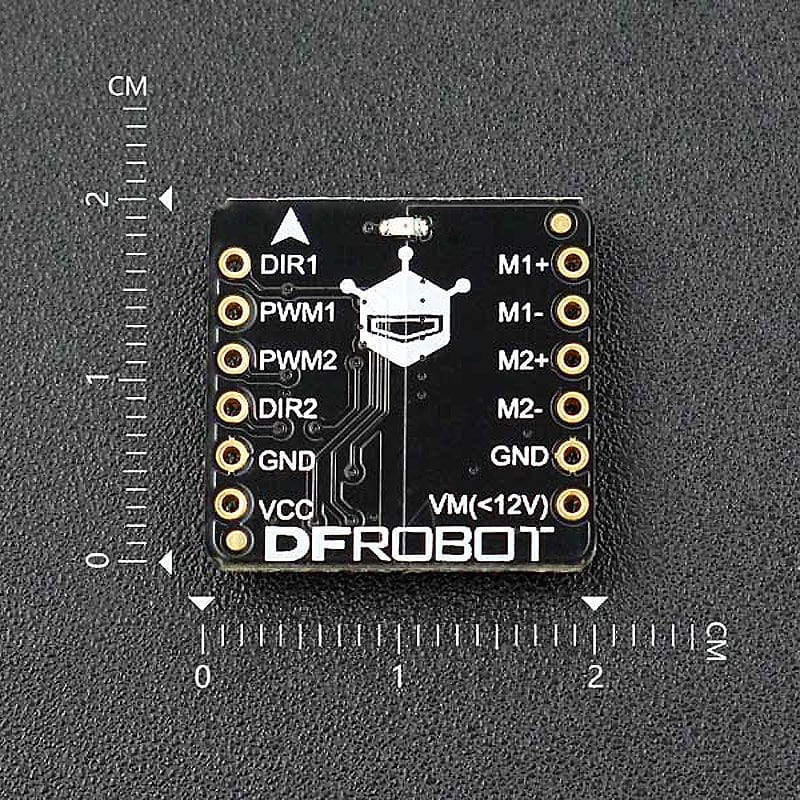

Pinout
| DIR1 | M1 Direction Control |
| PWM1 | M1 Speed control(PWM) |
| PWM2 | M2 Speed control(PWM) |
| DIR2 | M2 Direction Control |
| GND | Negative power supply |
| VCC | Power 3.3V-5V or IO port output high |
| M1 | A Output 1 |
| M1- | A Output 2 |
| M2 | B Output 1 |
| M2- | B Output 2 |
| GND | Negative power supply |
| VM(<12V) | Motor drive power 3.3V-12V |
Package Contents
- 1x 2x1.2A DC Motor Driver (TB6612FNG)

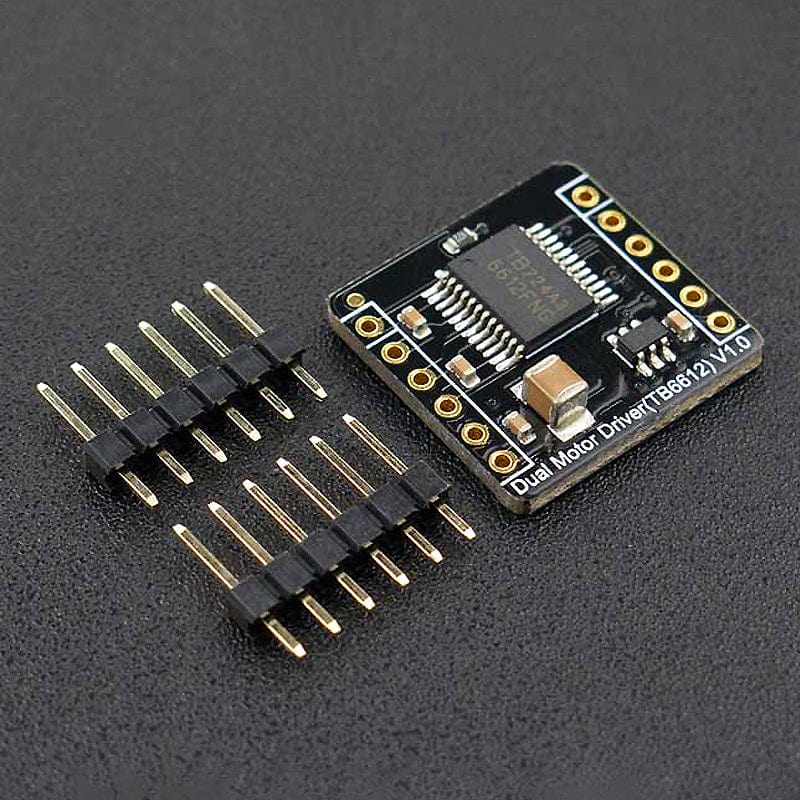

- 2x XH2.54 6-pin headers
