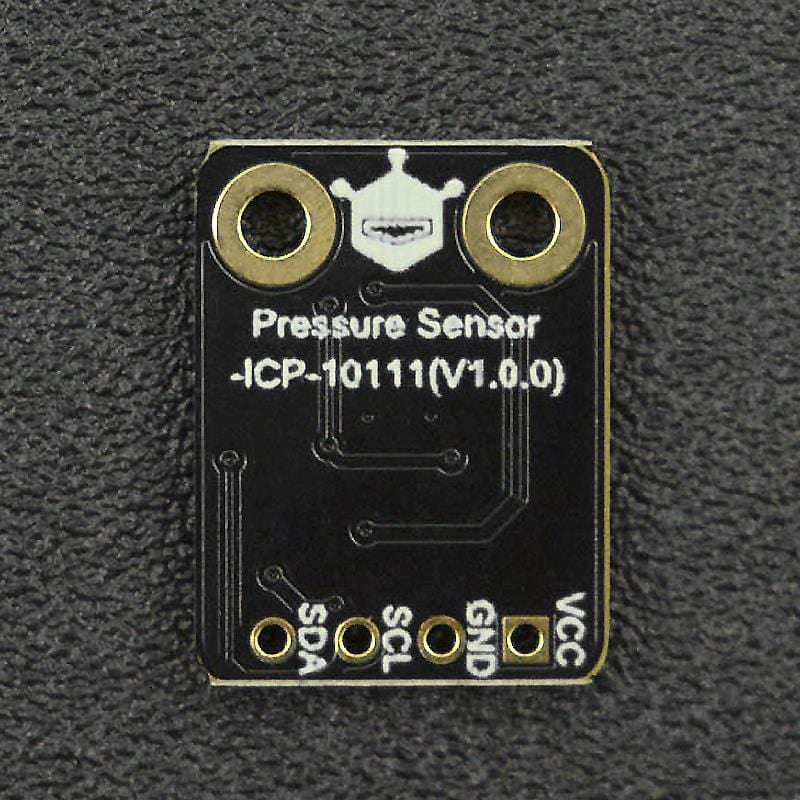

Fermion: ICP-10111 Pressure Sensor Breakout

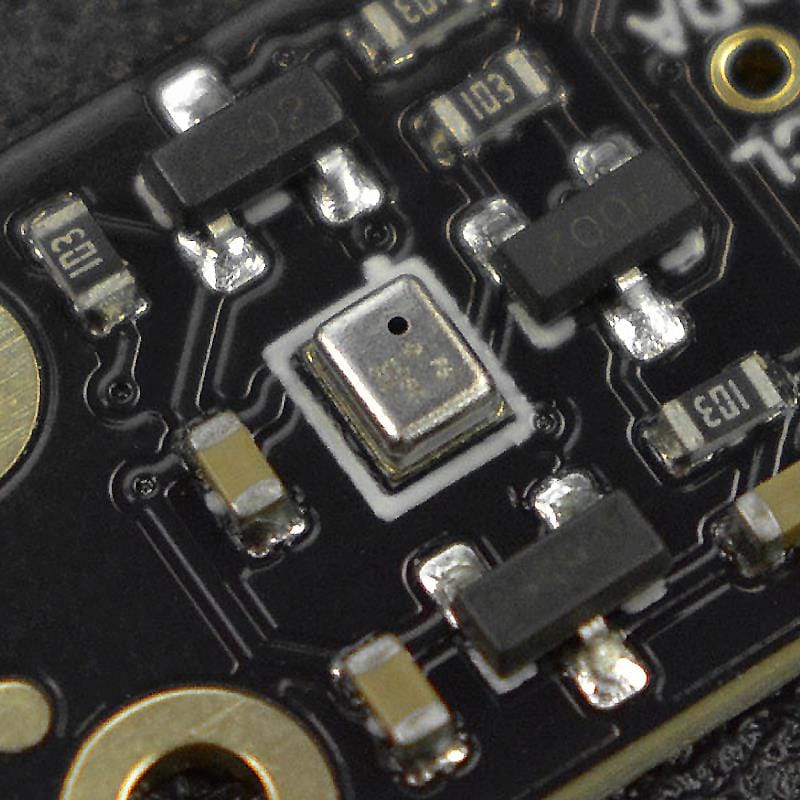

This barometric pressure temperature sensor is equipped with TDK's newly launched ICP-10111 barometric pressure sensor, which is based on MEMS capacitor technology to achieve ultra-low power consumption, industry-leading relative accuracy and temperature offset coefficient.

The Fermion: ICP-10111 barometric pressure temperature sensor can measure the pressure difference with an accuracy of ±1Pa, an accuracy enabling altitude measurement differentials as small as 8.5 cm, less than the height of a single stair step.

The pressure noise can be as low as 0.4Pa and the read data will be more stable. There is a built-in temperature sensor for air pressure compensation. The ICP-10111 offers a temperature coefficient offset of ±0.5 Pa/°C, more stable for long-term use. The combination of high accuracy, low power, and temperature stability in a small footprint enables higher performance barometric pressure sensing for sports activity identification, mobile indoor/outdoor navigation, and altitude-hold in drones.

Connection Example - Arduino

Features

• Relative accuracy ±1Pa, as small as 8.5cm height measurement difference
• ±0.5Pa/℃ temperature coefficient offset, high stability for long-term use
• 0.4Pa pressure noise, more stable data

Specification

• Working Voltage: 3.3V~5.5V
• Working Current: ＜2mA
• Communication: I2C
• I2C Address: 0x63
• Air Pressure Measurement Range: 30~110 kPa
• Relative Barometric Pressure Measurement Accuracy: ±0.01hPa (950hPa~1050hPa, 25℃)
• Absolute Barometric Pressure Measurement Accuracy: ±1hPa (950hPa-1050hPa, 0℃~65℃)
• Temperature Coefficient Offset: ±0.5 Pa/℃ (100kPa, 25℃~45℃)
• Absolute Temperature Measurement Accuracy: ±0.4℃
• Working Temperature: -40℃~85℃

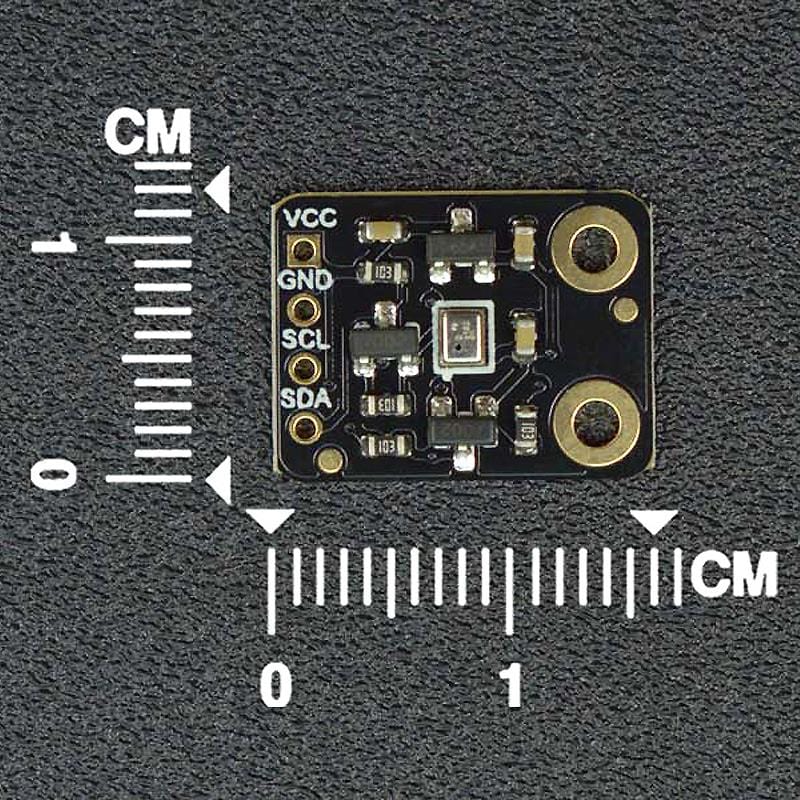

• Dimensions: 16.5mm x 12.5 mm

Package Contents

• 1x Fermion: ICP-10111 Pressure Sensor
• 1x 2.54-4P Black Single-row Pin Connector

Resources

• Product wiki
• Dimension
• ICP10111 Datasheet
• DXF
• STP
• PCB Package
