Fermion: EC11 Rotary Encoder Module (Breakout)

DFRobotSKU: SEN0235
Price:
Sale price £3
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Awesome Extras

DFRduino Uno R3 - The Pi HutDFRduino Uno R3 - The Pi Hut
DFRobotDFRduino Uno R3
Sale price £16 incl. VAT excl. VAT
Fermion: GR10-30 Gesture Sensor - The Pi HutFermion: GR10-30 Gesture Sensor - The Pi Hut
DFRobotFermion: GR10-30 Gesture Sensor
Sale price £18.80 incl. VAT excl. VAT
Gravity: Analog Capacitive Soil Moisture Sensor - The Pi HutGravity: Analog Capacitive Soil Moisture Sensor - The Pi Hut

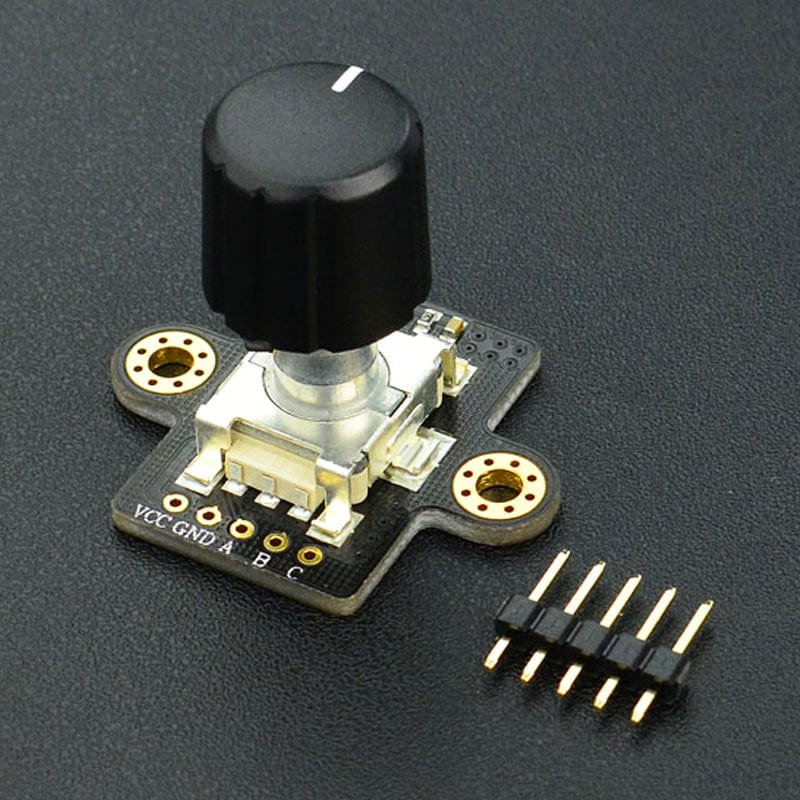

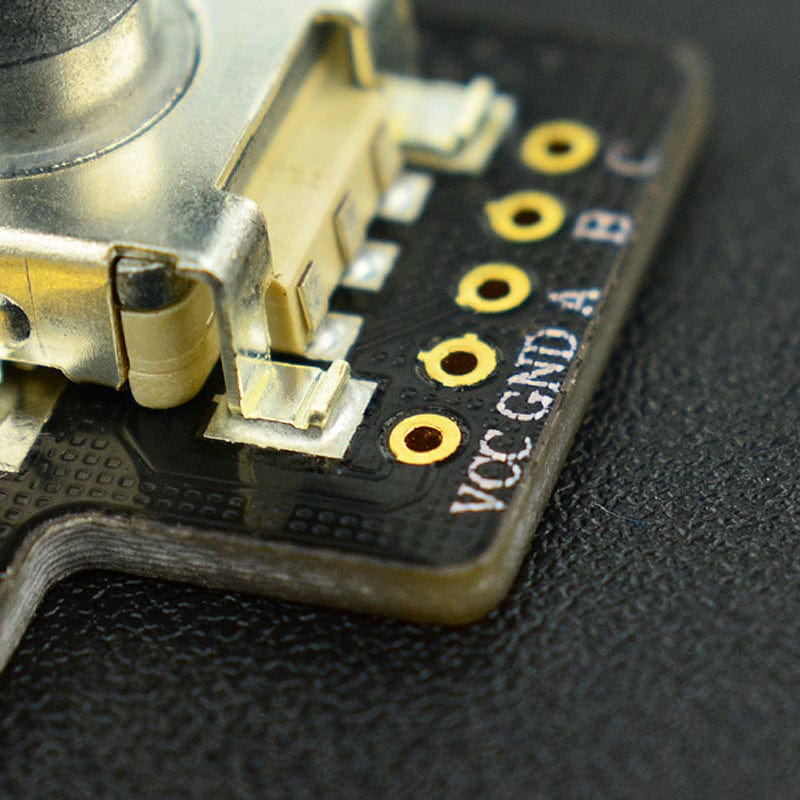

The DFRobot 360 degree rotary encoder module is based and designed on the EC11 rotary encoder button. The module has three signal terminals: terminals A & B are encoder output; terminal C is the button signal output. It is quite suitable for applications such as a volume knob and varying lighting voltage. The rotary encoder module comes with XH2.54 bonding pad, easy to use in prototyping projects such as automotive electronics, multimedia speakers, instrumentation, smart home and other fields.

Connection Example - DFRduino UNO

Specifications

  • Operating Voltage: 3.3V ~ 5V
  • Full Rotation Angle: 360 degrees (no stop point)
  • Number of pulse: 15
  • Rotation Life: 30000 ± 200 Cycles
  • Contact Resistance: ≤ 100mΩ
  • Insulation Resistance: 100MΩ or more
  • Oscillation: <10ms Press
  • Working Temperature: -30°C ~ +80°C

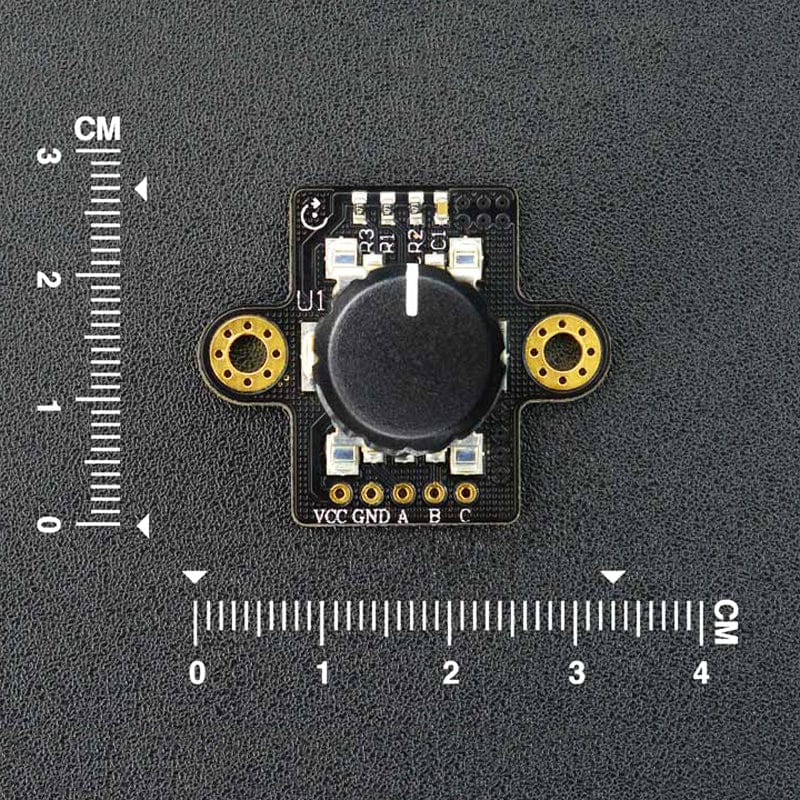

  • Module Size: 33.8 x 22.4 (mm)
  • Weight: 14g

Resources

Package Contents

  • 1x EC11 Rotary Encoder Module
  • 1x XH2.54-5pin header
