Extra Tall GPIO Connector for the Raspberry Pi - The Pi Hut

Extra-Tall 2x13 GPIO Connector

The Pi HutSKU: ADA1112
£1.90
incl. VAT
excl. VAT
Sold out
Notify me

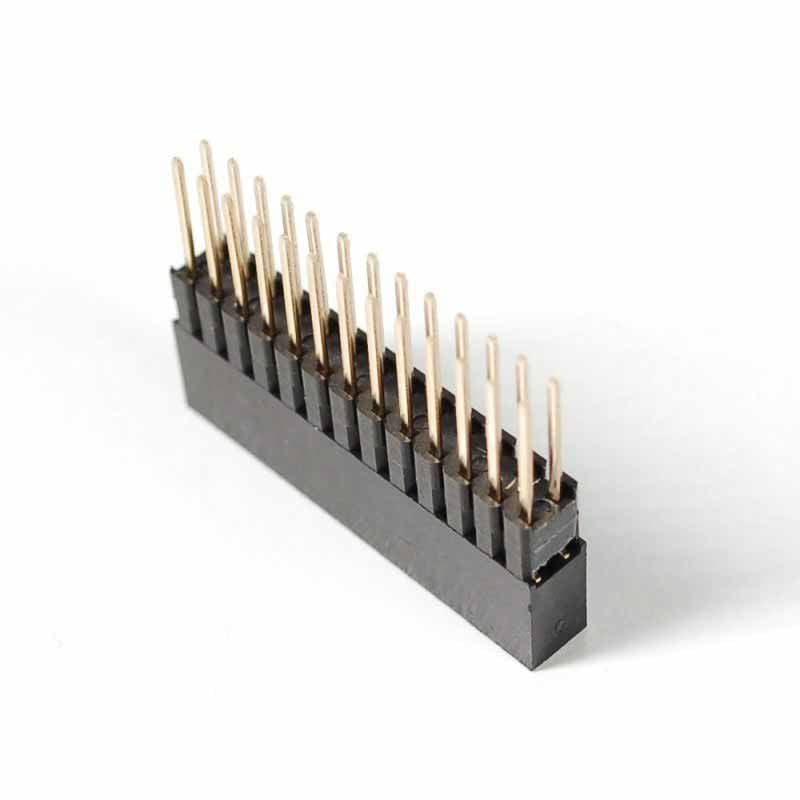

Stack multiple plates, breakouts etc onto your original Raspberry Pi 1 (26-pin) with this custom-made extra-tall and extra-long 2x13 female header.

The female header part has extra spaces to make it 13.6mm tall: when placed on your Pi, a PCB will clear the Ethernet and USB jacks. The stacky pin part is also extra-long, 9.7mm, so that when a standard 1.5mm thickness PCB is installed, there will be 8mm remaining, plenty to plug into.

You'll get one header per order.

This socket-header is specifically for the 2x13 header on the Pi Model A and B. If you have a model B+, check out the 2x20 version here, which connects to all the B+ pins!

Technical Details

  • Pin spacing: 2.5mm / 0.1"
  • Pin thickness: 0.6mm / 0.02"
  • Weight: 4.2g
