ESP32-S3 2.41" AMOLED Touch Display Dev Board with Case (600x450)

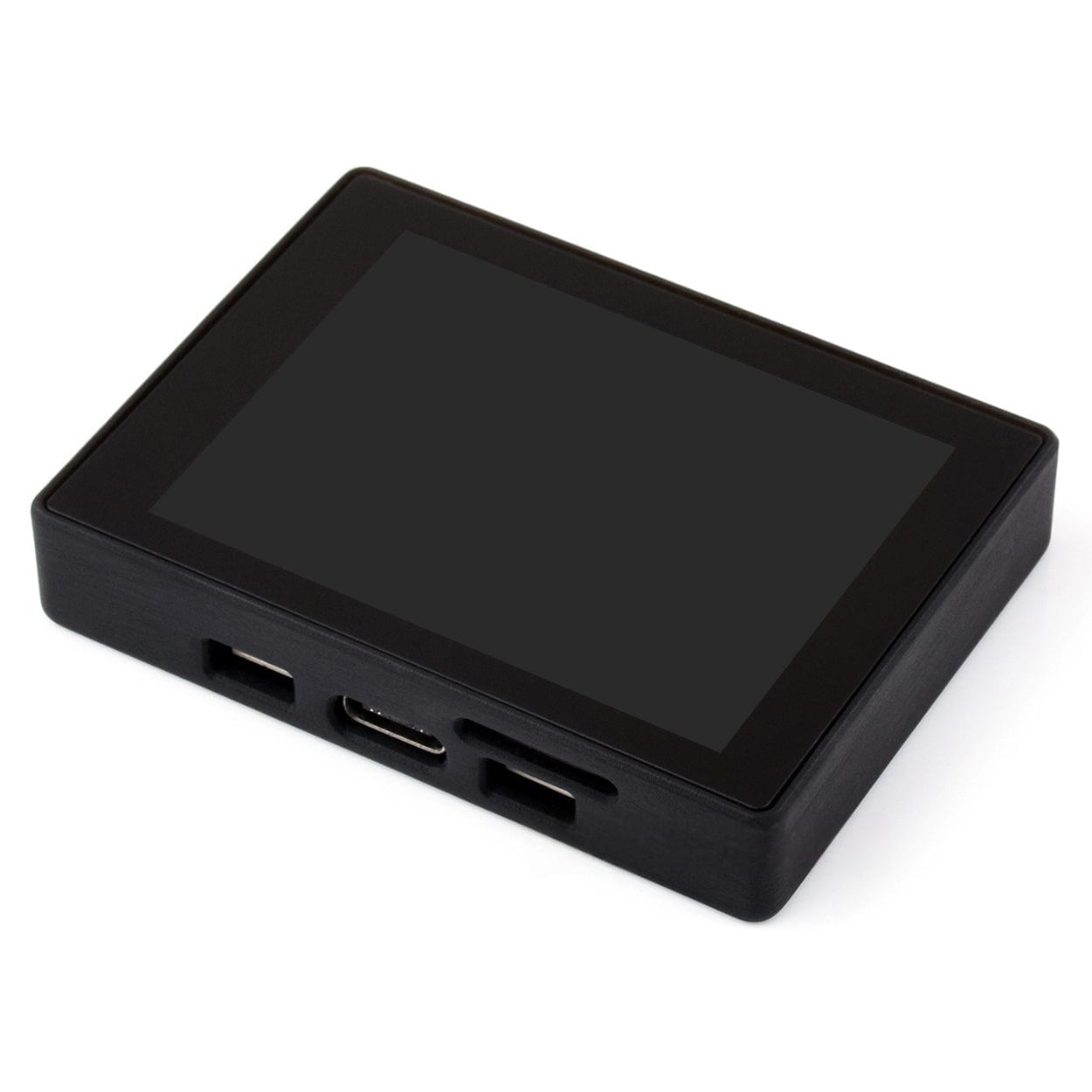

This ESP32-S3 display dev board from Waveshare has a little bit of everything, all wrapped in a minimal black case that's 'on your desk' worthy!

Inside is a development board packing a long list of features, with the ESP32-S3R8 module (2.4GHz WiFi, BT LE) running the show, supported by 16MB flash and 8BM PSRAM. The board also features USB-C for power and programming, MicroSD slot, GPIO header, 6-axis IMU, RTC battery header, I2C header, UART header, PicoBlade/MX1.25 LiPo battery header with charge circuit, POWER/BOOT/RESET buttons, charge indicator LED and a ceramic antenna with external antenna connector. Phew!

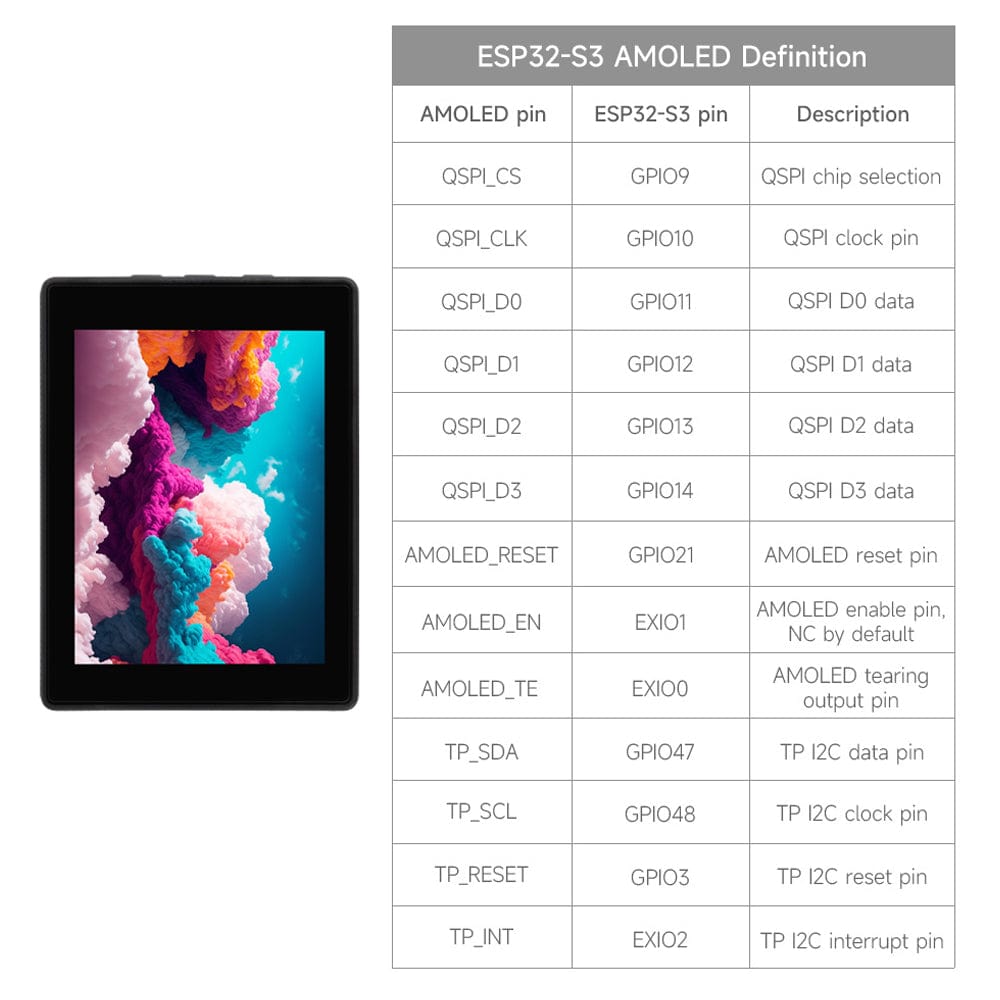

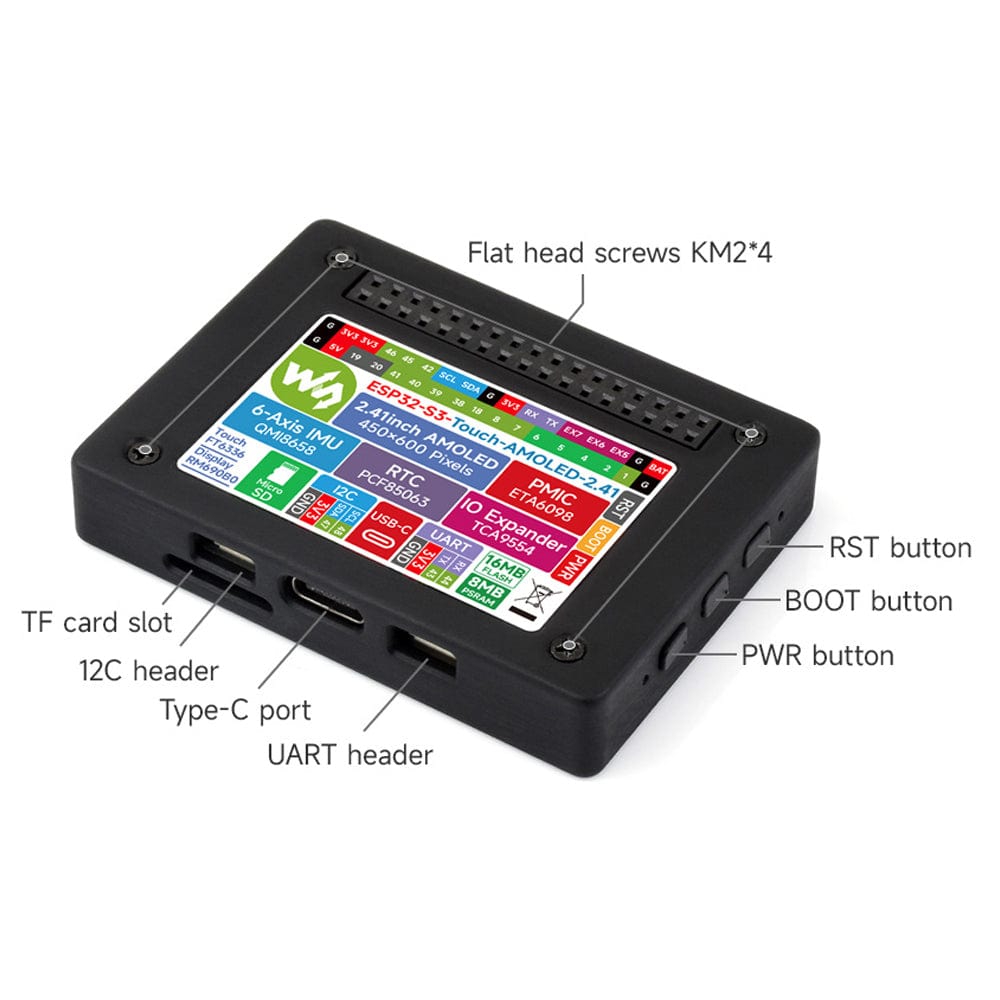

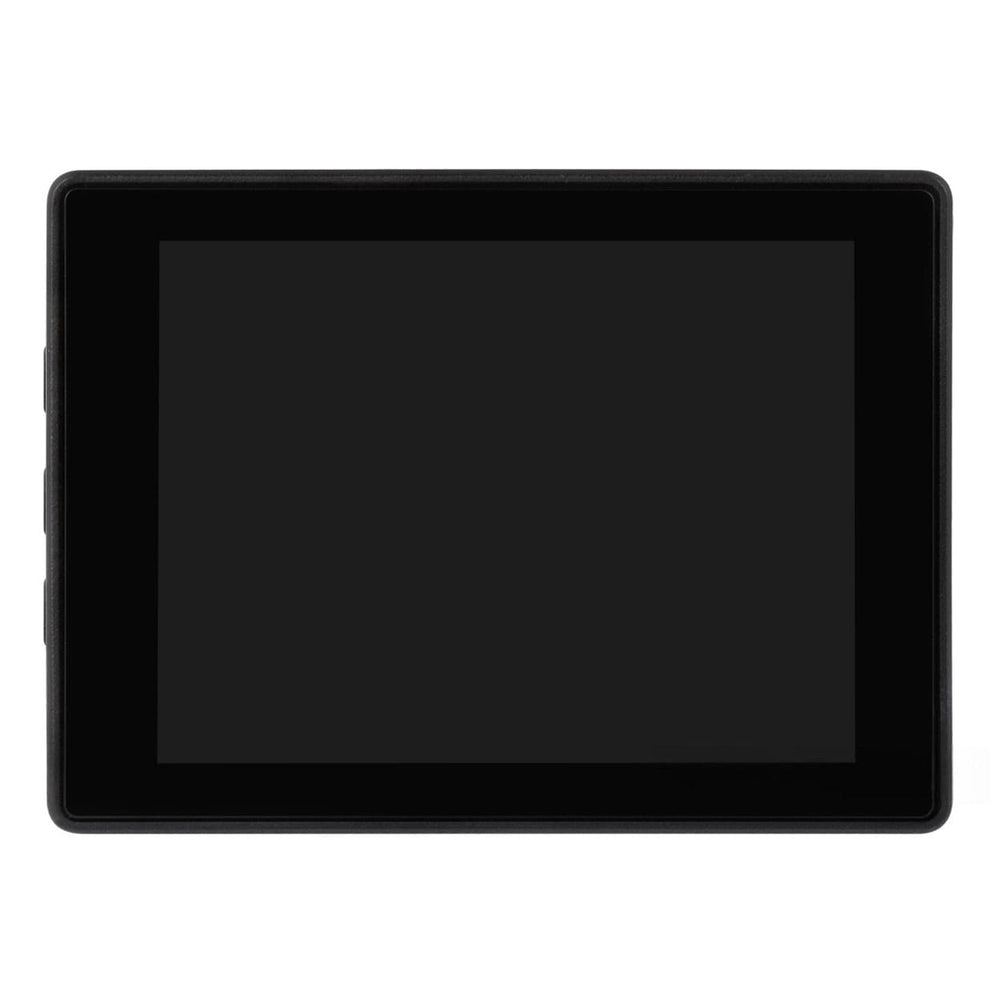

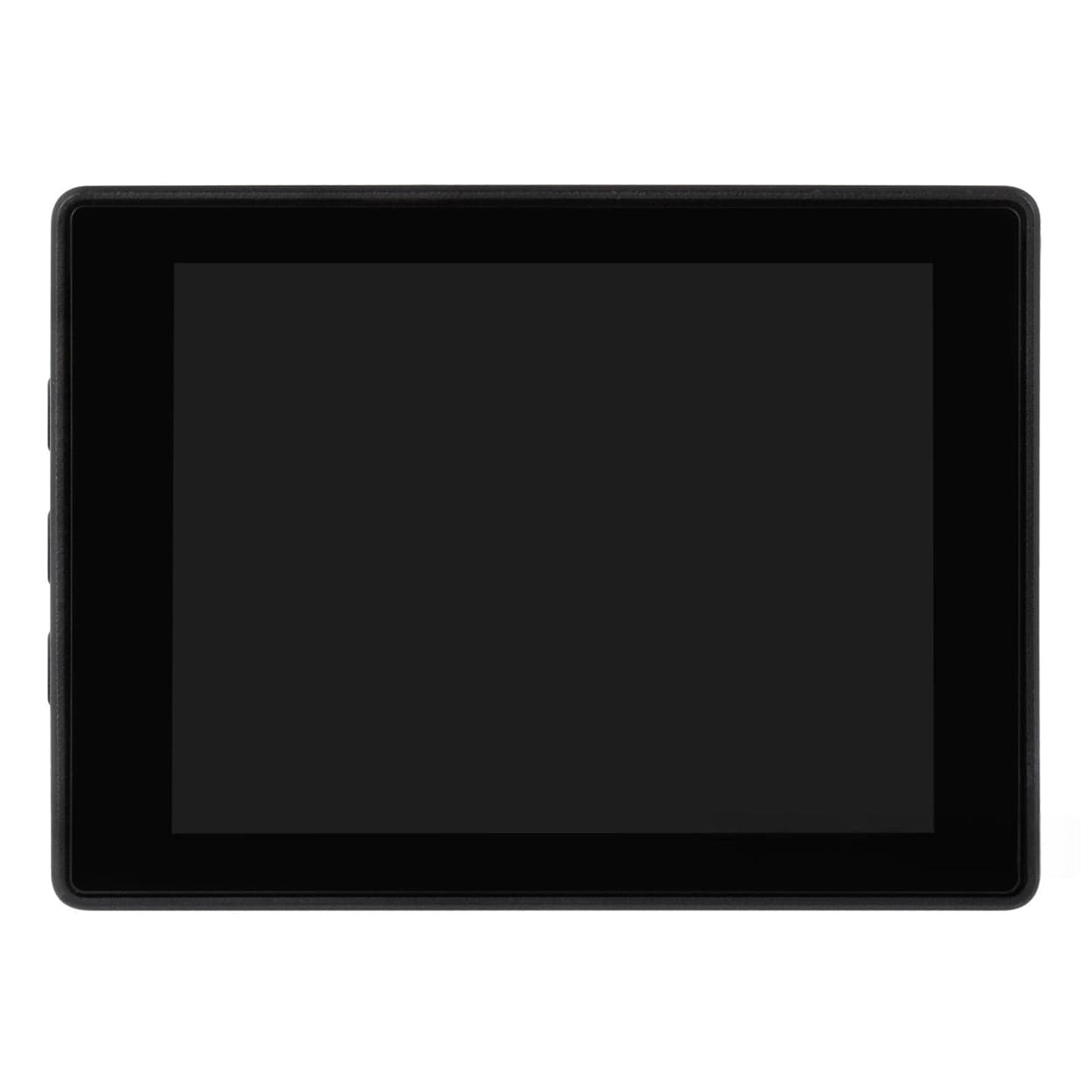

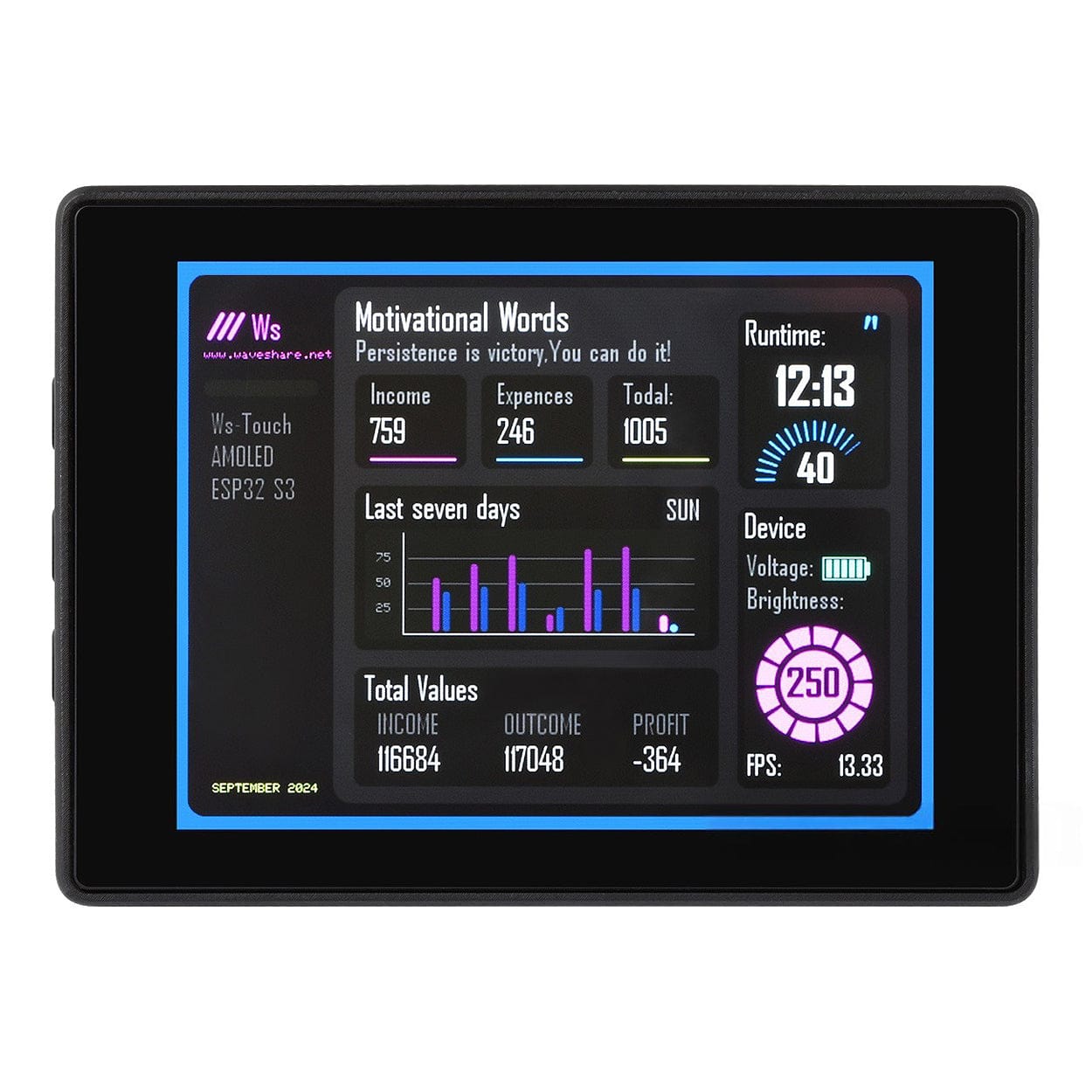

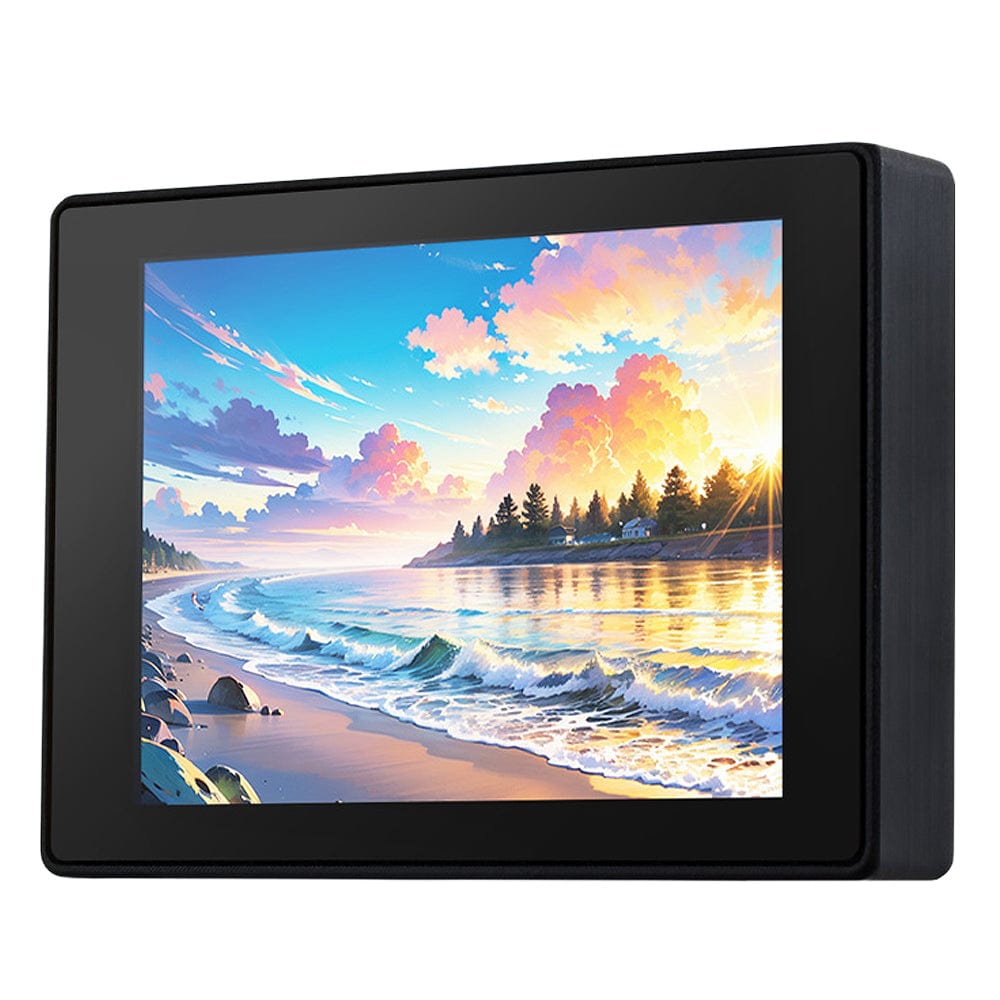

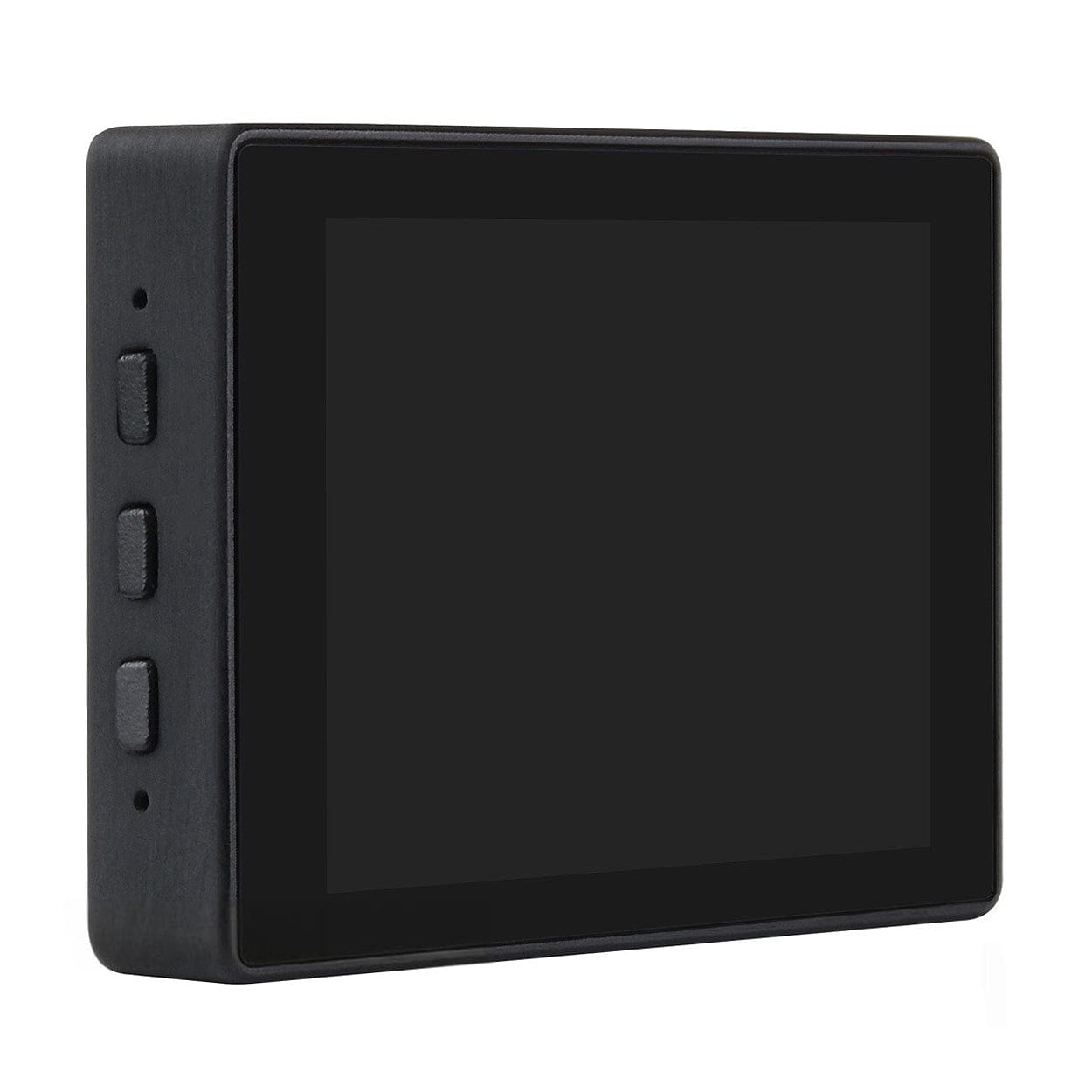

On the front is a 2.41" AMOLED 600x450 resolution display, complete with capacitive touch controlled via I2C with interrupt support. The included case allows side access to the GPIO header, IO headers and slots (including MicroSD card slot), buttons and USB-C.

It's a busy dev board, enabling it to offer you everything you need for an advanced ESP32-S3-based display project with capacitive touch and IMU motion detection!

Features

• ESP32-S3R8 module with dual-core processor
  • 2.4GHz WiFi
  • Bluetooth Low Energy
• 16MB Flash and 8MB PSRAM
• 2.41" AMOLED display, 600×450 resolution
• Capacitive touch via I2C with interrupt support
• USB-C for power and programming
• MicroSD card slot

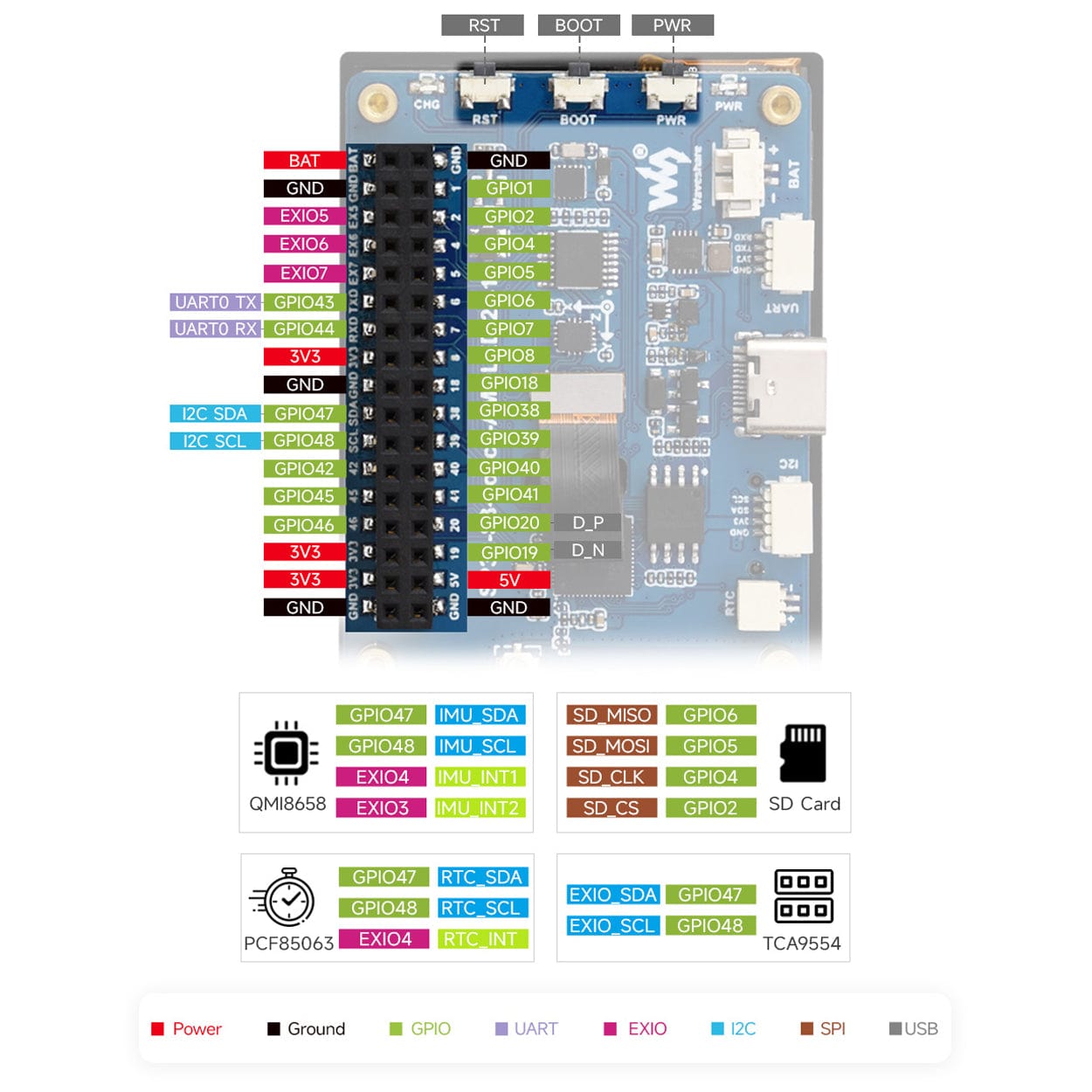

• GPIO header
• I2C and UART headers
• 6-axis IMU
• RTC battery header (battery not included)
• MX1.25/PicoBlade LiPo battery header with charging circuit (battery not included)
• POWER, BOOT, and RESET buttons
• Charge indicator LED
• Ceramic antenna with external antenna connector
• Includes case with access to GPIO, headers, slots, buttons, and USB-C

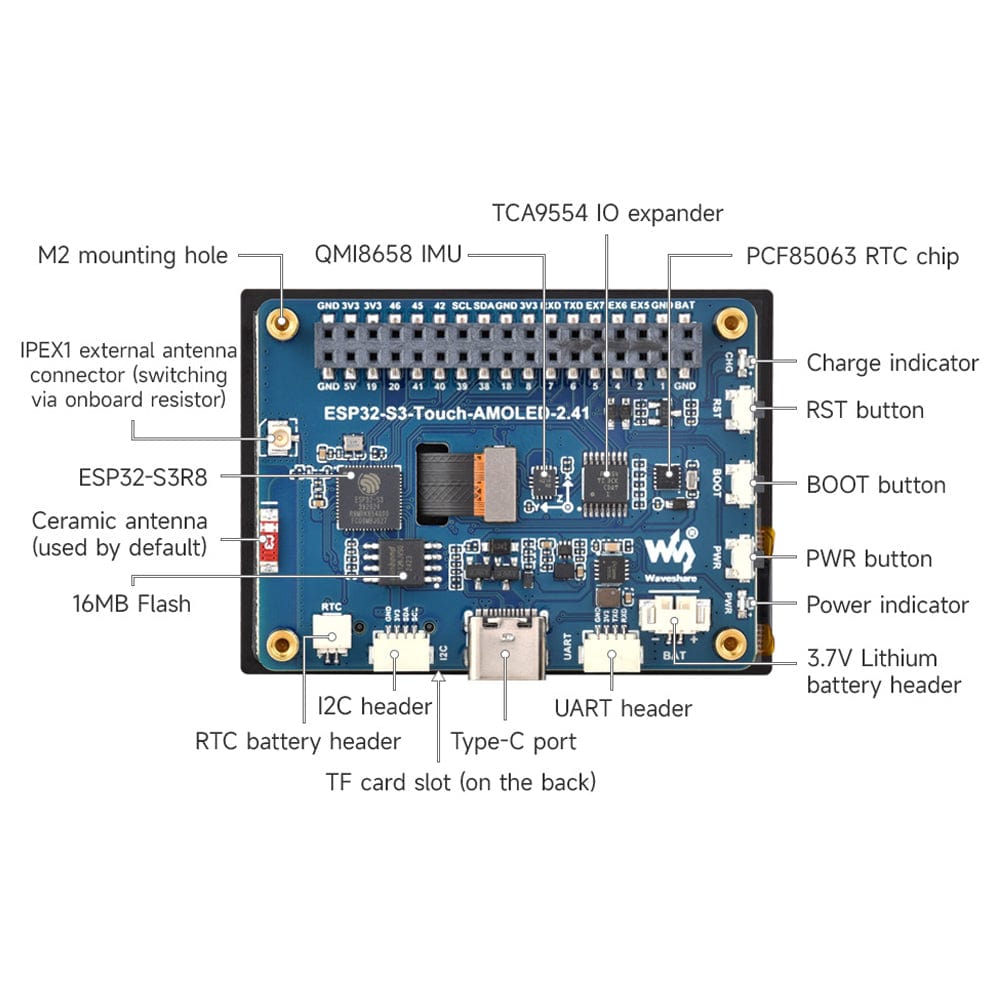

What's on board?

Resources

• Product Wiki

Package Contents

• 1x ESP32-S3 2.41" AMOLED Touch Display Dev Board with Case (600x450)
• 2x 100mm SH1.0 4-pin cables
