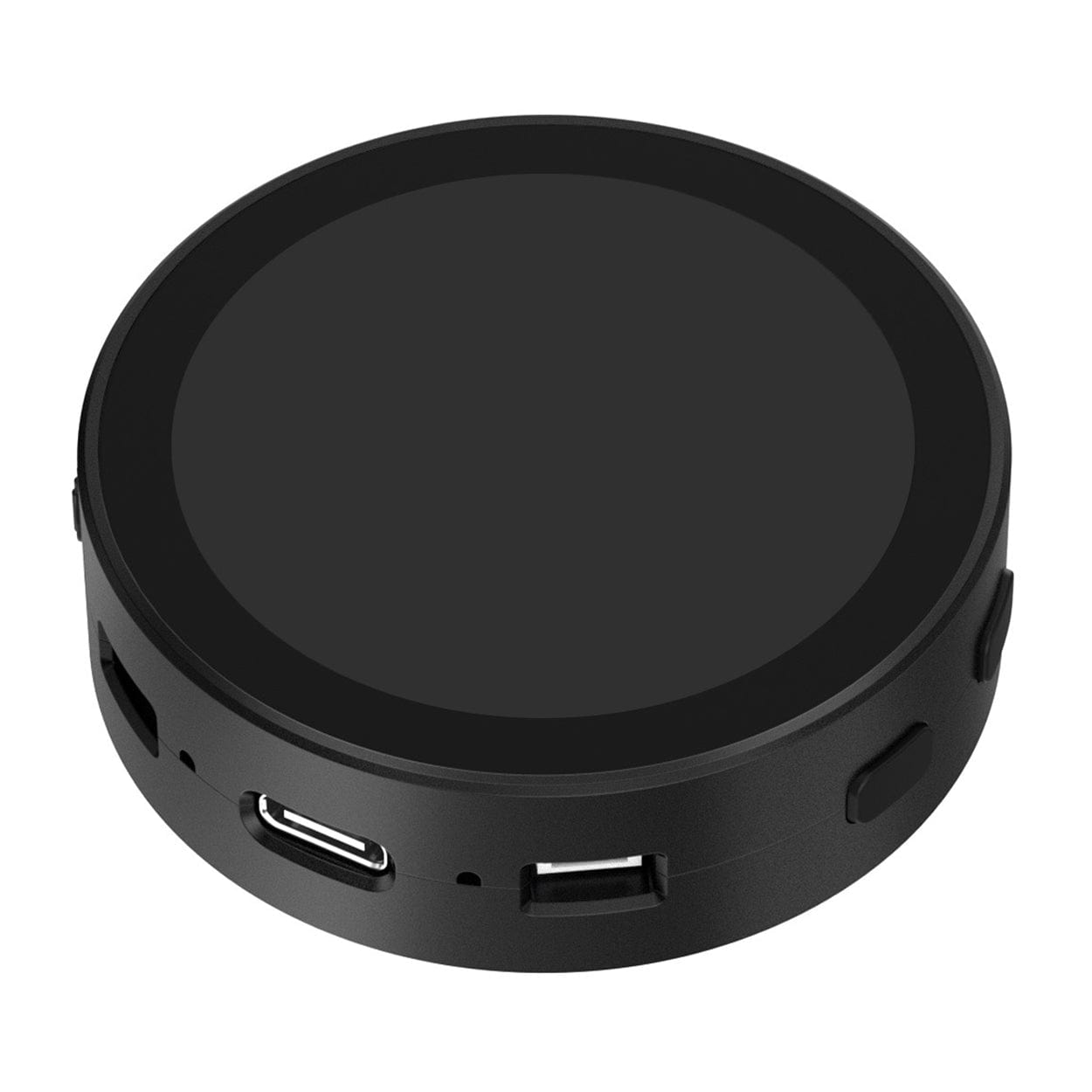

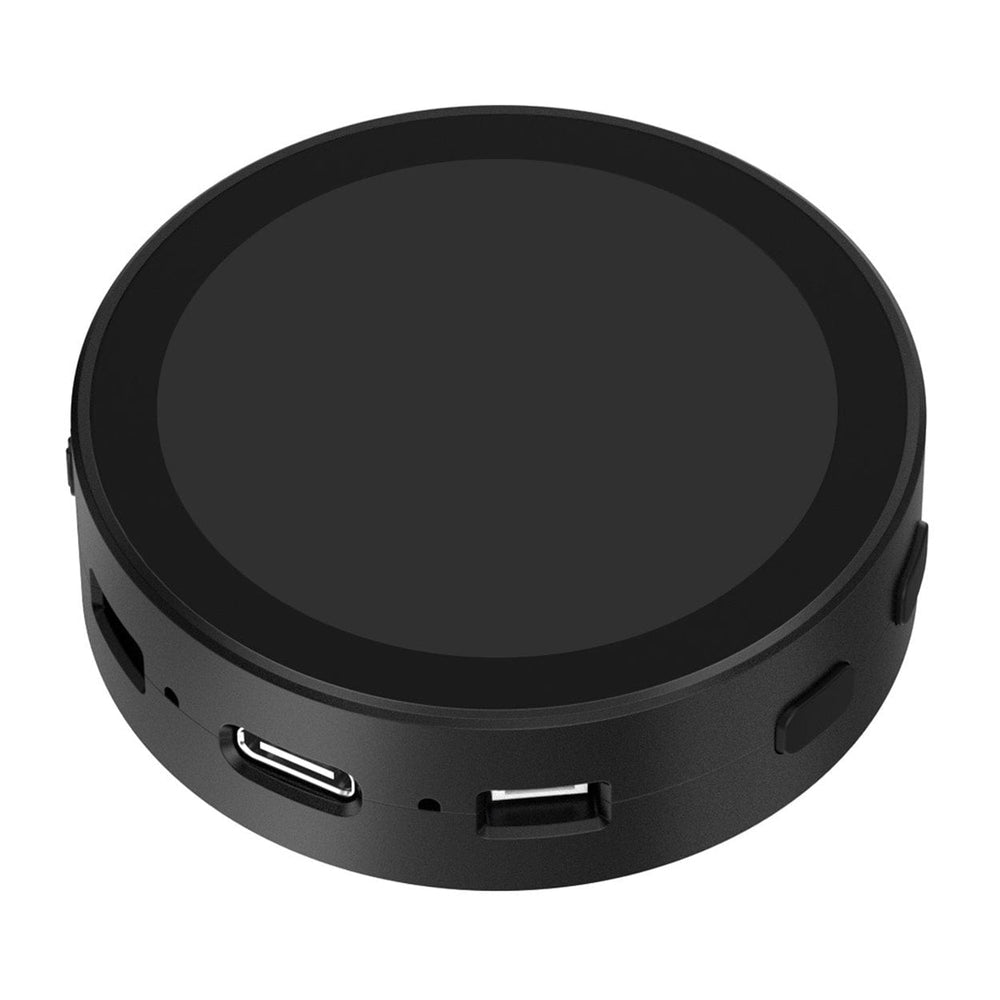

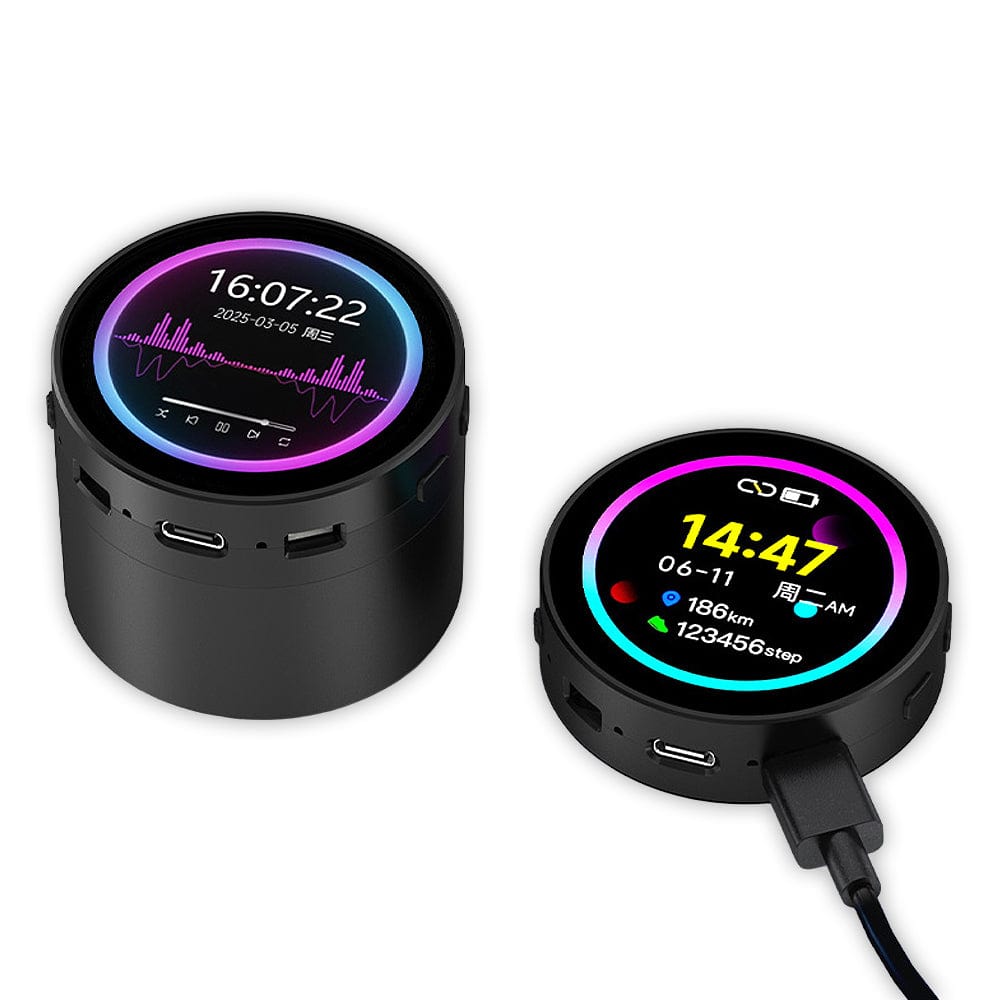

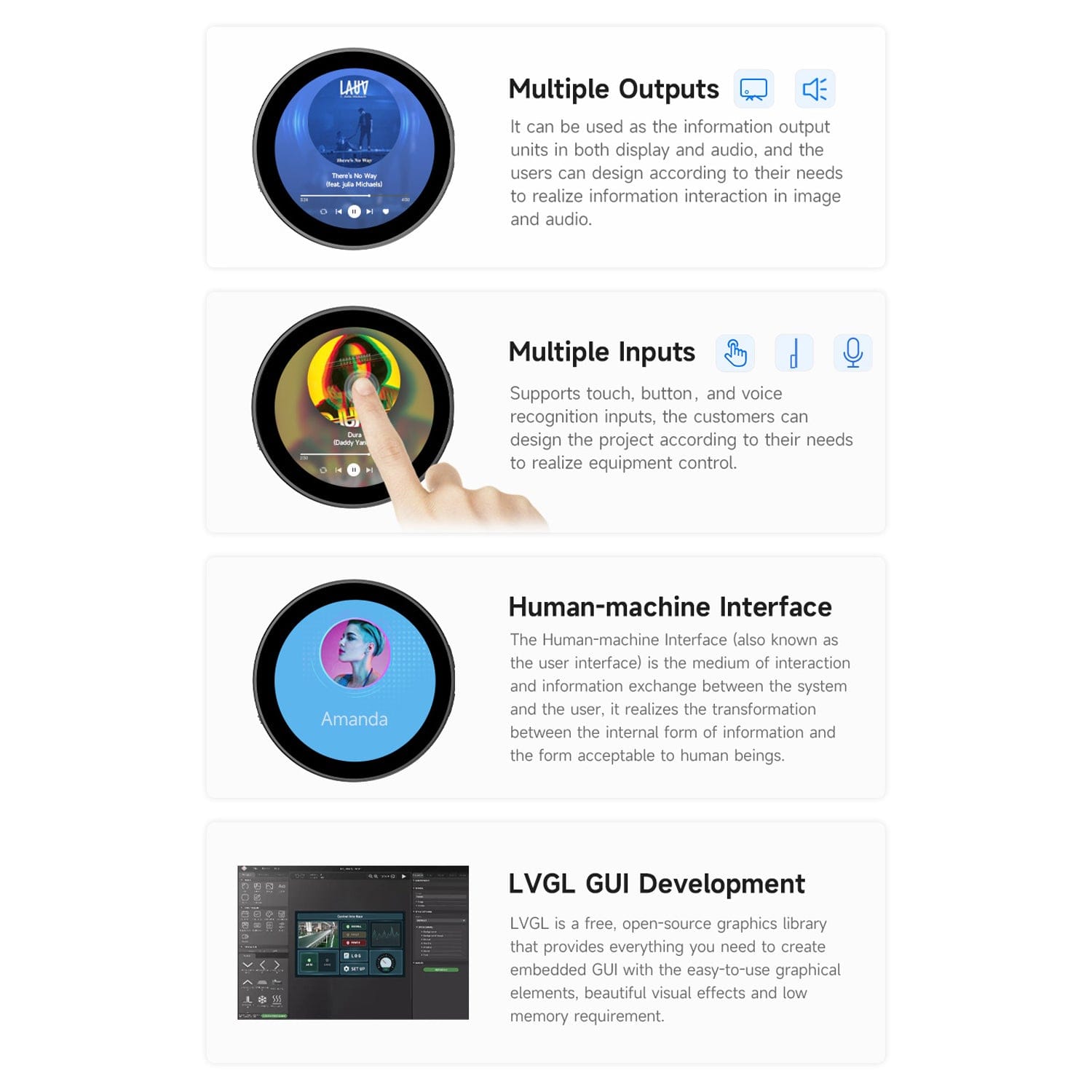

The Waveshare ESP32-S3 1.85" Round LCD Touch Display Dev Board with Microphone and Speaker is the perfect platform for creating your own smart voice input device, and is available with or without a built-in speaker and LiPo battery (select an option before adding to your cart).

It uses an ESP32-S3 as the microcontroller, backed up by 16MB flash and 8MB PSRAM. The ESP32-S3 offers 2.4GHz WiFi and Bluetooth 5 Low Energy, with a ceramic onboard antenna, as well as an IPEX1 interface for an external antenna.

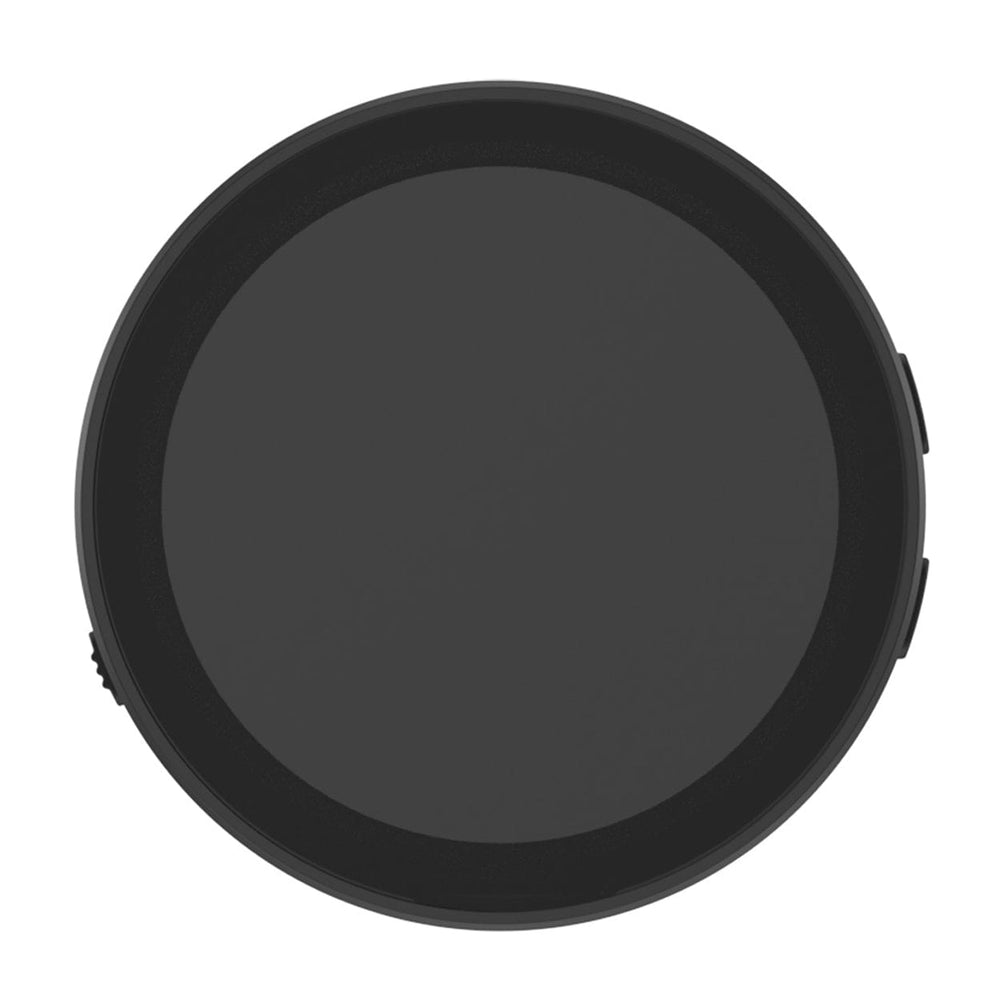

On the front is a 1.85" touchscreen LCD, with a 360x360 resolution offering 262k colours, providing a touchscreen interface for your project.

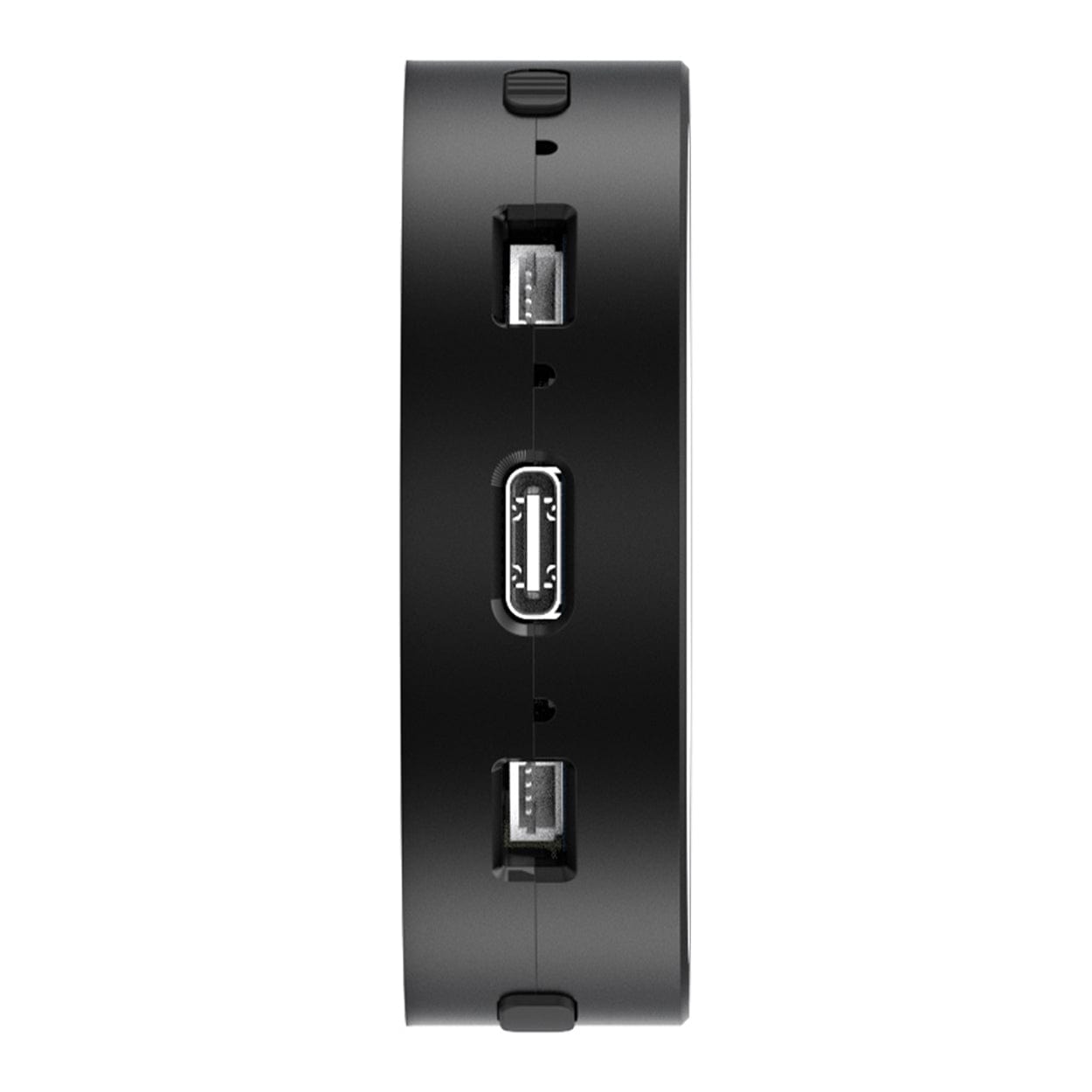

The unit is powered and programmed via USB-C, and also offers an onboard microphone, speaker output header, MicroSD slot, RTC battery interface, I2C interface, MX1.25/PicoBlade LiPo battery interface with charge circuit and indication LED, Battery power ON/OFF switch, UART header, 1.27mm GPIO interface header, RESET/BOOT buttons and volume adjustment pot.

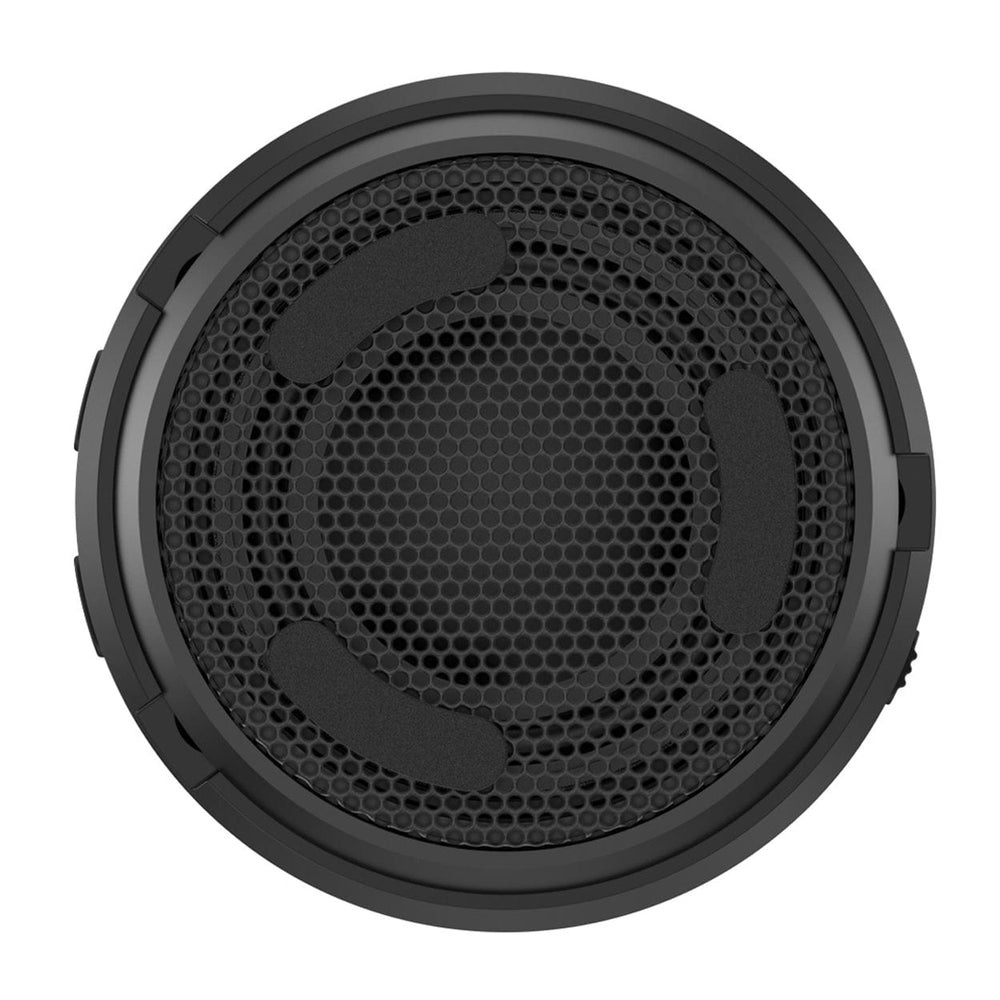

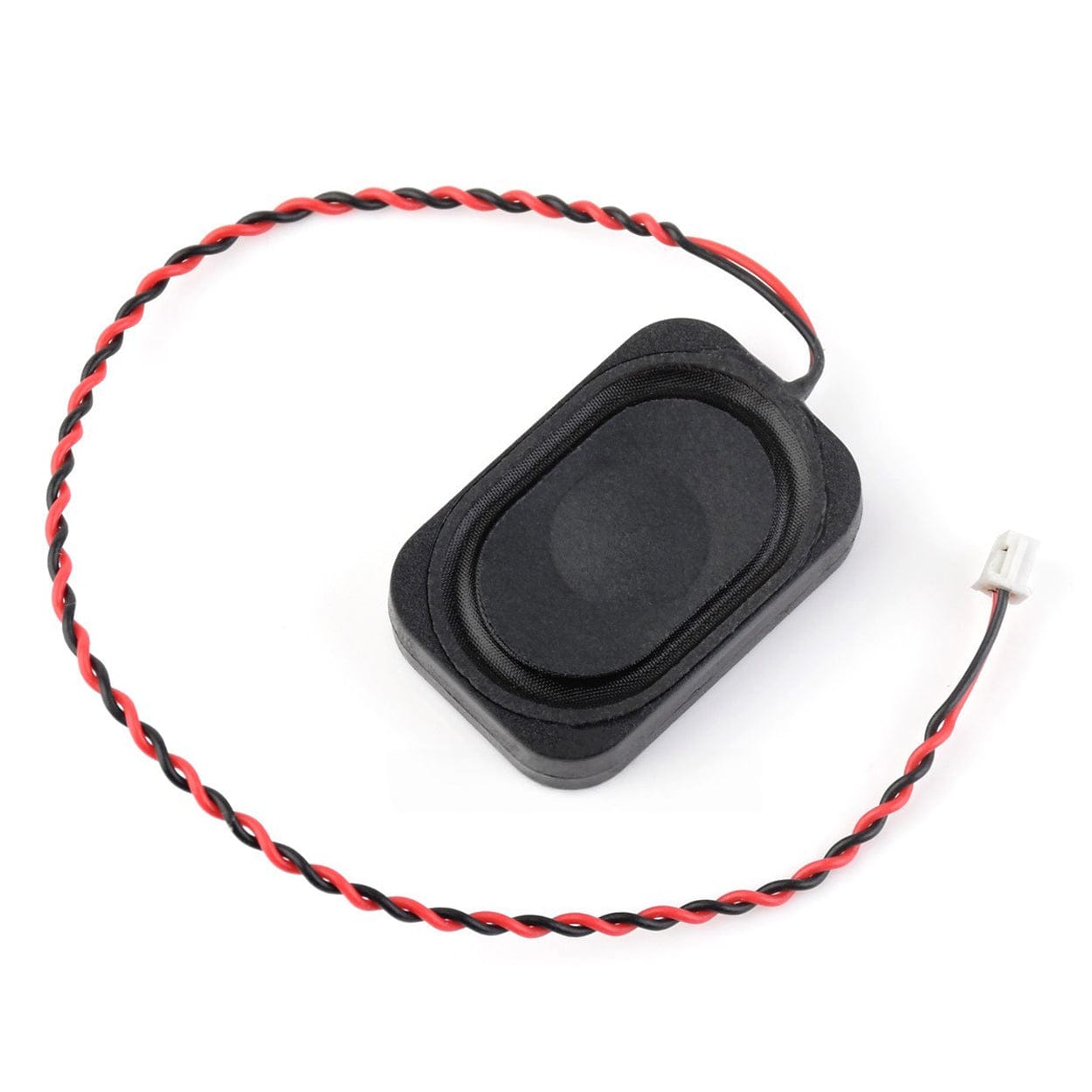

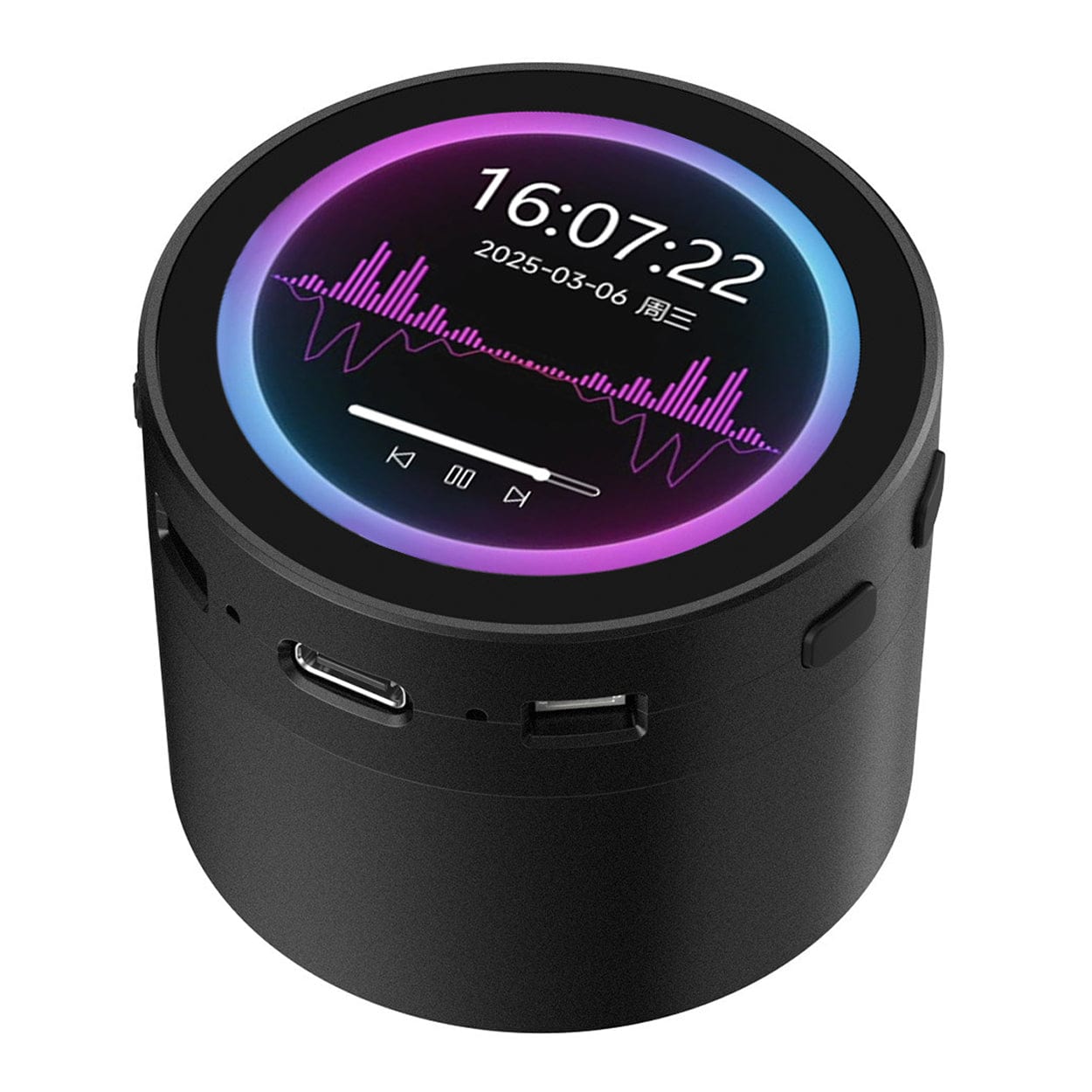

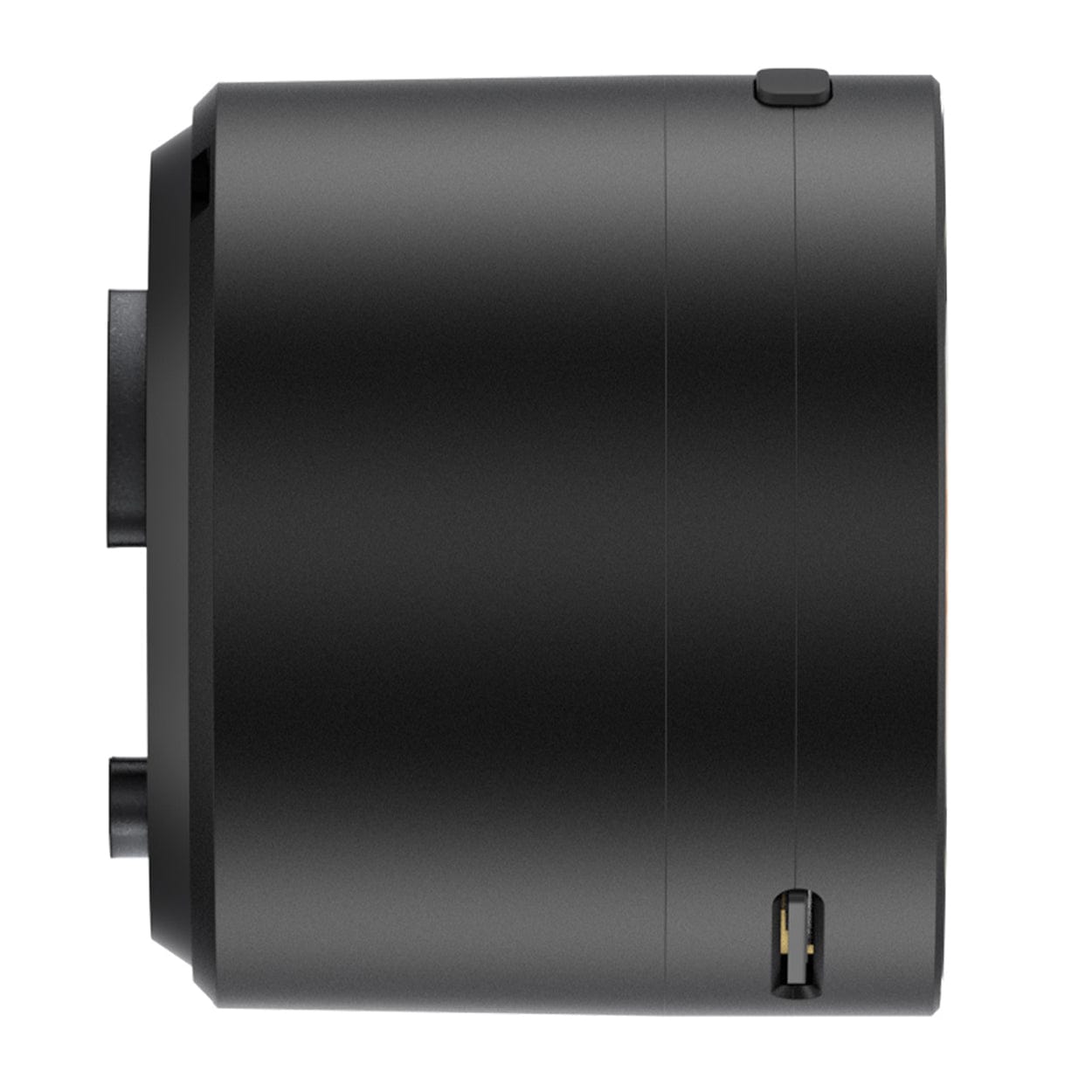

The standard version includes a small wired external speaker. We also offer a version with a built-in 'speaker box' and LiPo battery - select an option before adding to your cart.


Lithium Battery Shipping: Due to courier restrictions, the speaker box version of this product, including a battery, can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?


Community Video

Features

  • ESP32-S3 dual-core processor, up to 240MHz
  • 16MB Flash and 8MB PSRAM
  • 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE)
  • 1.85" round LCD touchscreen, 360×360 resolution, 262K colours
  • Ceramic onboard antenna with IPEX1 connector for external antenna
  • USB-C for power and programming
  • Onboard microphone
  • 4Ω 5W speaker output
    • Standard version includes a small wired speaker

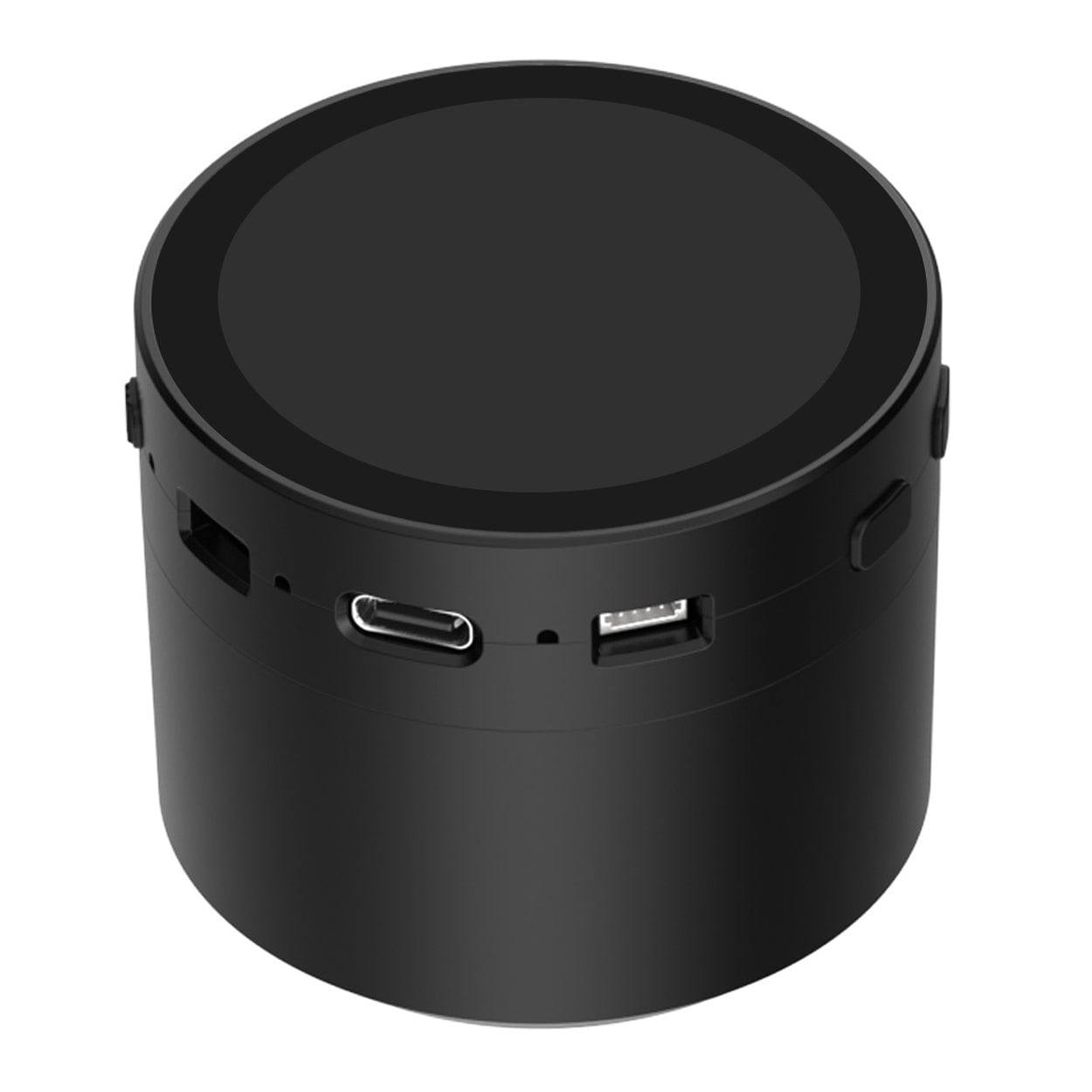

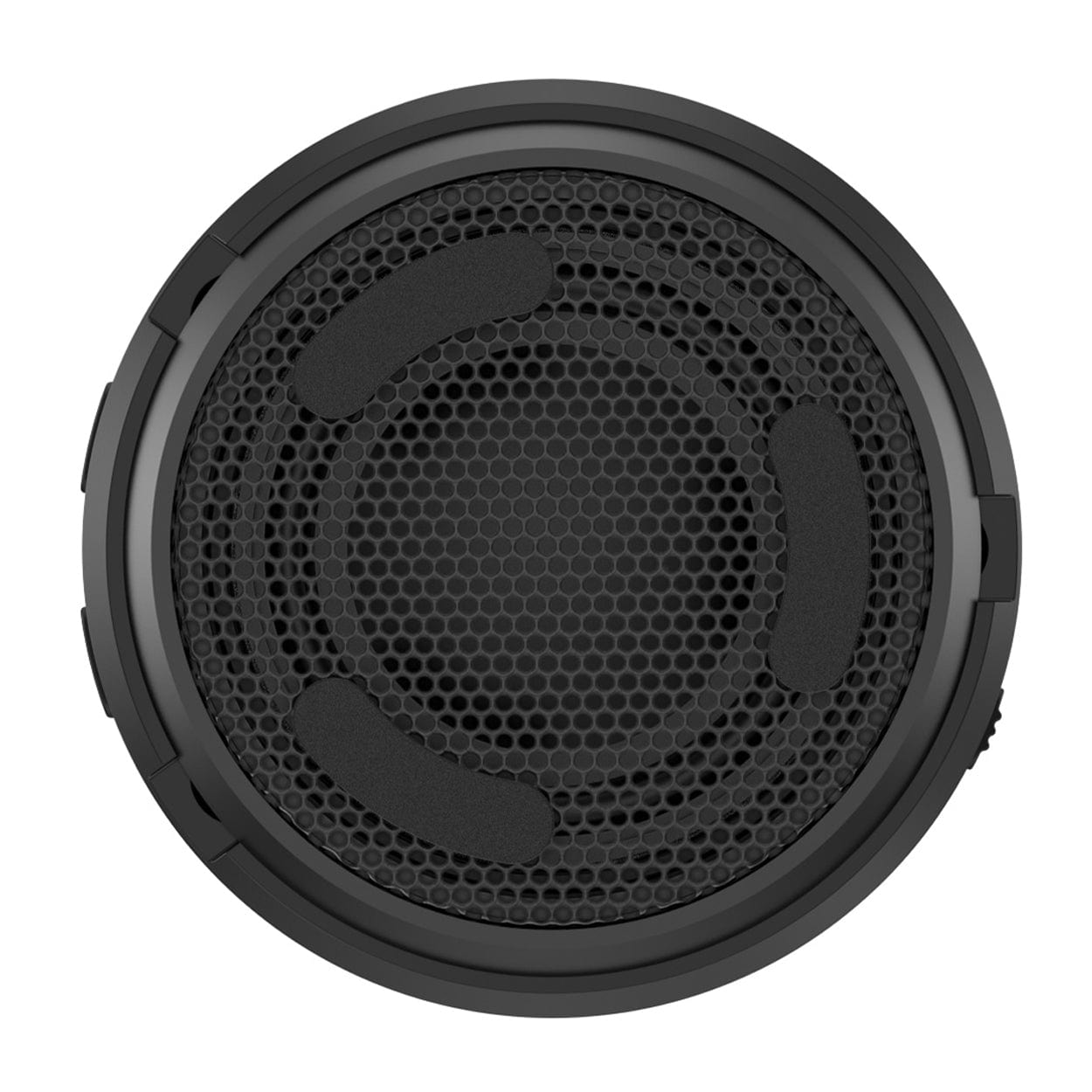

    • Speaker version includes a speaker box and LiPo battery
  • MicroSD card slot
  • RTC clock chip and RTC battery header
  • I2C and UART interfaces
  • 1.27mm GPIO header
  • MX1.25 2-pin LiPo battery header with charge circuit
    • LiPo battery included in speaker version
  • Battery ON/OFF switch
  • RESET and BOOT buttons
  • Volume adjustment control
  • Power and charge status indicators

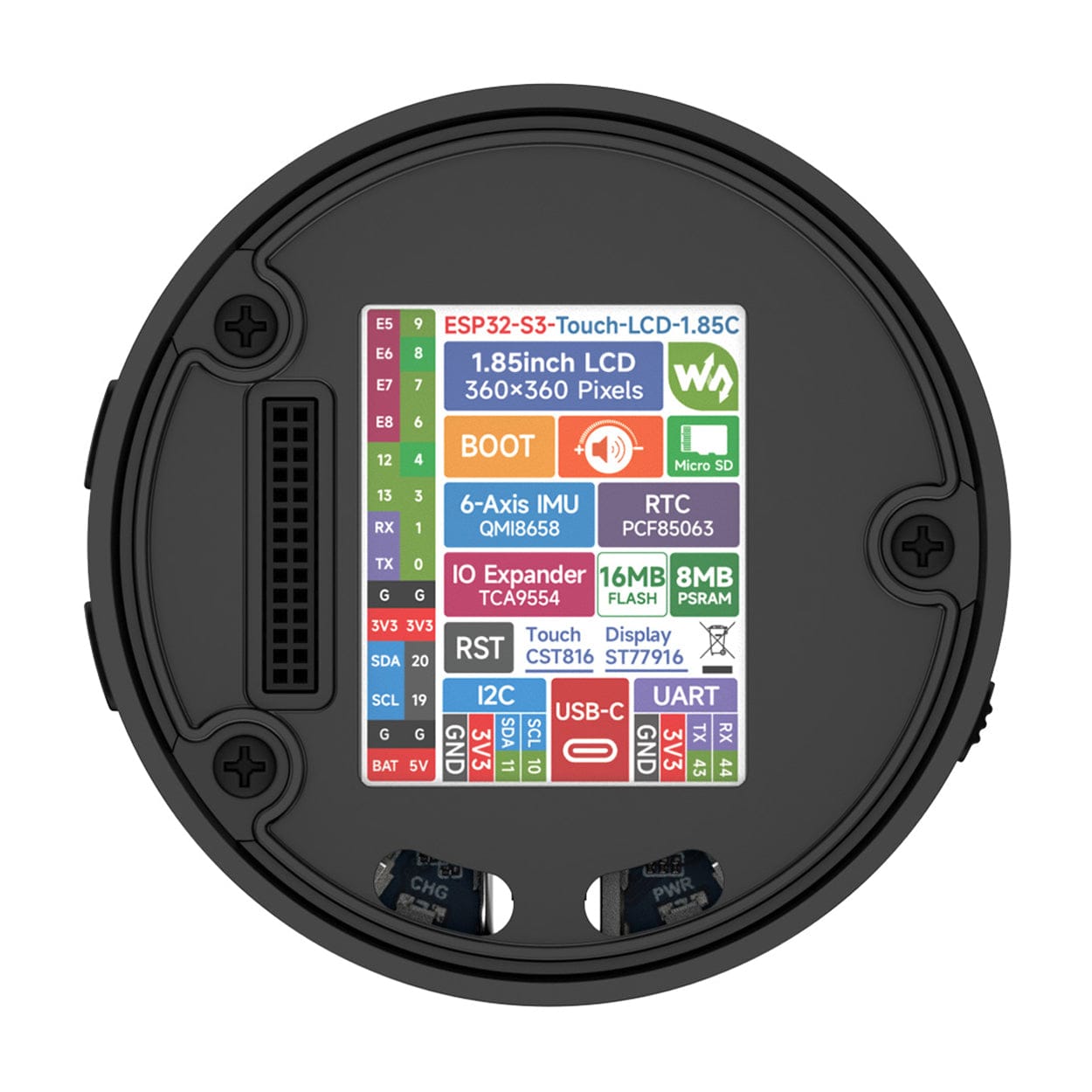

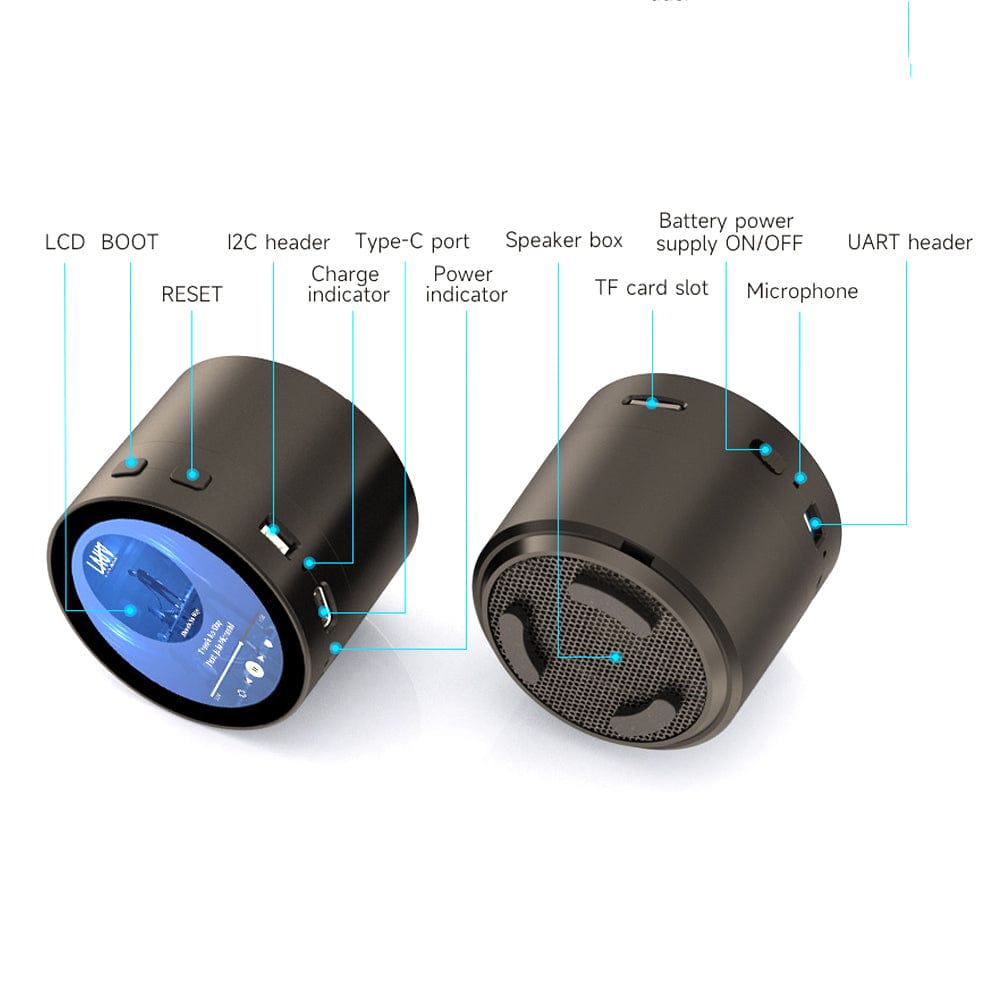

What's onboard?

  1. ESP32-S3R8
    • Dual-core, up to 240MHz
  2. 16MB Flash
  3. TCA9554PWR
    • GPIO expander
  4. RTC chip
    • PCF85063
  5. Amplifier chip
  6. PCM5101 audio decoder
  7. Battery recharge manager
  8. MP1605GTF-Z
    • Power module, 3.3V 2A output
  9. Volume knob
  10. TF card slot
  11. IPEX1 connector
    • Switch to an external antenna via onboard resistor re-soldering
  12. Onboard ceramic antenna
  13. Battery ON/OFF
  14. Speaker header
  15. Microphone
  16. MX1.25 battery header
    • 2-pin for 3.7V Li-ion battery
    • Charge/discharge supported
  17. UART header
  18. Power LED
  19. USB-C port
  20. Charge LED
    • On when charging, off when full (status uncertain if no battery)
  21. I2C header
    • Internal chip only, I2C peripherals supported
  22. RTC battery header
    • For a rechargeable RTC cell

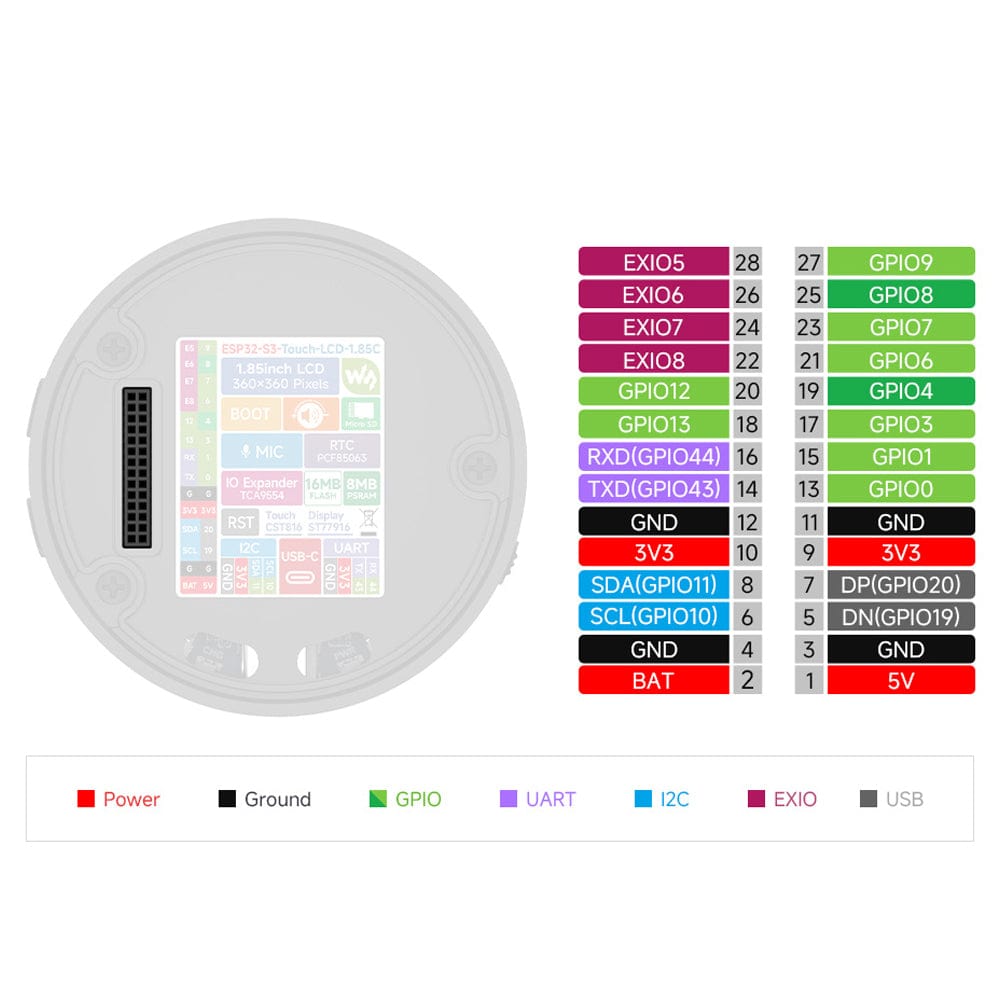

  23. 1.27mm header
    • 28-pin reserved for GPIO and functions
  24. RESET button
  25. BOOT button

Specifications

Interface USB-C
Controller chip ESP32-S3
LCD type TFT
LCD controller chip Display: ST77916
Touch: CST816
Onboard devices RTC clock: PCF85063
PCM audio decoding chip: PCM5101
MIC
TF
Battery recharging manager module

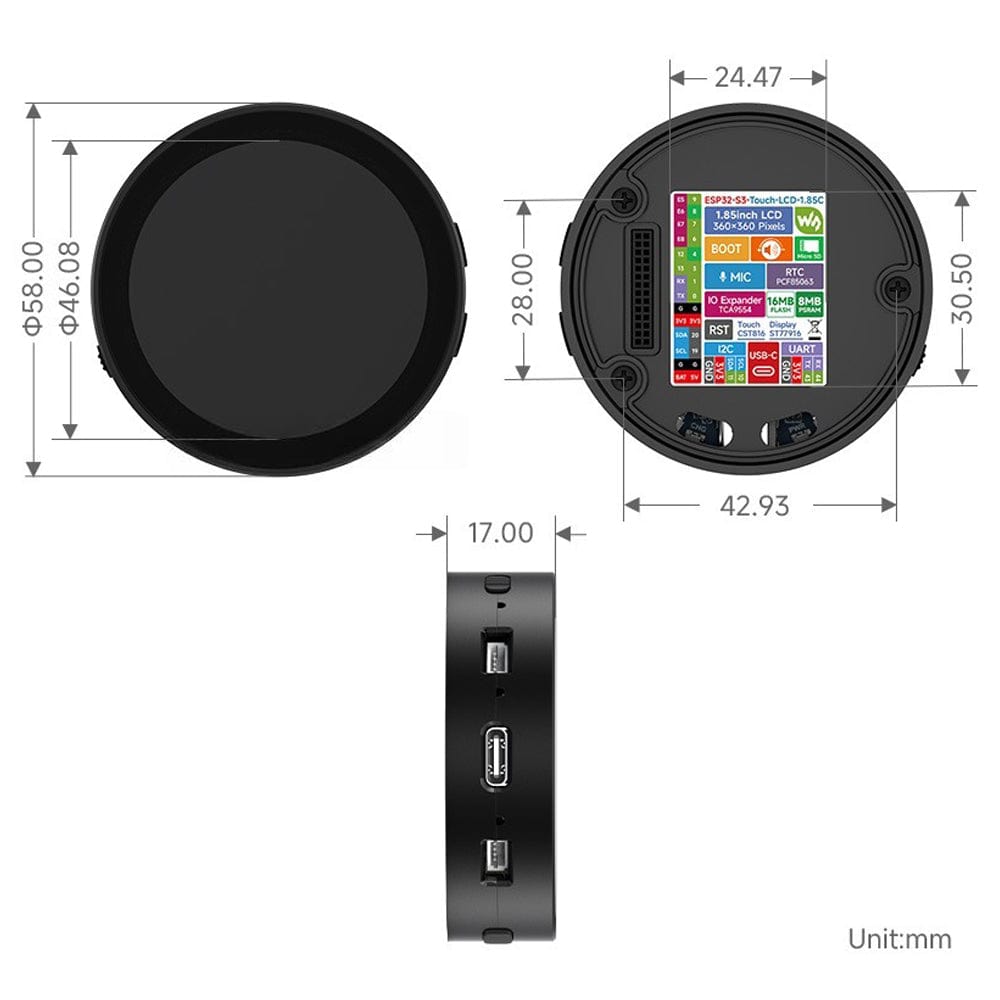

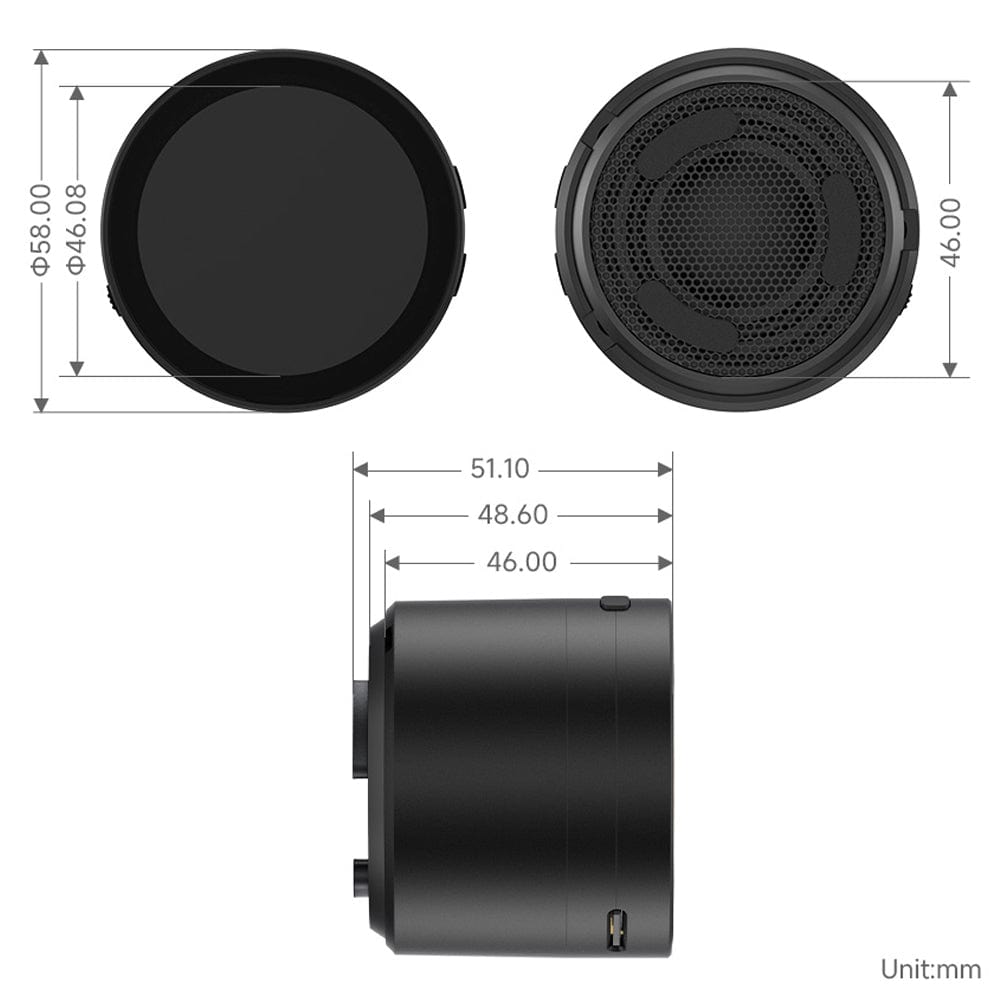

Dimensions 58.0 (R) × 17.0 (H) mm
58.0 (R) × 51.1 (H) mm

Resources

Package Contents

Standard version

  • 1x ESP32-S3 1.85" Round LCD Touch Display Dev Board

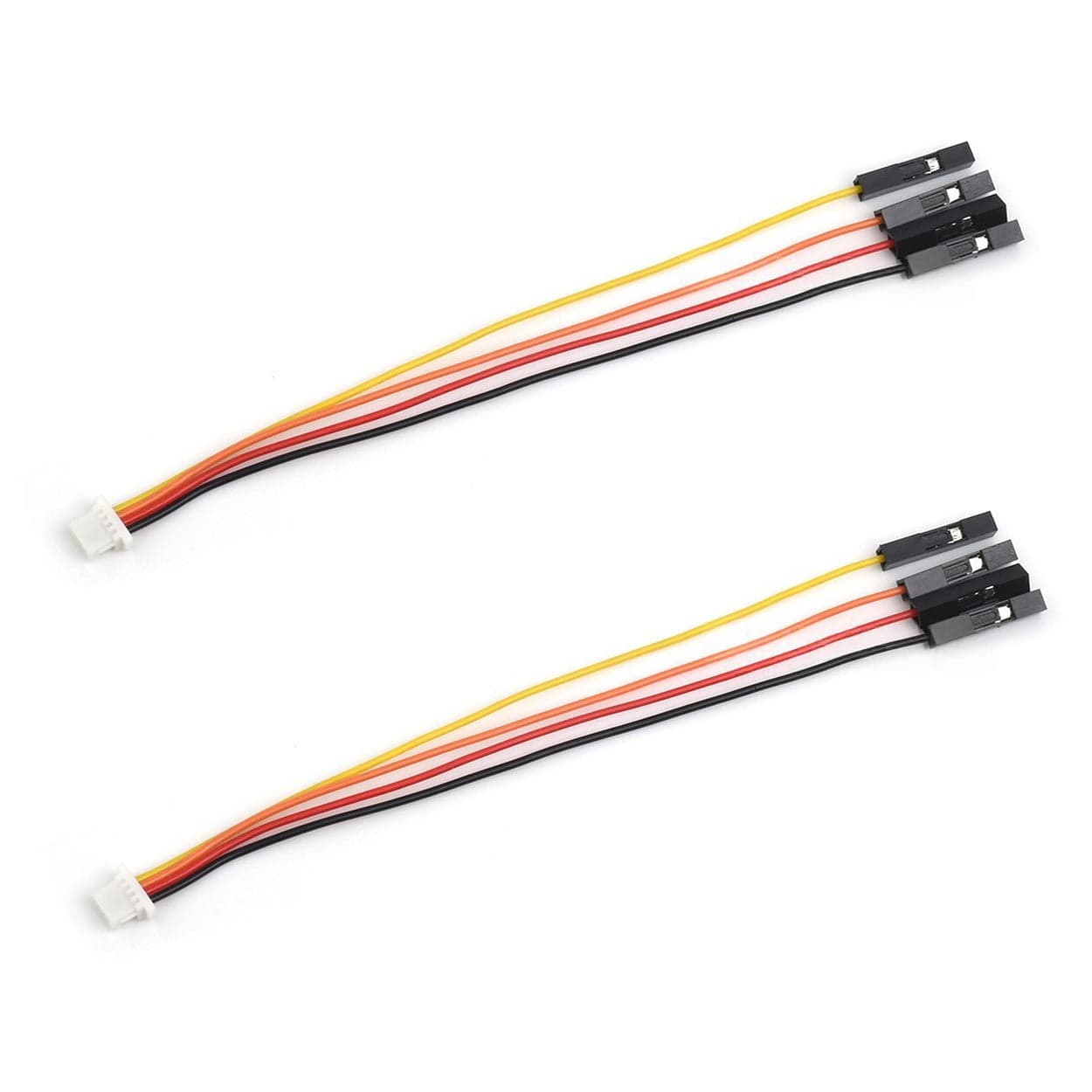

  • 2x 100mm SH1.0 4-Pin cables
  • 1x 8Ω 2W wired speaker

With Speaker Box and LiPo Battery

  • 1x ESP32-S3 1.85" Round LCD Touch Display Dev Board
    • With speaker box
  • 2x 100mm SH1.0 4-Pin cables
  • 1x 3.7V Lithium battery
