ESP32-C3-DevKitC-02 Development Board

Price:
Sale price £15.90
incl. VAT
excl. VAT
Stock:
Only 10 units left
Quantity:

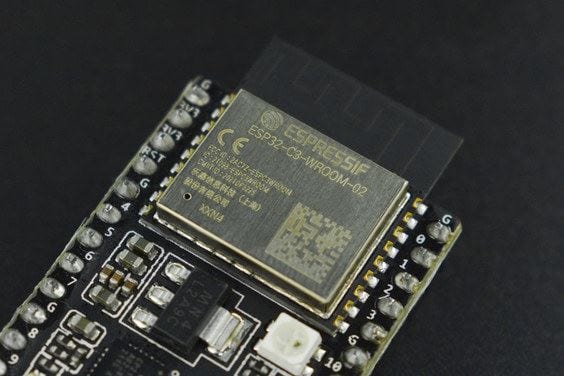

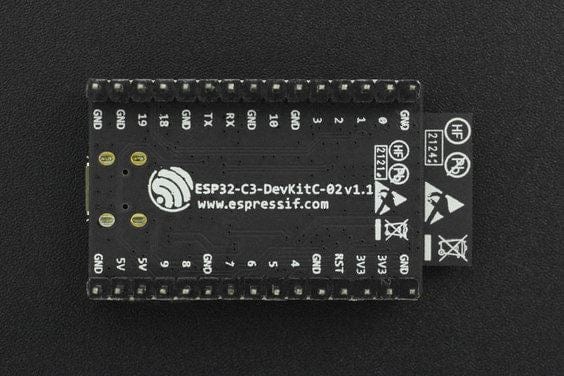

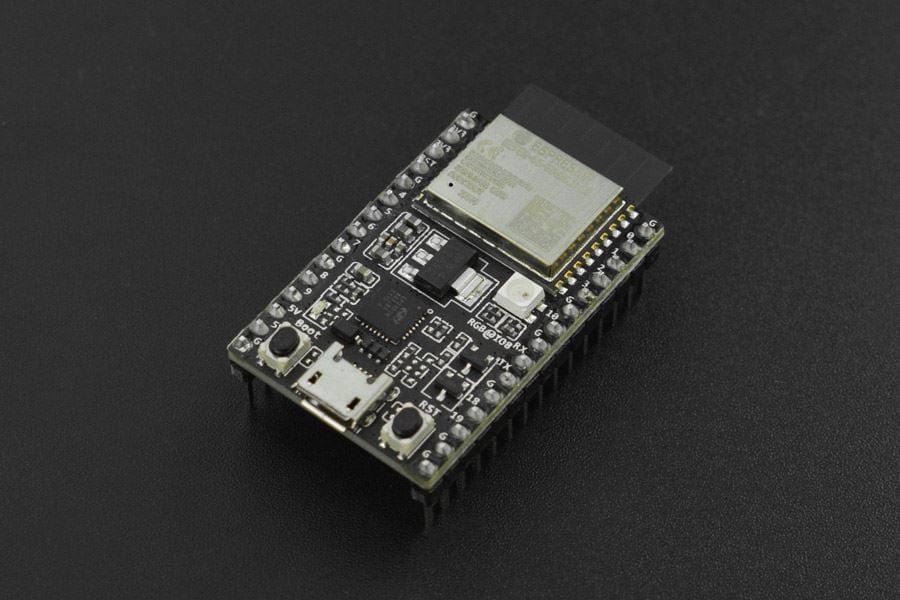

ESP32-C3-DevKitC-02 is an entry-level development board based on ESP32-C3-WROOM-02, a general-purpose module with 4 MB SPI flash.

This board integrates complete Wi-Fi and Bluetooth LE functions.

Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C3-DevKitC-02 on a breadboard.

Features

  • Integrates complete Wi-Fi functions.
  • Integrates complete Bluetooth LE functions.

Specification

  • ESP32-C3 embedded, 32-bit RISC-V single-core processor, up to 160 MHz
  • 384 KB ROM
  • 400 KB SRAM
  • 8 KB RTC SRAM
  • 40 MHz crystal oscillator
  • 4 MB SPI flash
  • Operating Voltage/ Power supply: 3.0~3.6 V
  • Operating Temperature Range: –40~85°C

Documents

Shipping List

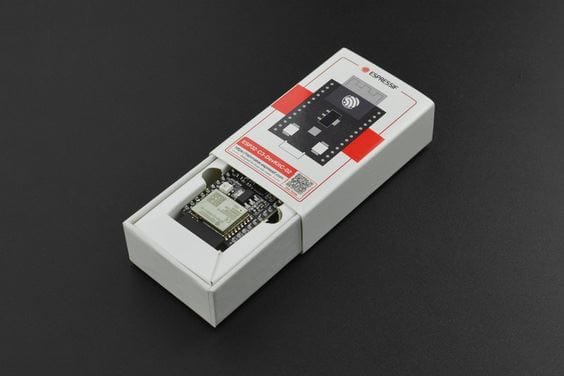

  • ESP32-C3-DevKitC-02 Development Board ×1
