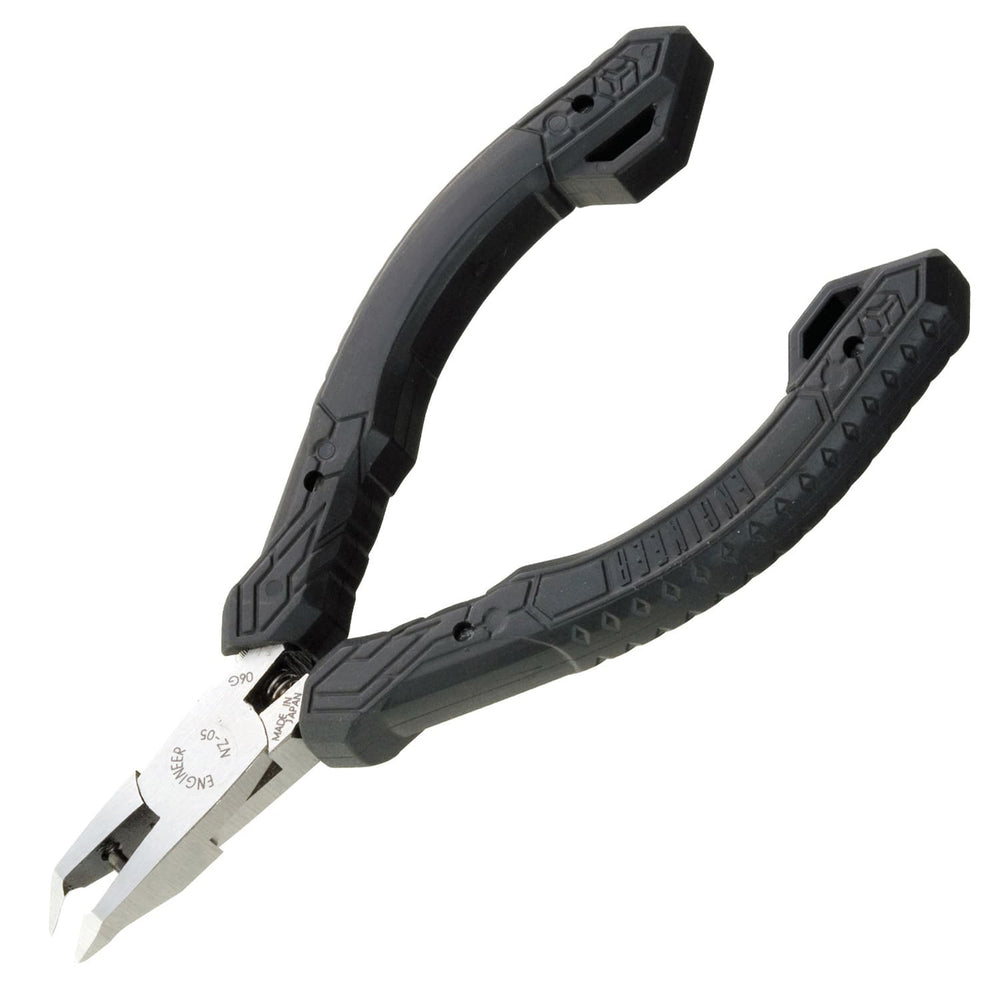

The Engineer®NZ-05 are precision cutters designed for removing unwanted components from SMD and through-hole PCBs, making de-soldering and PCB pad clean-up easier.

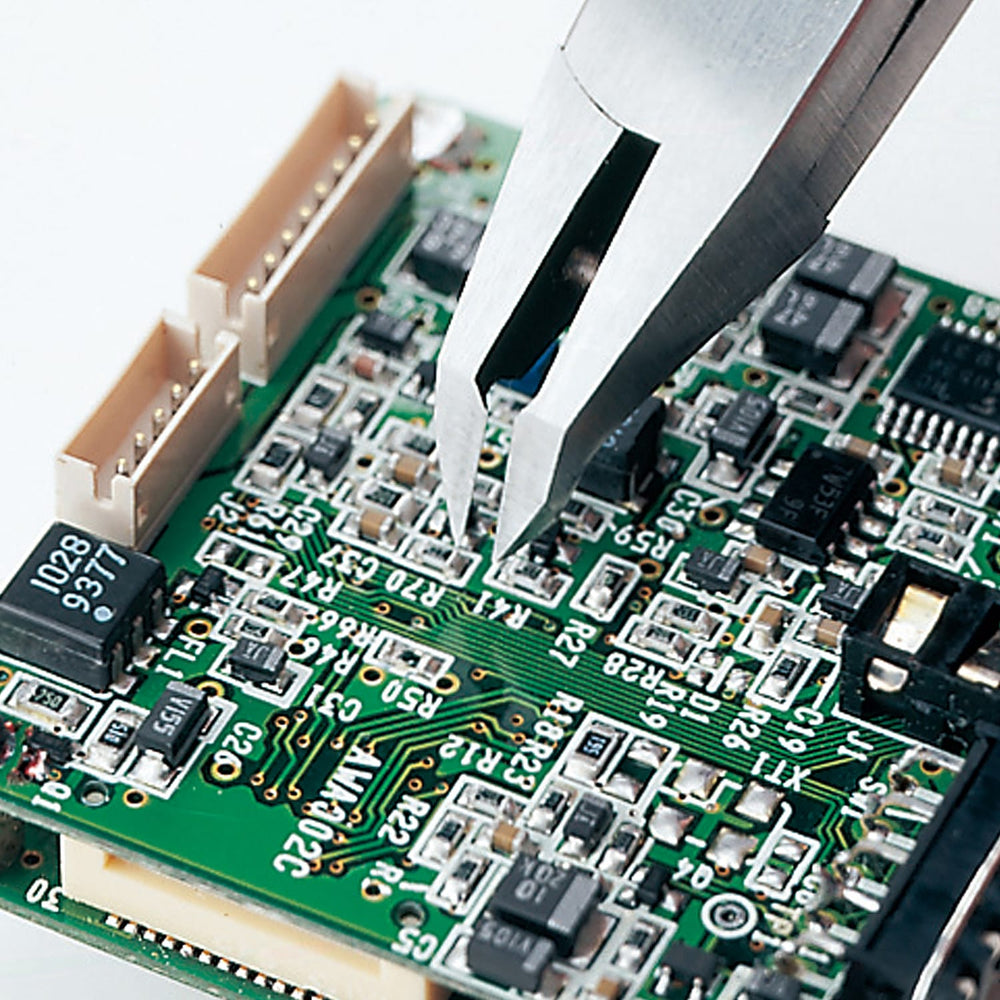

They are ideal for cutting D.I.P. and S.I.P. leads on densely populated boards, as well as removing chip resistors, ICs, and other SMD components.
The cutters feature ESD-safe thermoplastic elastomer (TPR) handles with strap holes for comfortable and secure handling, along with a coiled spring for smoother operation. An adjustable opening angle of up to 5mm allows for improved control, and a 1.5mm hex key wrench is included for adjustment and screw fastening.
Engineer has been manufacturing high-quality Japanese precision tools since 1948. If you're looking for the very best precision hand tools for your projects - look no further. Check out our range of Engineer tools here!
Features
Jaw ends angled at 45 degrees (perfect for snipping components with the jaws positioned flush to a PCB circuit board)

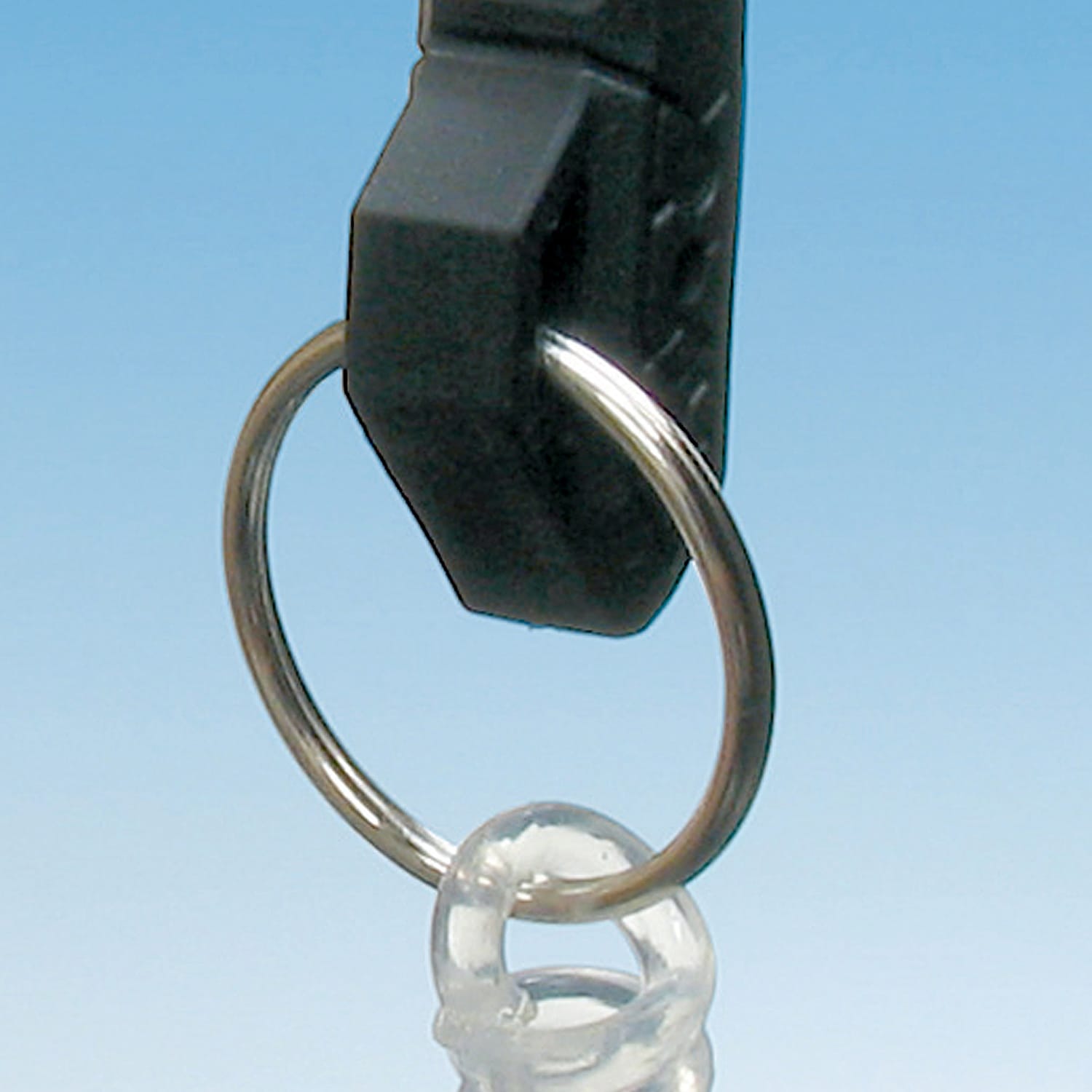

Spring loaded grips for easy operation (strap holes at end of handles)

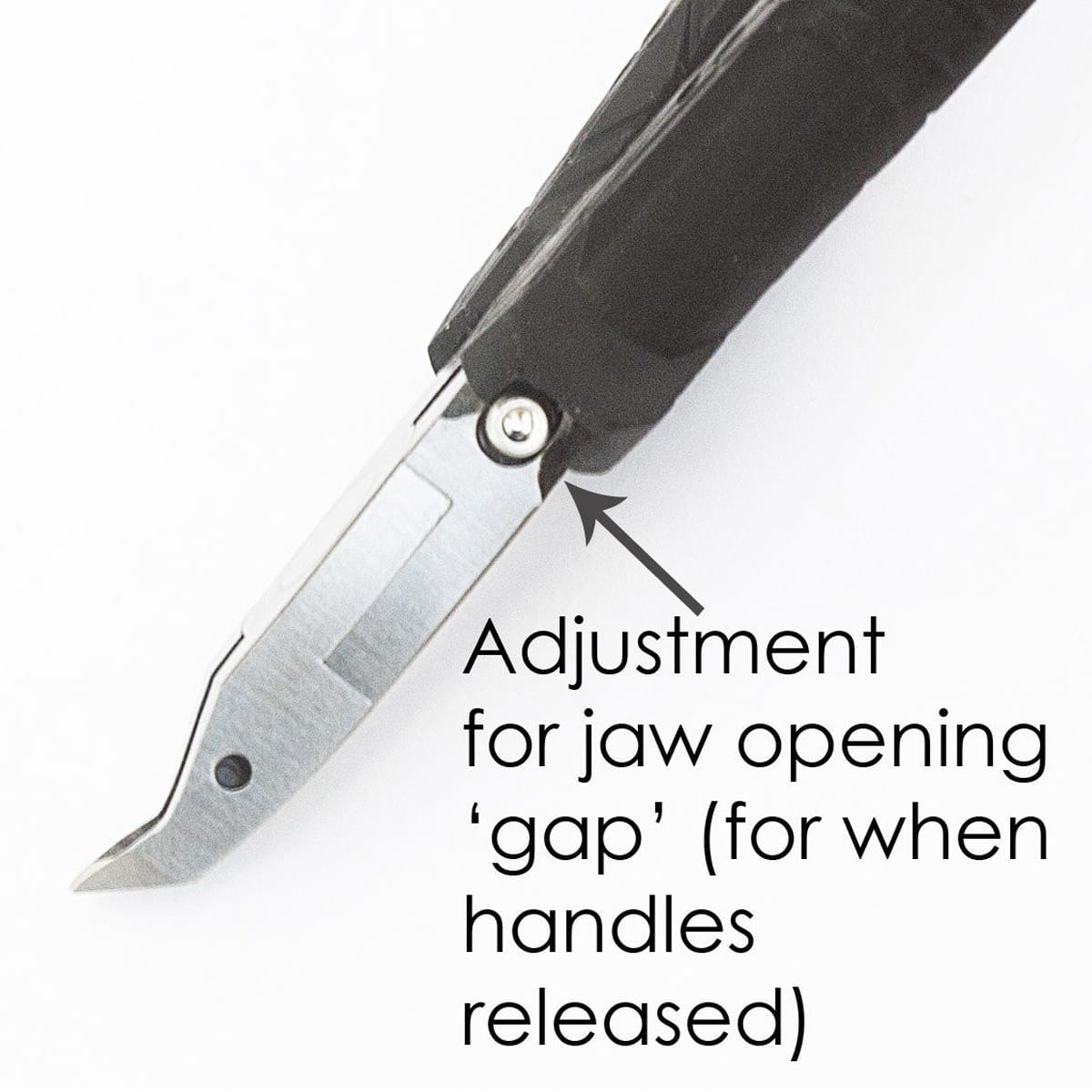

Jaw opening gap 'adjuster' (this restricts how far jaws open up when grips are released) -enhances productivity & less hand fatigue for repetitive cutting work
Supplied with 1.5mm hex key wrench as a standard accessory (to set the jaw opening angle adjuster)
ESD compliant grips - safe for use on sensitive electronics, components, PCB work etc.
Oil resistant comfort cushioned grips (made from environmentally friendly elastomer)
Cutting capacity: 0.6mm copper wire
Material: S58C Carbon Steel (hardness: HRC 58±4)
Made in Japan (ROHS compliant)
Specifications
Cutting Capacity: Copper wire (Solid wire)/φ0.6mm

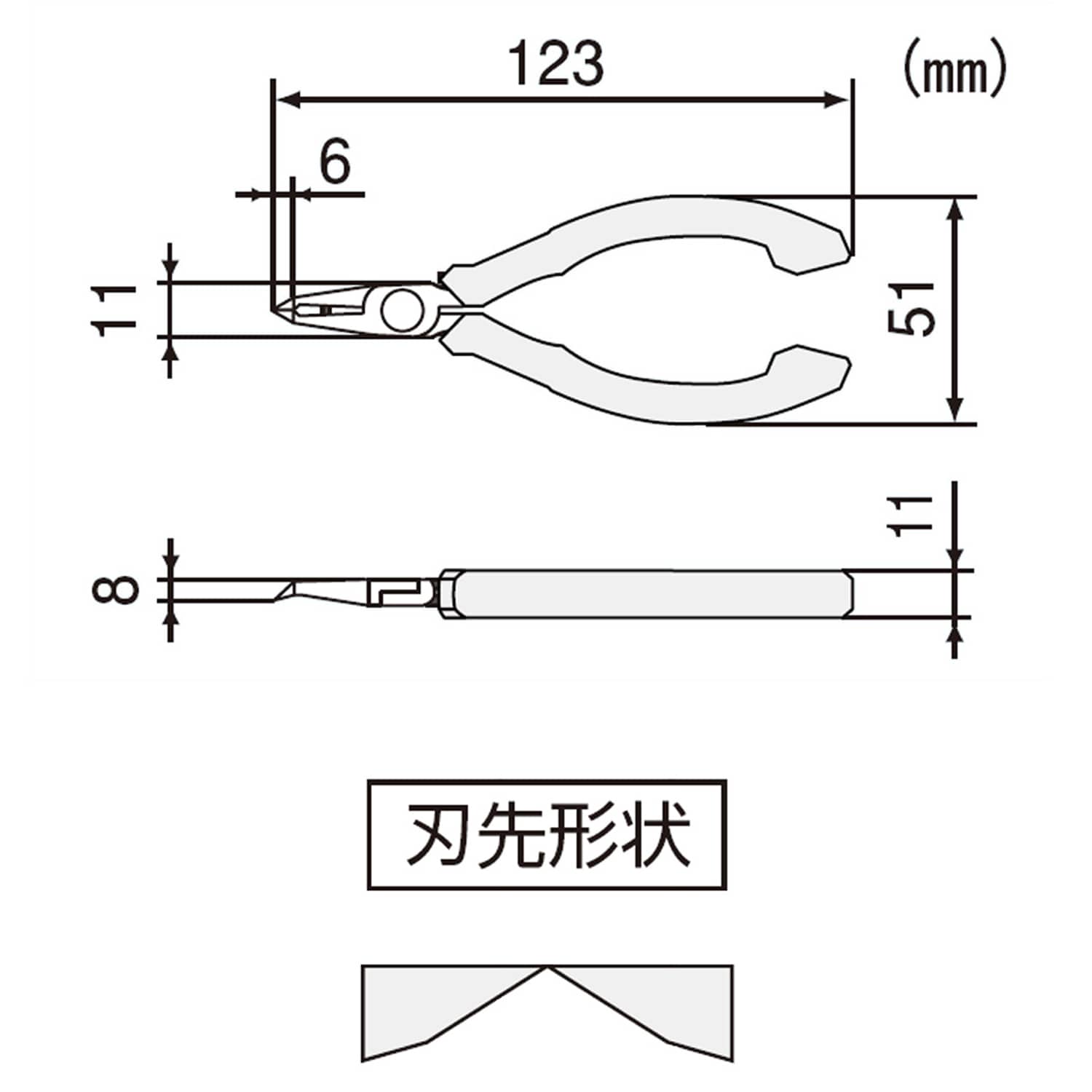

Length: 123mm
Handle Width: 51mm
Surface Resistivity: Grip/1×10⁶～10⁷Ω
Weight: 67g
Material: Body/Carbon steel, Grip/TPR
Package Contents
1x Engineer® NZ-05 SMD Chip Cutters
1x 1.5mm Hex key wrench
