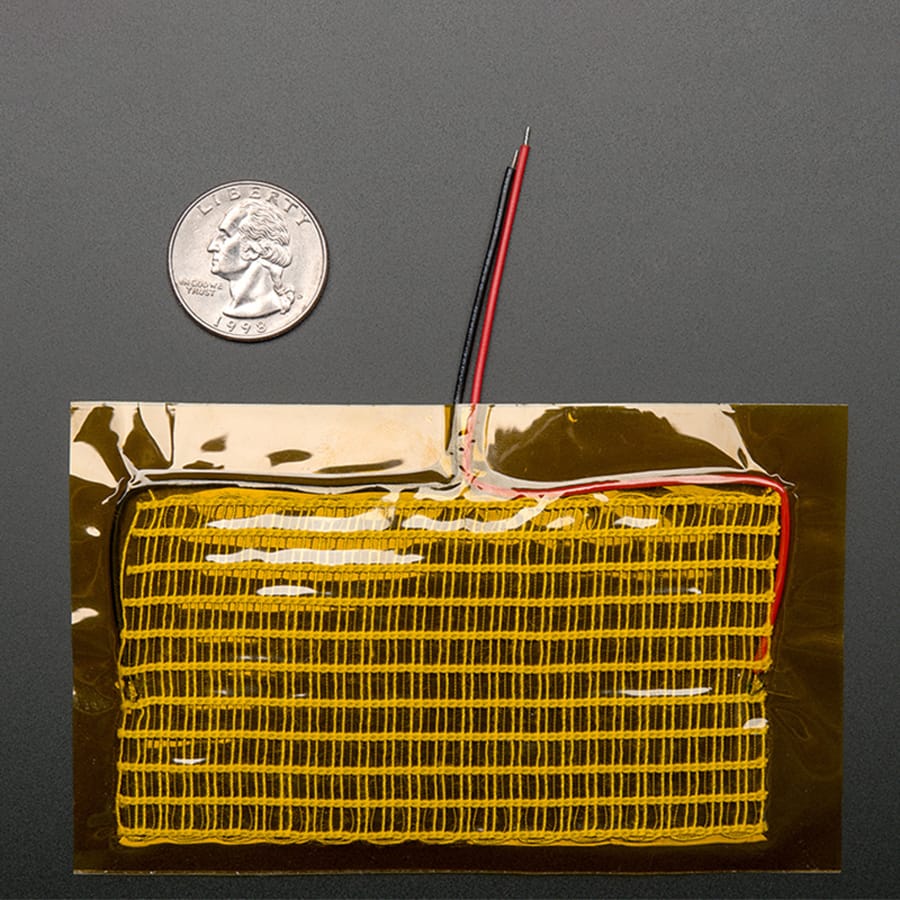

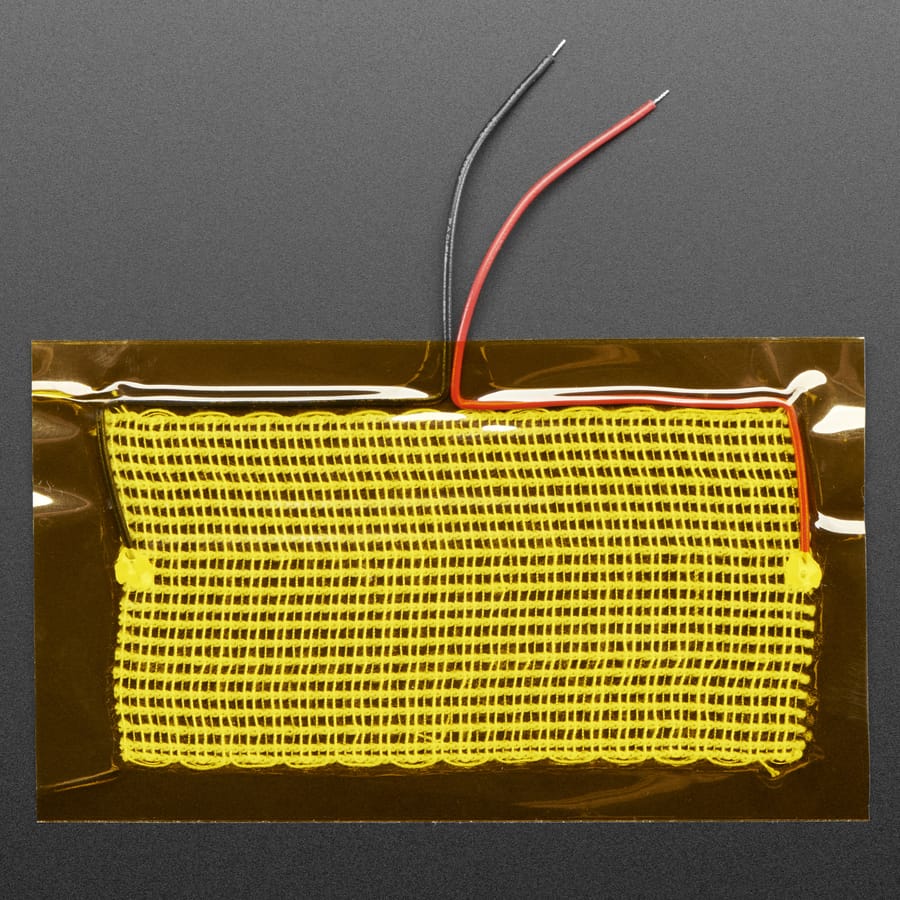

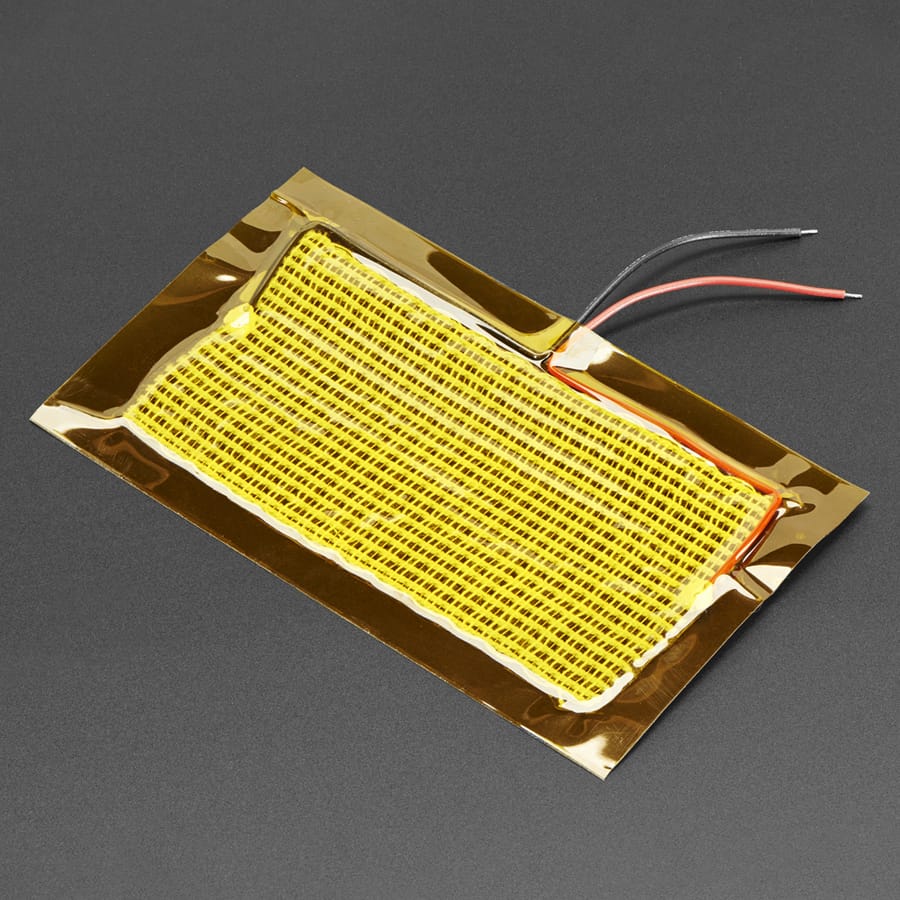

This Conductive Heating Fabric provides lightweight, flexible heat for wearable projects, thermal experiments, and custom heating applications, with temperature controlled by the applied voltage.
This is hot! Literally! Apply 5-12VDC and the stainless steel fibres in this heating fabric will warm up, creating a little heating pad. On one hand, it's just a gigantic resistor. On the other hand, it's flexible, light, and can be wrapped around a project. Originally designed for portable wearable heating pads, this fabric can be used for wearables, weather balloons, DIY-bio projects, thermal cycling for materials testing, etc.
The temperature reached varies with voltage. This piece is 10cm long, so look in the spec sheets in the resources section for a table of voltage/current/temperature outputs. You could PWM it with a power N-channel transistor if you want to have finer temperature control.
Features
Stainless steel heating fabric with flexible, lightweight construction
Operates on 5-12VDC power input
Temperature output varies based on applied voltage
Approximately 10cm in length
Suitable for wearable heating pads and portable applications
Compatible with weather balloons, DIY-bio projects, and thermal cycling applications
Can be wrapped around projects for flexible installation
PWM compatible with N-channel transistor for precise temperature control
Functions as a resistive heating element
Detailed voltage/current/temperature specifications included
Specifications
Dimensions: 110.65mm / 4.35" x 70.45mm / 2.77" x 1.54mm / 0.06"
Wire Length: 35.8mm / 1.4"
Weight: 2.53g
Insulation: Polyimide film ('Kapton')
Fabric made of Polyester filament and micro stainless steel fibre
