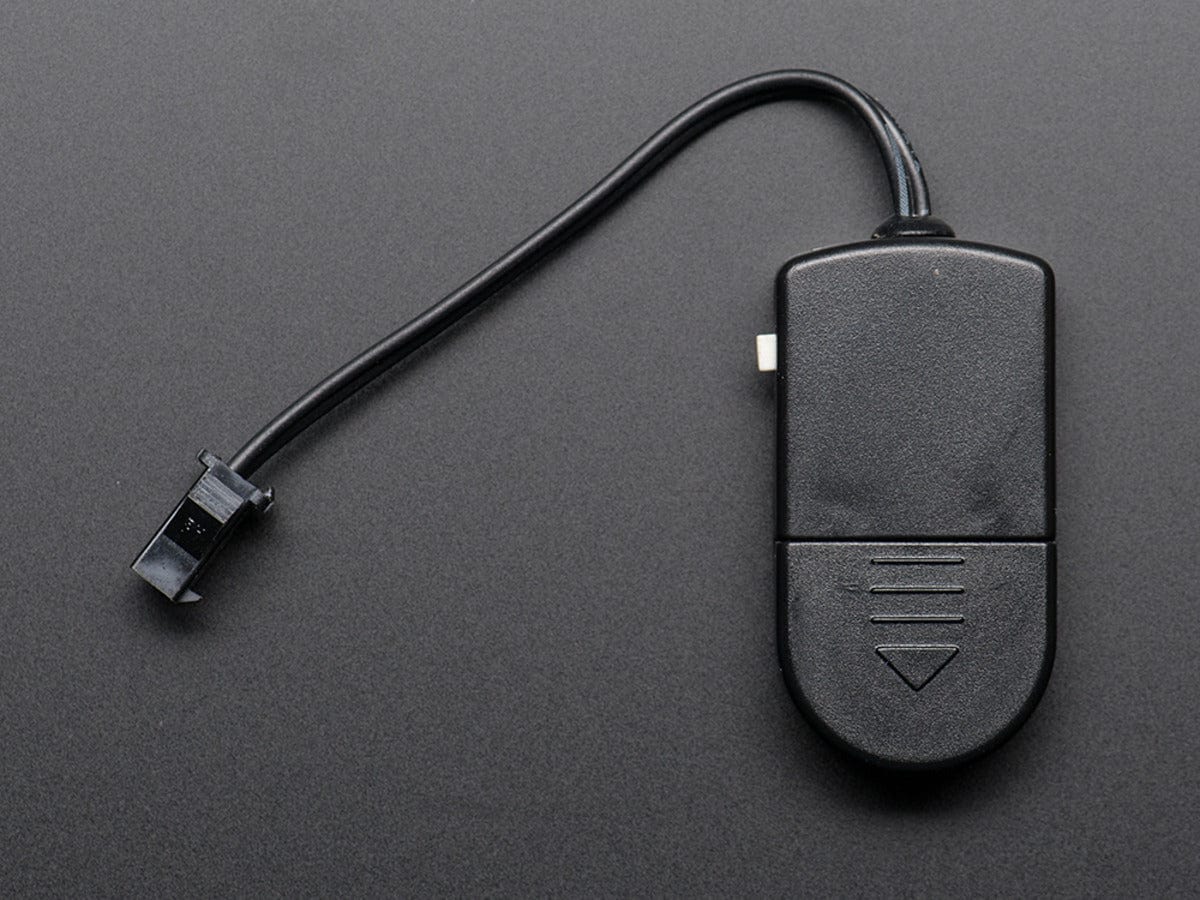

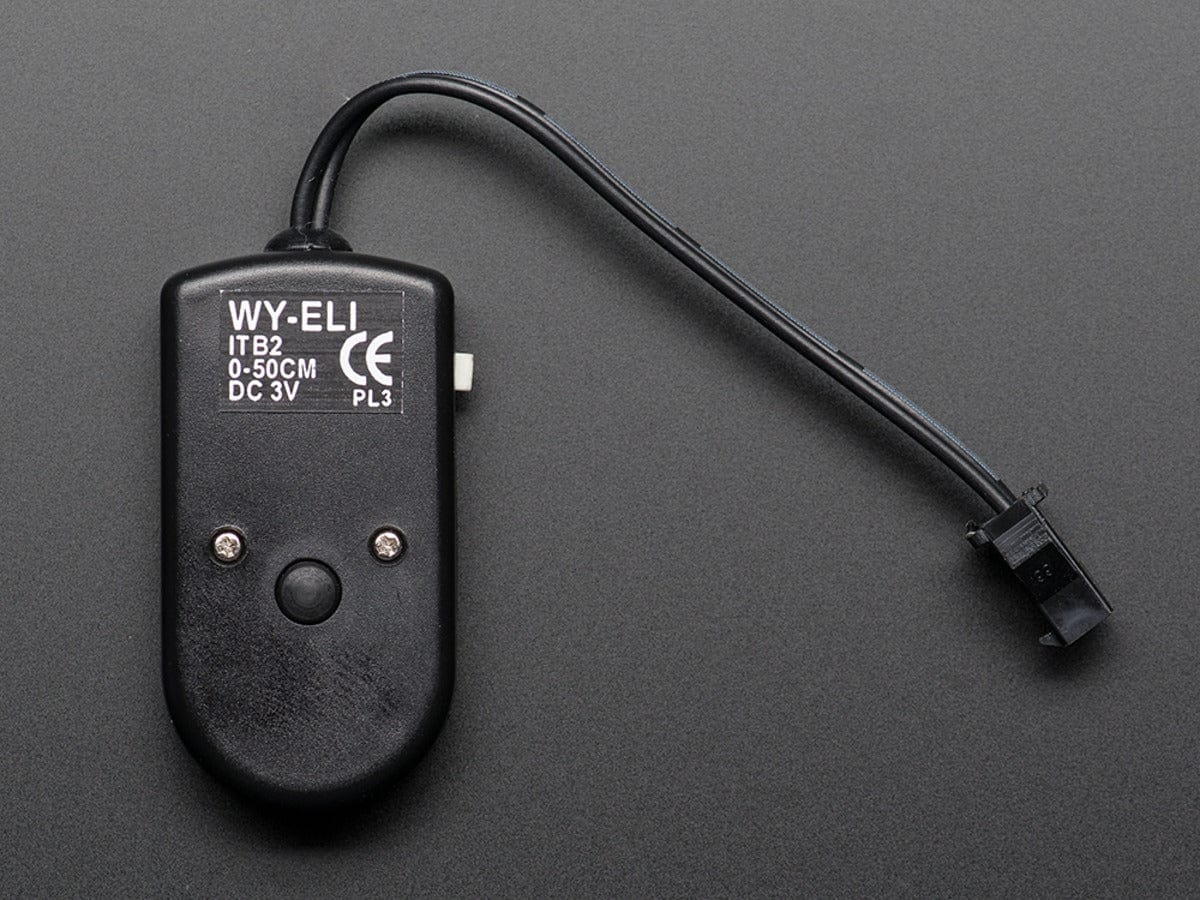

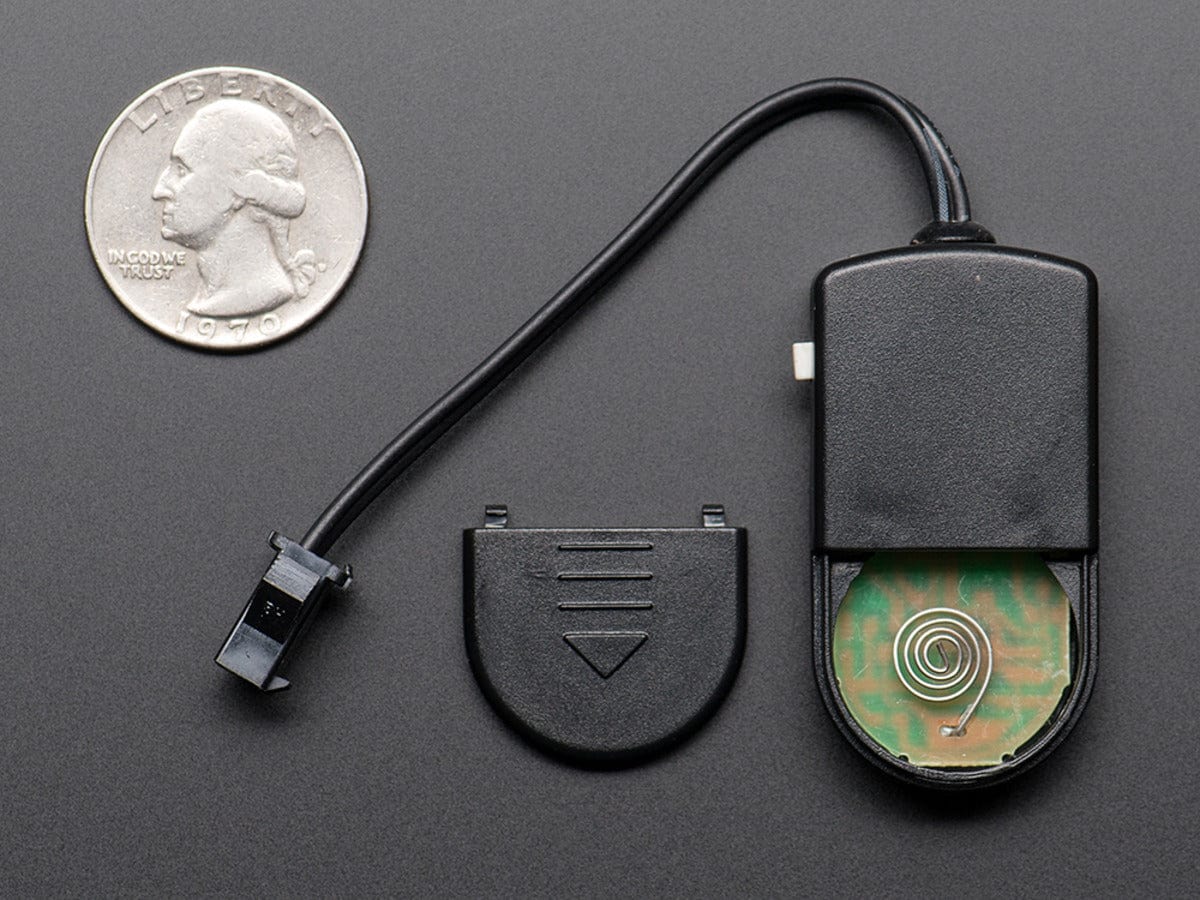

This Coin Cell EL Wire Inverter provides a compact, battery-powered way to light short lengths of EL wire or EL tape, with built-in steady, blink, and off modes for portable and wearable projects.
A really tiny portable inverter for EL wire. Powers off of a single CR2032 coin battery (not included!). It can drive up to 50cm / 20 inches of our high-brightness EL wire or 10cm x 1cm long piece of EL tape for 3 hours (or longer if the EL wire is less than 50cm long). There is a button for selecting steady/blink/off modes. Comes with a 2.5mm pitch female JST connector. Like all inverters we've used, the 2000 Hz oscillation is slightly audible.
This inverter can only power 10 CENTIMETERS (2.5 INCHES) of 1cm wide tape or a 3cm x 3cm / 1.25" x 1.25" piece of EL panel.
To connect a piece of EL wire to this, you'll want a male connector wire. Soldering to EL wire is a little tricky but luckily we wrote a detailed step-by-step tutorial!
Please note: This inverter uses 2 x CR2032 batteries which are not included.
Features
Tiny portable inverter for EL wire, powered by single CR2032 coin battery (not included)
Drives up to 50cm / 20 inches of high-brightness EL wire for 3+ hours
Powers 10cm x 1cm EL tape for 3+ hours
Powers 10cm of 1cm wide tape or 3cm x 3cm EL panel
Three modes: steady, blink, and off
2.5mm pitch female JST connector included
2000 Hz oscillation produces slight audible hum
Specifications
Dimensions: 47mm x 23mm x 14mm
Cable Length: 70mm
Weight: 12.5g
Revision History

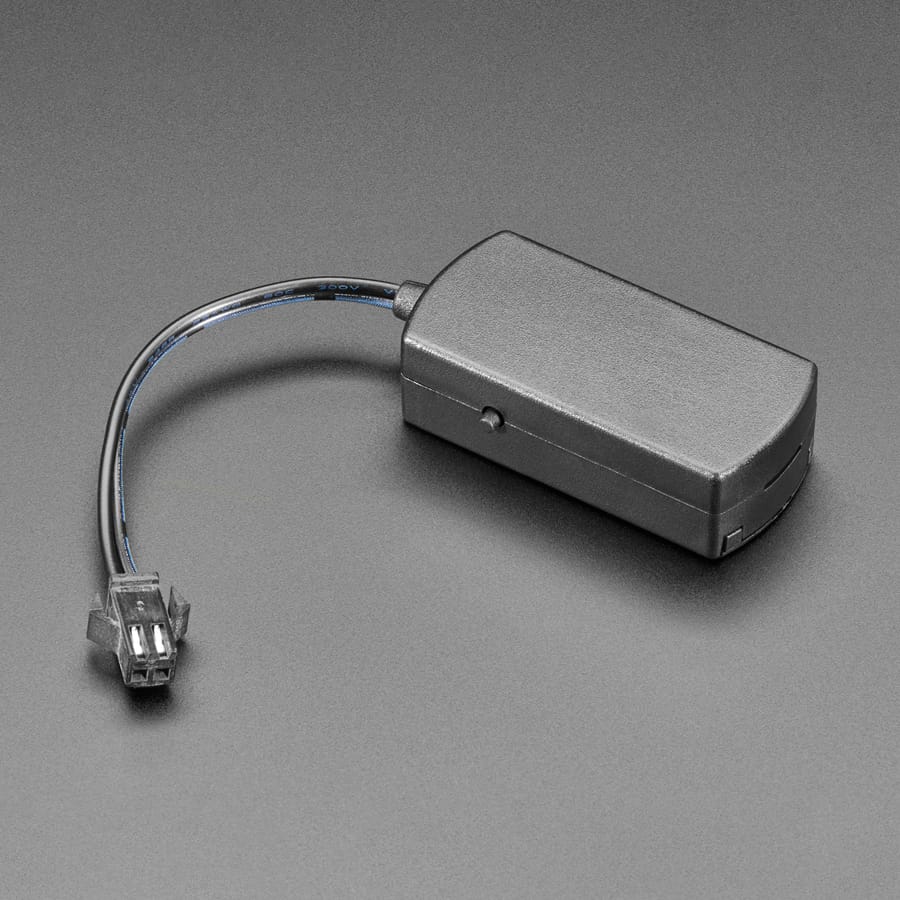

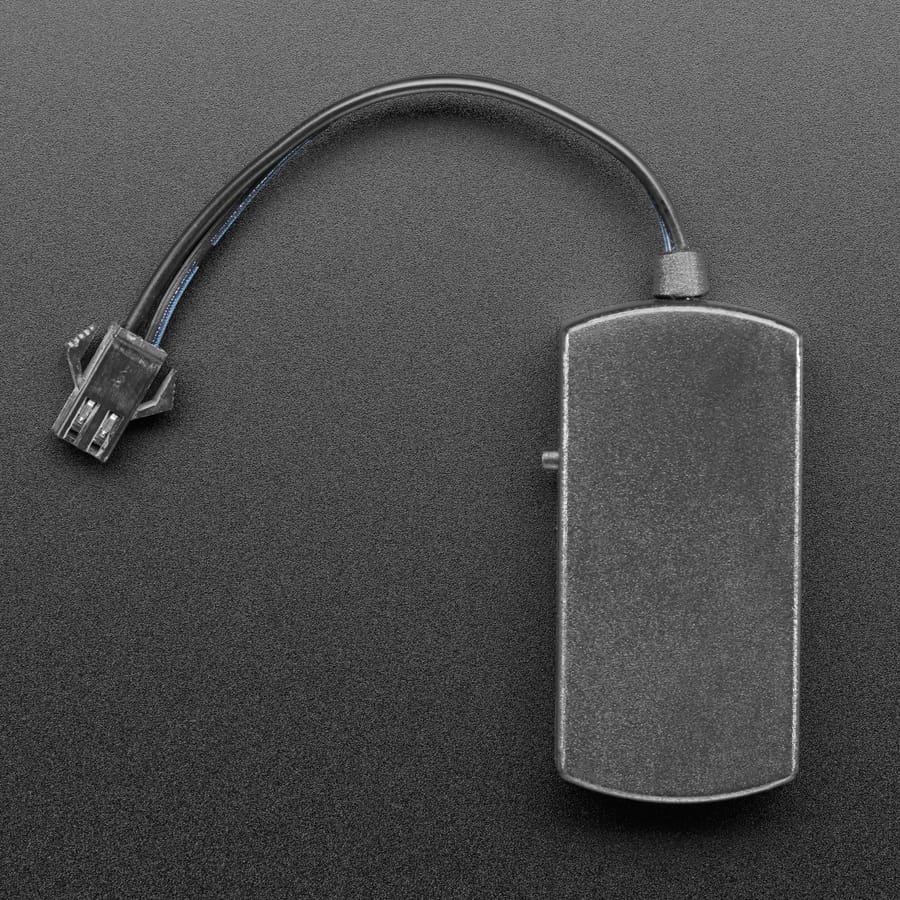

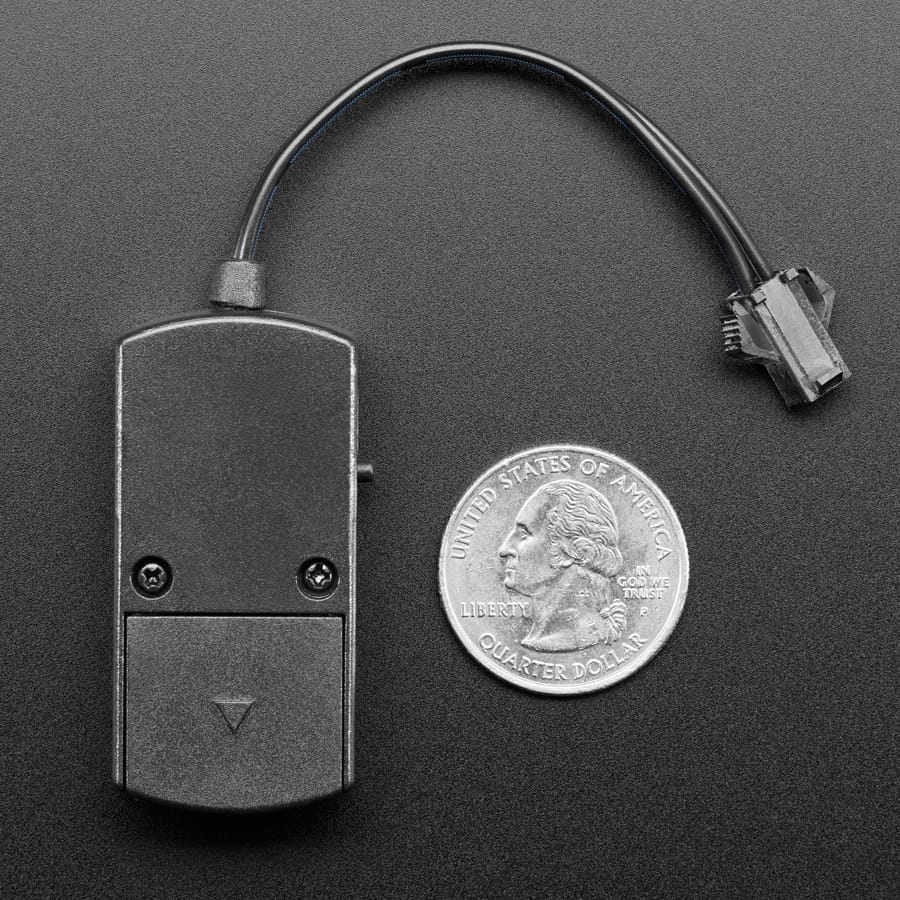

As of August 31, 2022, Wanyu (the original supplier) is no longer in business so we have changed to a different supplier. The quality and functionality are the same, the shape and size have changed.
Package Contents
1x EL Wire Coin Cell Mini Inverter
