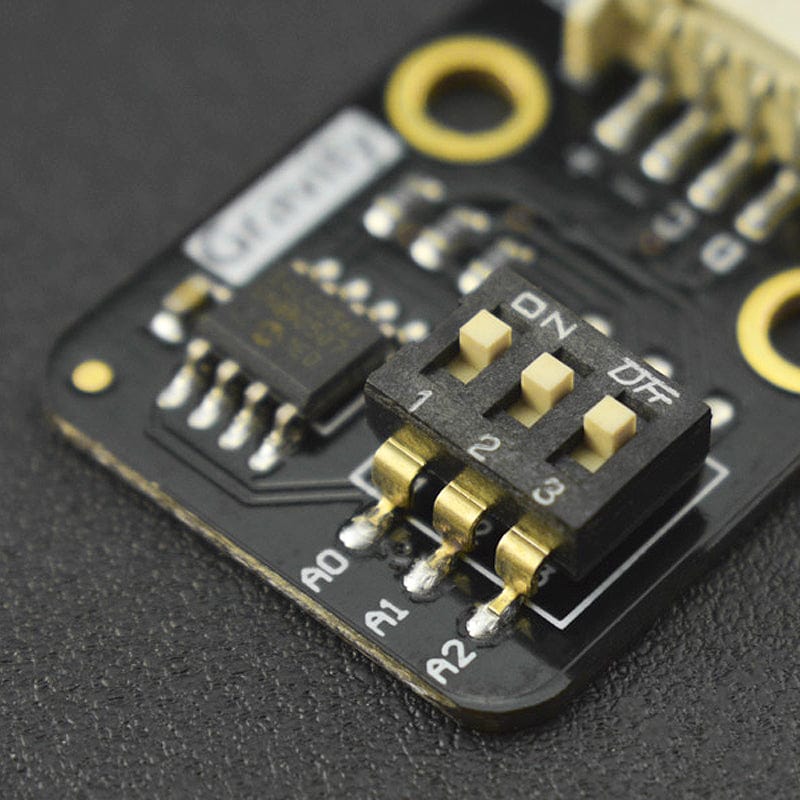

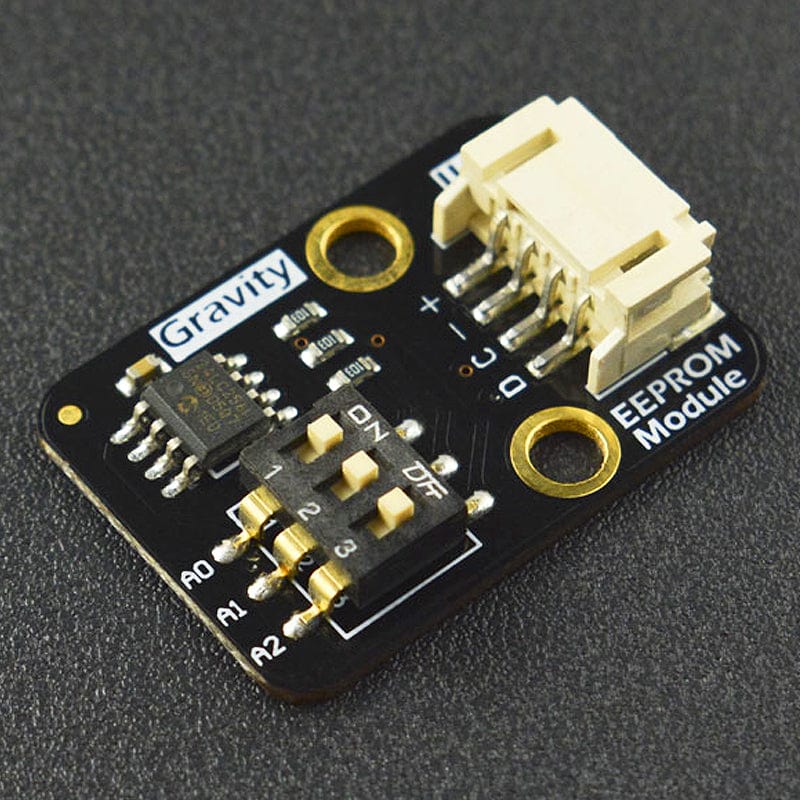

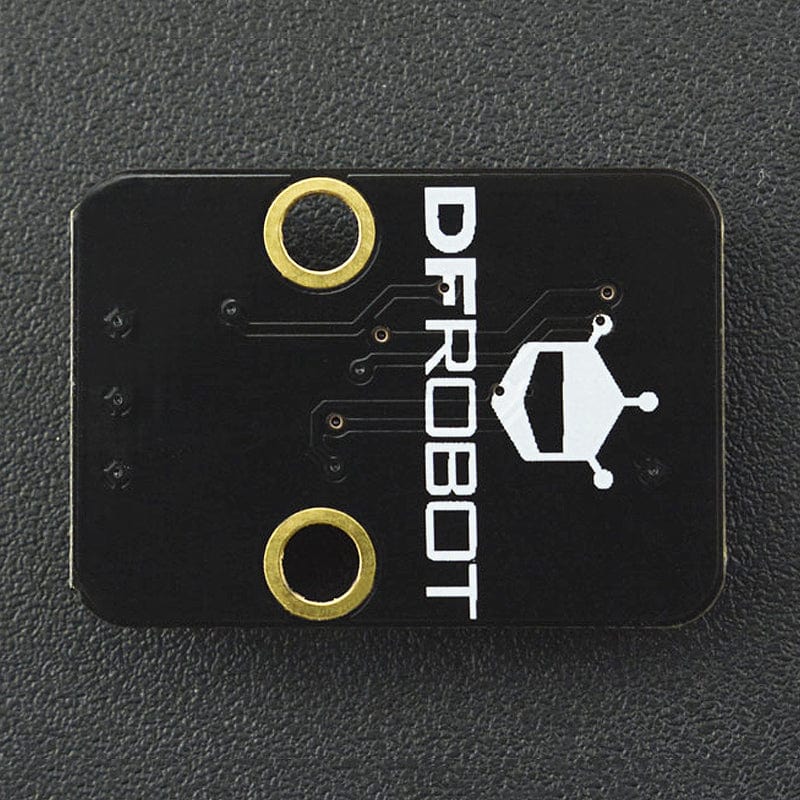

Gravity: I2C EEPROM Data Storage Module

DFRobotSKU: DFR0117
Price:
Sale price £7.20
incl. VAT
excl. VAT
Stock:
Only 3 units left
Quantity:

Awesome Extras

DFRobotDFRduino Uno R3
Sale price £16 incl. VAT excl. VAT
DFRobotGravity: IO Expansion Shield for Arduino V7.1
Sale price £4.50 incl. VAT excl. VAT
ArduinoArduino Uno Rev3
Sale price £24.50 incl. VAT excl. VAT

Arduino has a small amount of data storage space, The Arduino UNO has 32K and doesn't have enough space if you want to store a lot of data. We have added an EEPROM Data Storage Module to increase its storage space. The EEPROM Data Storage Module transmits data to the Arduino UNO using I2C Protocol. It uses 24LC256 256K I2C CMOS Serial EEPROM. The 24LC256 is a 32K x 8 (256Kbit) Serial Electrically Erasable Programmable Read - Only Memory. It can also be used with the Interface shield board by I2C on Board.

Connection Example - DFRduino UNO R3

Specifications

  • Power Supply: 2.5V ~5.5V
  • Low-Power CMOS Technology
  • Read current: 400 uA max. at 5.5V, 400 kHz
  • Standby current: 1 uA max. at 3.6V, I-temp
  • Interface: I2C Protocol,2-Wire Serial Interface
  • EEPROM: 32K x 8 (256 Kbit)

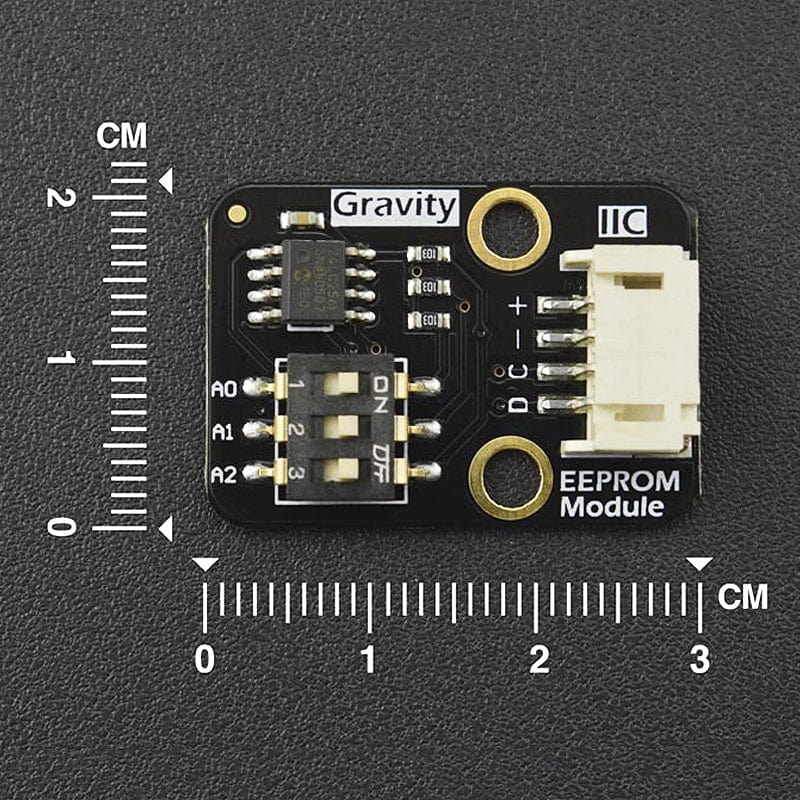

  • Size: 30.00 x 21.05 (mm)
  • Mounting Hole Dia: 3.5mm
  • Ambient temperature with power applied: -40°C~+125°C
  • Weight: 10g

Resources

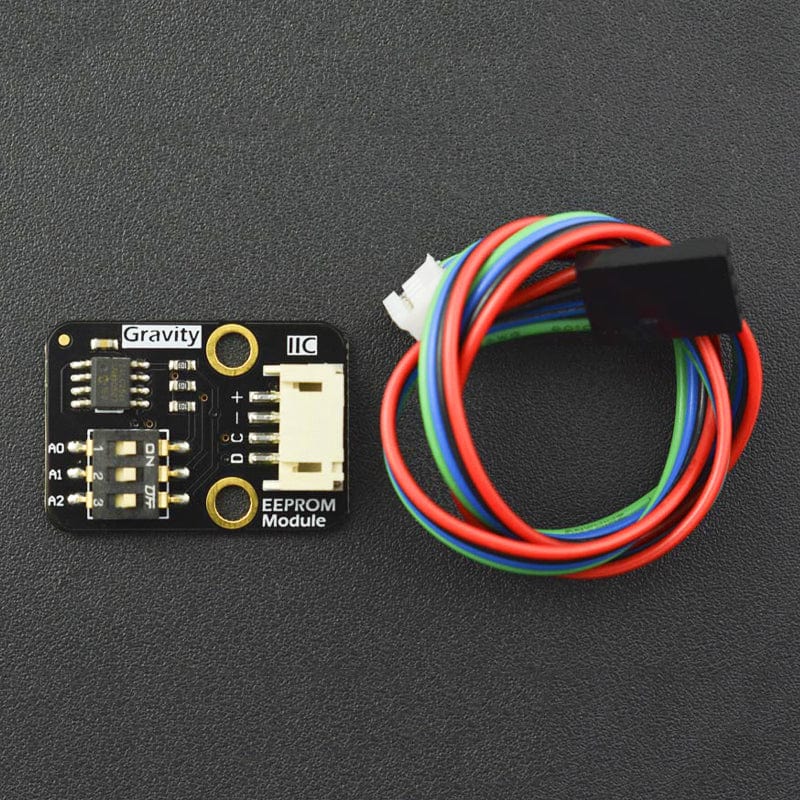

Package Contents

  • 1x Gravity: I2C EEPROM Data Storage Module
  • 1x Gravity I2C/UART sensor cable
