DIY Magnetic Connector - Right Angle Five Contact Pins

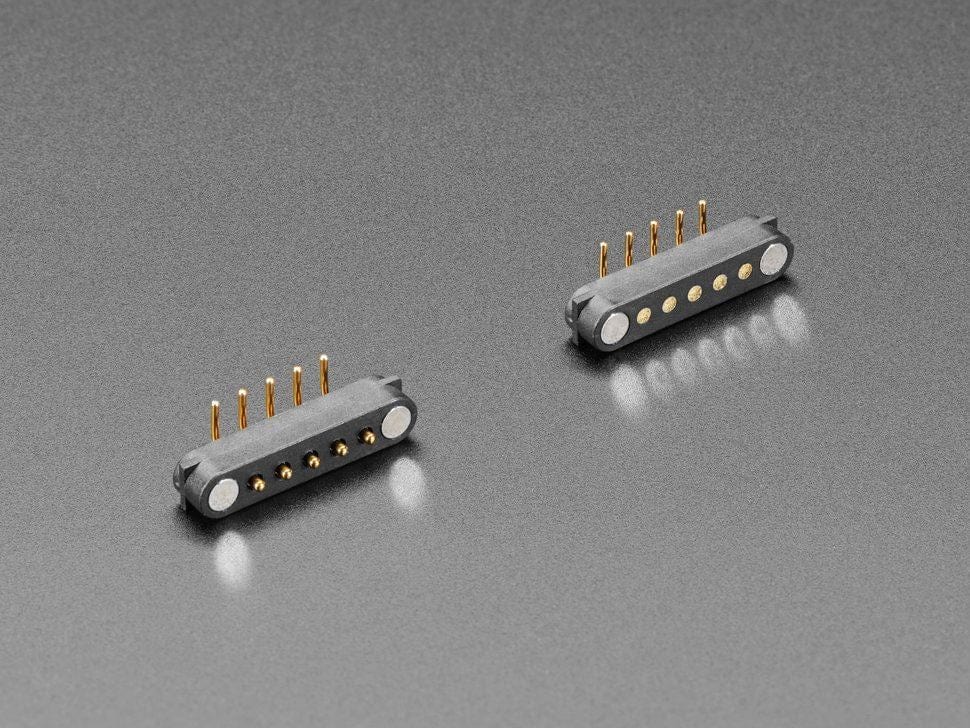

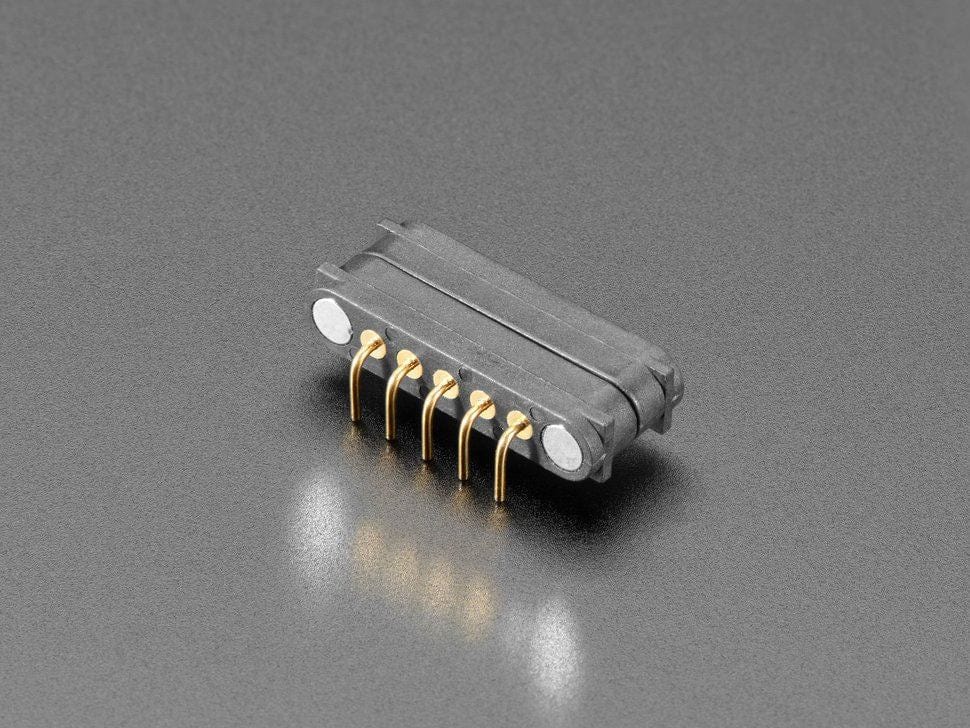

The DIY Magnetic Connector - Right Angle Five Contact Pins uses five 0.1" spaced pogo pins and embedded magnets to create a secure, self-aligning connection for power, data and custom PCB projects.

If you love power adapters or toys & gadgets that have magnetic connections, you can now experiment with these futuristic connectors easily.

It's sort of like a DIY "MagSafe-styled" connector, with five 0.1" spaced contact pogo pins and a right angle solderable connection to your PCB. If you've ever owned a MacBook or a LittleBits set, you'll find the functionality familiar.

Bring the two halves together and the embedded magnets attract, making a firm connection and assuring that all the pogos make contact. If you try to connect the contacts backwards, they will repel!

Use it for power, data, maybe a magnetic STEMMA QT or USB connector? - whatever you wish!

Comes with two halves that, of course, match up nicely.

View our full range of Adafruit products here.

Features

• DIY MagSafe-styled magnetic connector system
• Five 0.1" spaced contact pogo pins
• Right angle solderable PCB connection
• Embedded magnets for firm, reliable connections
• Polarity protection - connectors repel if reversed
• Suitable for power, data, and STEMMA QT applications
• Includes two matching halves
• Compatible with MacBook and LittleBits-style workflows

Resources

• Diagram 1
• Diagram 2

Package Contents

• 1x DIY Magnetic Connector - Right Angle Five Contact Pins
