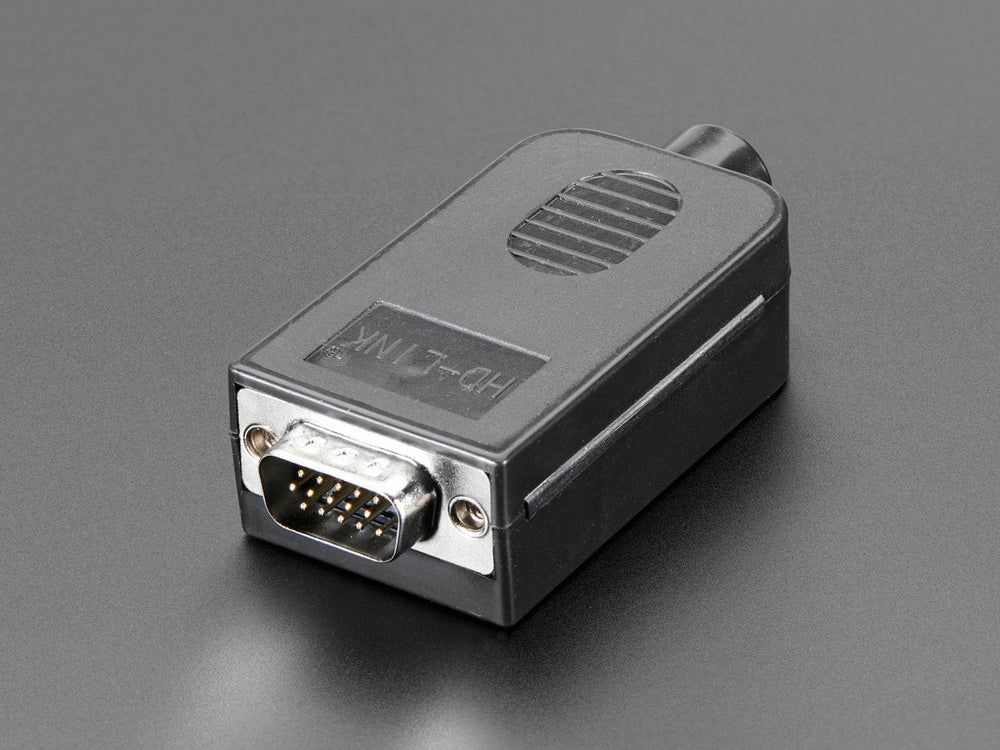

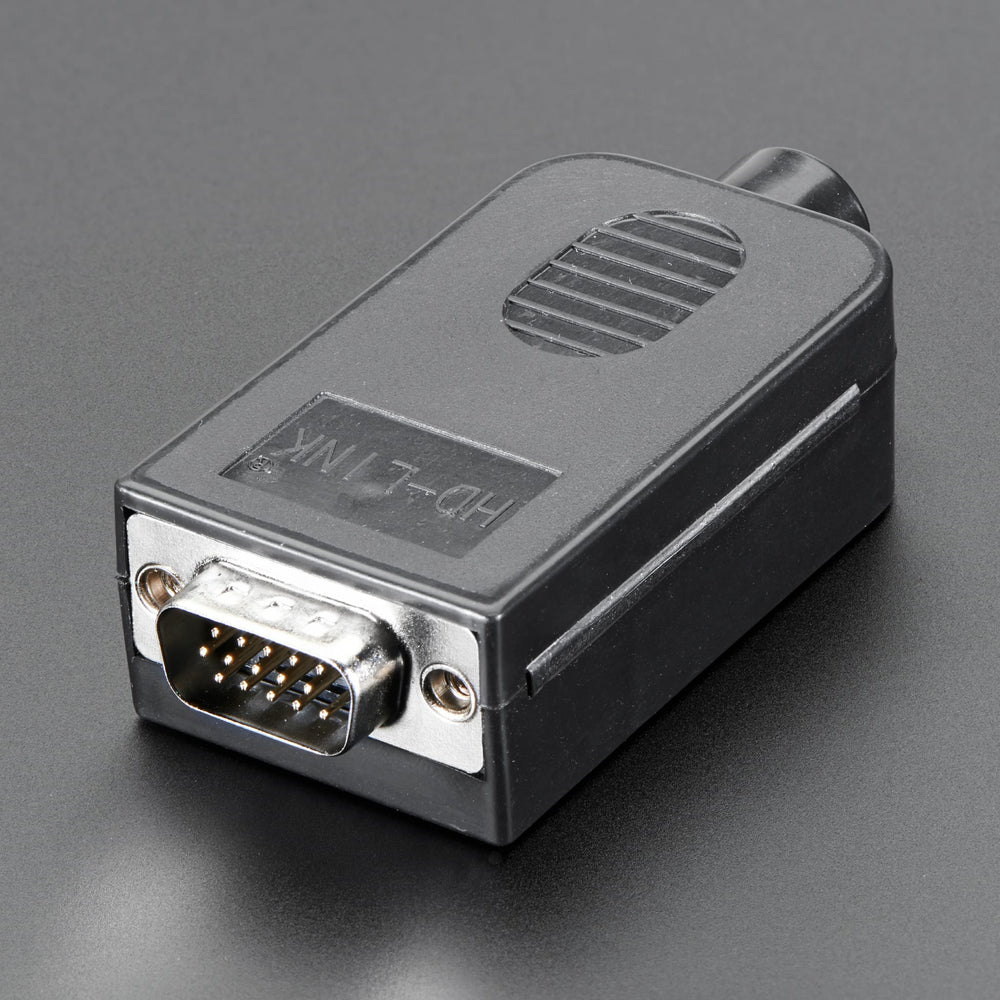

DE-15 (DB-15) Male Plug to Terminal Block Breakout

The DE-15 Plug to Terminal Block Breakout provides easy access to all 15 connections through screw terminals, allowing solid or stranded wire to be quickly connected for custom VGA cables, interfaces and test setups.

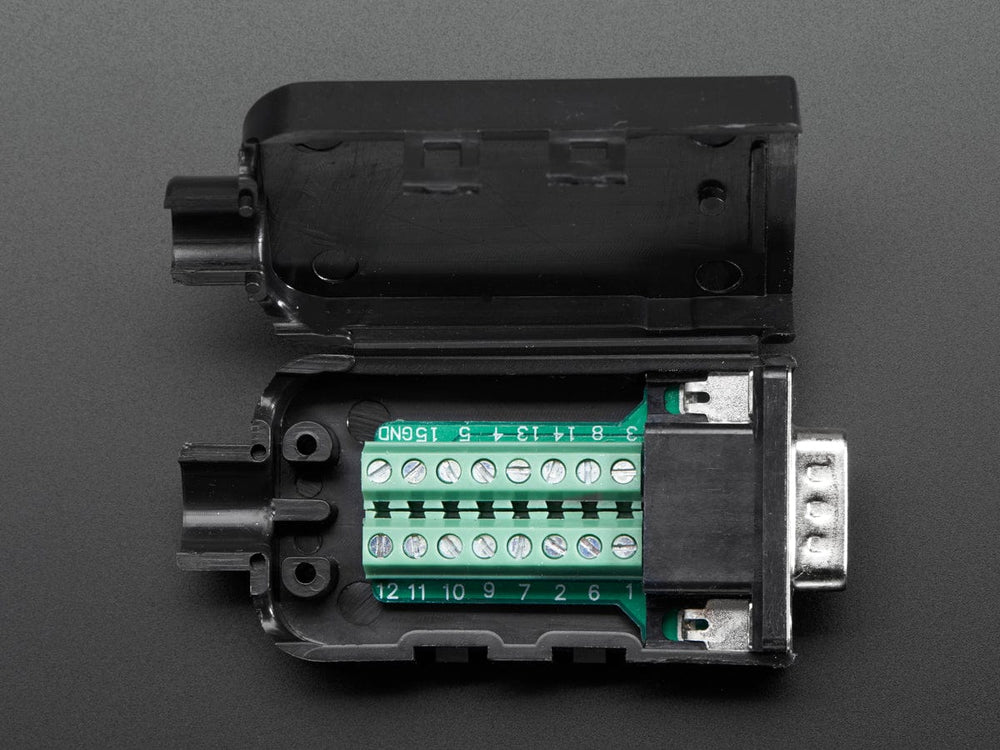

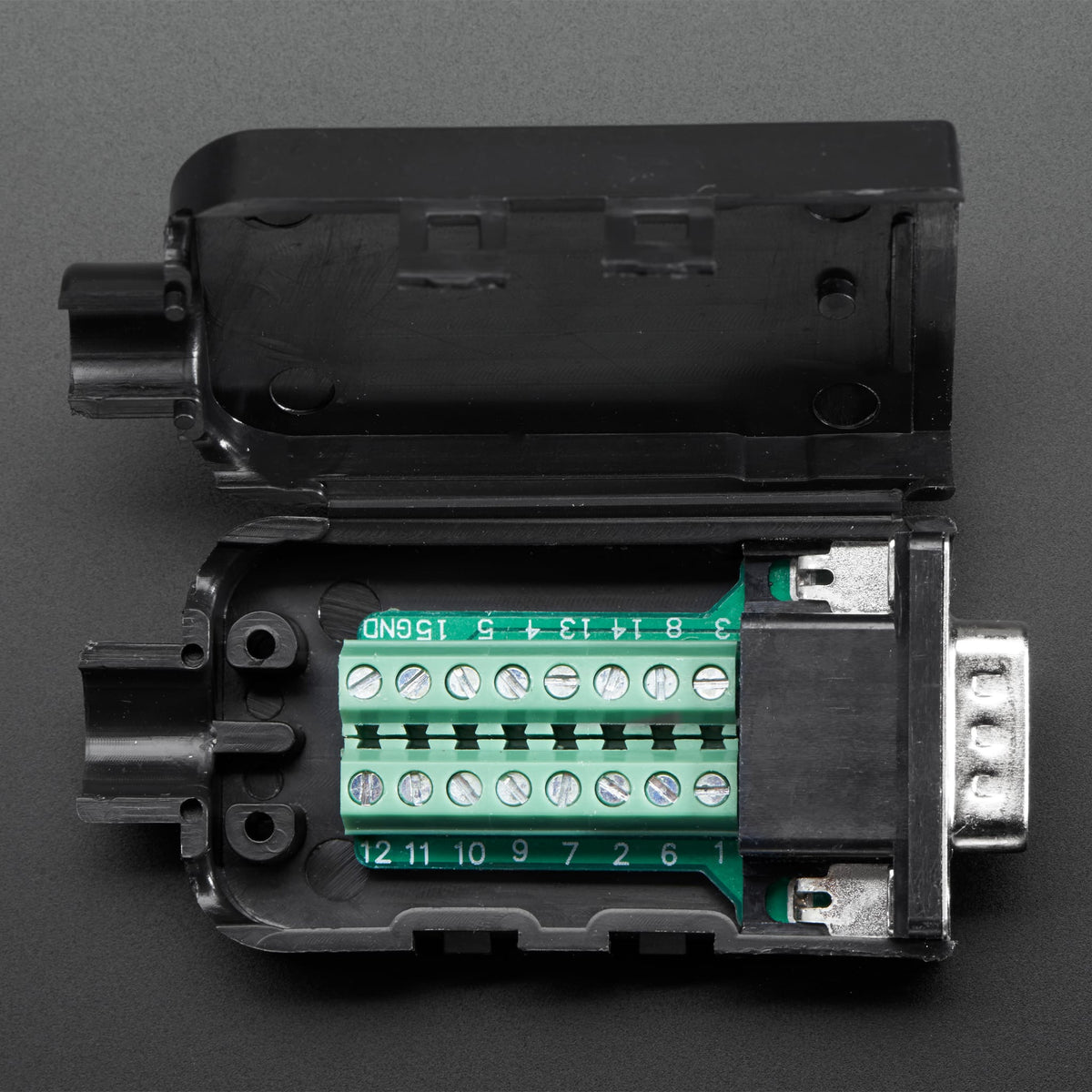

Make your own custom DE-15 cable or DE-15 interface with ease, using this DE-15 Plug to Terminal Block Breakout. You get a nice solid PCB with a DE-15 plug and two strips of terminal blocks that you can use with stranded or solid core wire to quickly assemble your own wiring jigs.

If you just need a plain DE-15 / VGA cable, we have plenty and it's less expensive to just buy a standard cable than DIY it. We recommend this adapter when you need a non-standard wiring setup or interfacing to a device with a VGA interface (that's what these connectors were used for the most).

Sometimes DE-15 connectors are referred to as DB-15. Technically that's the wrong name, but its so ingrained that most people only know the connector as DB-15.

Features

• DE-15 plug connector with solid PCB breakout board
• Two strips of terminal blocks for stranded or solid core wire connections
• Custom wiring configuration support for non-standard setups
• VGA interface compatible
• Fully assembled breakout board included

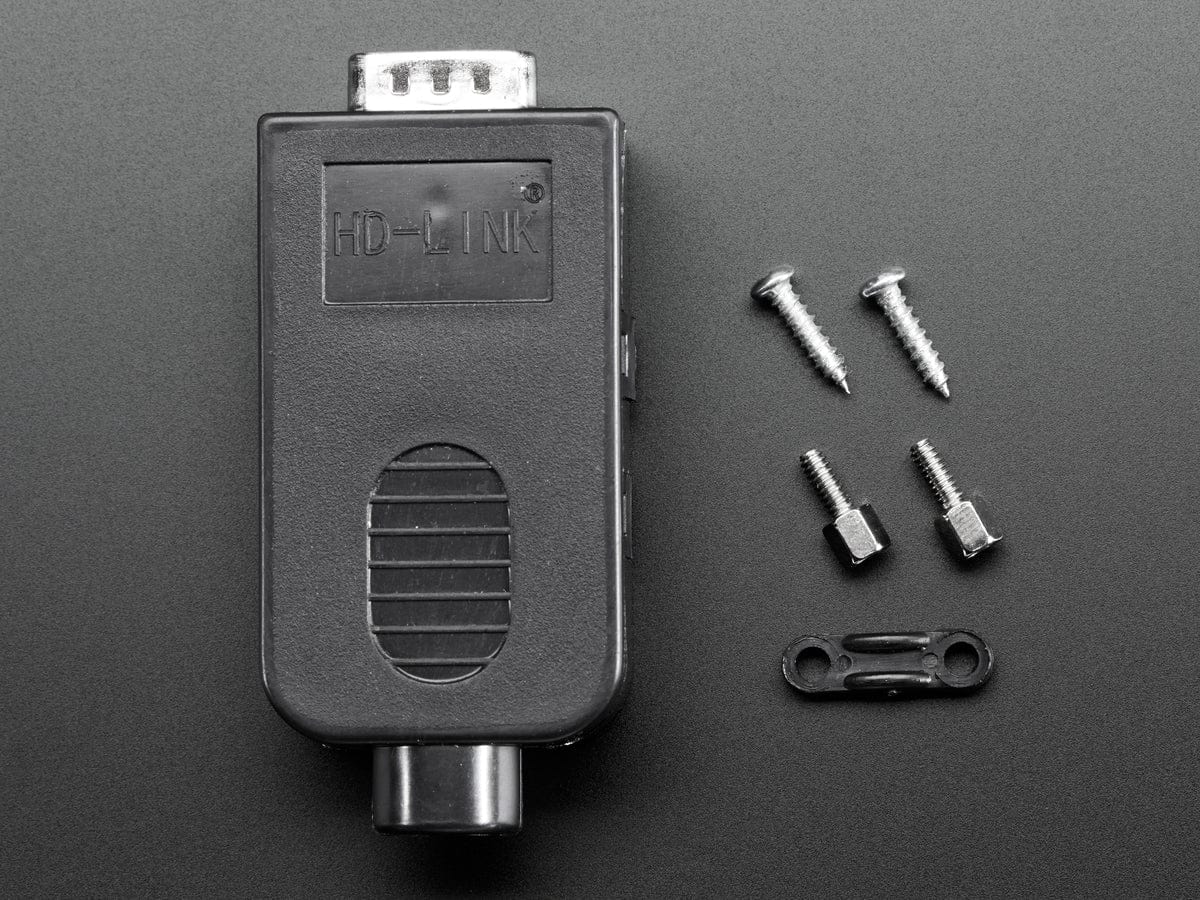

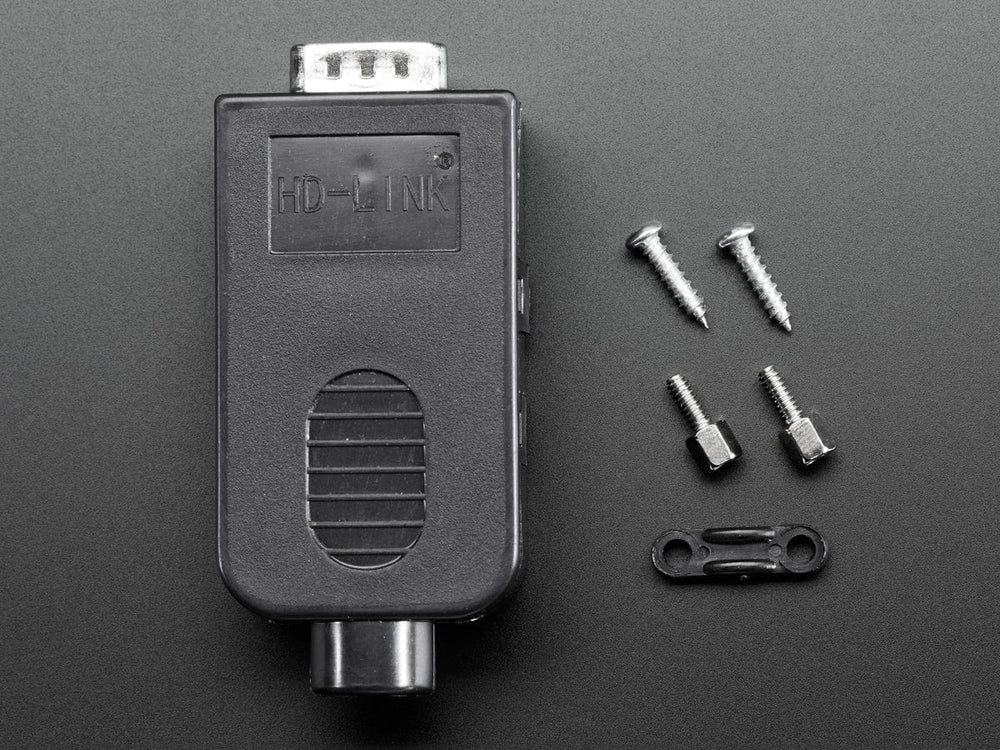

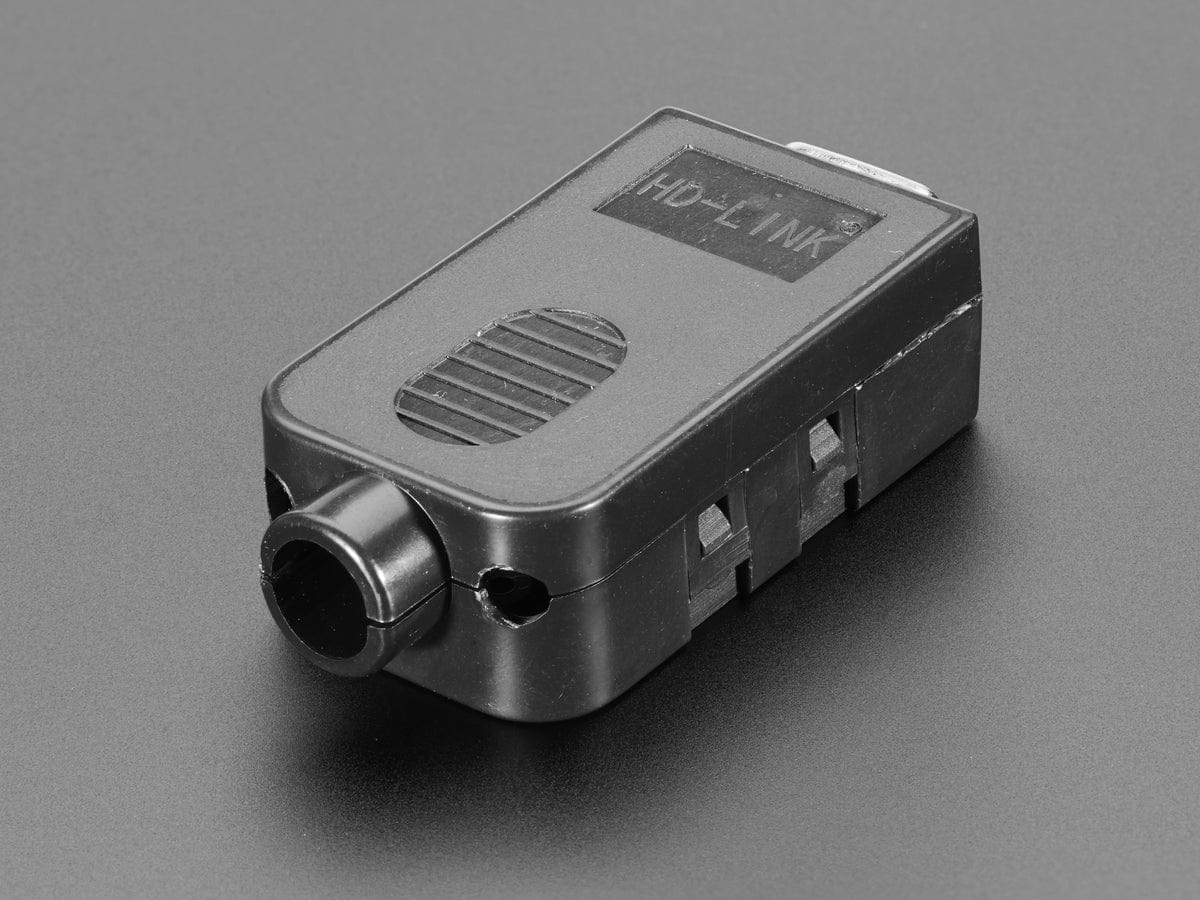

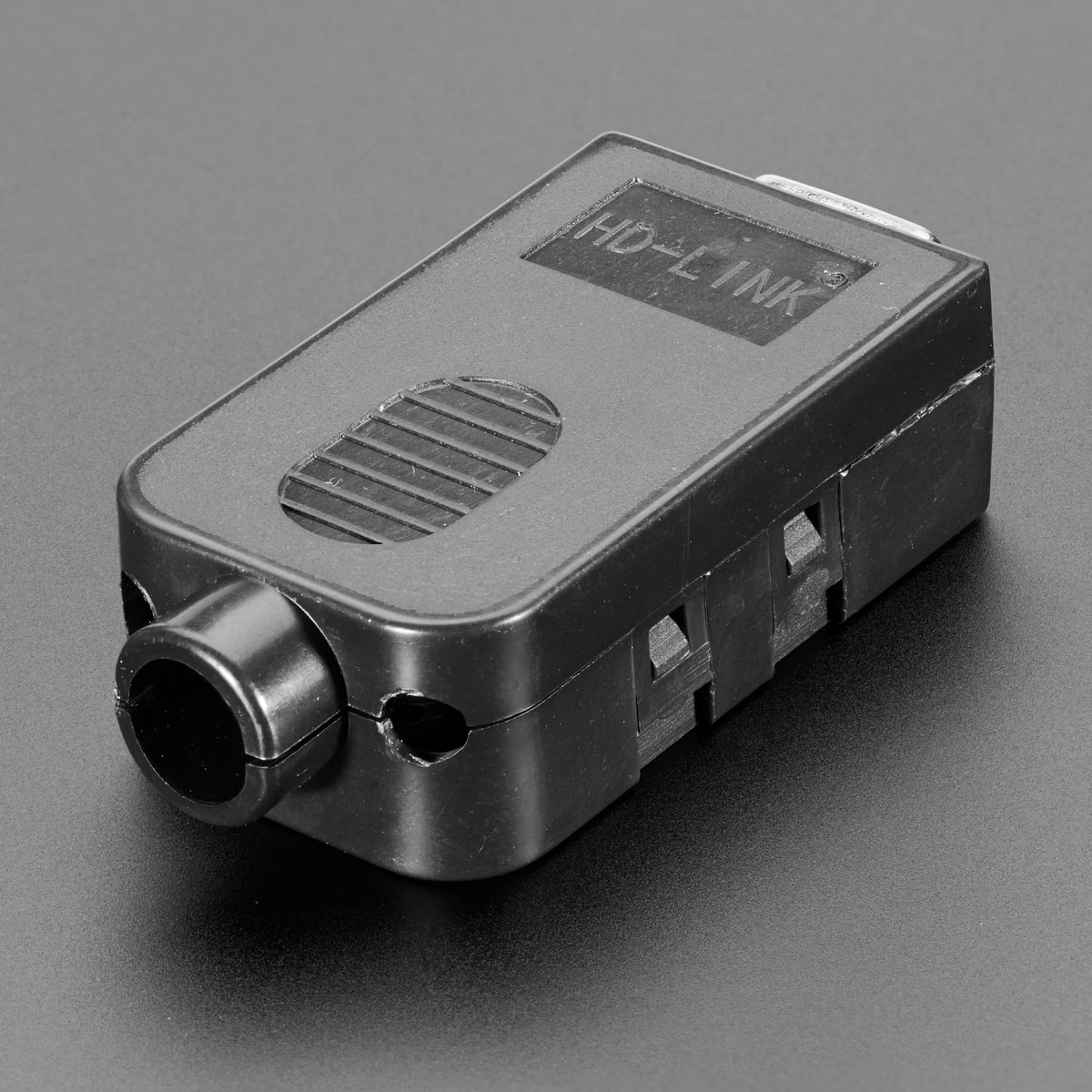

• Clip-on housing included
• Ideal for custom cable and interface assembly

Specifications

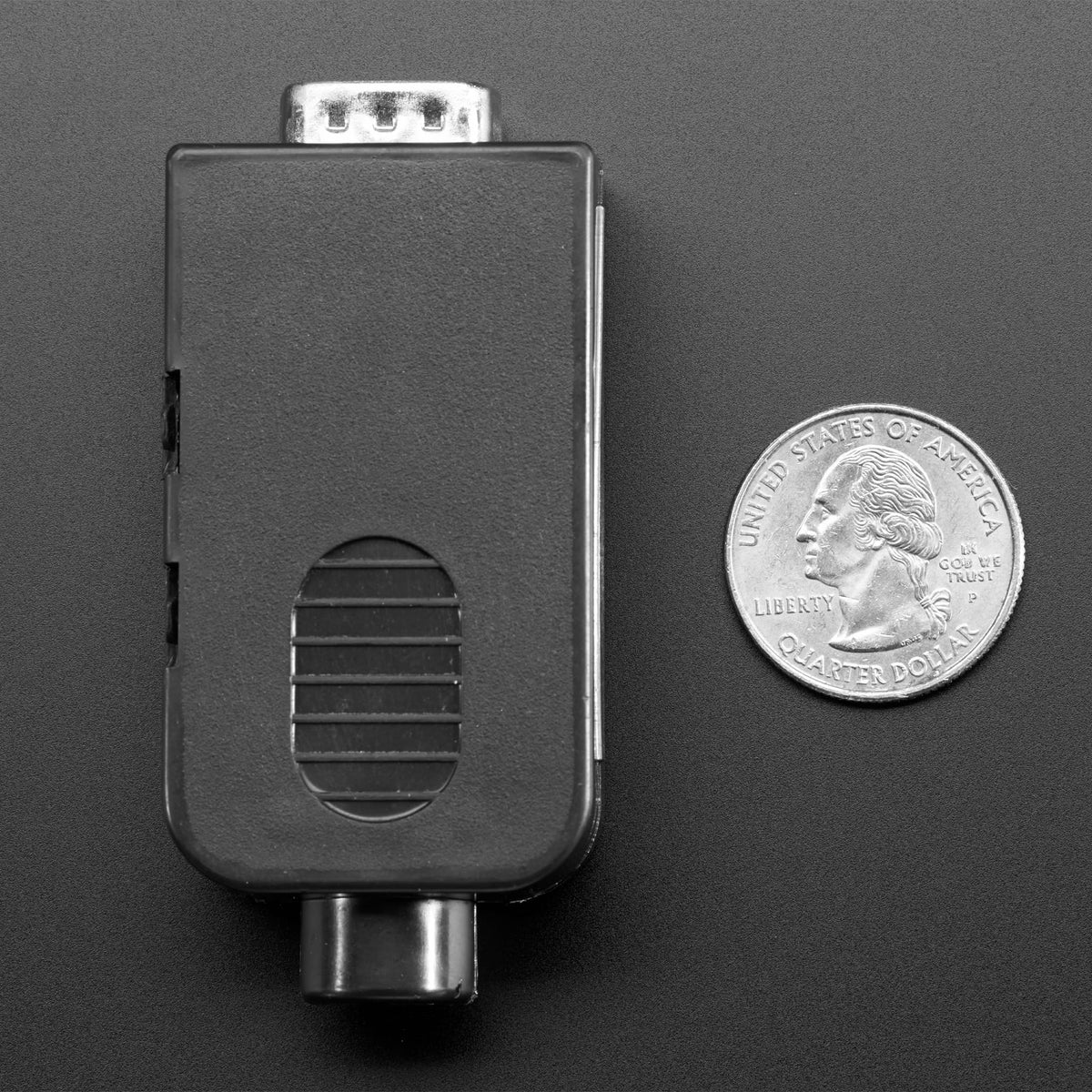

• Dimensions: 66.7mm x 33.6mm x 20.5mm
• Weight: 29.8g

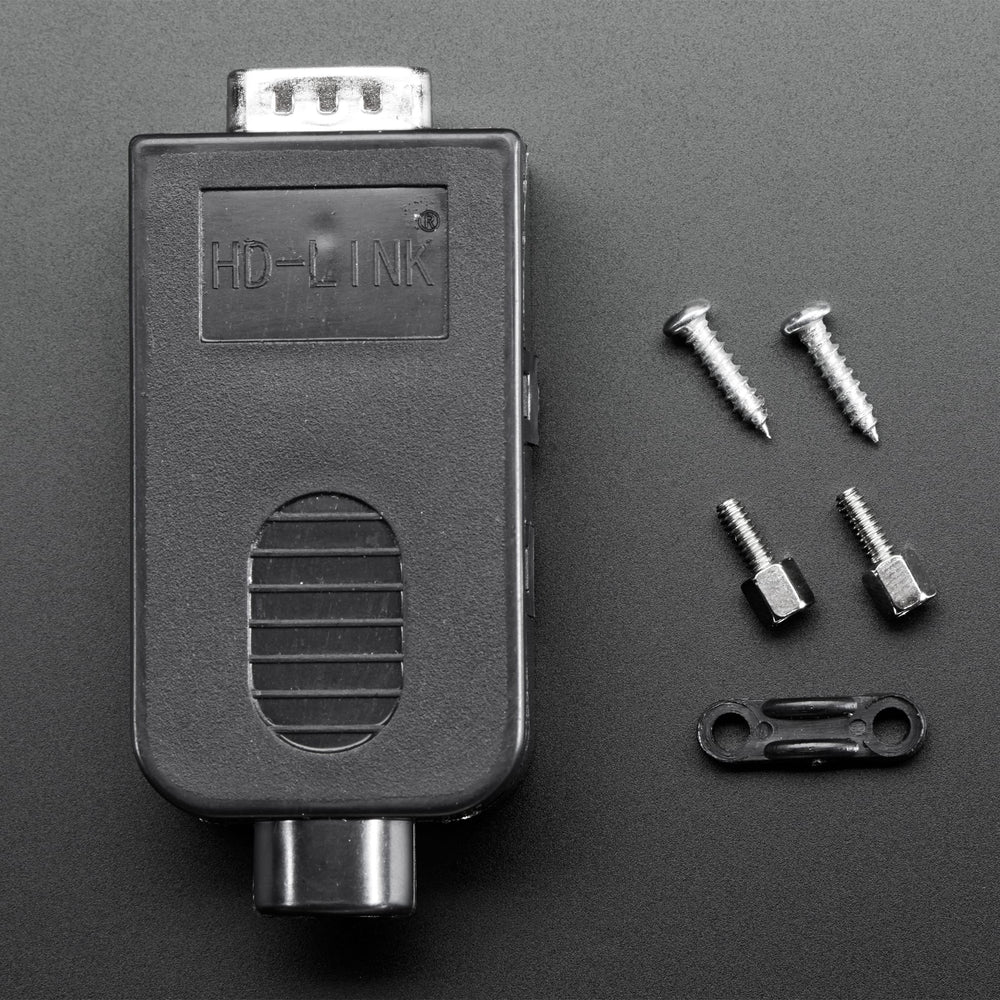

Package Contents

• 1x DE-15 (DB-15) Male Plug to Terminal Block Breakout
  • 1x Fully assembled breakout
  • 1x Clip on housing
