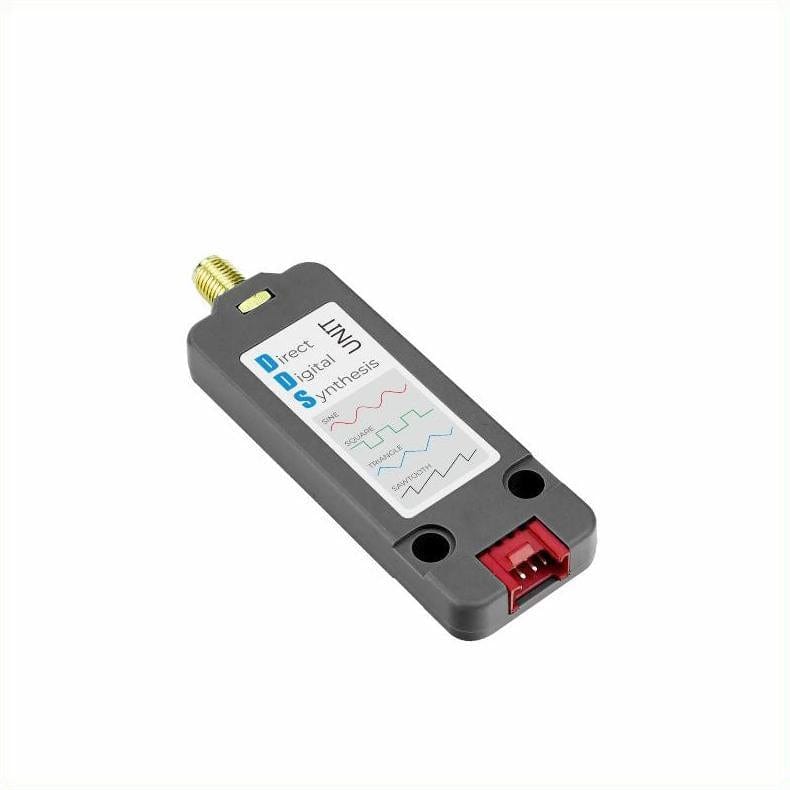

M5Stack DDS Unit (AD9833 Waveform Generator)

Price:
Sale price £25.50
incl. VAT
excl. VAT
Stock:
Only 10 units left
Quantity:

Awesome Extras

(1 Reviews)
M5StackM5Stack ESP32 Basic Core IoT Development Kit V2.6
Sale price £35.80 incl. VAT excl. VAT

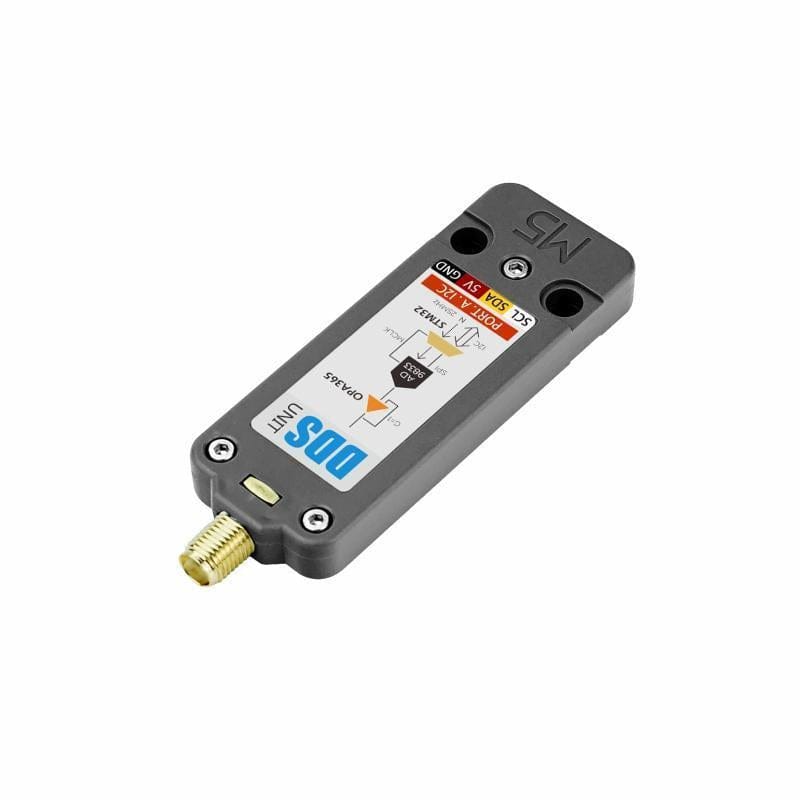

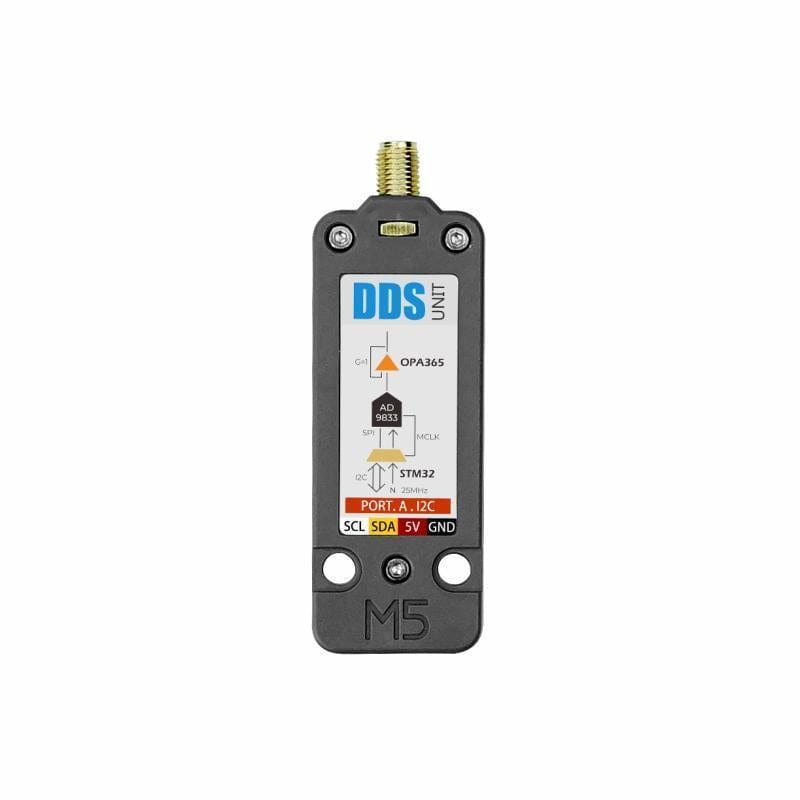

Make some waves with this handy Direct Digital Synthesis signal source unit, which includes an AD9833 programmable waveform generator and an STM32F0 microcontroller.

Communicating via I2C (addr:0x31), it can output multiple waveforms (sine wave, triangle wave, square wave output, sawtooth wave, signal output amplitude 0-0.6V) with adjustable frequency and phase.

It also supports deep sleep mode, which can reduce power consumption when idle. Perfect for generating waves for feeding into a synth or even for creating a whole new electronic musical instrument!

Features

  • Digital programmable frequency and phase
  • Signal output amplitude 0-0.6V
  • Sine wave/Triangle wave/Square wave/Sawtooth wave (fixed frequency: 13.6KHz)/DC output
  • Output frequency range: 0MHz to 1MHz (10MHz based on the reference clock)
  • 28bit frequency resolution
  • 11bit phase resolution

Package Contents

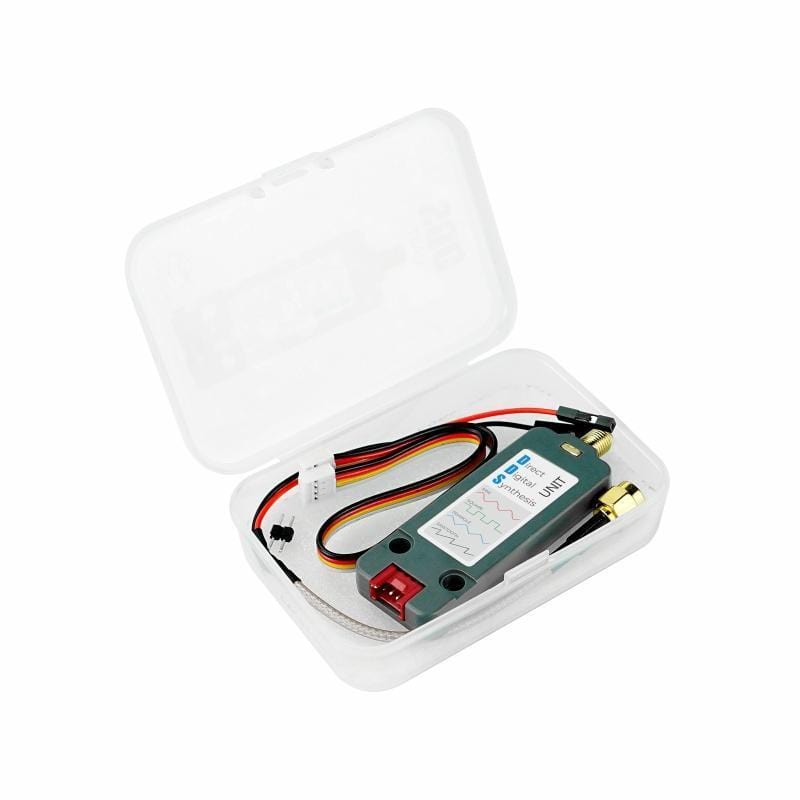

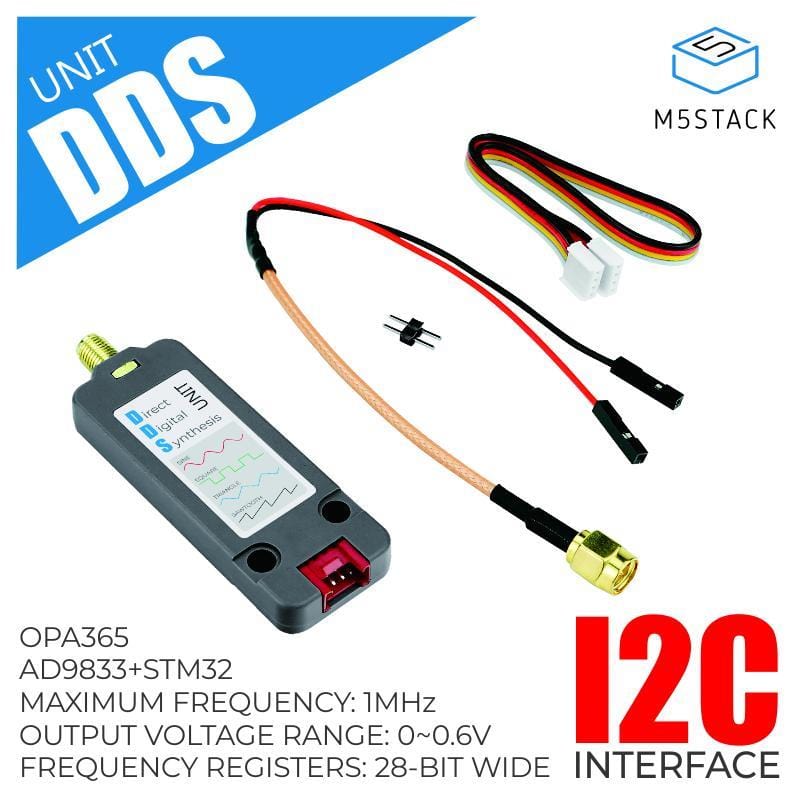

  • 1x DDS Unit
  • 1x HY2.0-4P cable
  • 1x SMA-2.54mm cable

Specification

Specifications Parameters
Support waveform Sine wave/Triangle wave/Square wave/Sawtooth wave (fixed frequency: 13.6KHz)/DC output
Signal output amplitude 0-0.6V
Output frequency range 0MHz to 1MHz (10MHz based on the reference clock)
Frequency resolution 28bit
Phase resolution 11bit
Net weight 11.1g
Gross weight 34.7g

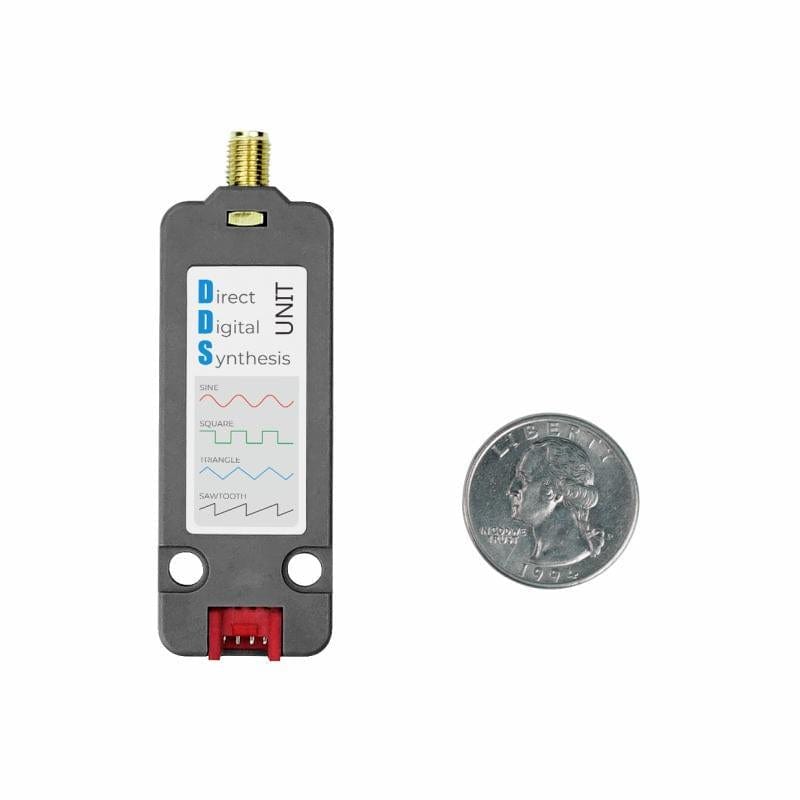

Product size 71*24*8mm
Package size 88.5*60*21mm
