DIN Rail Pluggable Terminal Block - 8 Pole

CamdenBossSKU: 105515
£3.50
incl. VAT
excl. VAT
In stock

Awesome Extras

CTBPD96HJ/6 - DIN Rail Mount Pluggable Terminal Block- 6 Pole - The Pi HutCTBPD96HJ/6 - DIN Rail Mount Pluggable Terminal Block- 6 Pole - The Pi Hut
CamdenBossDIN Rail Pluggable Terminal Block - 6 Pole
£3 incl. VAT excl. VAT
CTBPD96HJ/10 - DIN Rail Mount Pluggable Terminal Block 10 Pole - The Pi HutCTBPD96HJ/10 - DIN Rail Mount Pluggable Terminal Block 10 Pole - The Pi Hut
CamdenBossDIN Rail Pluggable Terminal Block - 10 Pole
£4.20 incl. VAT excl. VAT
Prototyping Wire Spool Set - The Pi HutPrototyping Wire Spool Set - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
£12 incl. VAT excl. VAT

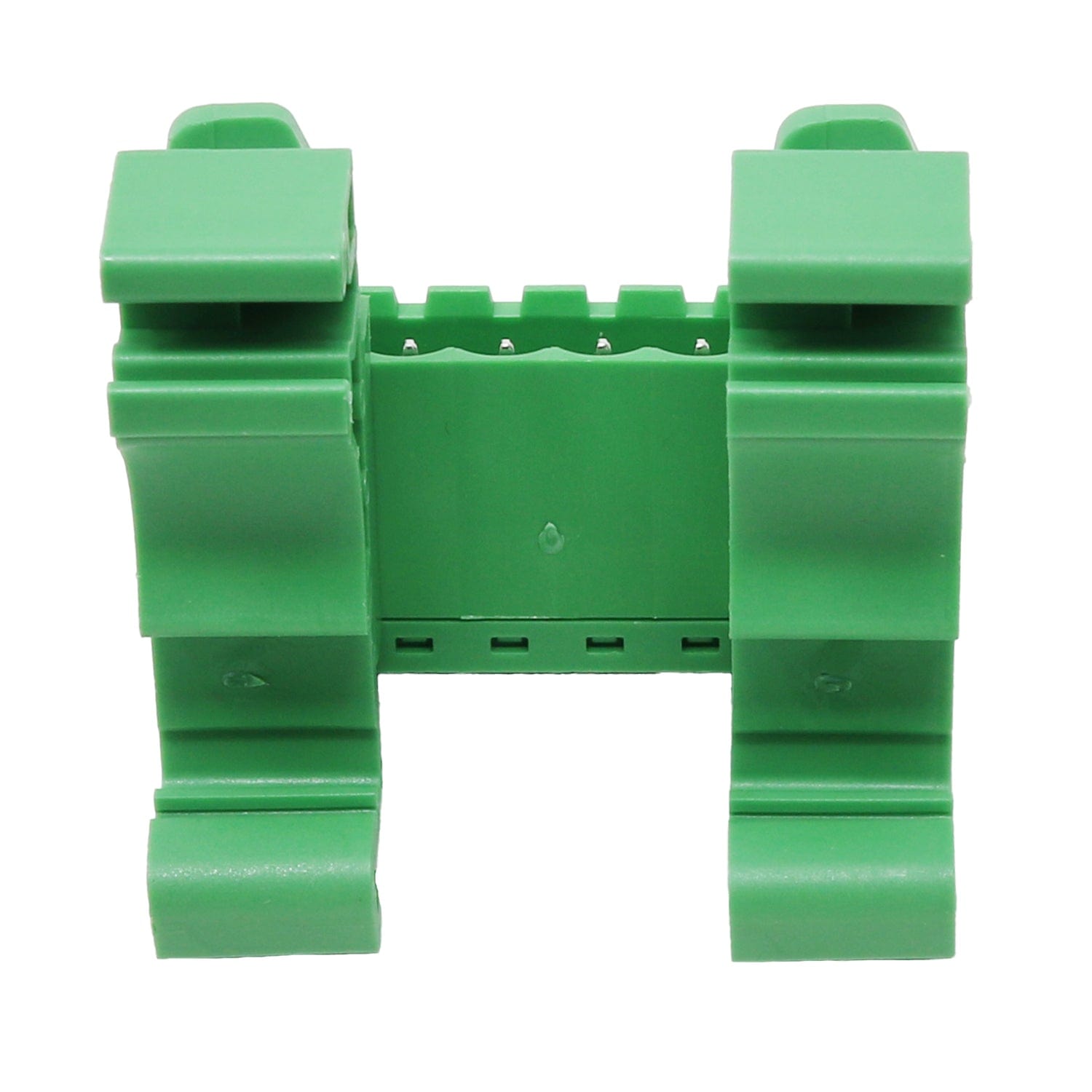

This 8 pole rail mount terminal block is designed for easy horizontal or vertical mounting on DIN rails.

It includes polarised mouldings for correct and safe connections and the reversible feature on DIN clips simplifies mounting.

Made from durable, flame-retardant PA 66, this terminal block is built for longevity and safety. We also have a 6 Pole and a 10 Pole version available.

Features

  • Horizontal & vertical orientations
  • Polarised mouldings
  • Can be reversed on DIN clips
  • 5.08mm/0.2" pitch
  • Moulded in green UL94-V0 flame retardant PA 66
  • 2.5mm2 (28-14AWG)
  • UL Approved
  • 6-12 poles standard
  • Model number: Camdenboss CTBPD96HJ/8

Specifications

External Length (mm) 42
External Width (mm) 42
External Height (mm) 31.5
Weight (G) 19.04
Base Material Plastic
Material Type Polyamide
Colour Green
UL Rating UL94-V0
General Current Rating (A) 15
UL Current Rating (A) 15
UL Voltage Rating (V) 300
Orientation Horizontal
Pitch (mm) 5.08
CE Approval Yes
UL Approval Yes
Cable Size (AWG) 28 to 14
Cable Entry Solid Wire (mm2) 1.5
Cable Entry Stranded Wire (mm2) 1.5
No. of Poles 8
DIN Rail Mounting Yes

Resources

Package Contents

  • 1x DIN Rail Pluggable Terminal Block - 8 Pole
