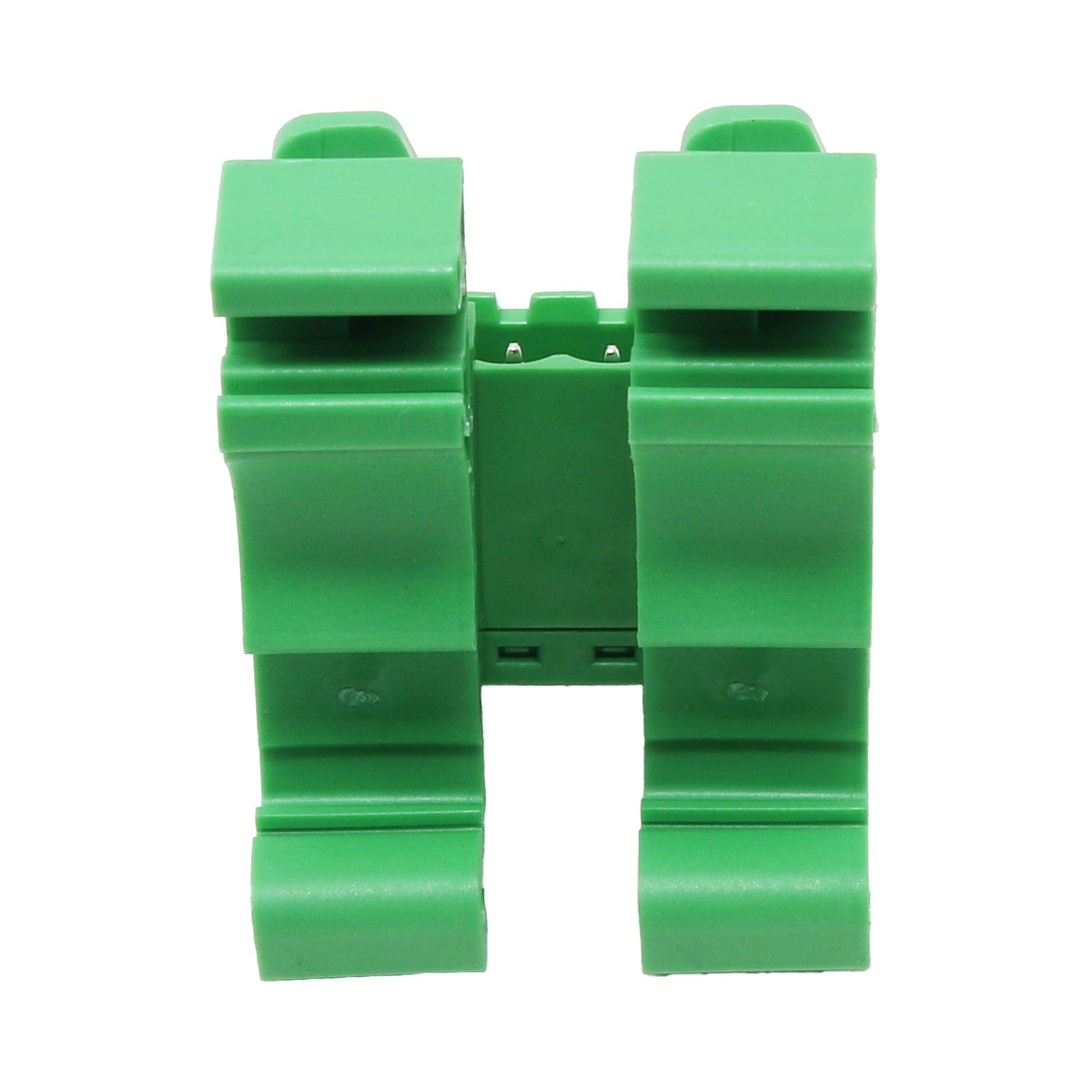

This 6-pole rail mount terminal block is designed for easy horizontal or vertical mounting on DIN rails.
It includes polarised mouldings for correct and safe connections and the reversible feature on DIN clips simplifies mounting.
Made from durable, flame-retardant PA 66, this terminal block is built for longevity and safety. We also have an 8 Pole and 10 Pole version available.
Features
- Horizontal & vertical orientations
- Polarised mouldings
- Can be reversed on DIN clips
- 5.08mm/0.2" pitch
- Moulded in green UL94-V0 flame retardant PA 66
- 2.5mm2 (28-14AWG)
- UL Approved
- 6-12 poles standard
- Model number: Camdenboss CTBPD96HJ/6
Specifications
| External Length (mm) |
31.9 |
| External Width (mm) |
42 |
| External Height (mm) |
31.5 |
| Weight (G) |
15.78 |
| Base Material |
Plastic |
| Material Type |
Polyamide |
| Colour |
Green |
| UL Rating |
UL94-V0 |
| General Current Rating (A) |
15 |
| UL Current Rating (A) |
15 |
| UL Voltage Rating (V) |
300 |
| Orientation |
Horizontal |
| Pitch (mm) |
5.08 |
| CE Approval |
Yes |
| UL Approval |
Yes |
| Cable Size (AWG) |
28 to 14 |
| Cable Entry Solid Wire (mm2) |
1.5 |
| Cable Entry Stranded Wire (mm2) |
1.5 |
| No. of Poles |
6 |
| DIN Rail Mounting |
Yes |
Resources
Package Contents
- 1x DIN Rail Pluggable Terminal Block - 6 Pole
