Voltaic 6V 9W Solar Panel

Price:
Sale price £72.51 Regular price £85.30
incl. VAT
excl. VAT
Save 15%
Stock:
Only 1 unit left
Quantity:

Awesome Extras

Solar Power Management Module for 6V-24V Solar Panel by Waveshare - The Pi HutSolar Power Management Module for 6V-24V Solar Panel by Waveshare - The Pi Hut
Solar Power Manager Module (6V-24V) by Waveshare - The Pi HutSolar Power Manager Module (6V-24V) by Waveshare - The Pi Hut
WaveshareSolar Power Manager Module (6V-24V)
Sale price £12.50 incl. VAT excl. VAT
Adafruit Universal USB / DC / Solar Lithium Ion/Polymer Charger (bq24074) by Adafruit - The Pi HutAdafruit Universal USB / DC / Solar Lithium Ion/Polymer Charger (bq24074) by Adafruit - The Pi Hut
Voltaic W045 Female 3.5x1.1mm to Extension with Leads by Voltaic Systems - The Pi HutVoltaic W045 Female 3.5x1.1mm to Extension with Leads by Voltaic Systems - The Pi Hut
Voltaic W044 1 Foot 3.5x1.1mm Extension Cable by Voltaic Systems - The Pi HutVoltaic W044 1 Foot 3.5x1.1mm Extension Cable by Voltaic Systems - The Pi Hut
Voltaic SystemsVoltaic 25cm Extension Cable for Solar Panels
Sale price £4.80 incl. VAT excl. VAT
Voltaic W036 4 Foot 3.5x1.1mm Extension Cable by Voltaic Systems - The Pi HutVoltaic W036 4 Foot 3.5x1.1mm Extension Cable by Voltaic Systems - The Pi Hut
Voltaic 3m Extension Cable for Solar Panels by Voltaic Systems - The Pi HutVoltaic W031 10 Foot 3.5x1.1mm Extension Cable by Voltaic Systems - The Pi Hut
Voltaic SystemsVoltaic 3m Extension Cable for Solar Panels
Sale price £9.60 incl. VAT excl. VAT
Voltaic W035 Male 3.5 x 1.1mm Splitter by Voltaic Systems - The Pi HutVoltaic W044 1 Foot 3.5x1.1mm Extension Cable by Voltaic Systems - The Pi Hut
Voltaic SystemsVoltaic Male Splitter for Solar Panels
Sale price £5.80 incl. VAT excl. VAT
Voltaic W032 Female 3.5x1.1mm Splitter by Voltaic Systems - The Pi HutVoltaic W032 Female 3.5x1.1mm Splitter by Voltaic Systems - The Pi Hut
Voltaic SystemsVoltaic Female Splitter for Solar Panels
Sale price £5.80 incl. VAT excl. VAT
Voltaic W058 Female 3.5x1.1mm JST Extension by Voltaic Systems - The Pi HutVoltaic W058 Female 3.5x1.1mm JST Extension by Voltaic Systems - The Pi Hut
Voltaic SystemsVoltaic JST Extension for Solar Panels
Sale price £3.80 incl. VAT excl. VAT
Voltaic A106 3.5x1.1mm to 5.5x2.1mm DC Jack Adapter by Voltaic Systems - The Pi Hut
3.8 / 1.3mm or 3.5 / 1.1mm to 5.5 / 2.1mm DC Jack Adapter Cable by The Pi Hut - The Pi Hut3.8 / 1.3mm or 3.5 / 1.1mm to 5.5 / 2.1mm DC Jack Adapter Cable by The Pi Hut - The Pi Hut

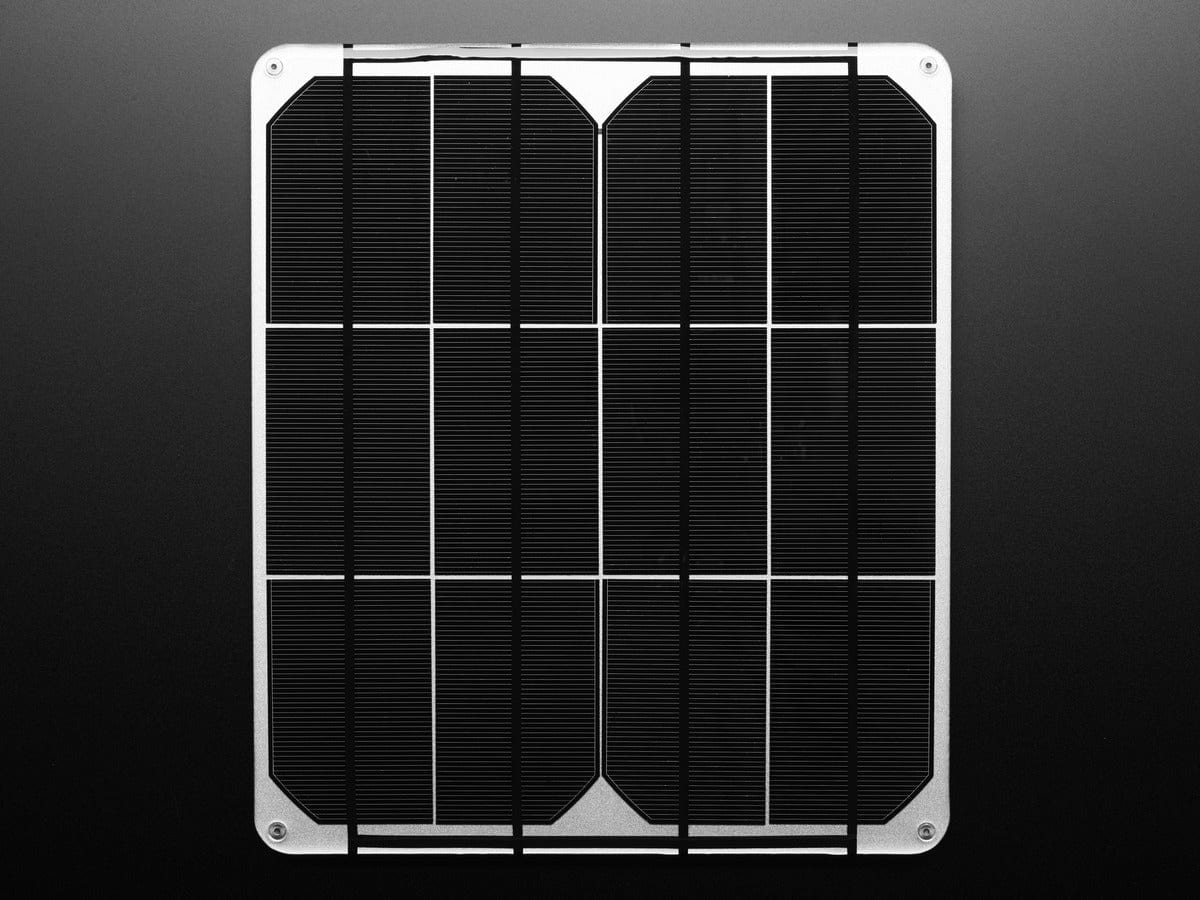

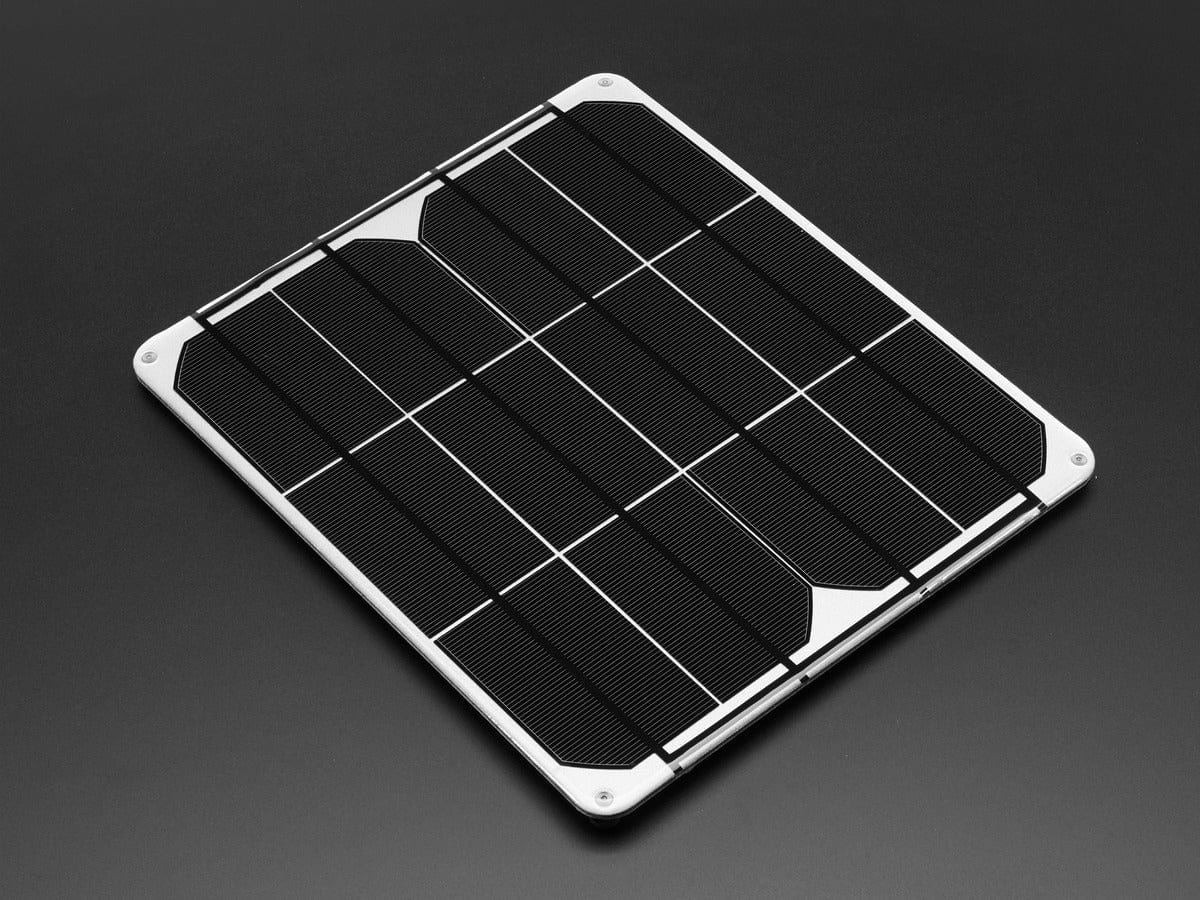

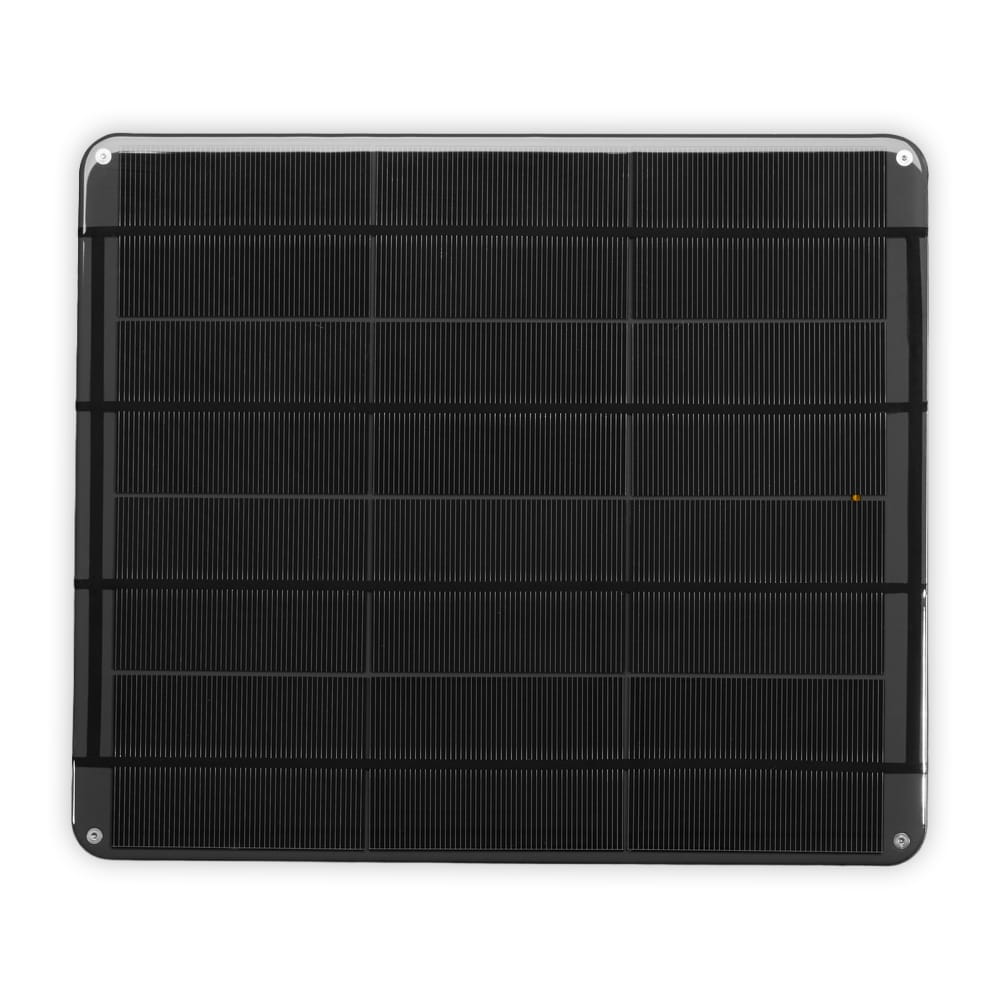

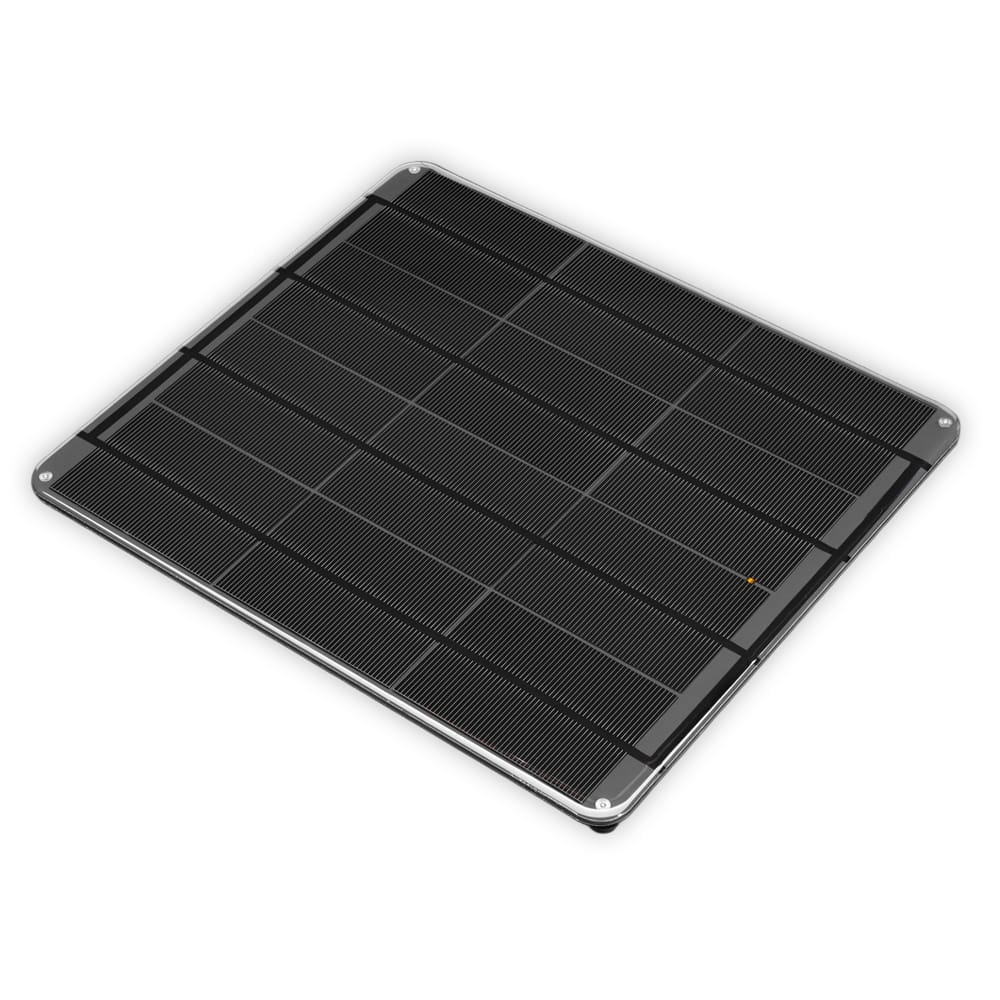

These 6V 9W panels come to us from Voltaic Systems, makers of fine solar-powered bags and packs. They are waterproof, scratch resistant, and UV resistant.

Using a high efficiency monocrystalline cell and outputting 6V at ~1.5A via 3.5mm x 1.1mm DC jack connector, they are a nice upgrade to the 2W or 3W panels we have been carrying. The substrate is an aluminium / plastic composite, specifically designed to be strong and lightweight.

They're very high quality and suggested for projects that will be exposed to the outdoors. These come with 4 plastic mounting screws which makes it easy to attach the panel, even to fabric!

Please note - these panels may have dents or light scratches in the epoxy from shipping/storage, it does not affect the functionality of the panel. We cannot guarantee they will be perfectly smooth.

Specifications

  • Monocrystalline cells - 19% efficient
  • Open Circuit Voltage: 7.0V
  • Peak Voltage: 6.0V
  • Peak Current: 1500mA
  • Peak Power: 9.0 Watt
  • 254mm x 223.5mm
  • Thickness (without screws): 5mm
  • Thickness (with screws): 10mm
  • Wire Length: 282mm
  • Weight: 309g
  • Technical drawing

Construction

  • Urethane coating
  • 3mm Aluminium/Plastic composite substrate

Mounting and Cables

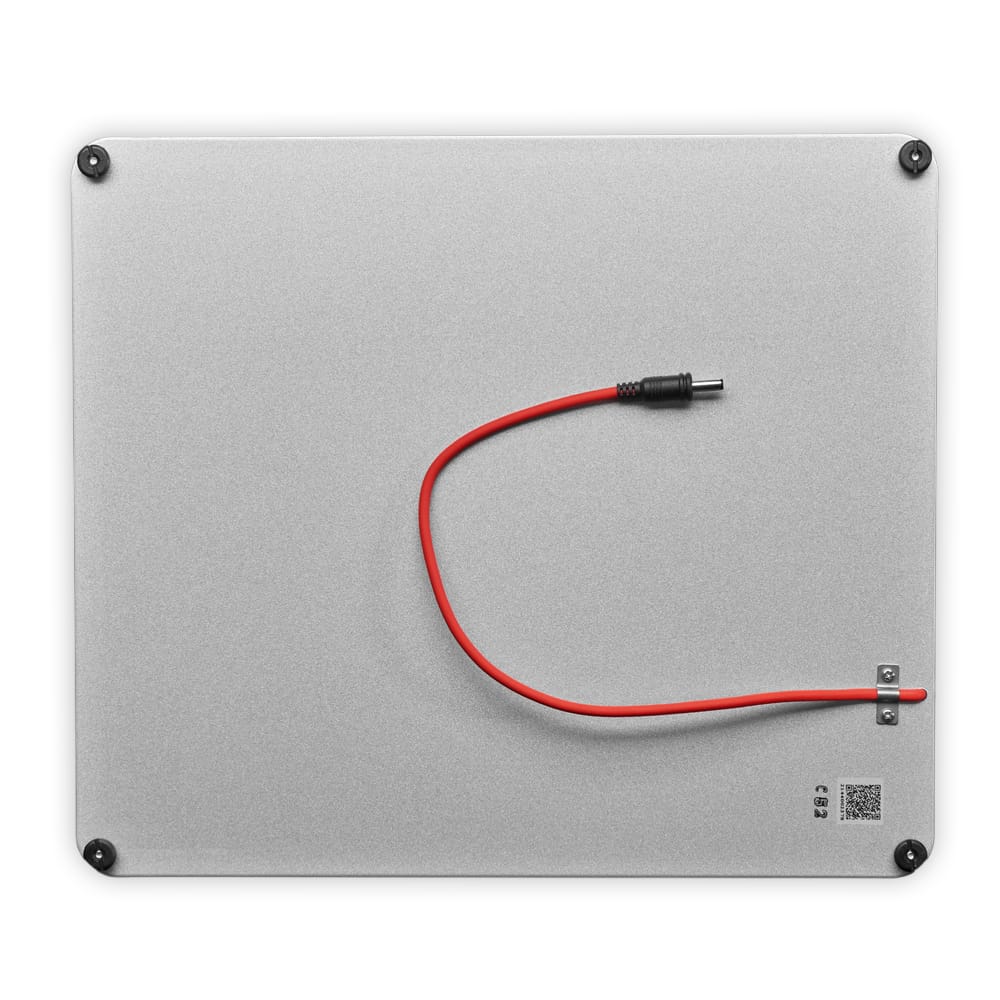

  • Four screws on back corners of panel allow multiple mounting options
  • Output cable is 22cm long and has 3.5x1.1mm plug
