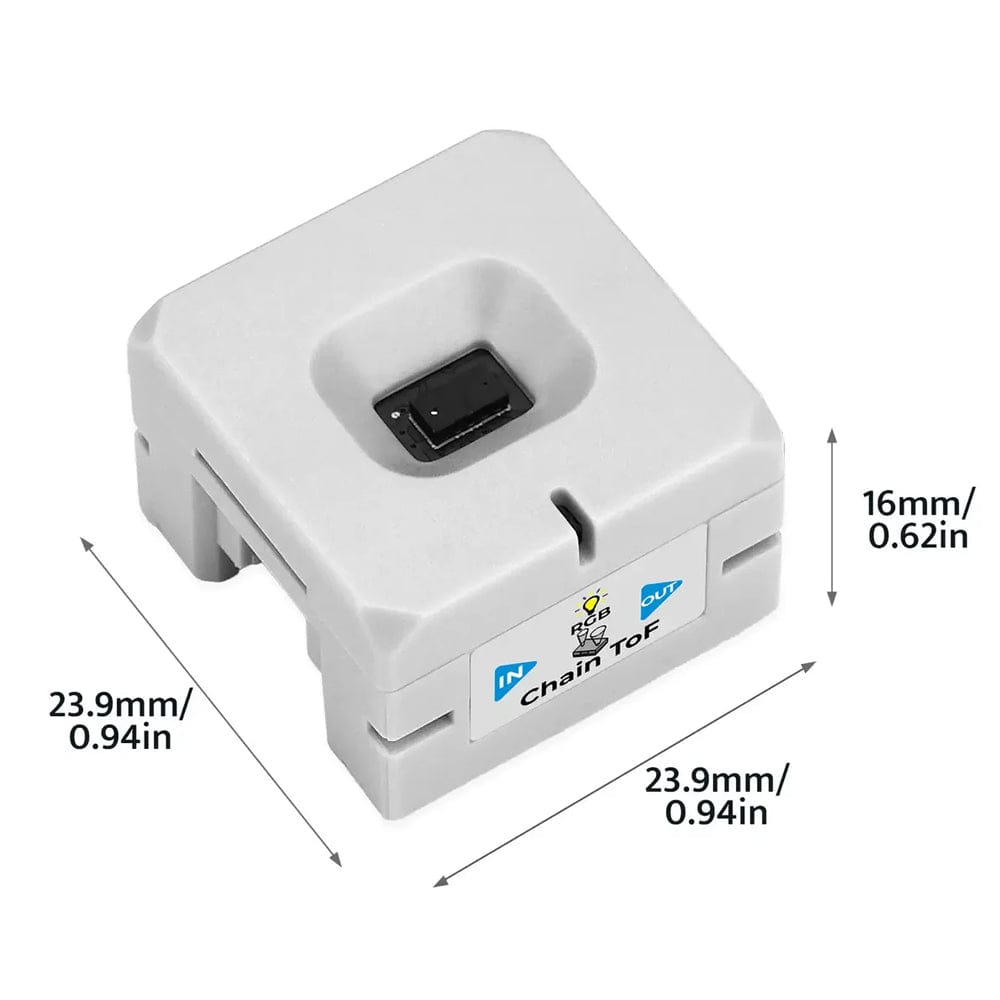

The M5Stack Chain ToF is a Chain-series laser distance sensor with a VL53L0C ranging module, measuring 3–200cm with ±3% accuracy. It supports UART daisy-chaining via dual HY2.0-4P ports for easy expansion in interactive projects.

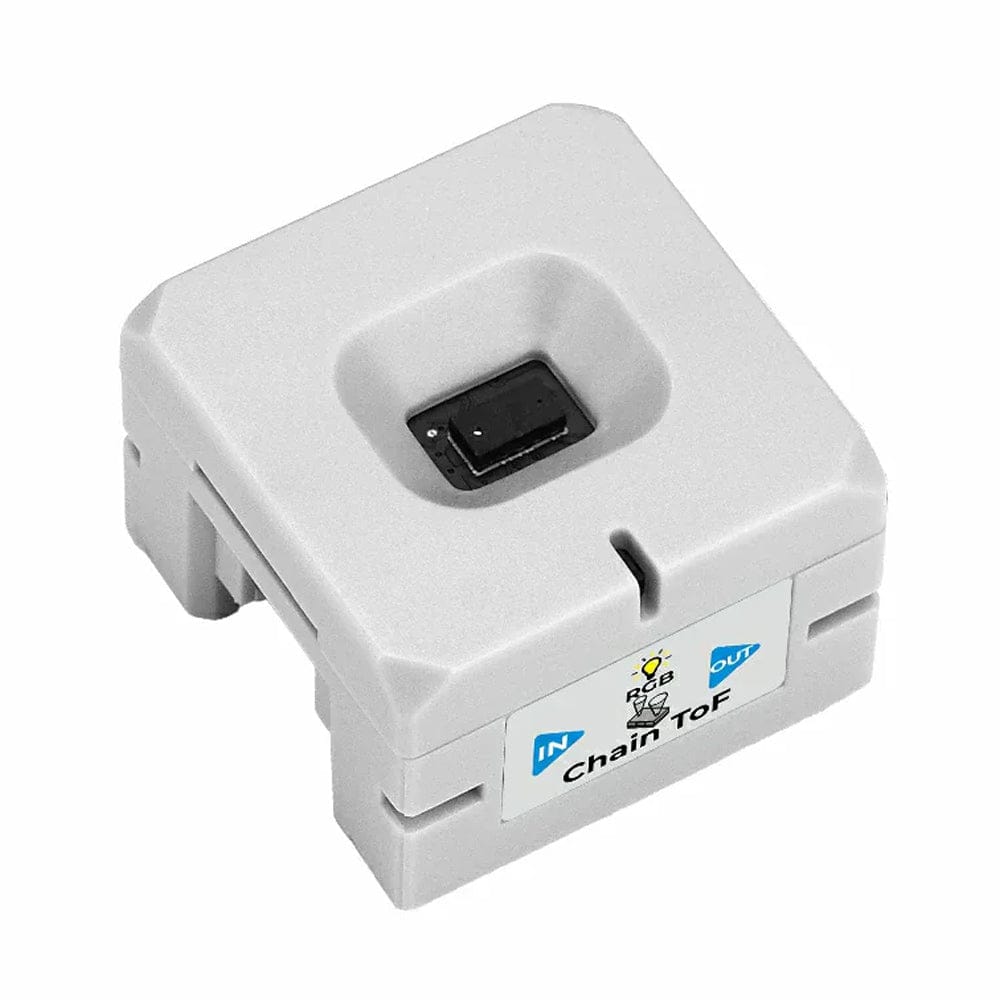

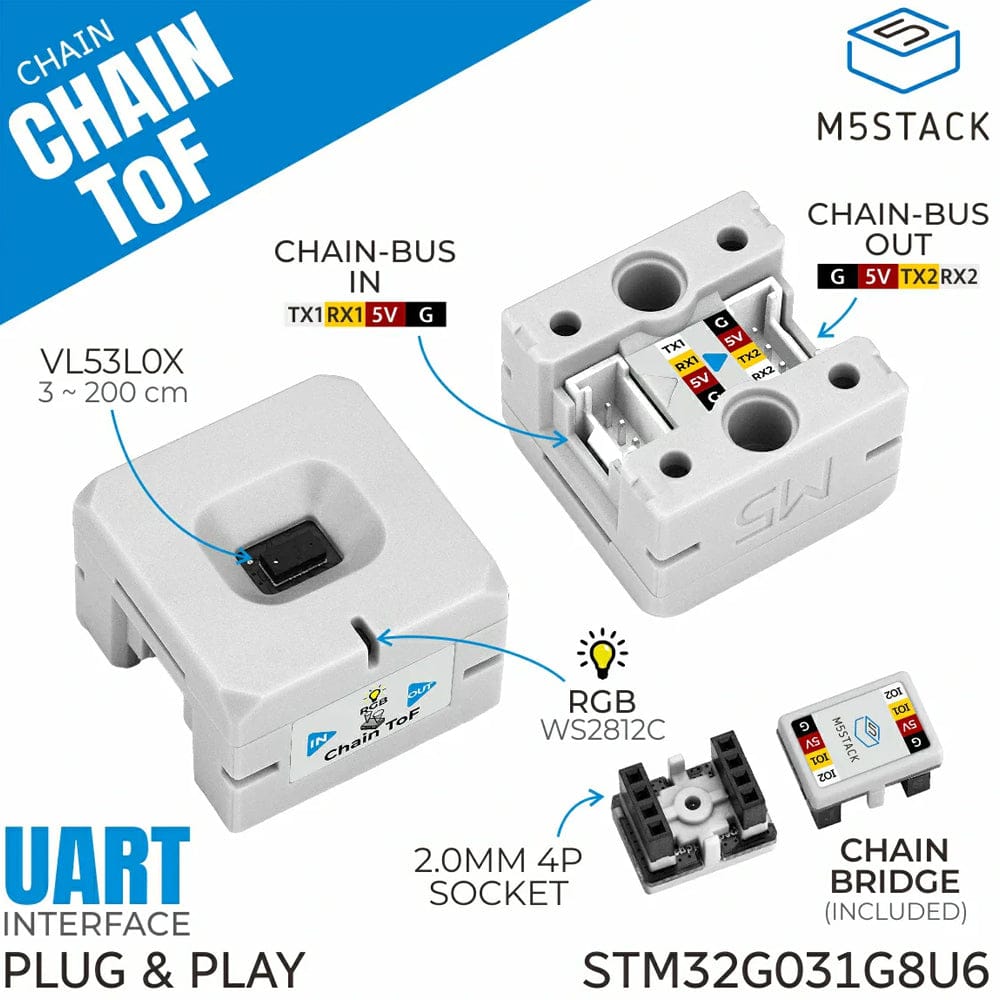

The M5Stack Chain ToF is a laser ranging sensor node in the M5Stack Chain series, built for short-range, non-contact distance measurement and proximity detection. It integrates a VL53L0C laser ranging module, offering a measurement range of 3 to 200cm with ±3% accuracy, making it ideal for detecting objects and measuring distances in compact projects.
The module is powered by an STM32G031G8U6 MCU and communicates using a UART daisy-chain protocol. With two HY2.0-4P expansion ports, it can be easily linked with additional Chain series devices to create richer, more interactive applications.
Features
M5Stack Chain series

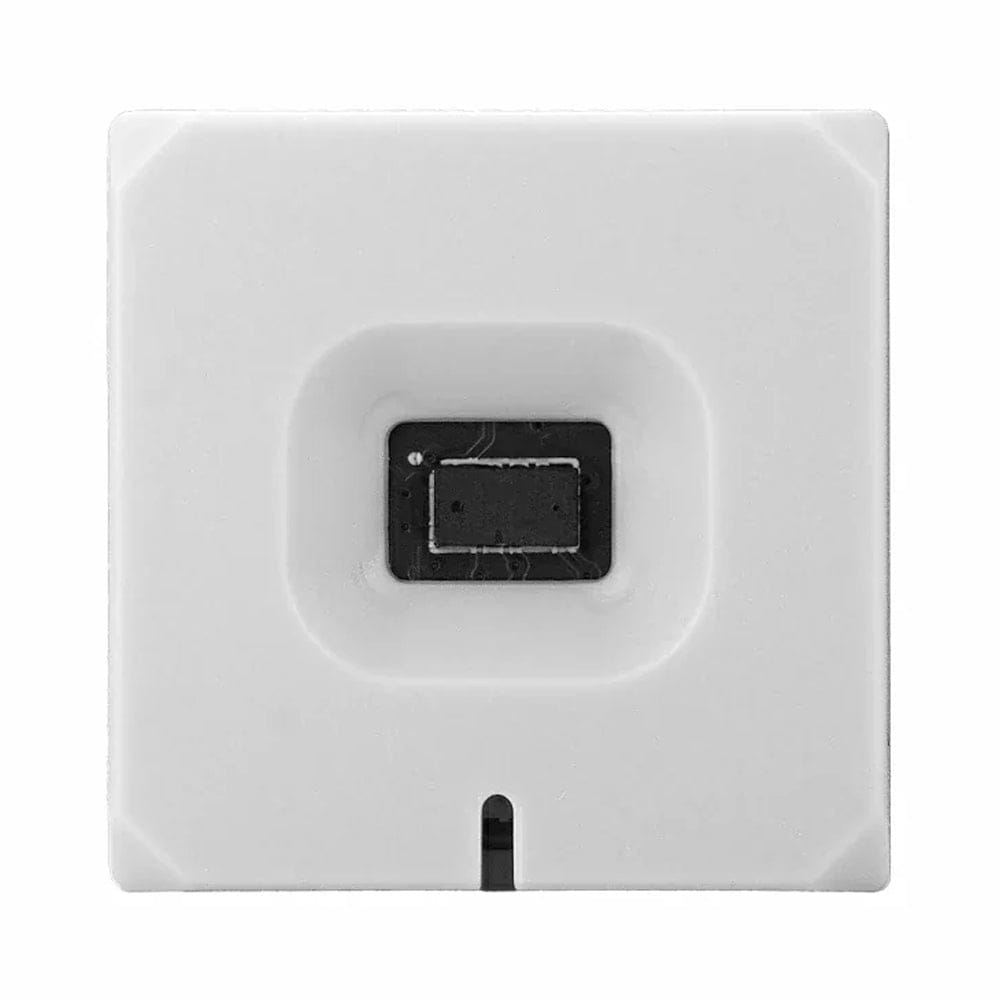

VL53L0C laser ranging module
3 ~ 200cm measurement range
STM32G031G8U6 core MCU
UART serial daisy-chain communication protocol

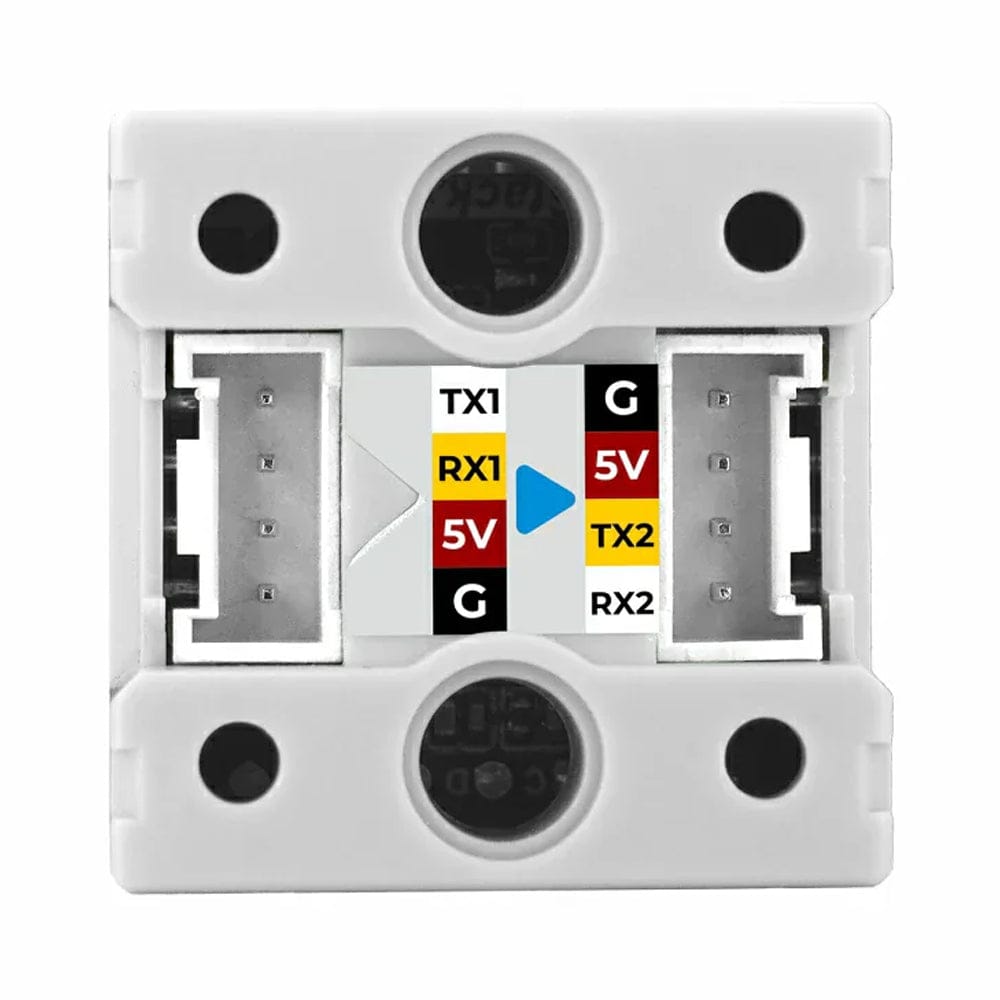

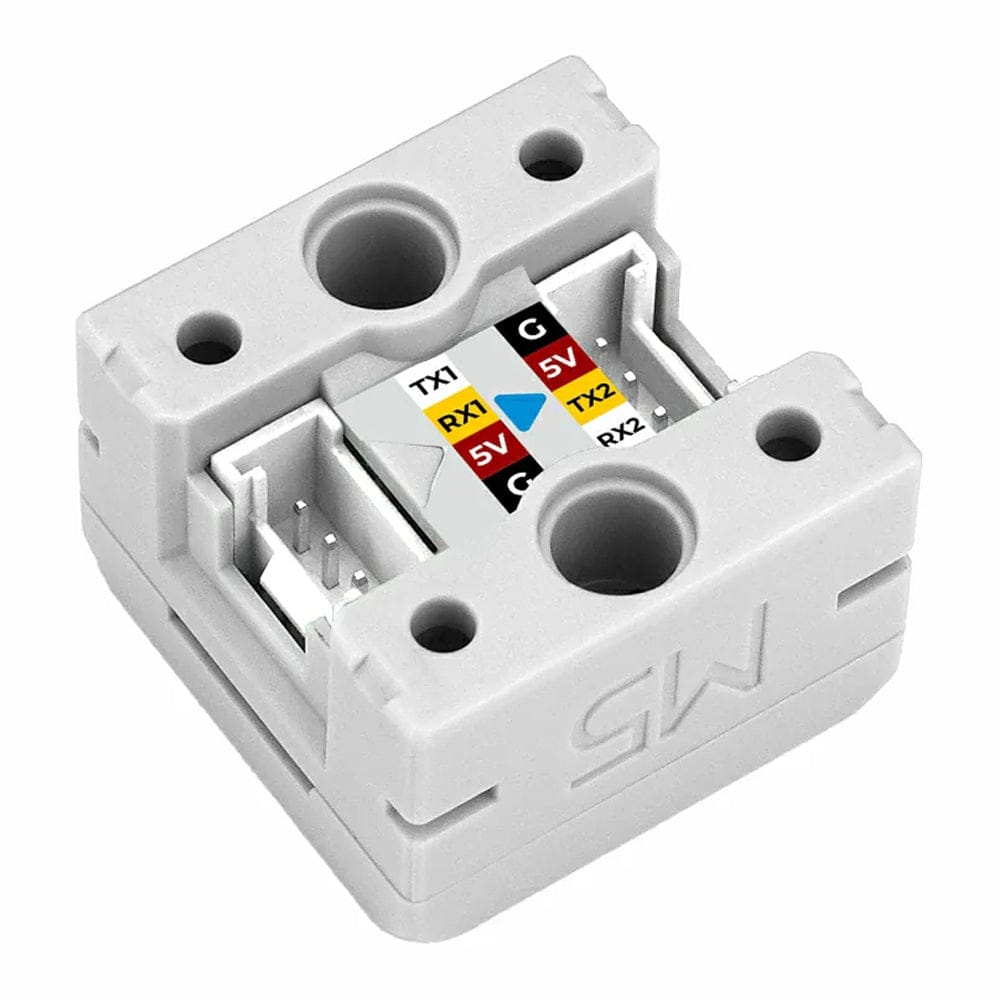

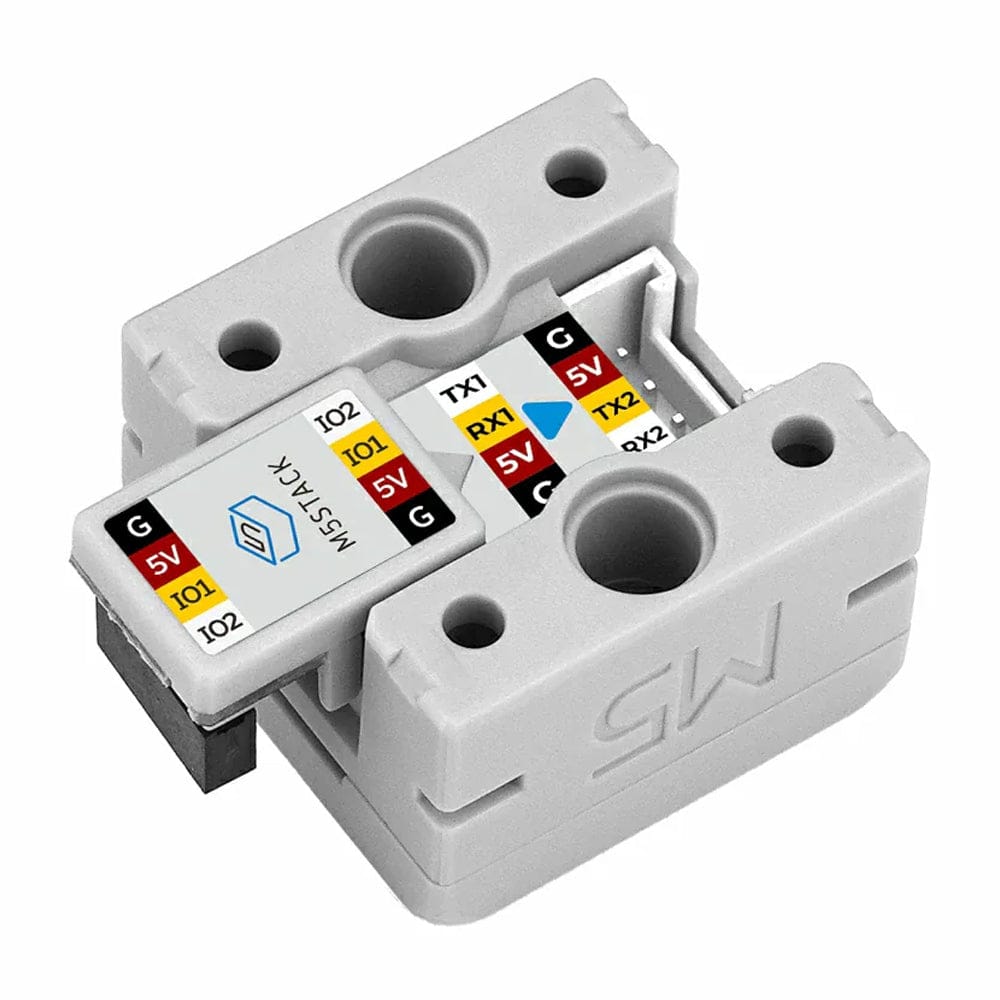

2 x HY2.0-4P expansion interfaces for extending Chain series devices
Specifications
MCU
STM32G031G8U6
Laser Module
VL53L0C
Measurement Range
3 ~ 200cm
Measurement Accuracy
±3%
Input Power
DC 5V
Communication Interface
UART
Interface Type
2 x HY2.0-4P
RGB LED
1 x WS2812C
Power Consumption
Stop mode (white RGB on): DC 5V@21.27mA Default mode single measurement: DC 5V@20.26mA Default mode continuous measurement: DC 5V@24.75mA
