CAN Bus Module (B) for Raspberry Pi Pico

WaveshareSKU: WAV-23775
Price:
Sale price £13.92
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Compatible with:

Awesome Extras

Raspberry PiRaspberry Pi Pico
Sale priceFrom £3.25 incl. VAT excl. VAT
Raspberry PiRaspberry Pi Pico W
Sale priceFrom £5.25 incl. VAT excl. VAT

This CAN module for the Raspberry Pi Pico enables reliable long-range communication with other devices without a host computer. CAN is used in endless devices, commonly in vehicles.

The board utilises a second-generation MCP2515 CAN controller and a 3.3V SN65HVD230DR CAN transceiver. Onboard jumpers allow terminal resistor selection for the onboard 120-ohm resistor.

Online resources are available which include some demo code to get you started.

Raspberry Pi Pico is not included.

Features

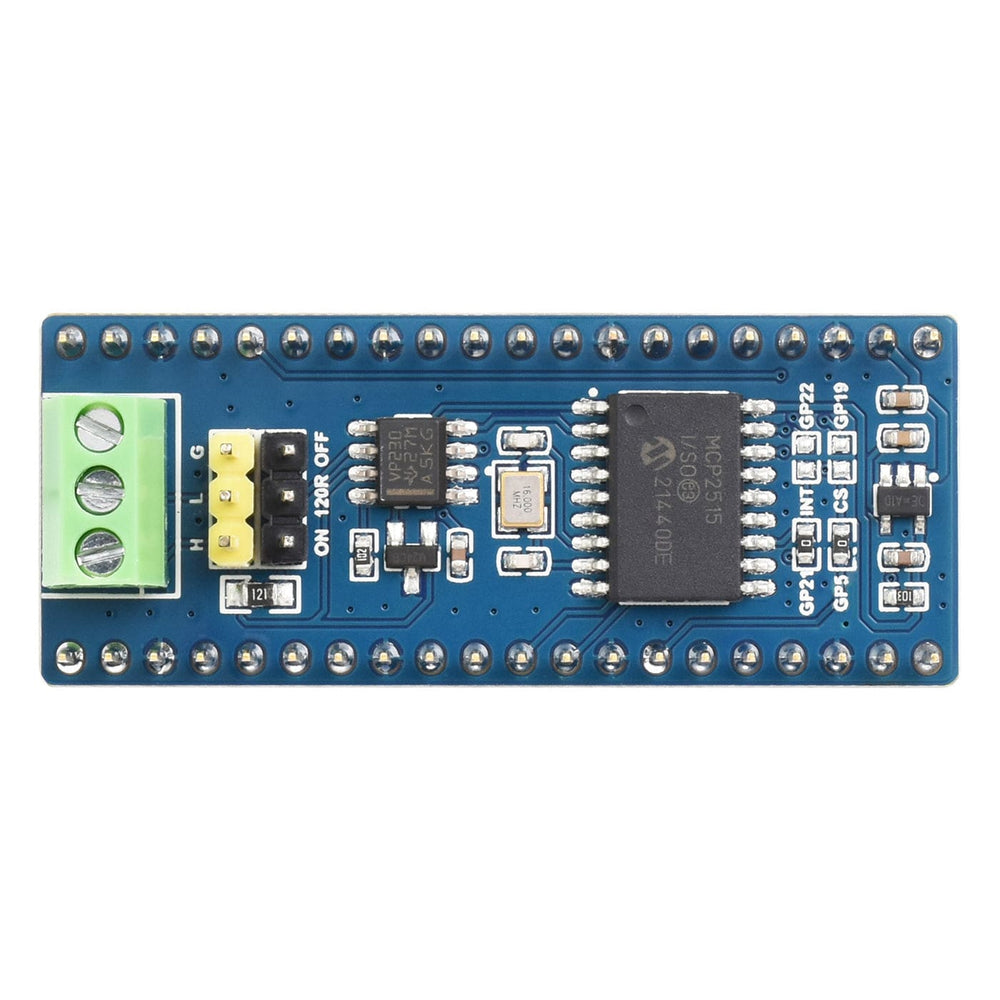

What's Onboard?

1) RT9013-33GB
 - 500mA low dropout, low noise, ultra-fast LDO
2) MCP2515
 - Second generation standalone CAN controller
3) SN65HVD230DR
 - 3.3V CAN transceiver
4) Terminal resistor selection
 - ON: connected to 120R matching resistor
 - OFF: disconnected from 120R matching resistor
5) CAN bus terminal

Specifications

Operating Voltage 3.3V~5V
Can Controller MCP2515
Can Transceiver SN65HVD230DR
Communication Bus SPI
Baudrate 5K~1000Kbps
Dimensions 52 x 21mm

Package Contents

  • 1x CAN Bus Module (B) for Raspberry Pi Pico

Raspberry Pi Pico not included.
