Breakout PiZero addon
Price:
Sale price
£5
Stock:
Quantity:

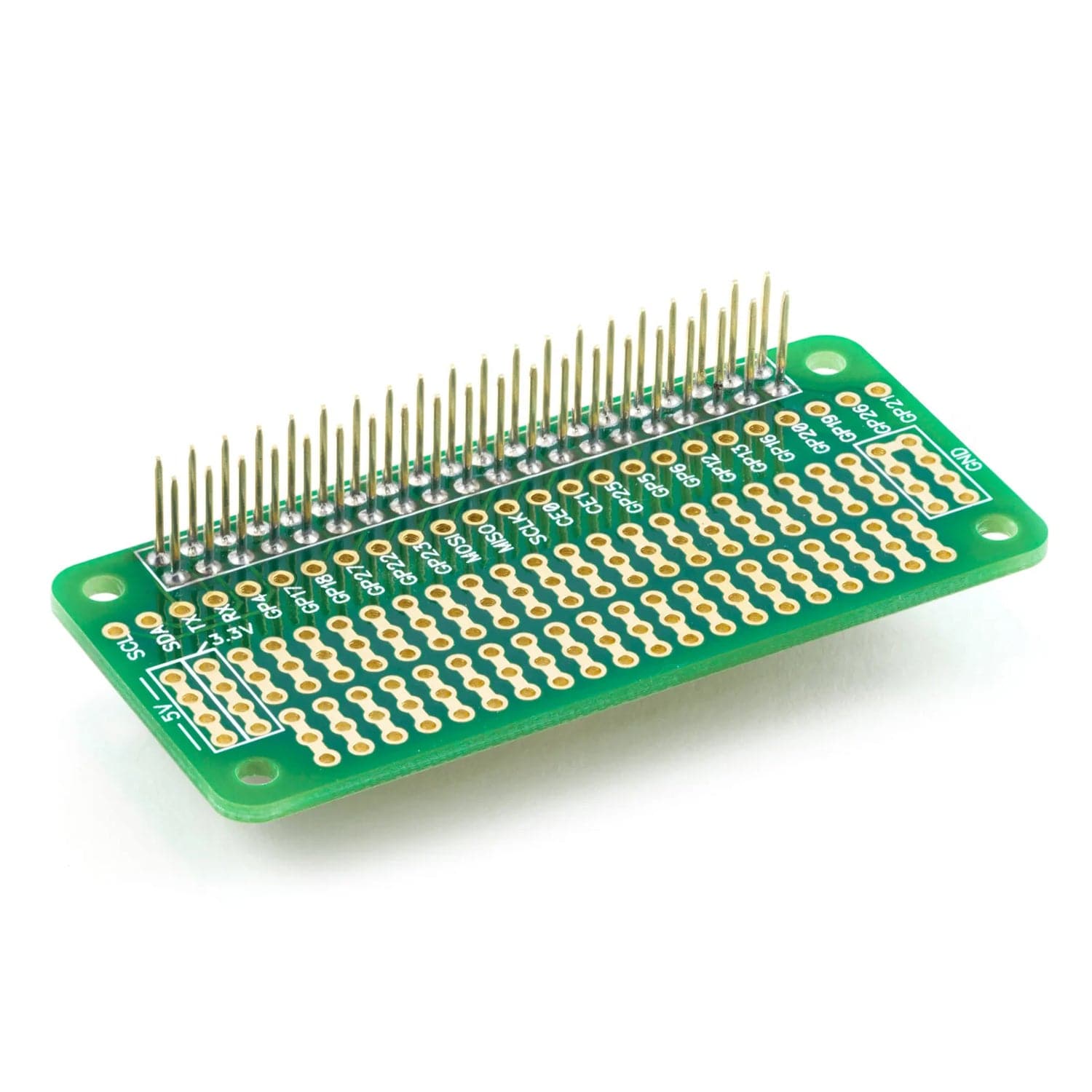

The Breakout Pi Zero is a useful and versatile prototyping expansion board for the Raspberry Pi Zero computer.
All of the Raspberry Pi GPIO pins except GPIO 24, ID_SC and ID_SD are broken out into separate pads and 3.3 volt, 5 volt and ground rails run down the sides of the prototyping area on board.
The board has a working area with pads arranged into groups of three pins.

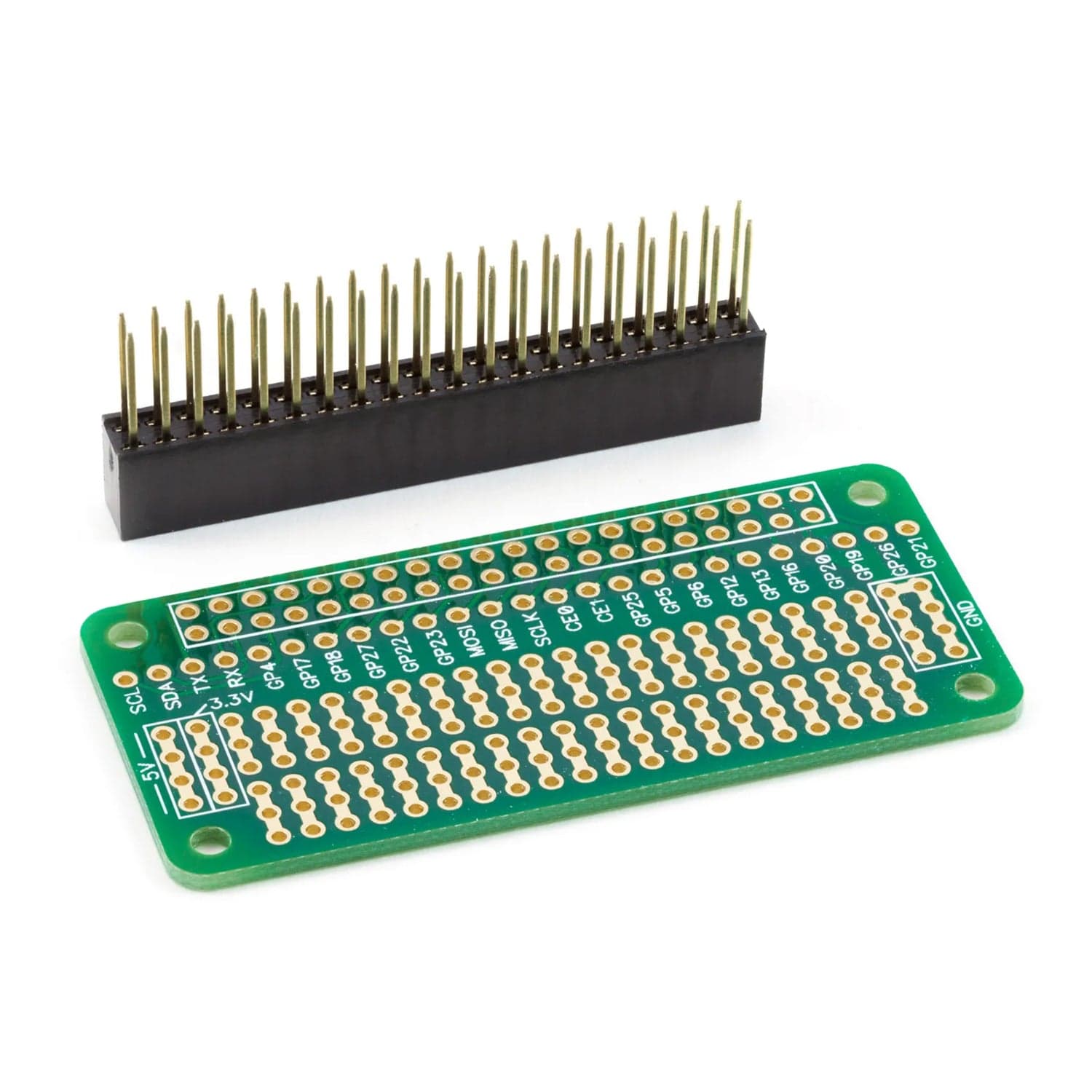

The board is supplied as a ready to solder kit with a 40 pin header to connect to the Raspberry Pi.

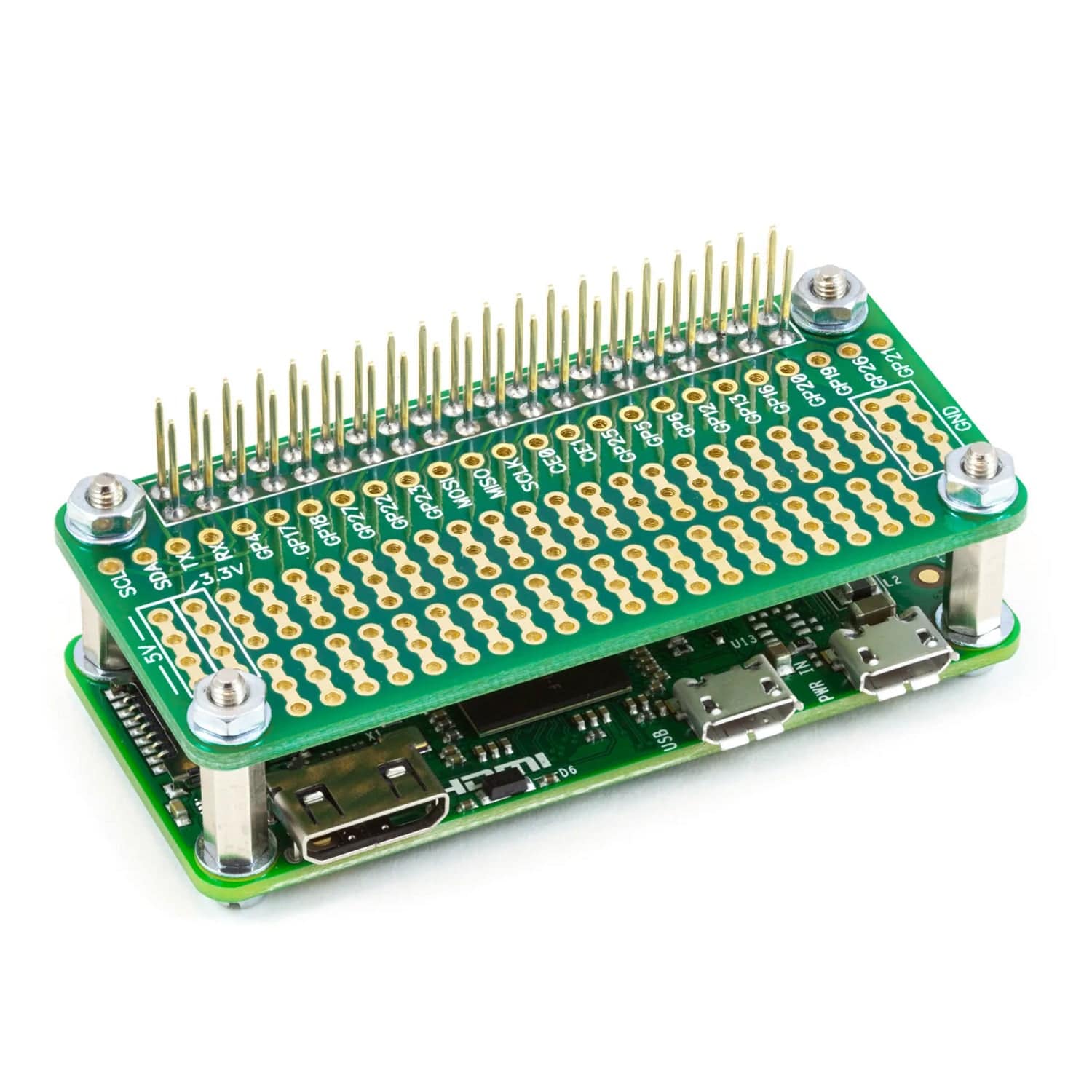

You can use our optional mount kit pack to secure your prototyping board to your Raspberry Pi.
Introduction:
Compatibility Chart
| Raspberry Pi Model A | No |
| Raspberry Pi Model B | No |
| Raspberry Pi 1 Model A+ | Yes |
| Raspberry Pi 1 Model B+ | Yes |
| Raspberry Pi 2 Model B | Yes |
| Raspberry Pi 3 Model B/B+ | Yes |
| Raspberry Pi 4 Model B | Yes |
| Raspberry Pi Zero / ZeroW | Yes |

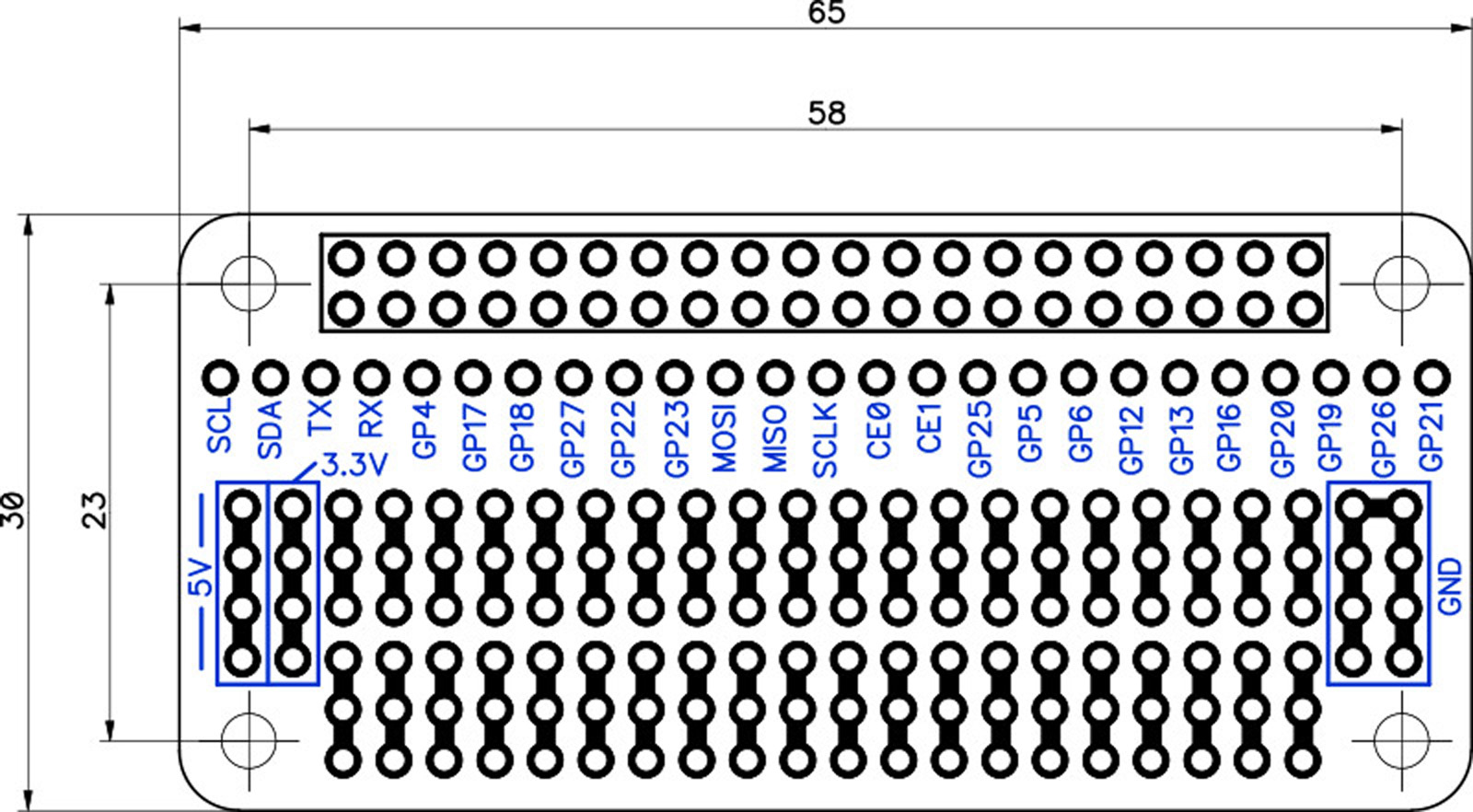

Mechanical Dimensions
