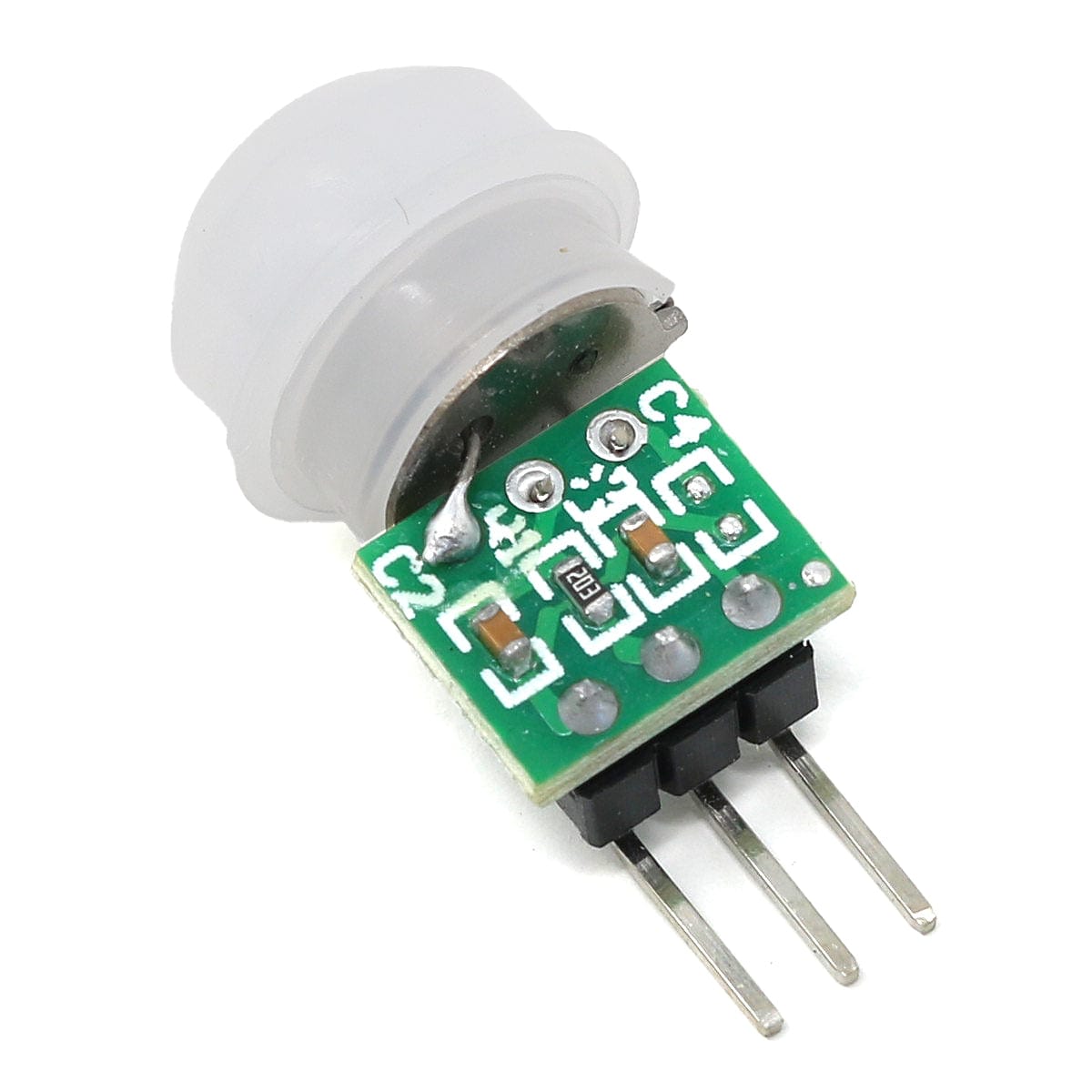

Mini PIR Motion Sensor

Price:
Sale price £3.50
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Awesome Extras

Breadboard - 400 Point (Clear) - The Pi HutBreadboard - 400 Point (Clear) - The Pi Hut
The Pi HutHalf-Size Breadboard - Transparent
Sale price £3 incl. VAT excl. VAT
The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi HutThe Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut
Prototyping Wire Spool Set - The Pi HutPrototyping Wire Spool Set - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
Sale price £12 incl. VAT excl. VAT

PIR (Passive Infrared) sensors are used to detect motion, specifically things that emit heat radiation like humans and pets. They're commonly seen in the corners of rooms as part of an alarm system.

This is a mini PIR sensor, the tiny lil' bro of our standard PIR sensor. This smaller version is handy for prototyping as the pins pop straight into a breadboard, and the compact format also makes it better for embedding in your own projects and enclosures. Downsides? Slightly lesser range and takes a little longer to trigger.

These sensors pick up targets around the 5m range and are super easy and flexible to use - you can power it from 3-12V DC as it has an onboard regulator. Digital signal output is 3.3V high/low, with the signal going high for 2 seconds when motion is detected.

The lens is focused to 2-5 meters away with a 100-degree spread.

Pinout (Important!)

Pin connections for your microcontroller are simple. Always power down your microcontroller before wiring up, and triple check your connections as you may damage the sensor if wired incorrectly:

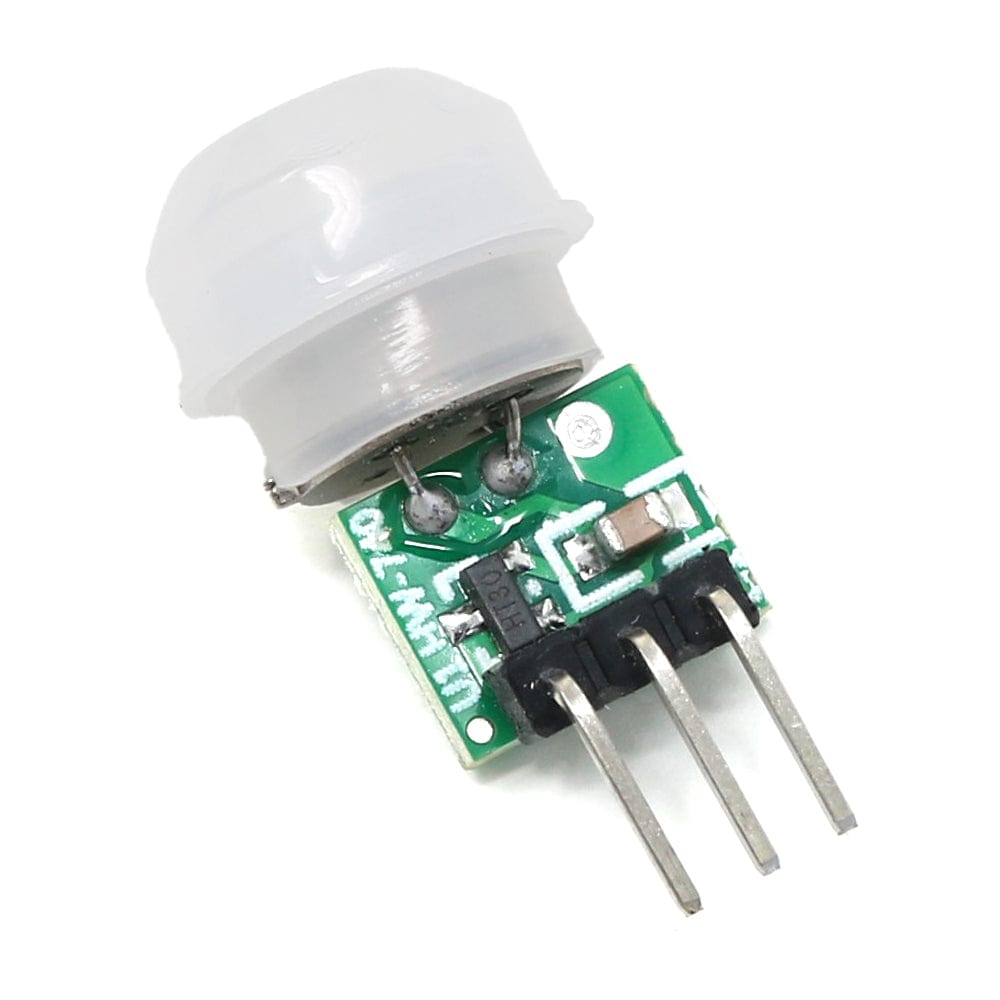

  • Pin #1 to 3-12V (Pin 1 has the 'U' next to it - see below image)
  • Pin #2 to output signal
  • Pin #3 to GND
