Bone Conduction Kit

DFRobotSKU: KIT0126
Price:
Sale price £23.50
incl. VAT
excl. VAT
Stock:
Only 3 units left
Quantity:

Awesome Extras

(7 Reviews)
The Pi HutSlim Metal Potentiometer Knob - 10mm Diameter x 10mm - T18
Sale price £0.80 incl. VAT excl. VAT
(79 Reviews)
The Pi HutPrototyping Wire Spool Set - 6 Spool
Sale price £12 incl. VAT excl. VAT
(97 Reviews)
The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)
Sale price £6 incl. VAT excl. VAT

Bone conduction is a method of sound transmission. The sound is converted into different frequencies of mechanical vibration and transmitted through the human skull, bone labyrinth, inner ear lymphatic transmission, helix, auditory nerve and auditory center.

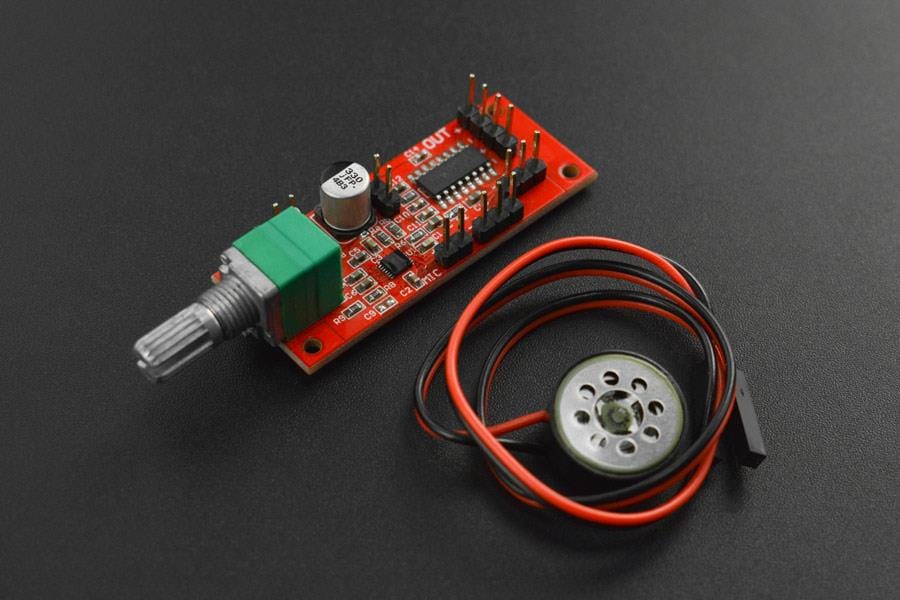

This kit is composed of a bone conduction speaker, a speaker driver board and accessories. The kit is intended to help understand the principles of bone conduction technology, making hearing aids or bone conduction headphones.

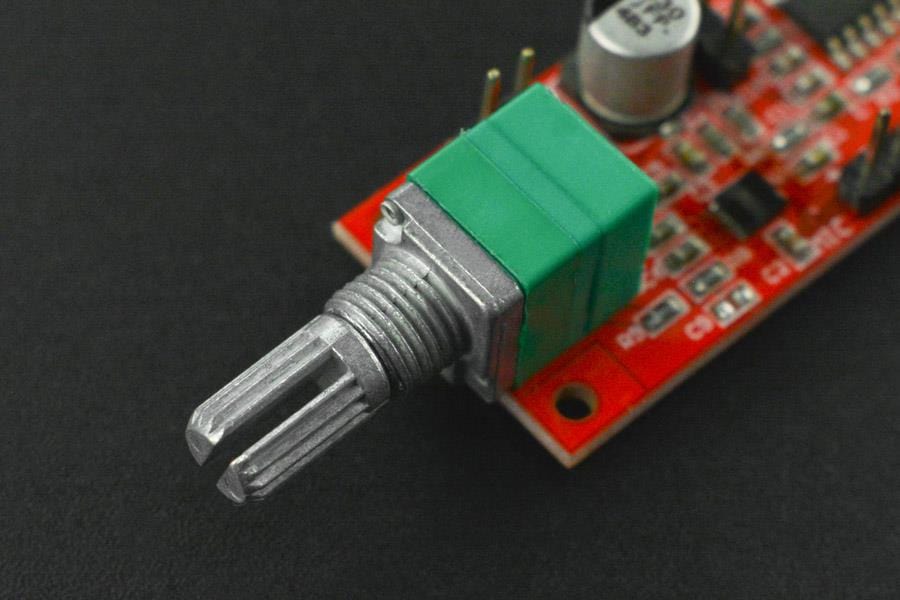

The speaker driver board is designed based on MAX9814 microphone amplifier and PAM8406 amplifier, high sensitivity and suitable for 3.6v-4.2v lithium battery power supply. It comes with a potentiometer that has a power switch function making it easy to control.

Components Description
Power Input 3.0~5.5V
AGC Switch Plugged: AGC OFF Unplugged: AGC ON
Audio Input Audio Input
Audio Output Audio Output (L/R)
Gain

GAIN = VDD, Gain = 40dB;

GAIN = GND, Gain = 50dB;

GAIN = Vacant, Gain = 60dB。

A/R

Activate/Release ratio, Control the AGC activate/release time ratio:

A/R = GND: Activate/Release ratio = 1:500

A/R = VDD: Activate/Release ratio = 1:2000

A/R = Vacant: Activate/Release ratio = 1:4000

Specification

  • Operating Voltage: DC 3.0-5.5v
  • Board Wiring Pitch: 2.54mm
  • Phone Cable: 100cm
  • Speaker Cable: 30cm
  • Headphone Size: 13mm (D) * 5mm (H)

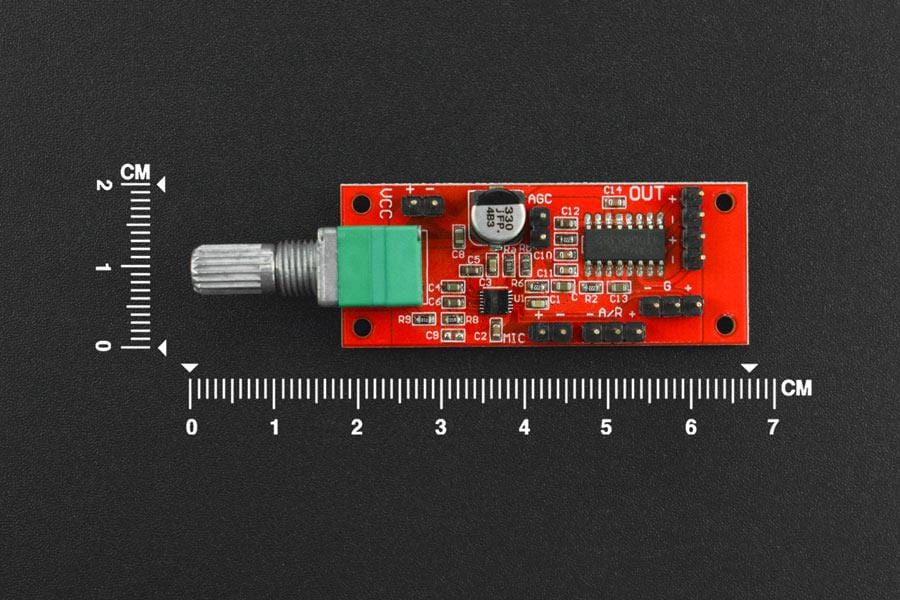

  • Board Dimension: 50 * 20 mm/1.97*0.79 inches
  • Weight: 36g

Shipping List

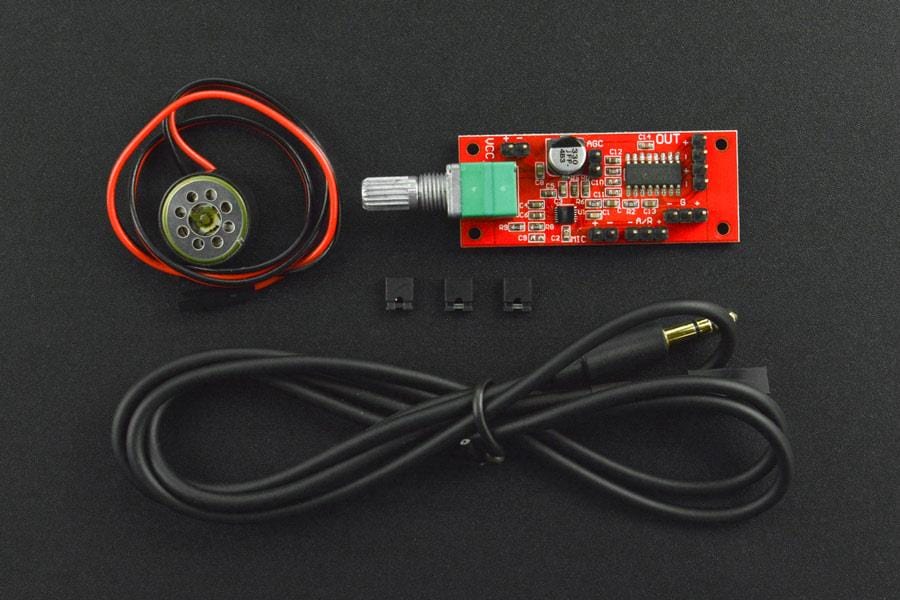

  • Bone conduction speaker x1
  • Speaker driver board x1
  • 3.5mm earphone cable x1
