Extend the life of your Raspberry Pi's fan, reduce its noise and control it automatically - whilst also protecting your software with the built-in crypto module! This version also includes a second dedicated connector for access to the Raspberry Pi 5V pins.
Note: This product is more suited to the Raspberry Pi 4 and earlier modules, as the newer Raspberry Pi 5 has a dedicated fan header with software control (but you can still use this on a Pi 5 if you like!).
Fan Control

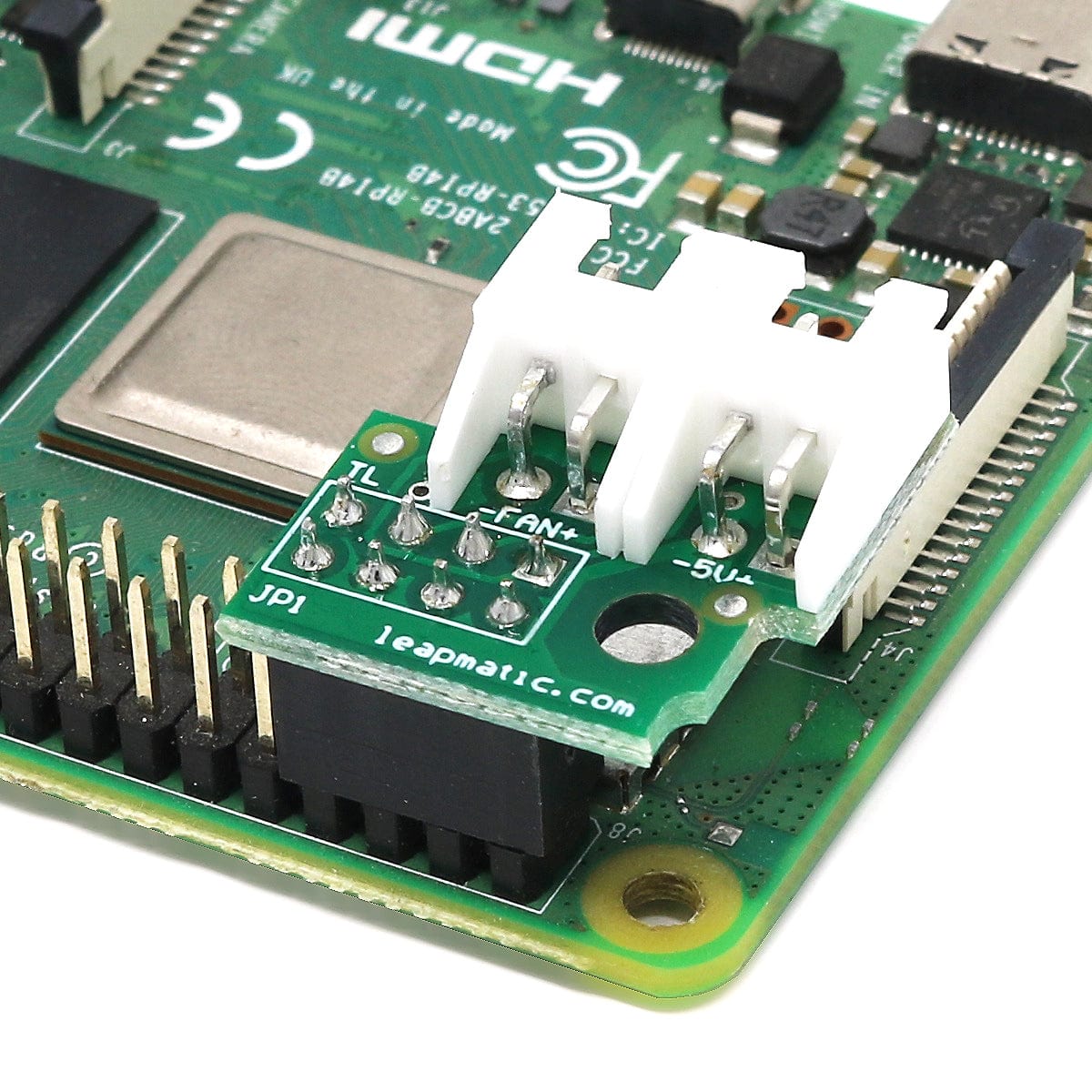

Place the module on pins 1-8 (as shown in the photos), then in the Raspberry Pi configuration (performance tab), set fan enable to GPIO 4 and set the temperature at which you want the fan to turn on (make sure you save the changes and then reboot)

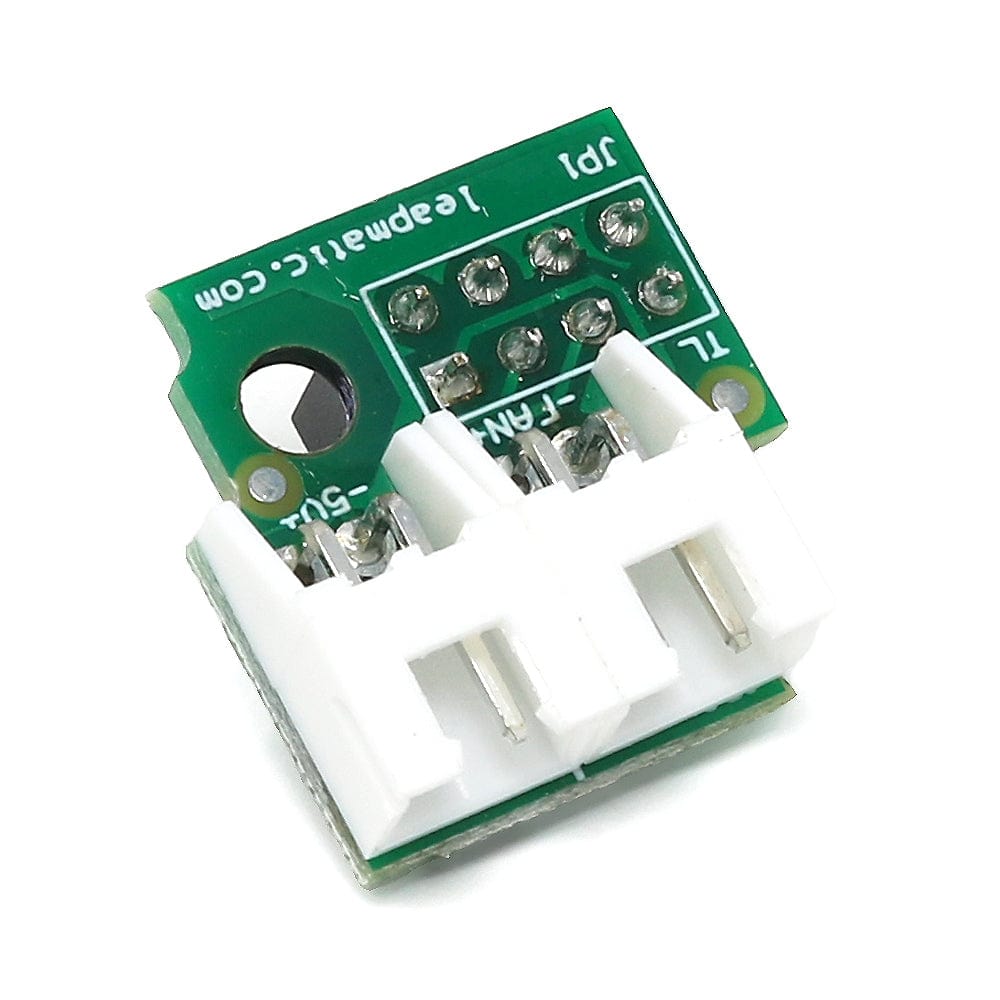

Now connect a 2-pin fan to the connector or directly to the dedicated pads.
When the processor reaches the temperature you set, the fan will turn on. It will turn off only when the processor temperature drops 10 degrees below the set ON temperature (for example, if you set the ON temperature to 75 degrees, the fan will turn off when the processor reaches 65 degrees). With these few easy steps, you now have automatic fan control!
If you want to activate this feature through the console or read the full documentation – read this articleor download thePDF from here.
5V Connector
As an output – you can connect hats or other devices which need to be supplied with 5V.
As an input – You can power your Raspberry Pi via this connector from an external 5V power supply. It can be very convenient when you have several Pi’s and you can power them from one source.
Crypto Module

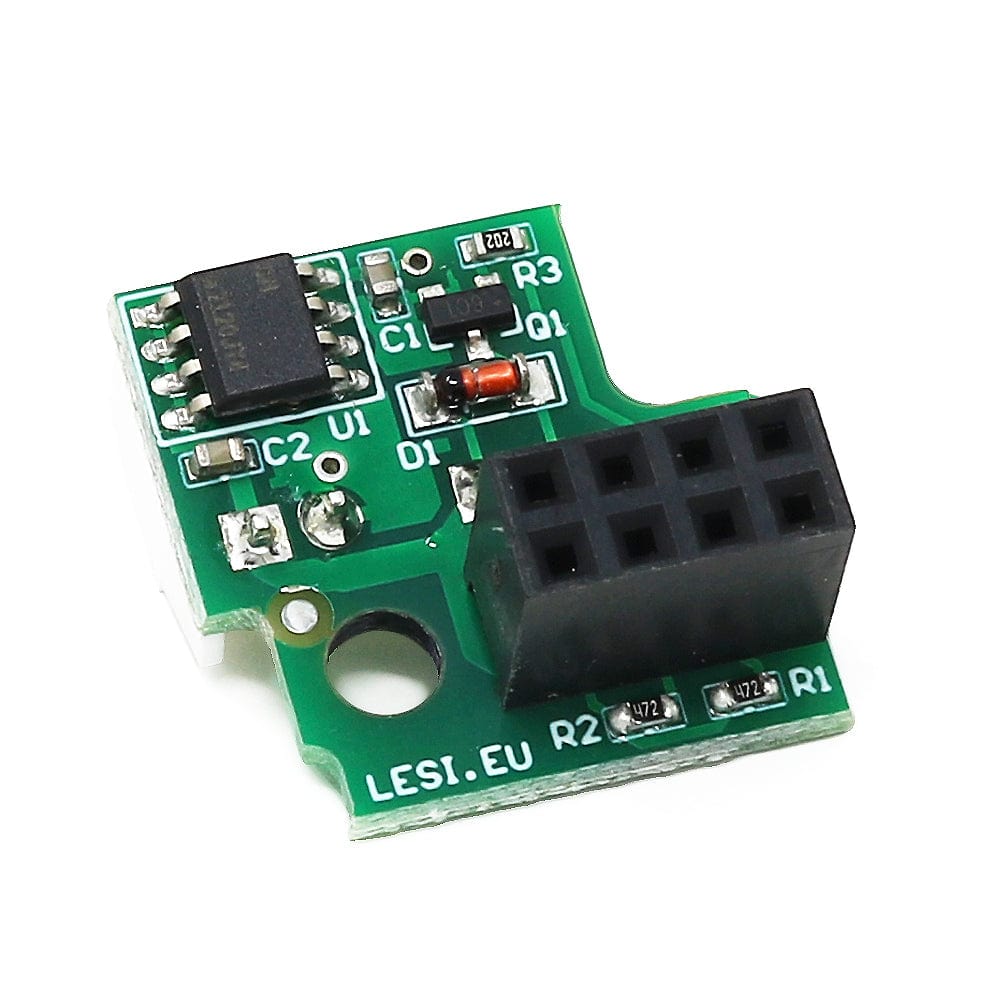

The ATECC608 is the latest crypto-auth chip from Microchip, and to make working with it as easy as possible, we’ve put it on a Pi-friendly PCB. This allows you to use it with Raspberry Pi or other similarly equipped boards without needing to solder.
ATECC608 uses I2C to send/receive commands. It will work with 3.3V or 5V power/logic, so it’s ready to get to work with a range of development boards. Once you ‘lock’ the chip with your details, you can use it for ECDH and AES-128 encrypt/decrypt/signing. There’s also hardware support for random number generation, and SHA-256/HMAC hash functions to greatly speed up a slower micro’s cryptography commands.
Please note the I2C address is fixed at 0x60 and according to Microchip, you should use this at higher I2C speeds like 400KHz if other devices are on the I2C bus, to avoid some I2C bus contention (much like the datasheet, this is not documented anywhere yet). For more detailed information please download the PDF.
Note: This MaticControl module covers the pins for the 3.3V power supply, I2C, GPIO14 (RXD) and GPIO14 (TXD). If you want to use them, we offer alternative modules that provide access to these pins via separate connectors on the top of the board.
Raspberry Pi not included
Features
Dual fan control and crypto-auth board for Raspberry Pi
Dedicated 5V connector for input/output
ATECC608 crypto-auth board for Raspberry Pi
Use for ECDH and AES-128 encrypt/decrypt/signing
Hardware support for random number generation and SHA-256/HMAC hash functions
