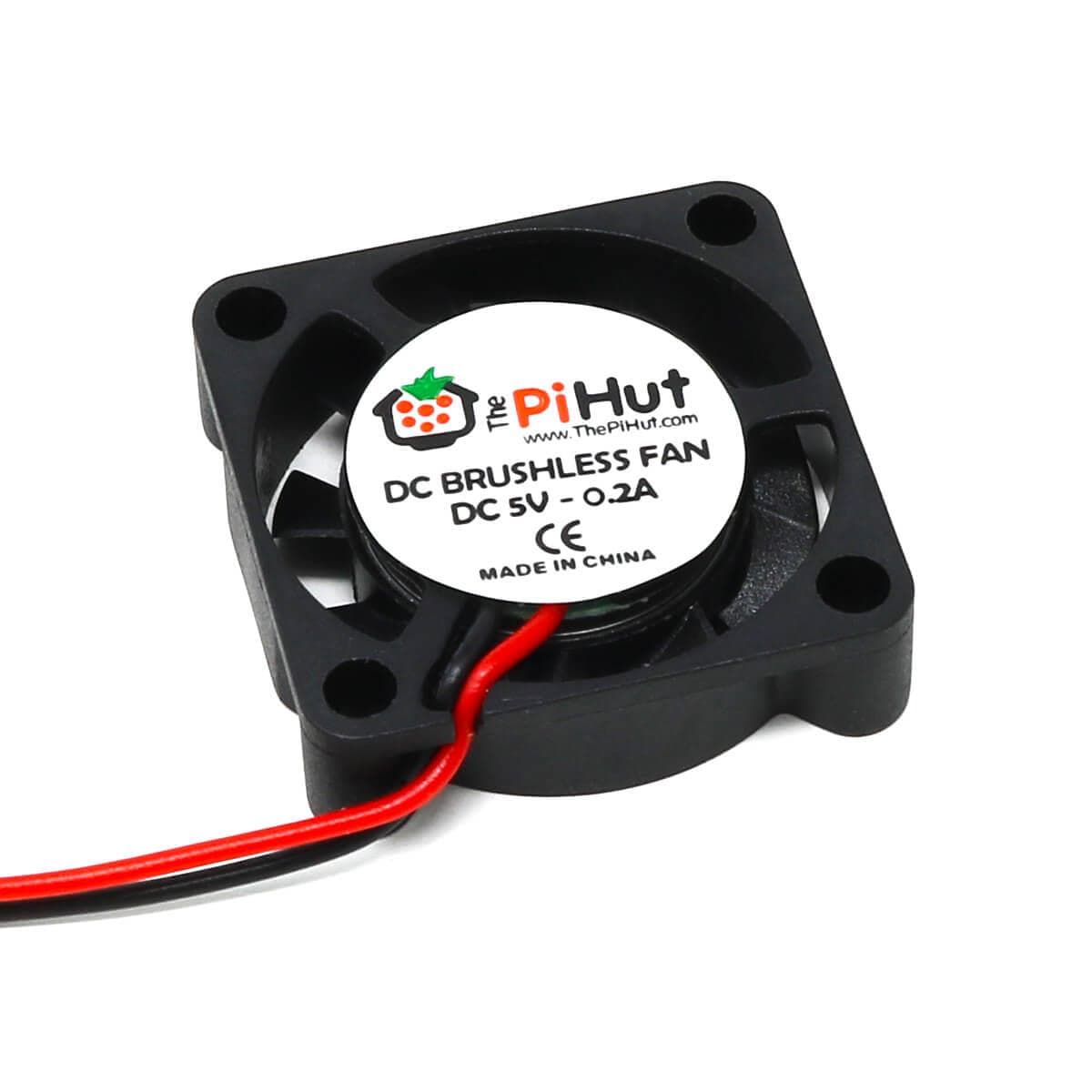

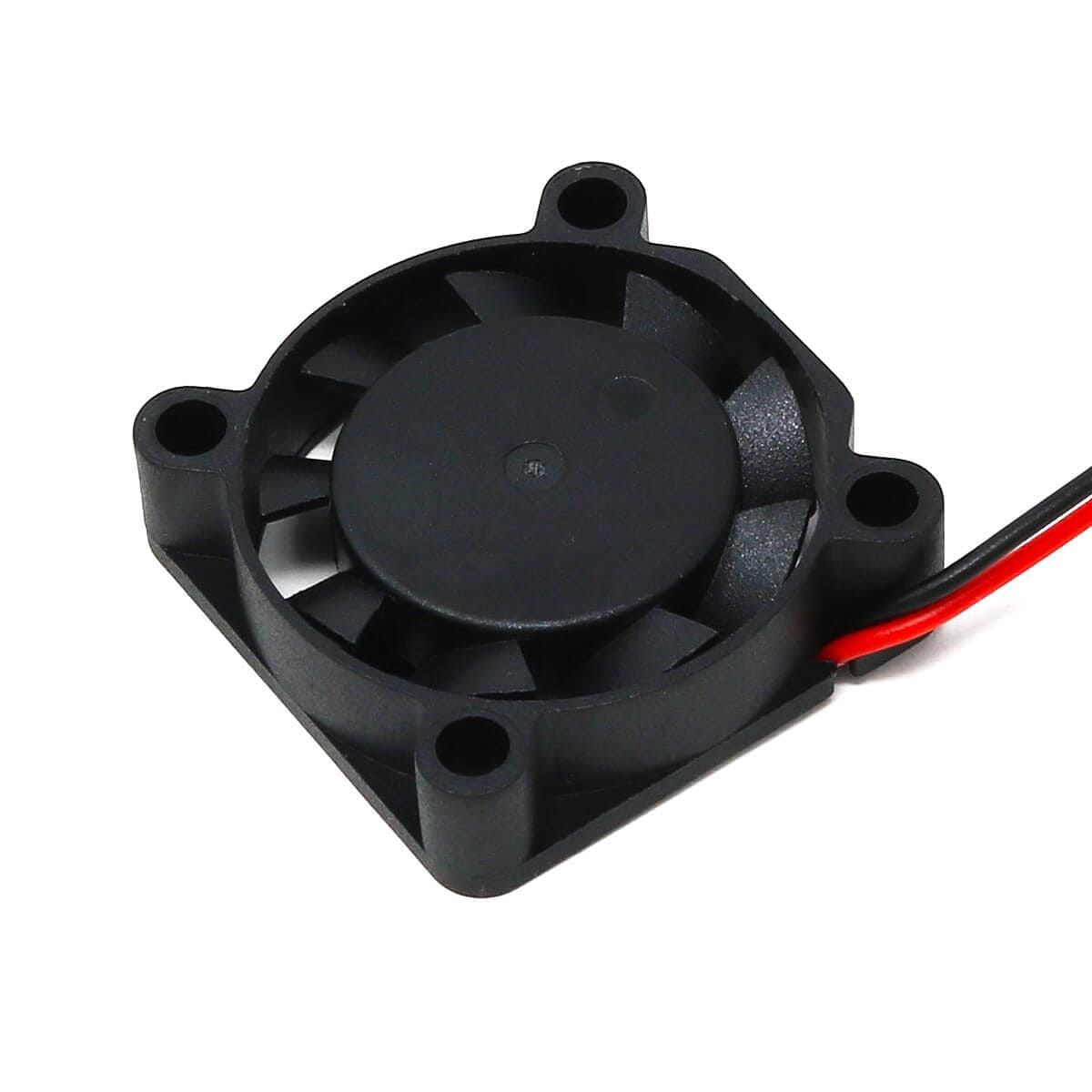

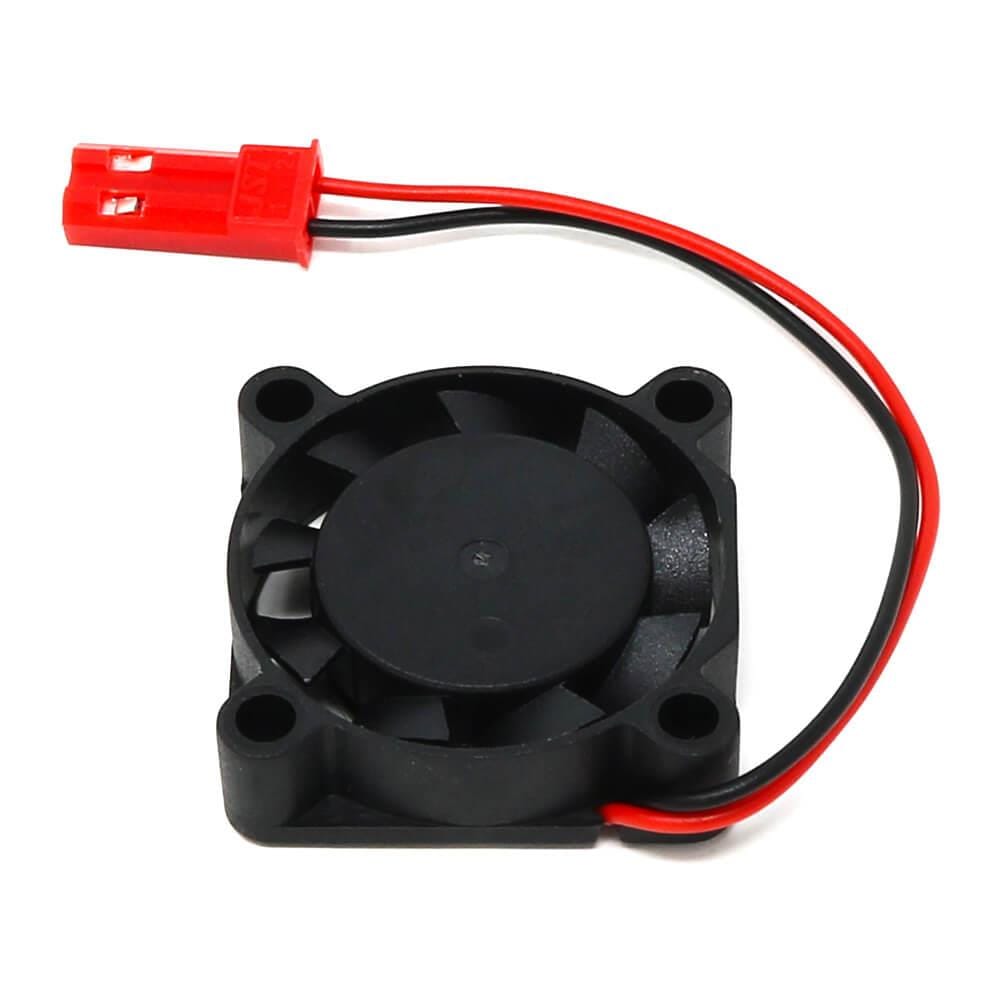

These smaller 25mm fans are the ideal match for our range of LeapMatic MaticBox Raspberry Pi cases, fitting the internal fan mounting brackets perfectly and with a handy 2-pin header for direct connection to the Raspberry Pi 5V/GND GPIO pins.
You can also use these as a generic cooling option for your own project or enclosure if space is tight, or we have 30mm and 50mm options available if you want something with a bit more airflow.
Please note: This fan isn't too noisy, but it also isn't silent (we're not sure any fan is!). It'll keep things cool but there will always be a little noise from the moving parts.
The fan is safe to run off the Raspberry Pi's 5V and GND pins (not 3.3V pins!) and will start spinning the moment you power on your Raspberry Pi.
Will work with any model of Raspberry Pi as all models include 5V and GND pins.
- DC fan (brushless)
- Voltage: 5V
- Current draw: 0.2A
- Dimensions: 25mm x 25mm x 7mm
- Wire length: ~80mm
- Weight: ~9g

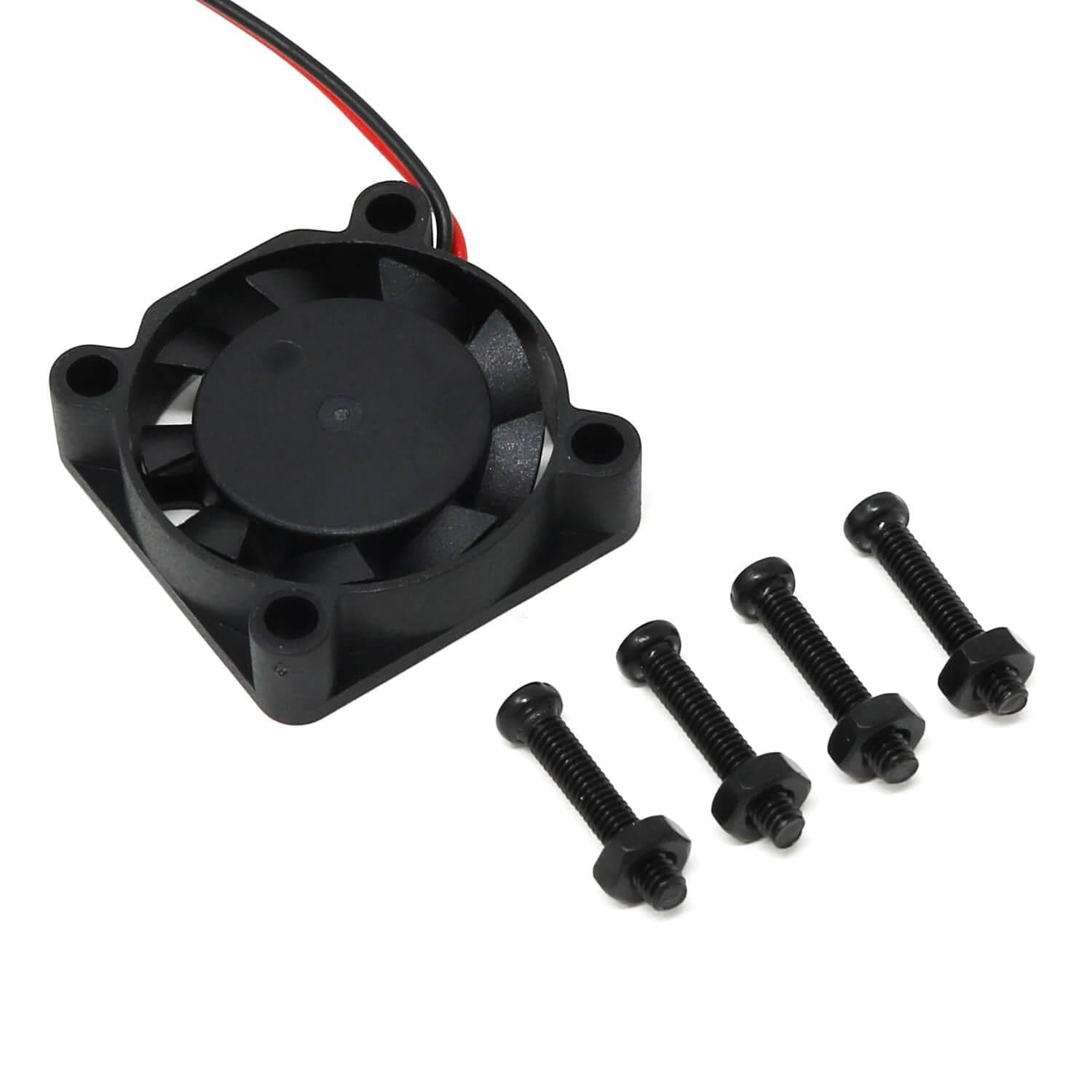

- Metal fixings included (colour may vary between black and silver)
