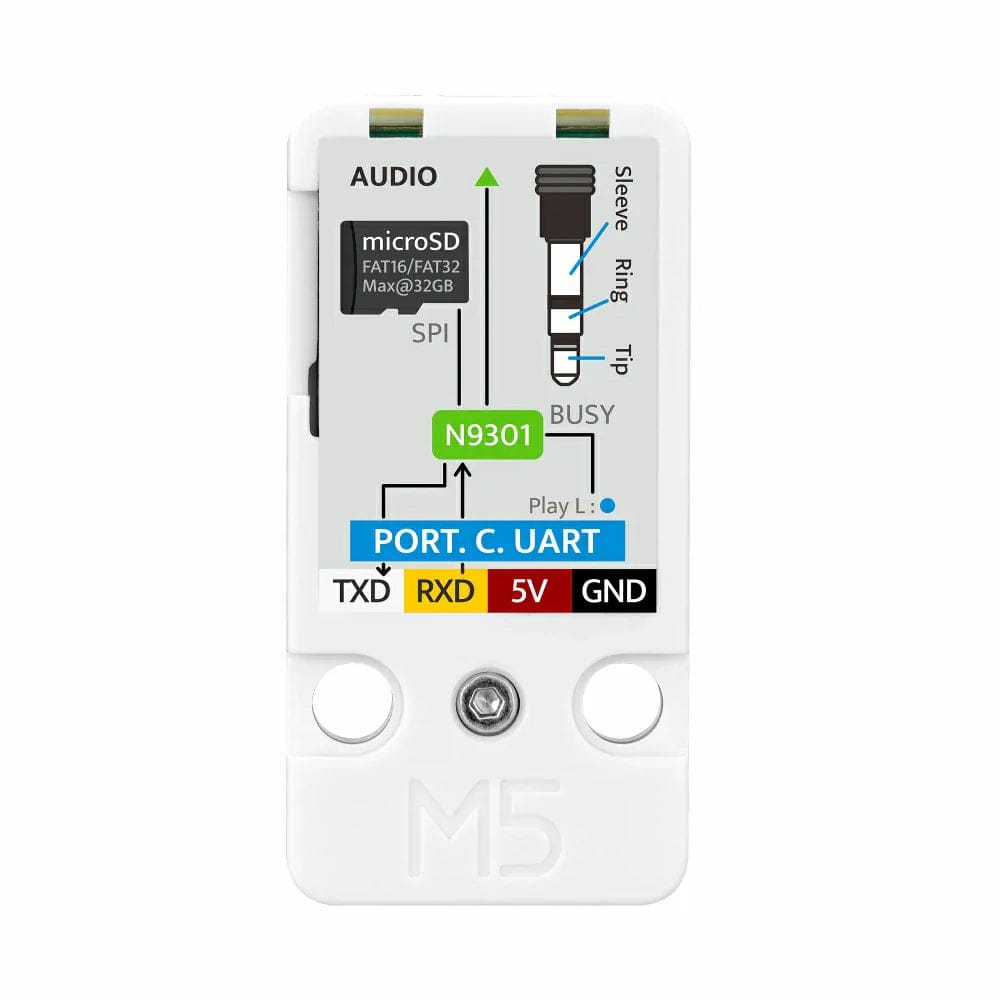

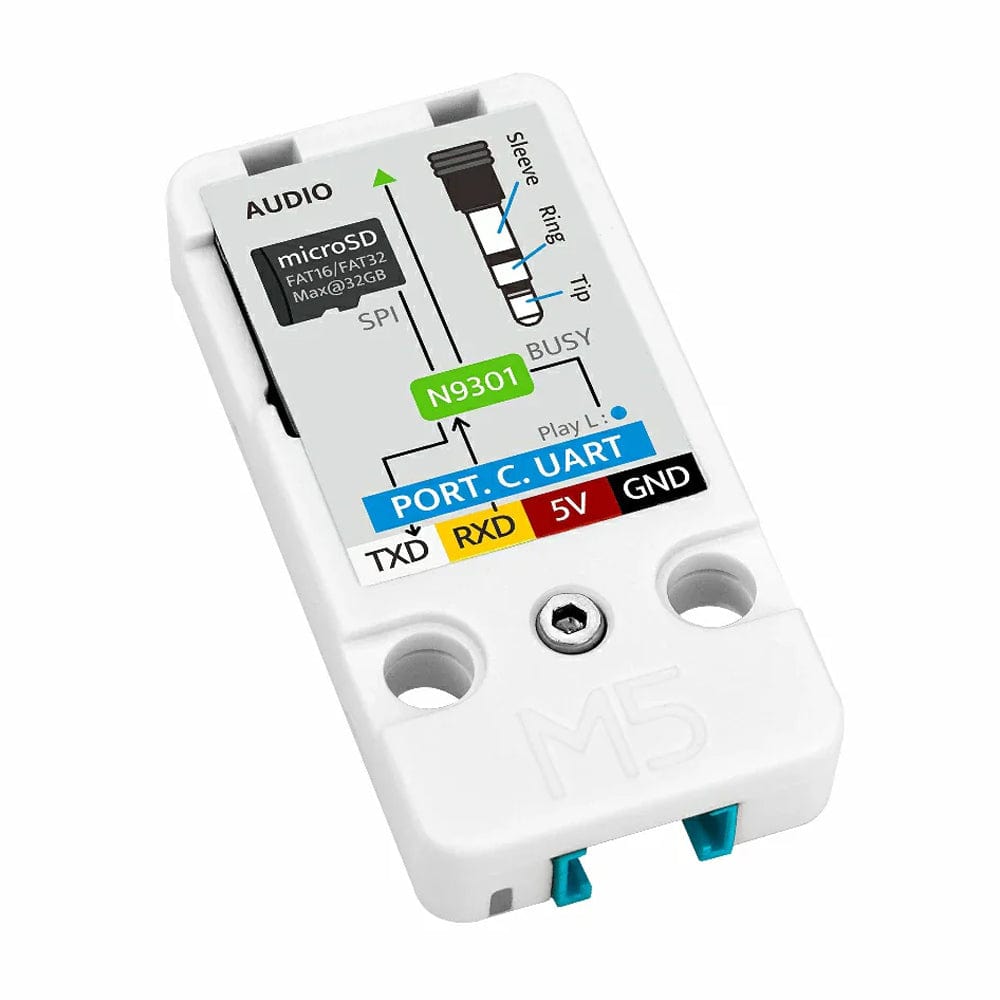

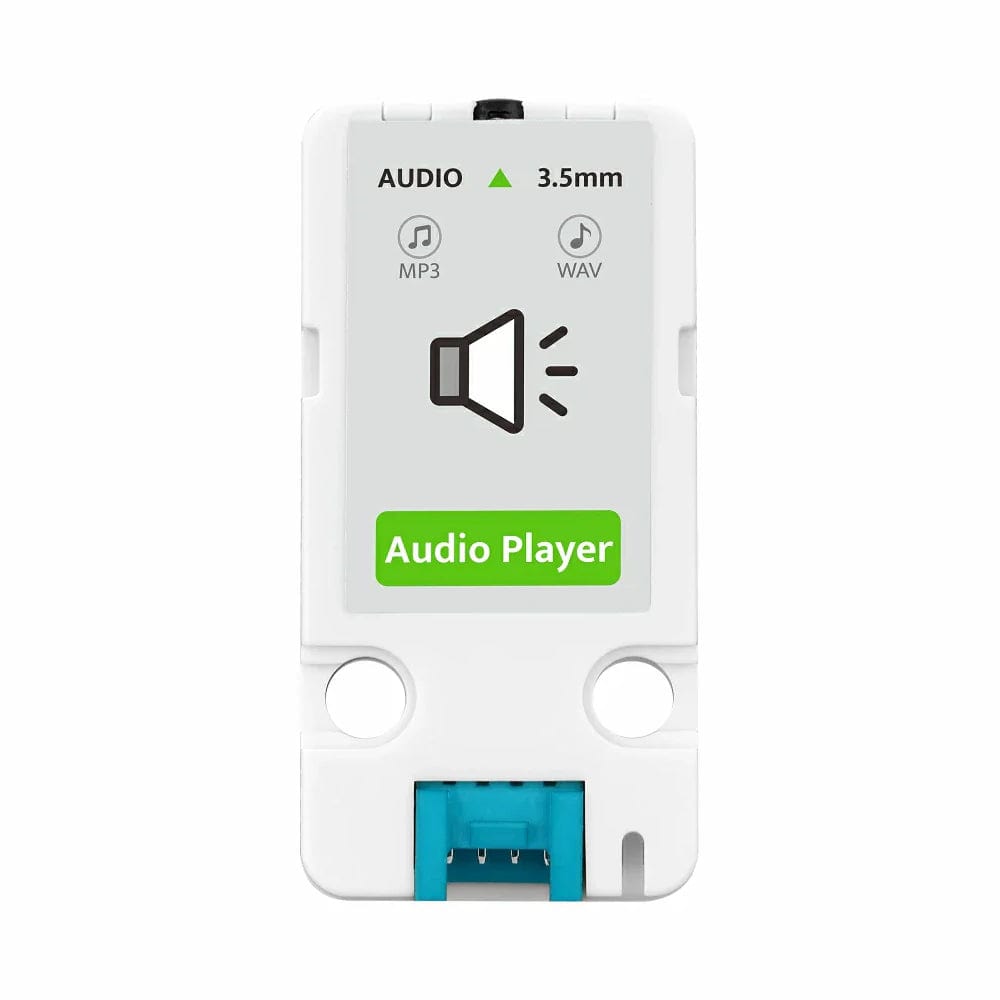

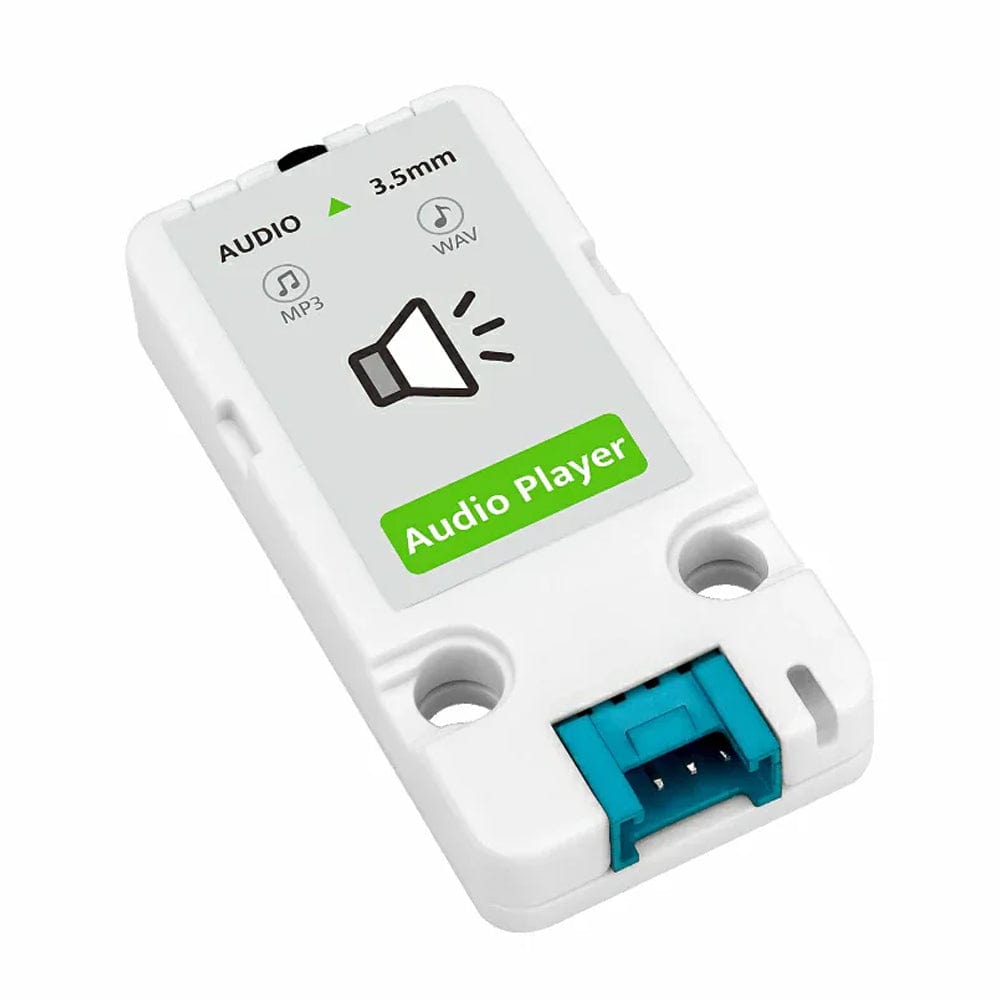

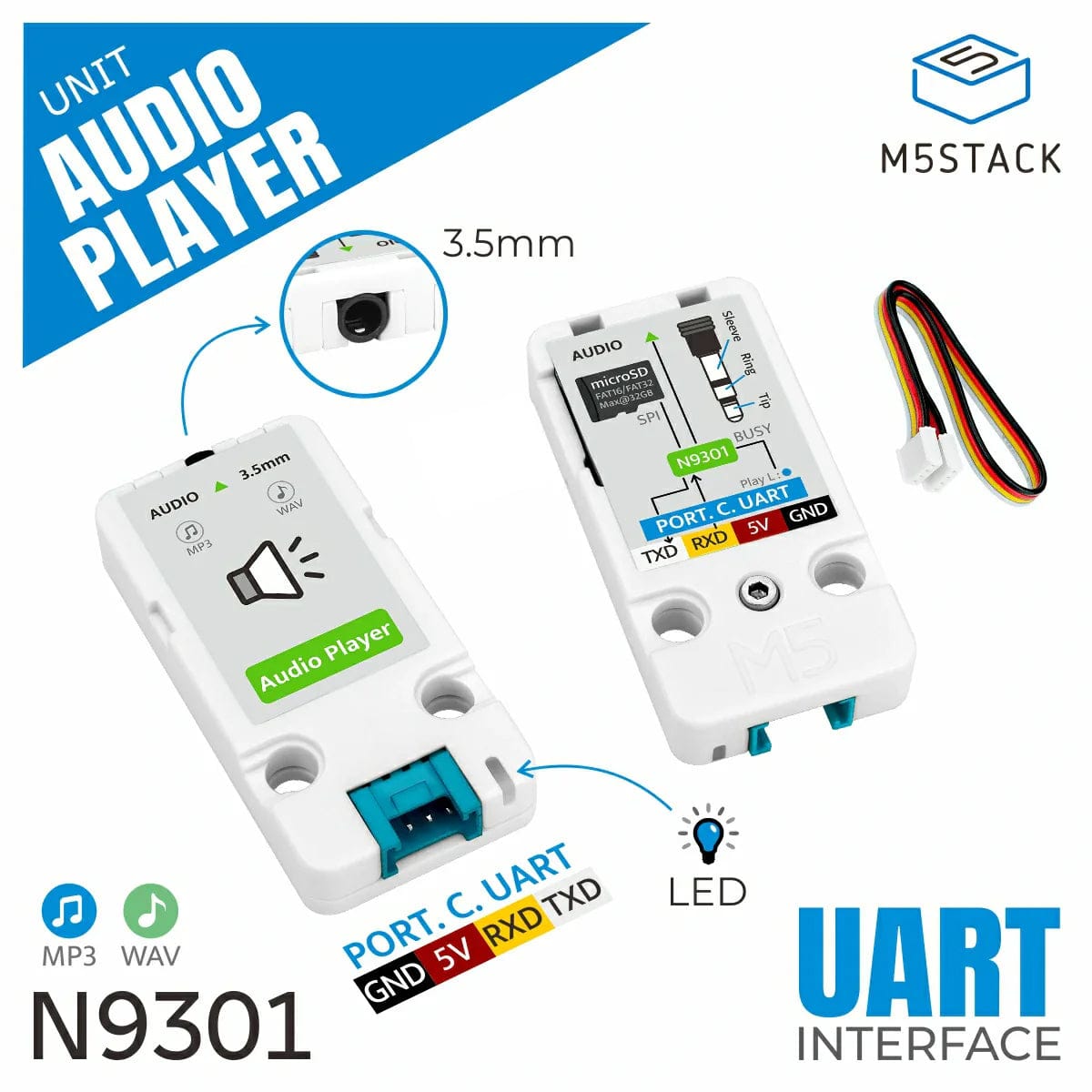

The Audio Player Unit is an MP3 playback module featuring an N9301 decoding chip, a microSD card slot, UART control via the Grove interface, and a 3.5mm audio output, providing a compact solution for embedded projects that require reliable audio playback.
The M5Stack Audio Player Unit is an MP3 player unit with built-in decoding, equipped with the audio decoding chip N9301 and a microSD card slot. Users can control the playback of MP3 files on the microSD card through Grove's UART interface.

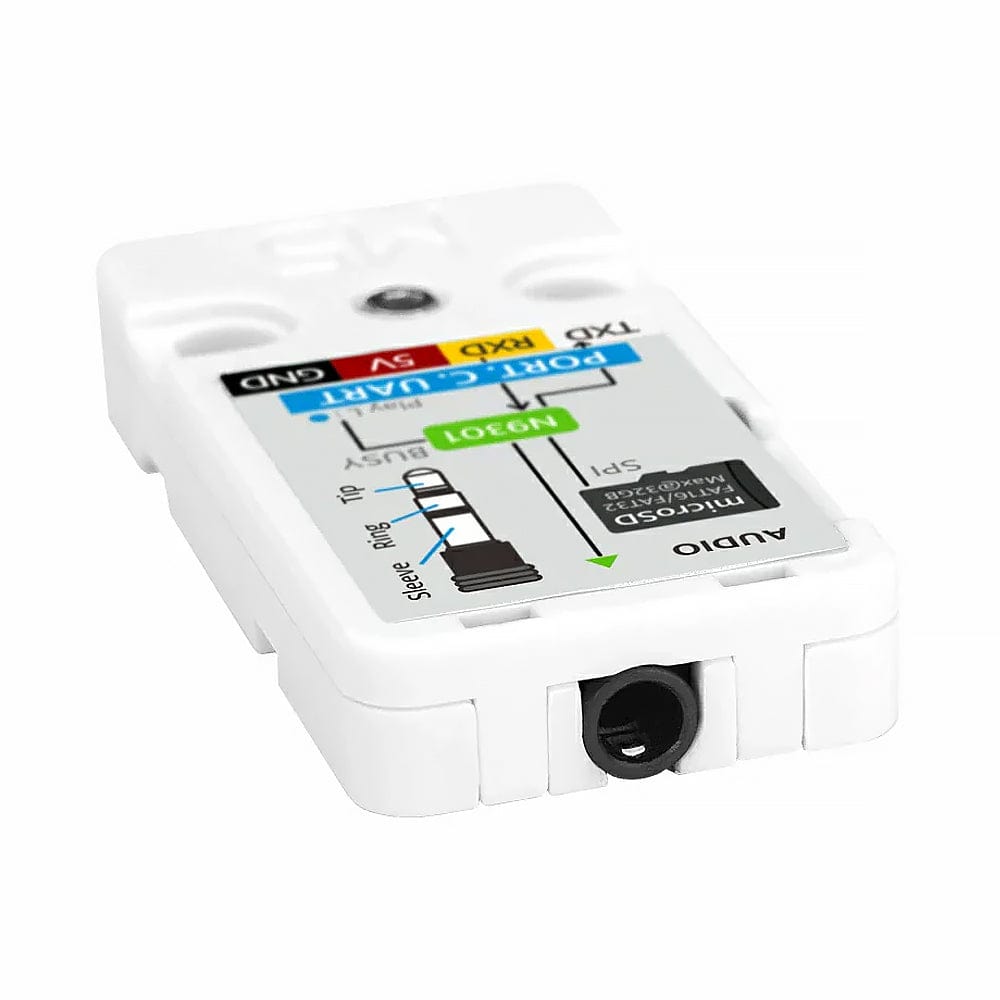

The audio signal is output through a 3.5mm jack, providing clear audio output. This product is suitable for smart voice interaction devices (such as smart home controllers and voice tour guides), industrial automation alarm systems, medical equipment voice prompt terminals, STEAM education, and other scenarios. It can meet the demands of multiple industries for high-quality audio playback and flexible control, especially for embedded projects that require audio triggering through serial port instructions and integrated miniaturized audio solutions.
MicroSD card not included.
Features
N9301 audio decoding chip
UART communication interface

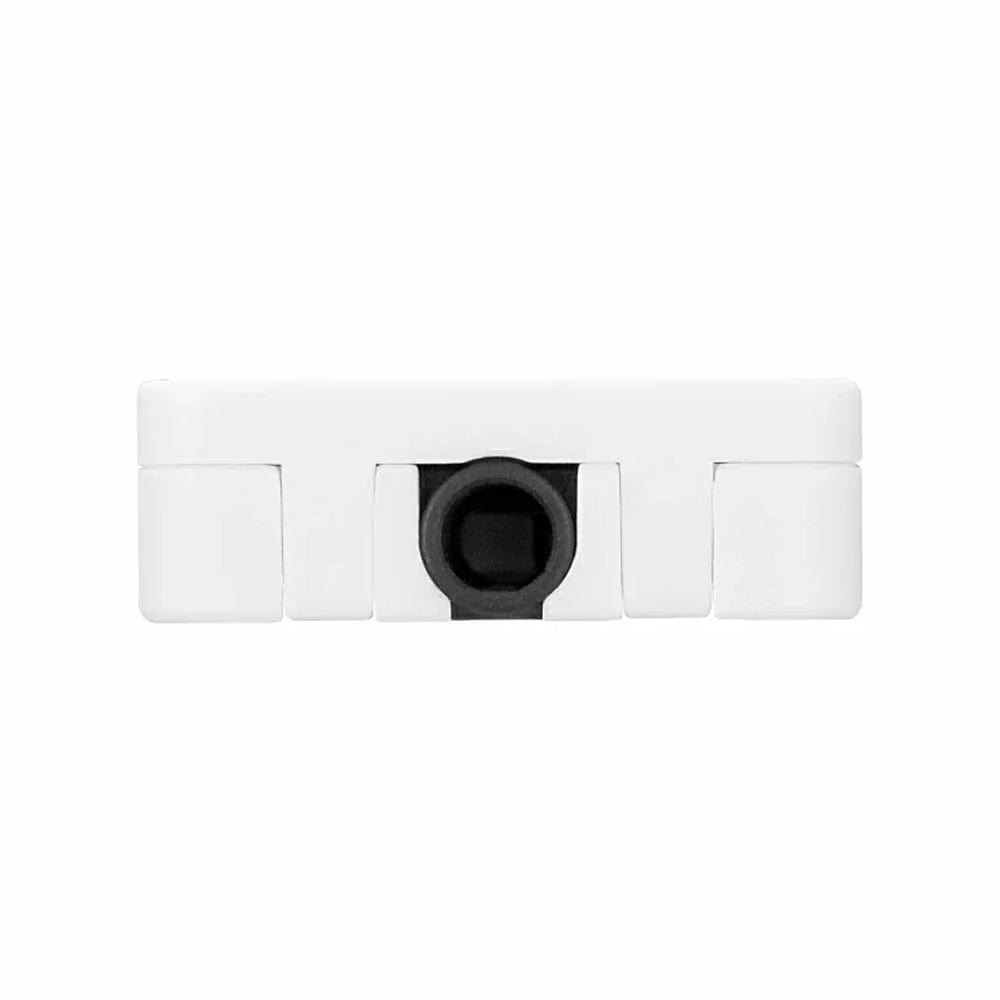

3.5mm stereo jack
Supports MP3 and WAV audio formats
Supports FAT16/FAT32 file systems
Maximum support for a 32GB microSD card
Development platforms
UiFlow1
UiFlow2
Arduino IDE
Specifications
Audio decoding chip
N9301
Storage interface
microSD card slot
Communication method
UART serial communication. Default baud rate: 9600bps@8N1
Audio output interface
3.5mm stereo jack
Power consumption
Operating: DC 5.01V@25.17mA; Standby: DC5.01V@7.33mA; Sleep: DC 5.02V@871.24uA
