The AtomS3R-CAM AI Chatbot kit combines an ESP32-S3 controller with 8MB Flash, 8MB PSRAM, a 0.3MP camera, 9-axis IMU, IR emitter, and a voice base with ES8311 audio codec, supporting multiple voice assistant integrations.

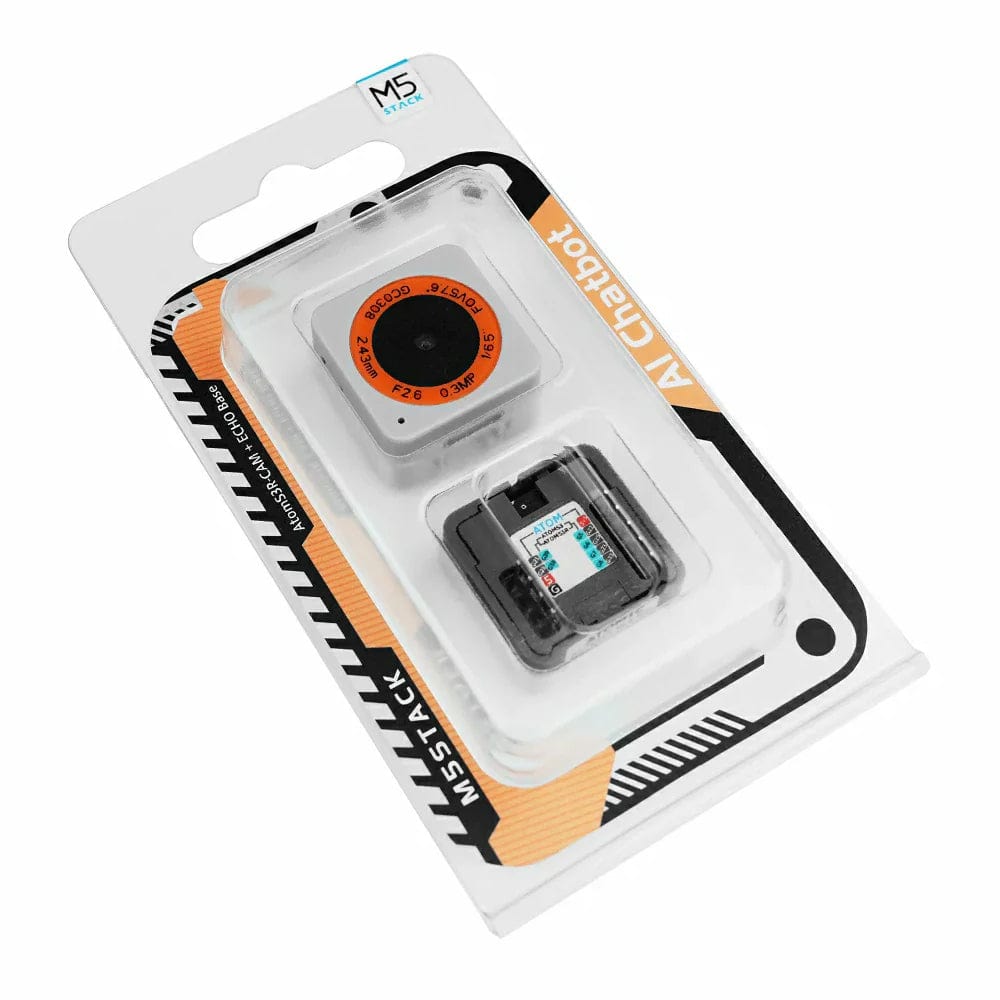

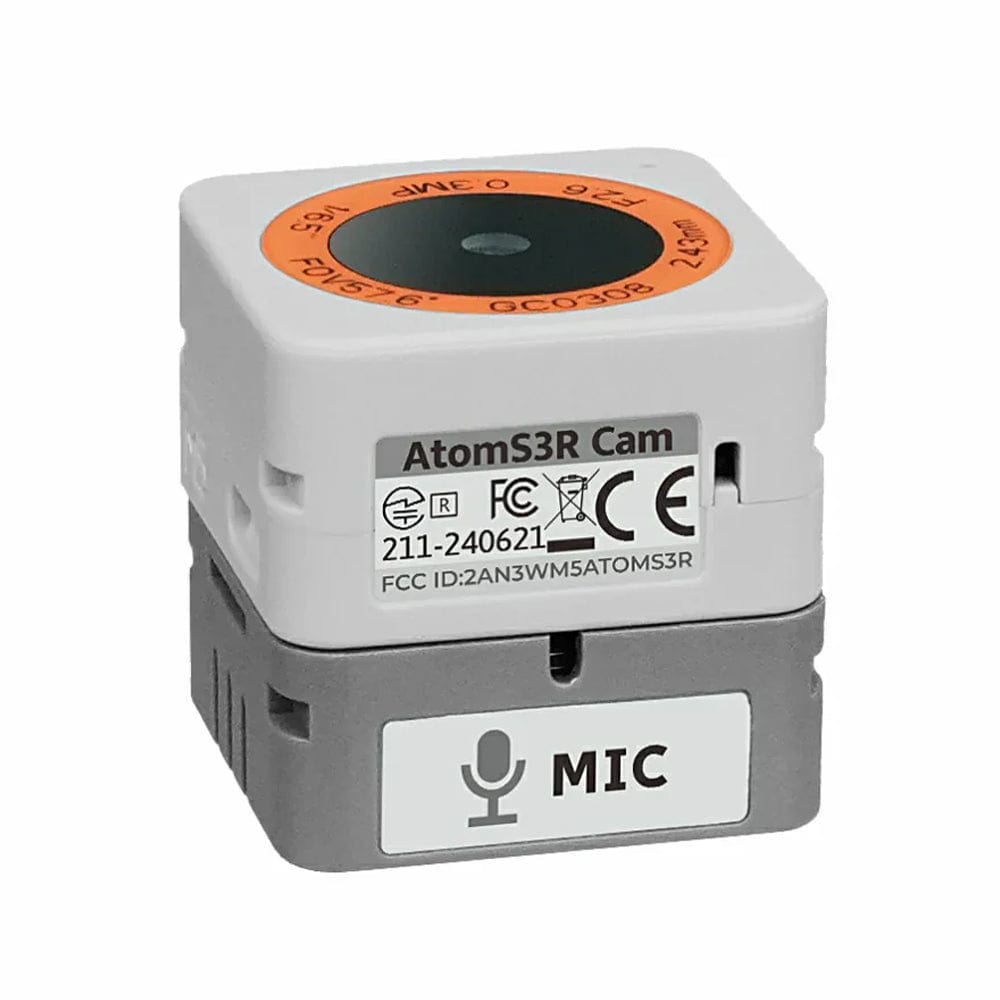

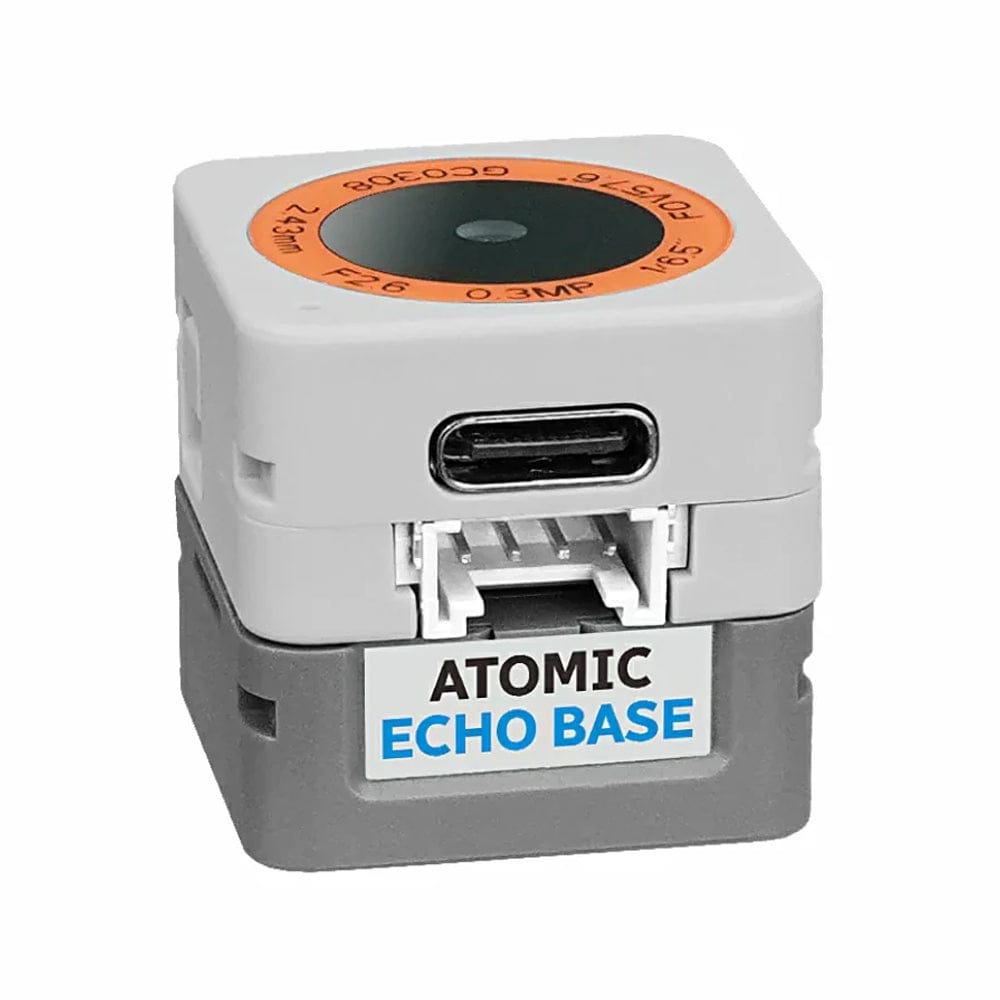

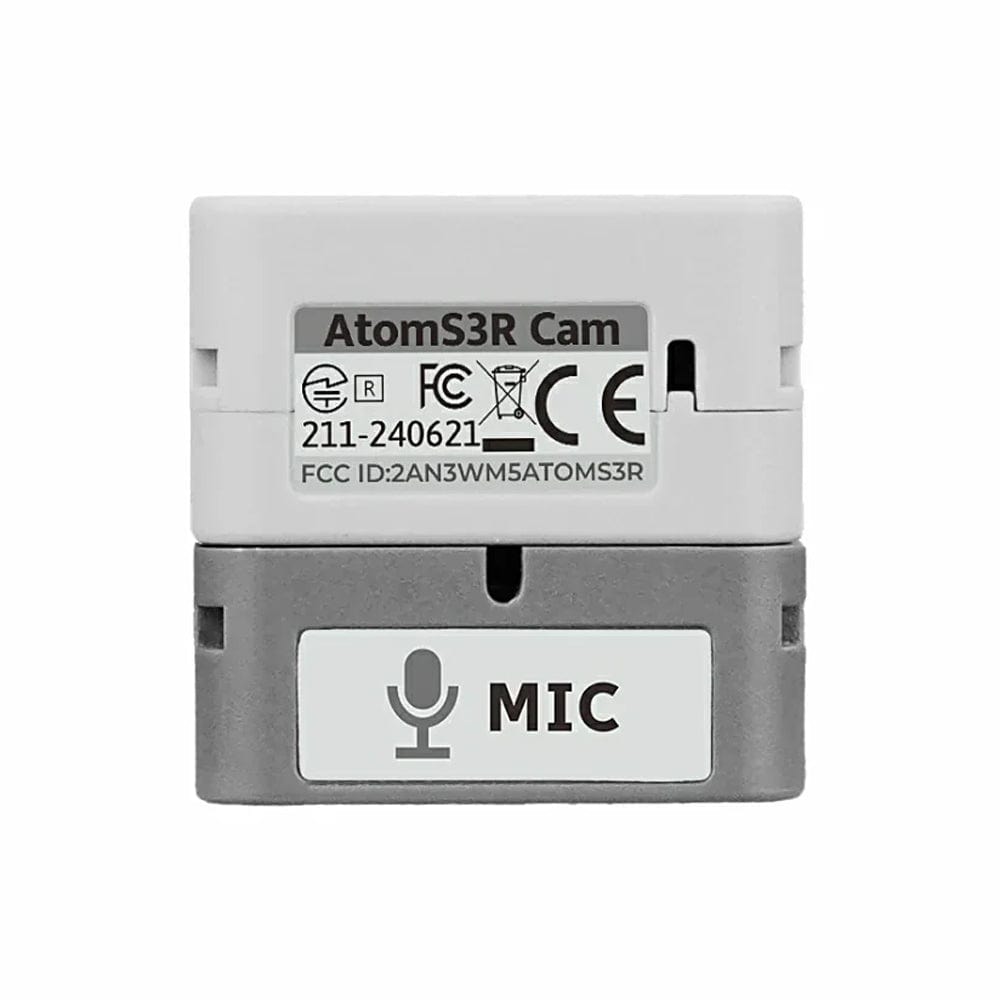

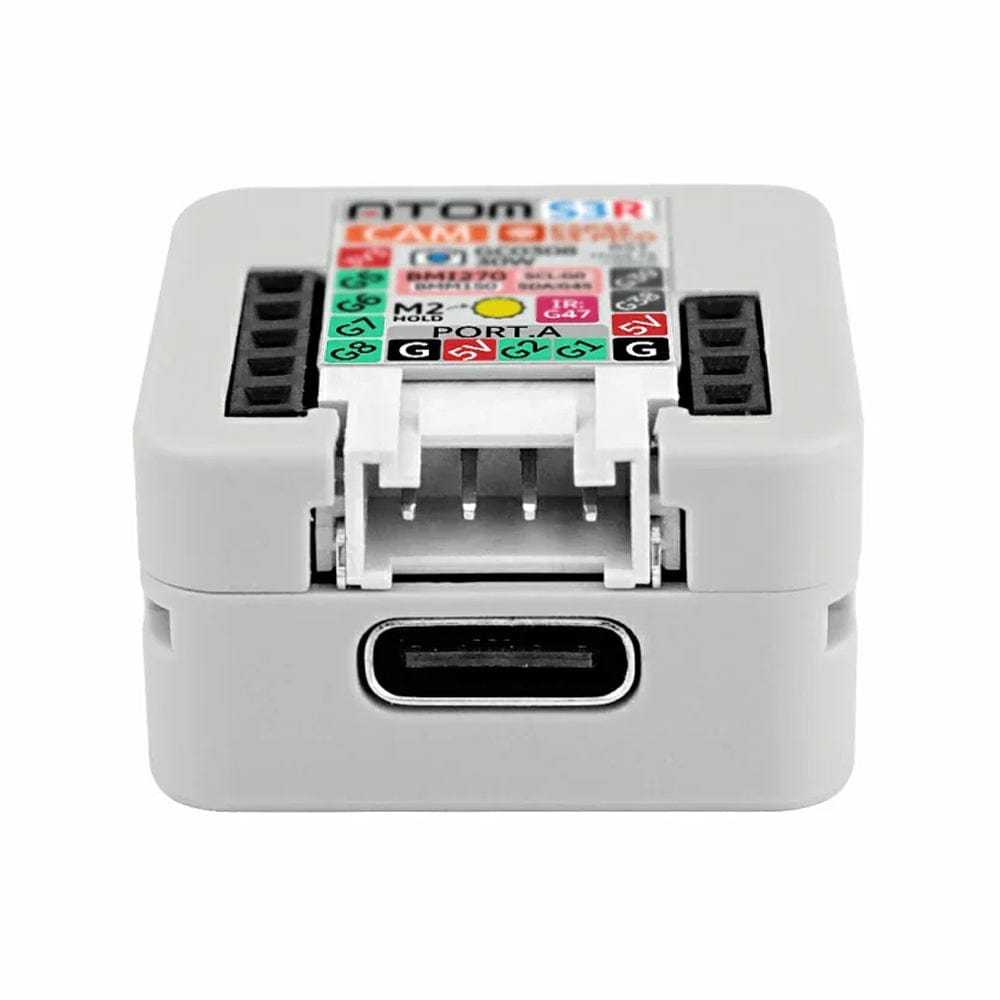

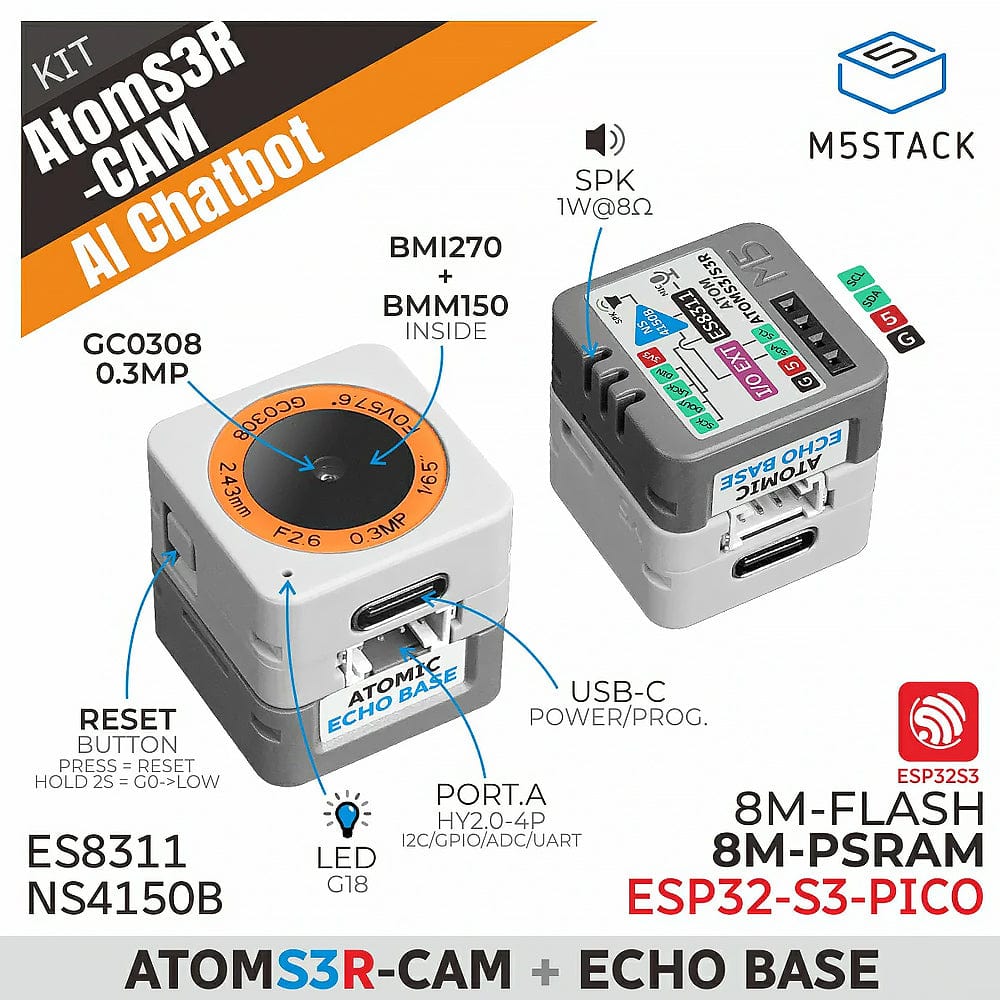

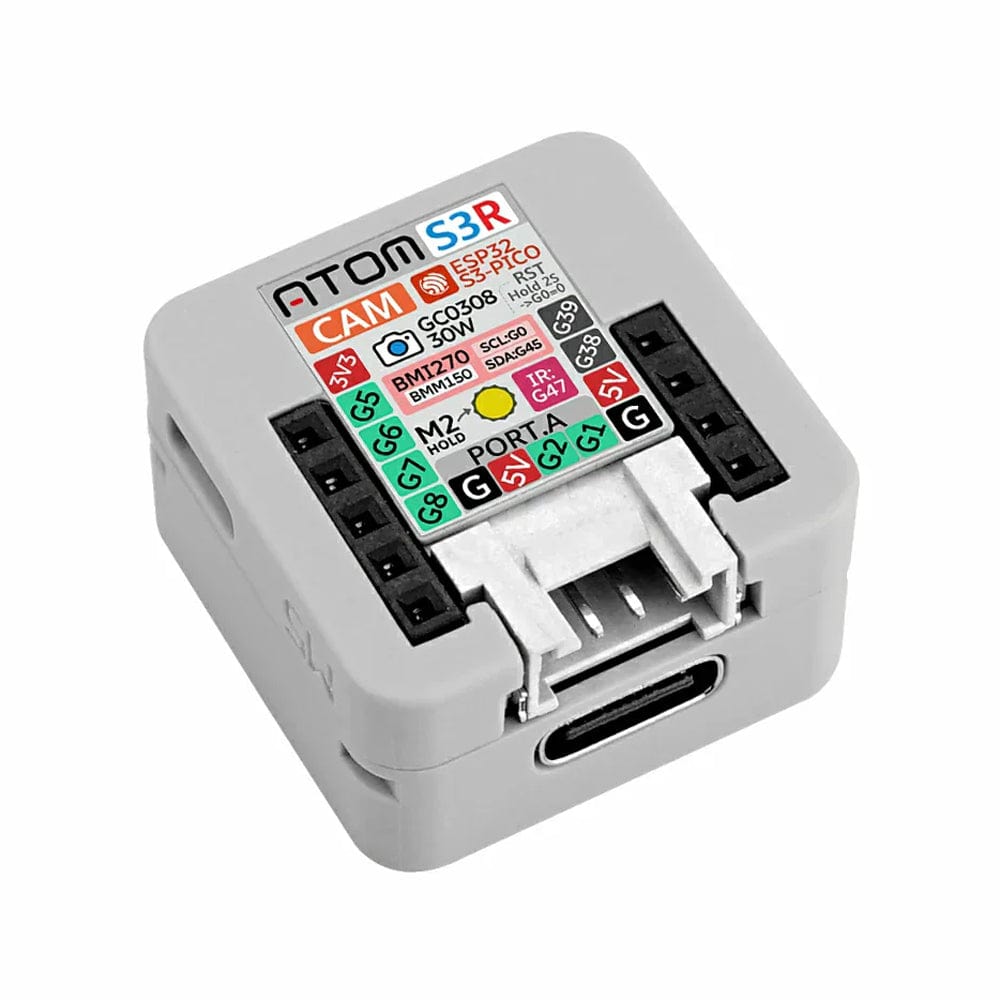

M5 Stack AtomS3R-CAM AI Chatbot kit is an AI vision and voice development kit. The kit consists of two core parts: the controller and the voice base. The controller uses AtomS3R-CAM, which is built around the ESP32-S3 chip.

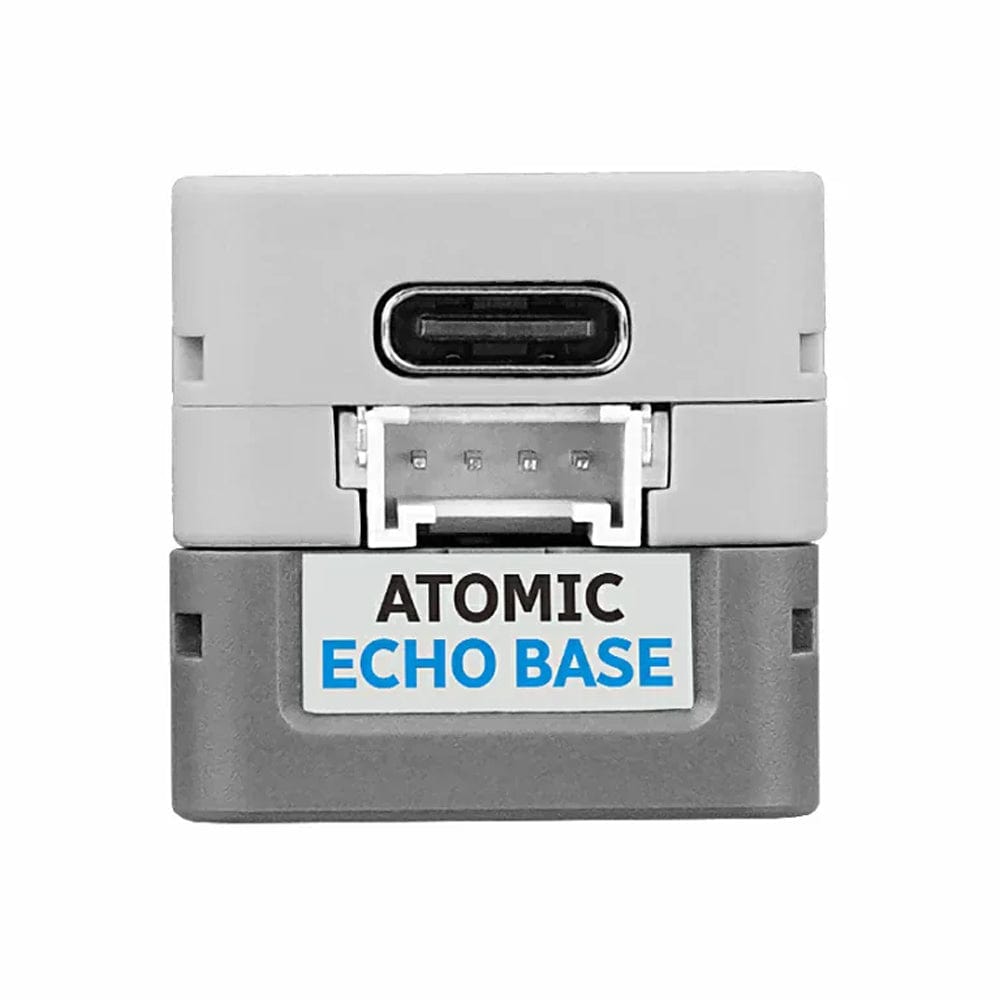

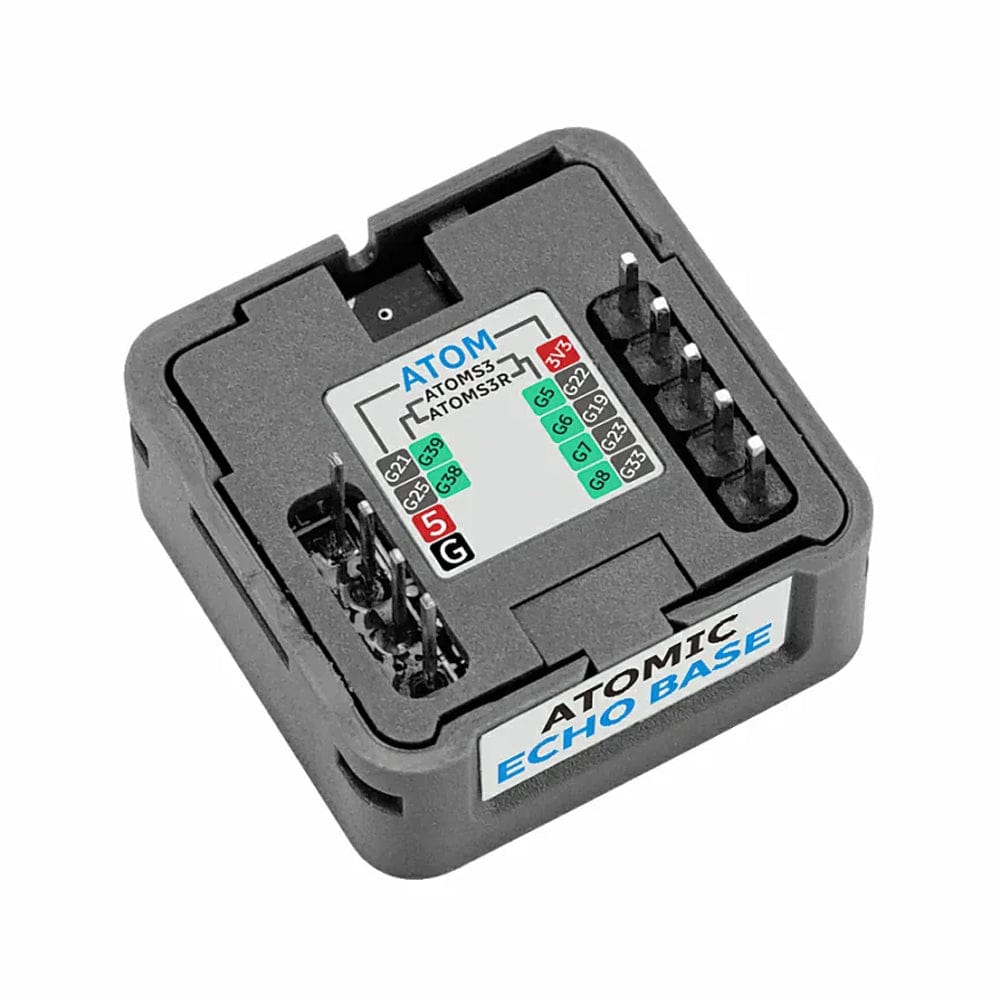

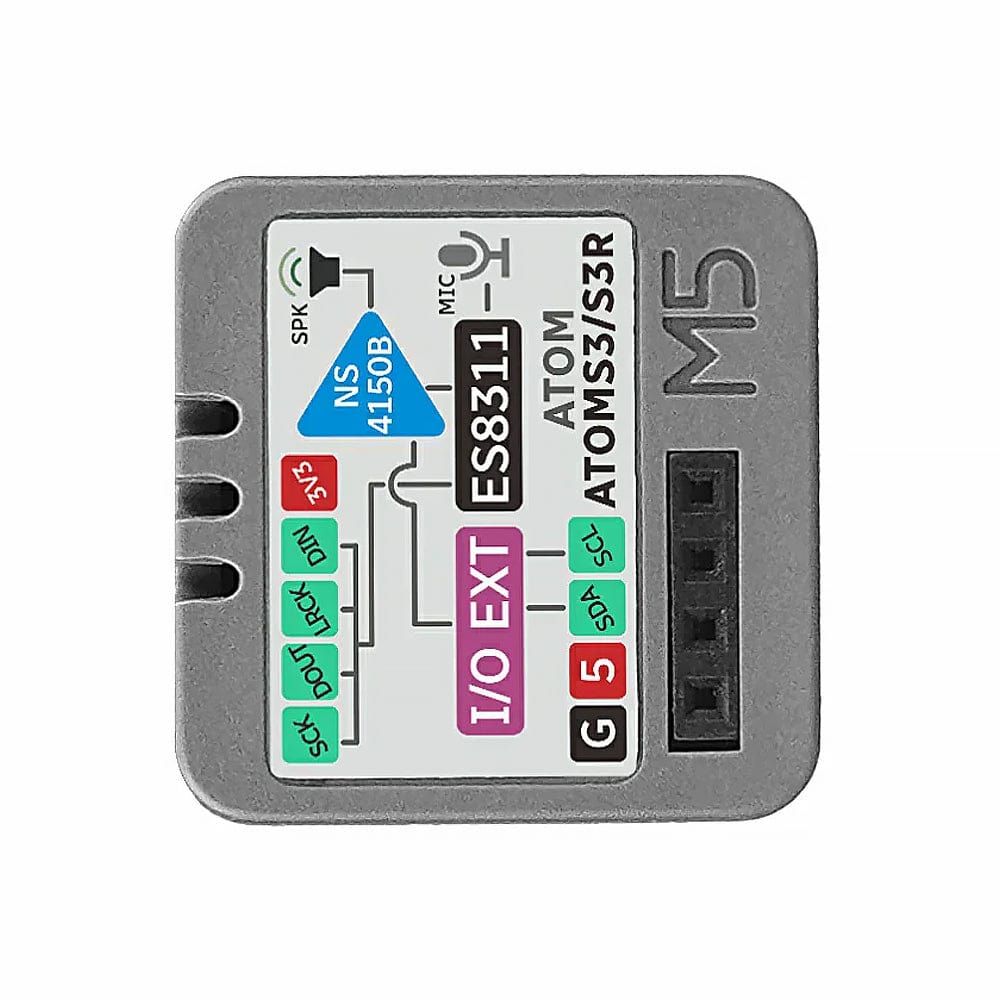

It provides a large memory combination of 8MB Flash + 8MB PSRAM. It also integrates a 0.3MP GC0308 camera, a 9-axis IMU (BMI270 + BMM150), an IR emitter tube, and other rich peripherals. The voice base uses the Atomic Echo Base, based on the ES8311 audio codec chip, capable of high-fidelity audio decoding and microphone and speaker driving. The kit supports integration with XiaoZhi Voice Assistant, OpenAI Voice Assistant, and Volcengine Voice Assistant, making it suitable for voice assistant, smart home, and other embedded scenarios.
USB-C cable required but not included.
Features
Integrated ESP32-S3-PICO-1-N8R8 main controller
0.3MP GC0308 camera
9-axis sensor system
8MB Flash and 8MB PSRAM
Integrated IR emitter tube
Expandable pins and interfaces
Full-duplex I2S voice
24‑bit audio codec
MEMS digital microphone
Class D amplifier (8Ω @ 1W speaker)
Development platforms:
ESP-IDF
PlatformIO
Arduino
UiFlow2
Specifications
SoC
ESP32-S3-PICO-1-N8R8 @ Dual-core Xtensa LX7 processor, up to 240MHz @ USB-OTG
Storage
8 MB Flash + 8 MB PSRAM
Wireless
Wi-Fi 2.4 GHz
Camera

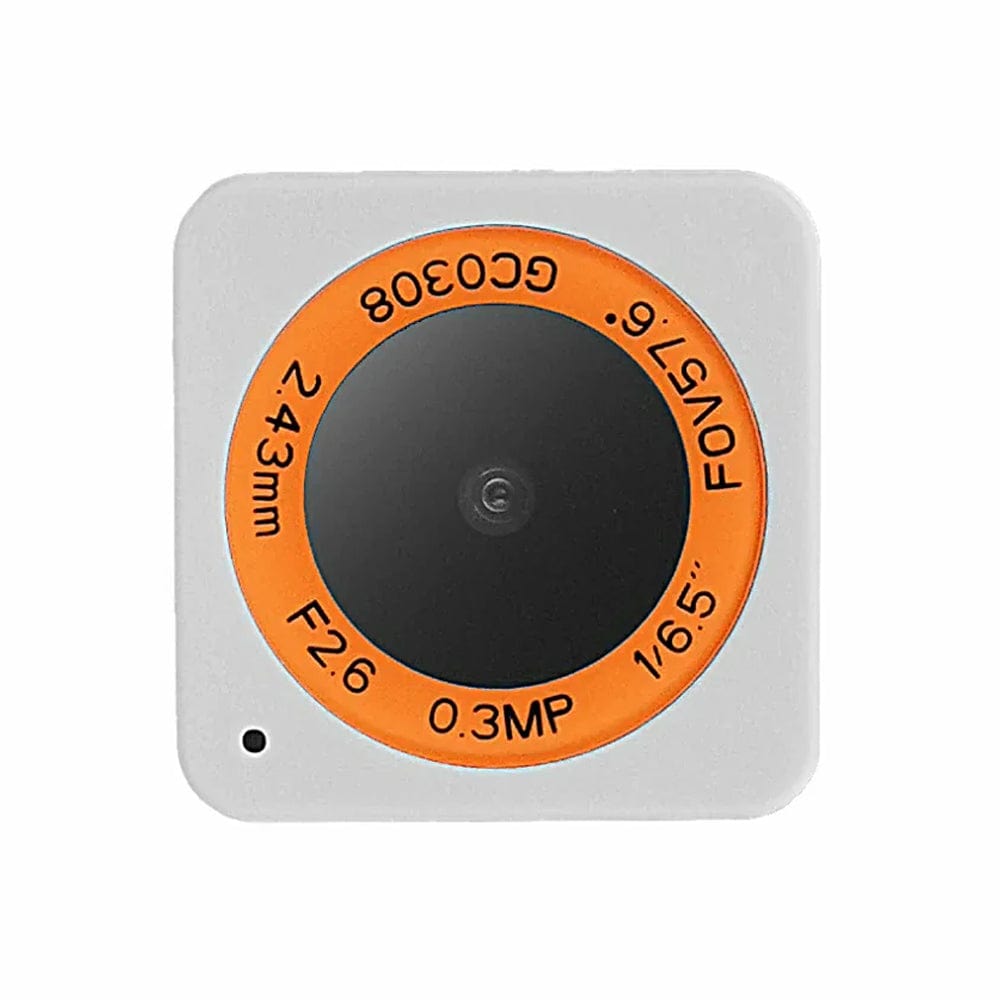

GC0308, 0.3 MP, F2.6, 57.6° FOV
Infrared IR
180° emission angle, up to 12.46 m in unobstructed conditions
