Argon Industria Base Industrial Enclosure for Raspberry Pi 5

The Argon Industria Base Industrial Enclosure transforms your Raspberry Pi 5 into a robust, industrial-grade interface system, combining precision-machined hardware, reliable passive cooling, and streamlined IO design thanks to the internal rerouting PCB.

The enclosure lid has a removable cylindrical metal column that takes heat away from the CPU and spreads it to the body, for silent, mechanical-free passive cooling. To use HATs or active coolers, simply remove this pillar with a long, thin cross-head screwdriver.

The all-metal case can sit standalone on a surface (rubber feet recommended!), or can be wall or VESA mounted. It comes with an internal adapter board that re-routes HDMI and USB-C to the same edge as the Raspberry Pi's USB and Ethernet port - for a much more sensible 'all out the back' cabling. This also converts to HDMI ports to full size HDMI. Access to the power button is also provided by an included insert.

Optional Argon Industria modules can also be installed, providing PCIe functionality including M.2 NVMe slots and 1G additional LAN - see the list and links below.

Raspberry Pi and optional modules not included.

Features

• Optimised Cooling - passive heatsink uses the all-metal body for cooling
• Flexible Mounting - compatible with VESA, panel, or desktop mounting
• Industrial Build - rugged aluminium construction
• Full Port Access - convenient access to USB, Ethernet, HDMI, and GPIO ports
• Expandable with HATs - supports Cytron Industrial HAT or any Raspberry Pi HAT via GPIO connection (depending on dimensions/connectors)
  • Internal pillar must be removed with a cross-head screwdriver to accommodate HATs
• Expandable with Argon Industria Communication modules - versatile to your requirements

Industria Accessories

A range of Industria optional accessory boards are available, compatible with this case, providing additional functionality via PCIe:

• Argon Industria PCIe M.2 NVMe Board
• Argon Industria Dual PCIe M.2 NVMe Board
• Argon Industria PCIe M.2 NVMe Board with 1G LAN
• Argon Industria PoE+ HAT

• Argon Industria PoE+ HAT with NVMe

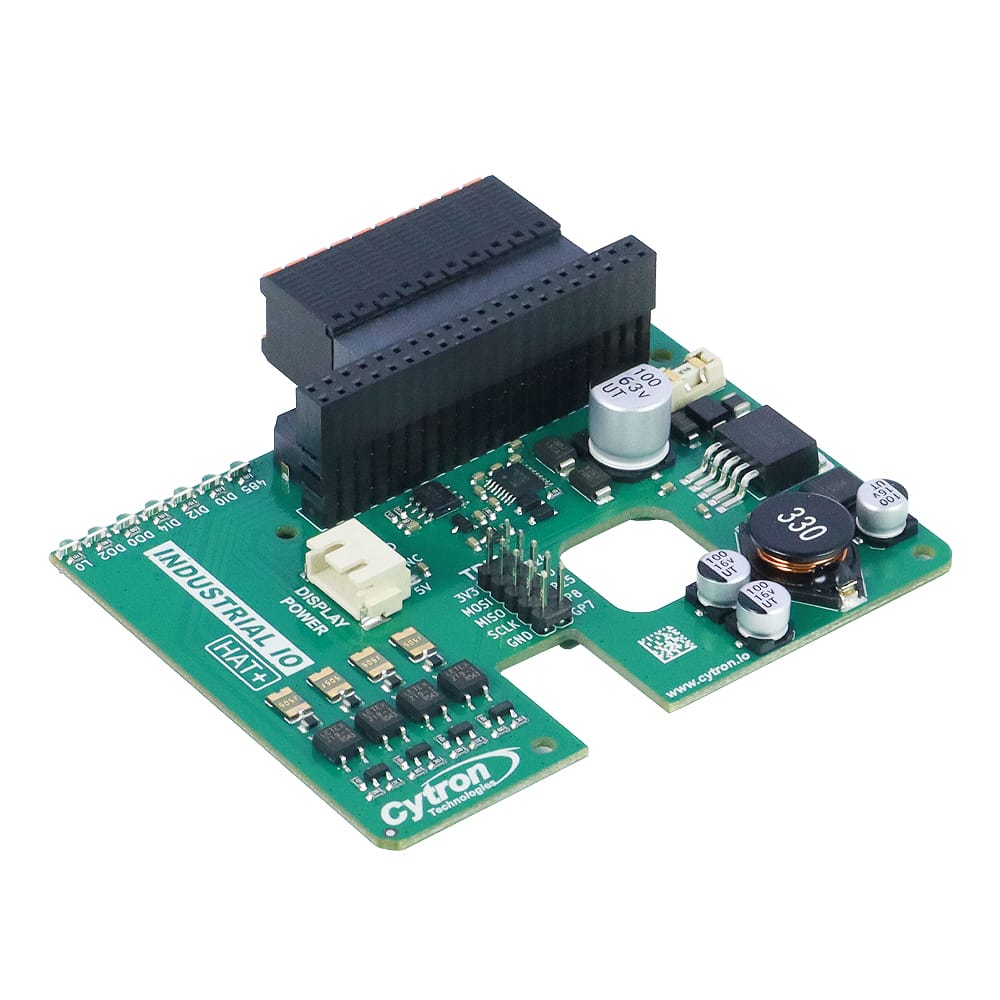

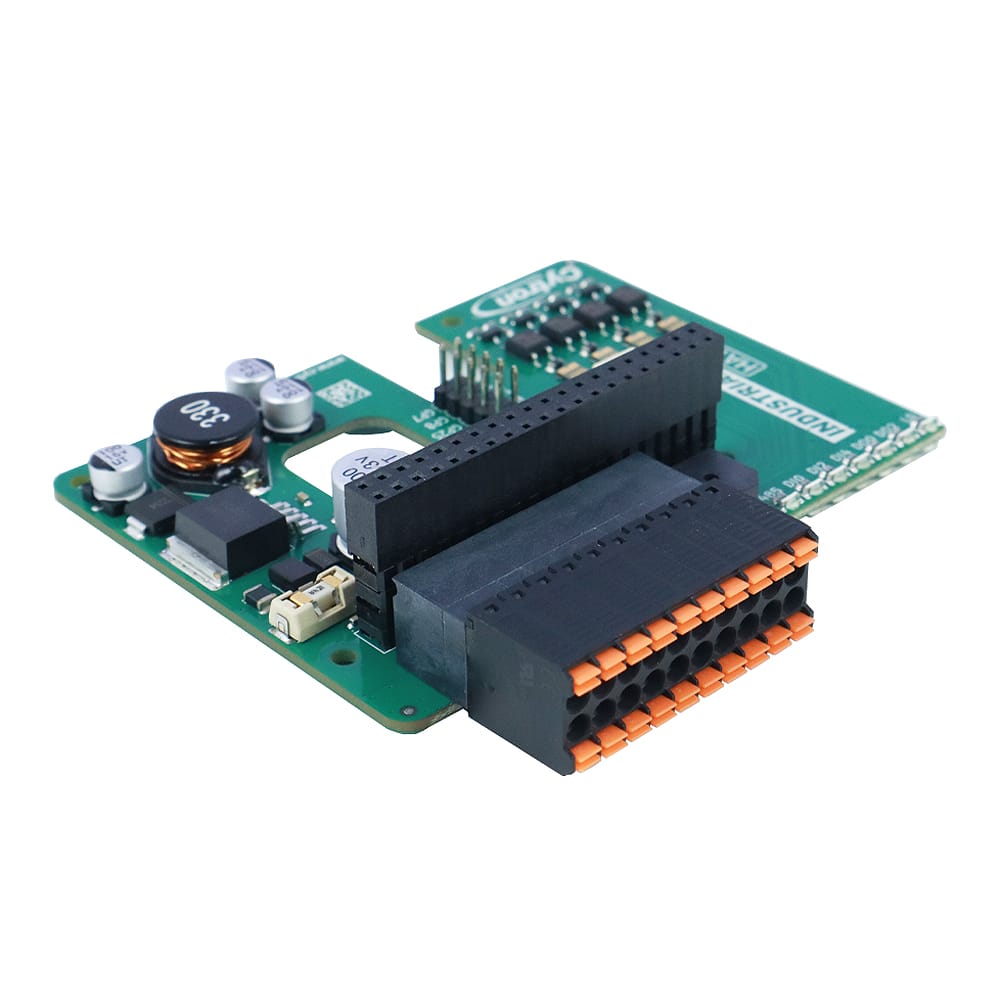

• Cytron Industrial IO HAT+

Resources

The assembly for the Industrial Base Case is essentially the same as with the HMI cases, except for the screen part.

• Argon Wiki

Note: Lid pillar must be removed to use HATs or active coolers. When fitting your Pi/adapter into the case, approach this by entering the USB ports through the case holes first, then slot the rear in.

Package Contents

• 1x Argon Industria Base Industrial Enclosure for Raspberry Pi 5
• 1x Internal IO adapter board
• 1x Fixings/thermal pad pack

Raspberry Pi and optional modules not included.
