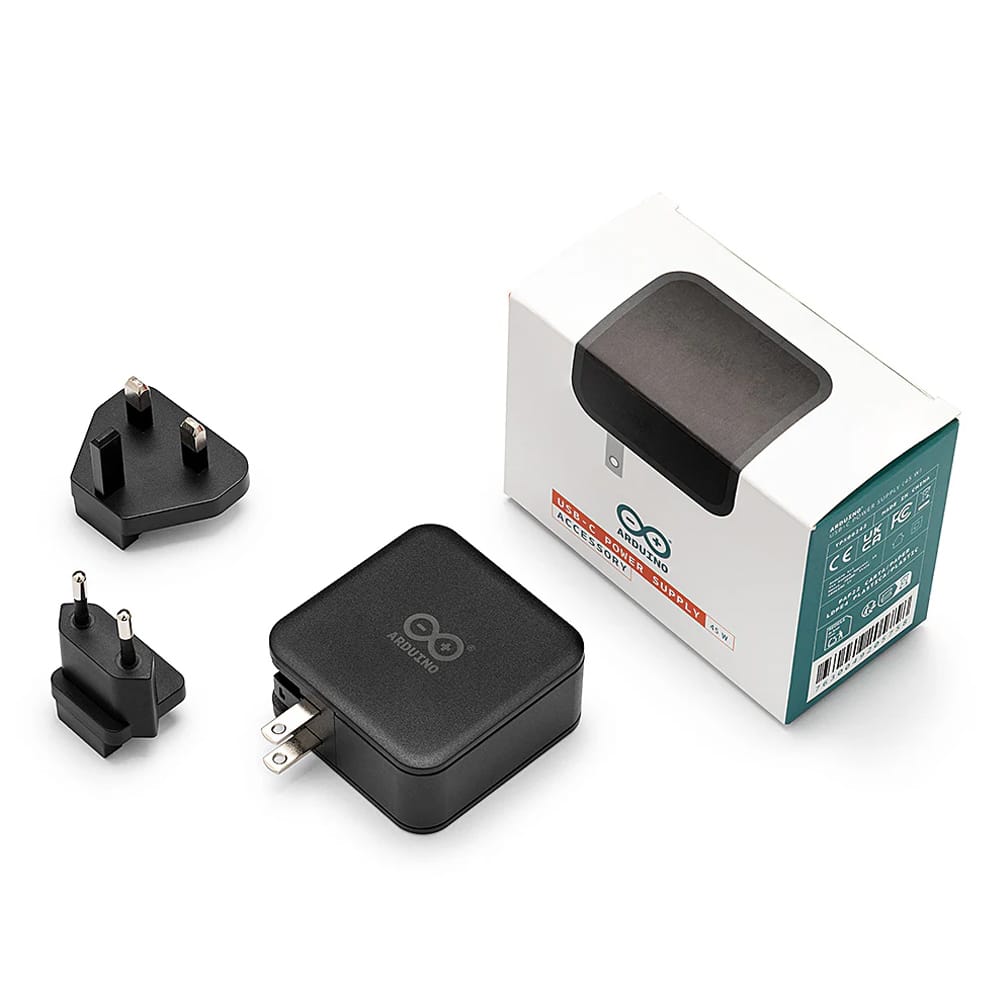

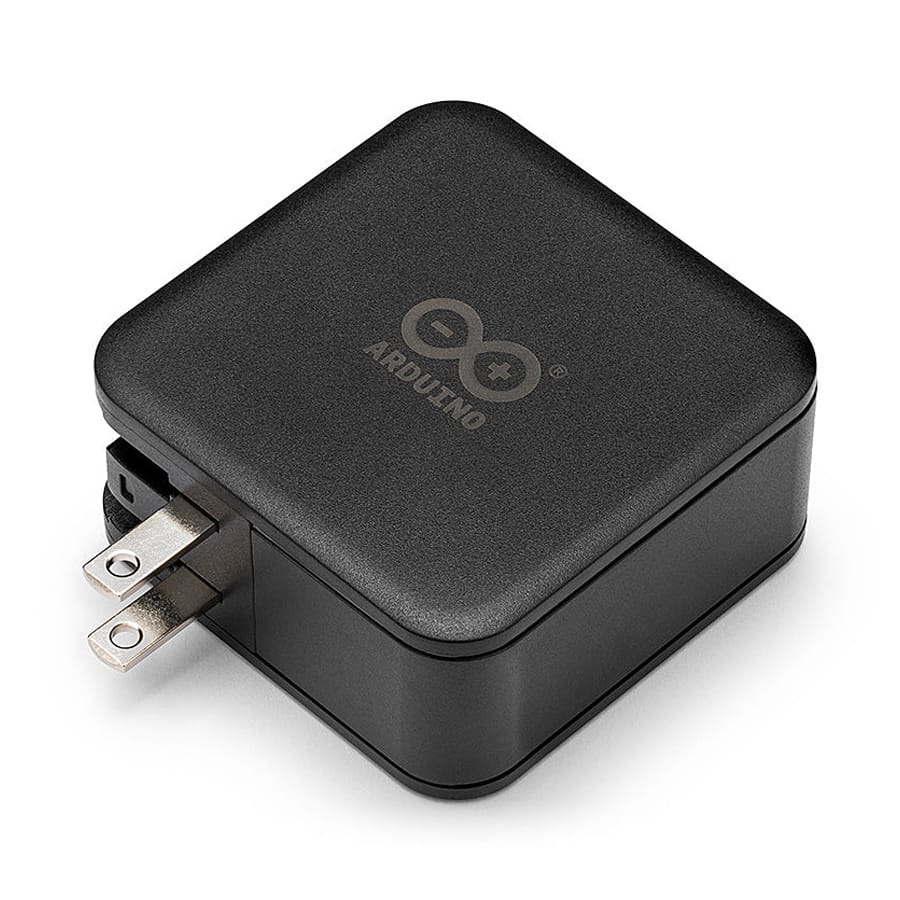

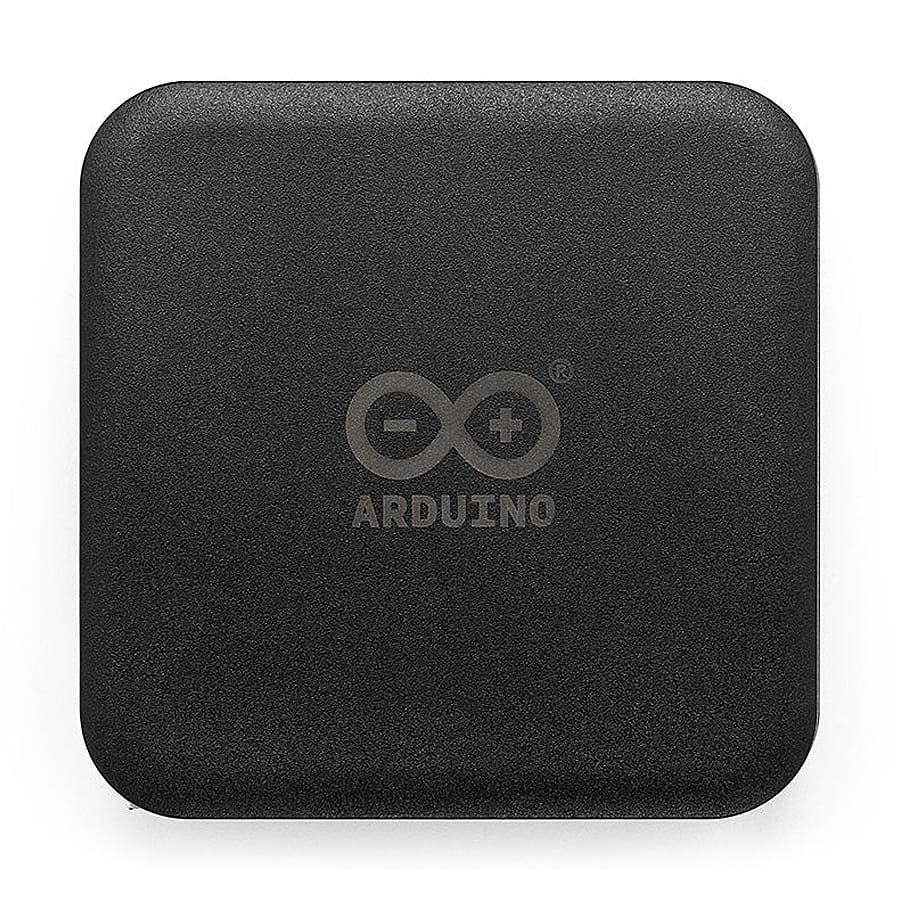

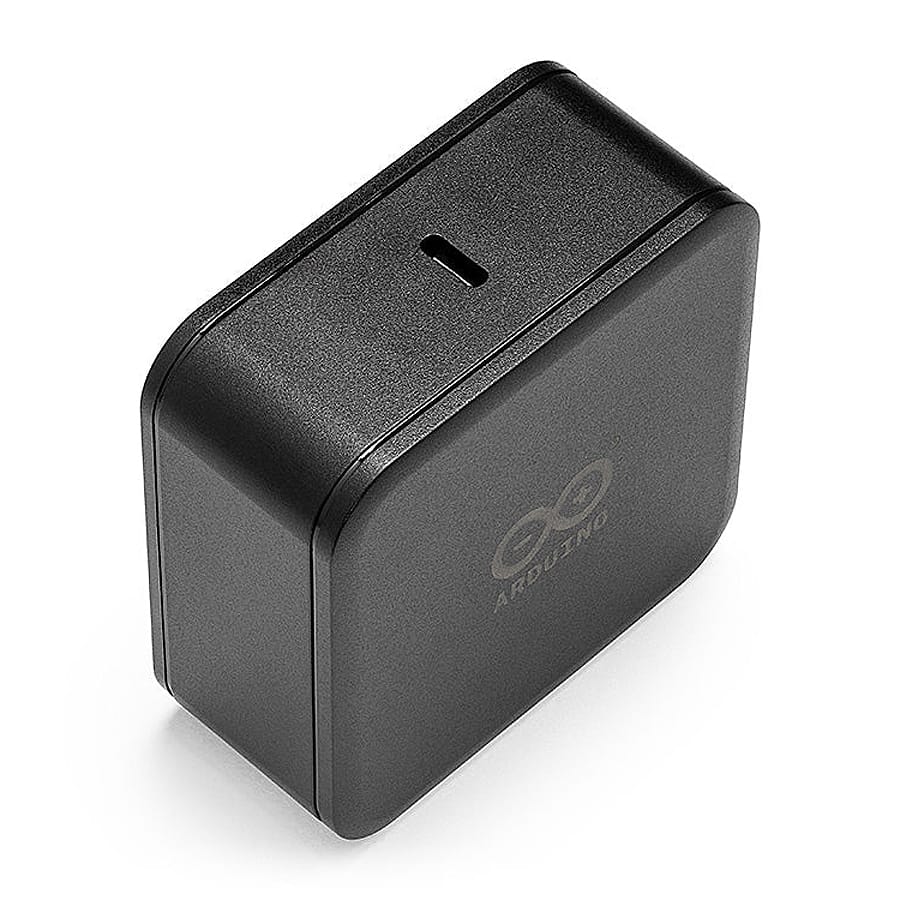

The ArduinoUSB-C Power Supply is a compact, interchangeable plug adapter designed for use with USB-C devices supporting USB Power Delivery (PD). The 45W multi-voltage power adapter provides intelligent power delivery across five voltage profiles (5V, 9V, 12V, 15V, 20V), negotiating the optimal charging parameters for connected devices.
With interchangeable regional plugs (EU, UK, US, AU) and broad safety certifications, it provides a universal power solution for development, prototyping, and deployment scenarios worldwide.
Unlock the full potential of Arduino UNO Q and other boards in the Arduino ecosystem with stable and regulated power delivery, tested by Arduino itself for maximum reliability and the best protection of your hardware from power fluctuations.

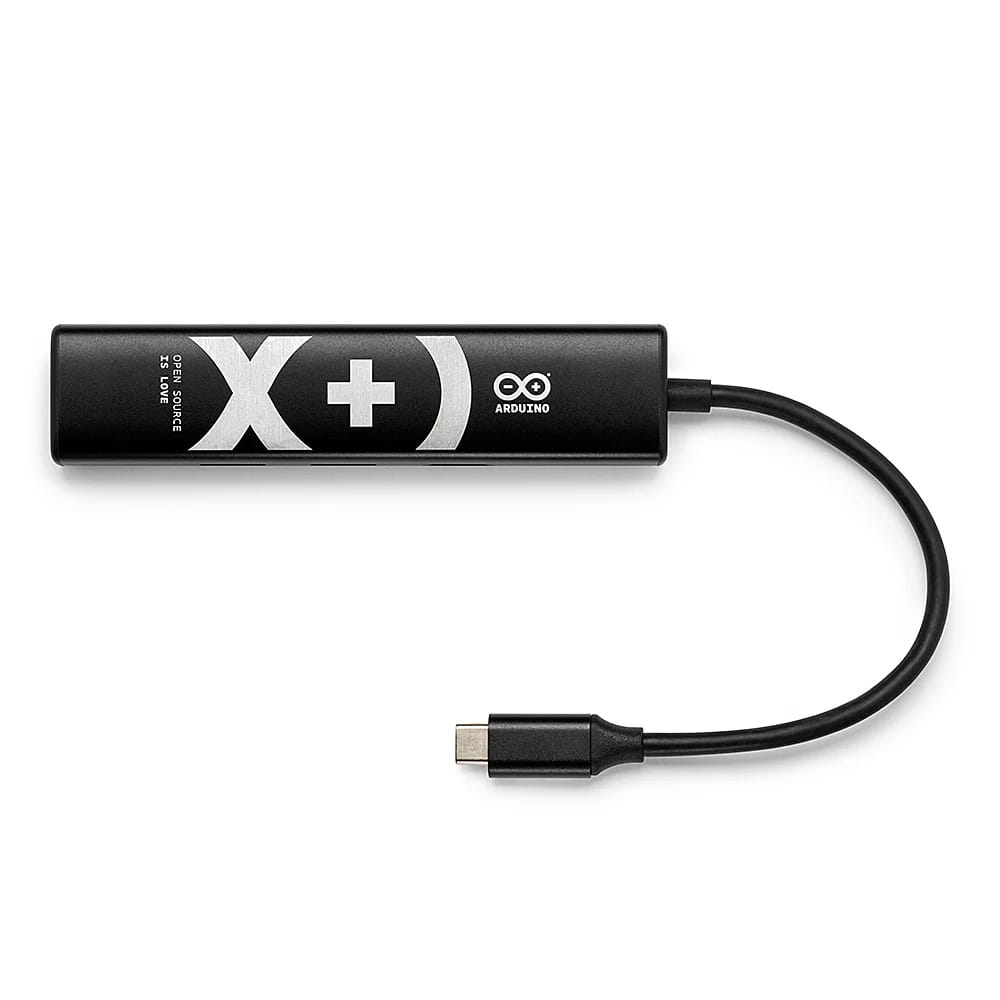

When powering USB-C hubs or dongles with multiple high-power peripherals, connect this power supply to the hub's PD input port. The hub will distribute power to the connected device and peripherals simultaneously. Ensure the total power consumption does not exceed 45W.
USB-C cable not included.
PD Power Output Modes
The power supply negotiates the appropriate voltage and current with the connected device using USB Power Delivery (PD) protocol. The device will select the optimal power profile based on its requirements.
Output Voltage
Maximum Current
Maximum Power
5V DC
3.0A
15W
9V DC
3.0A
27W
12V DC
3.0A
36W
15V DC
3.0A
45W
20V DC
2.25A
45W
Combined Maximum Output Power: 45 W
Specifications
Specification
Details
Product number
Arduino TPX00242
Adapter Type
Interchangeable plug-in adapter
Output Connector
USB-C (USB Type-C)
Rated Input Voltage
100 - 240 V AC
Input Voltage Range
90 - 264 V AC
Input Frequency
47 - 63 Hz (50/60 Hz)
Maximum Input Current
1.5A
Output Power
45W maximum
Output Profiles
5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 2.25A
USB Power Delivery
USB PD 3.0 supported
PPS
Supported
Dimensions
64 × 64 × 30 mm folded / 64 × 80.06 × 30 mm unfolded
Material
PC (Polycarbonate) housing
Regional Plugs
US Type A, EU Type C, UK Type G
Operating Temperature
0 °C - 35 °C
Storage Temperature
-40 °C - 70 °C
Operating Humidity
10% - 90% RH, non-condensing
Protection Features
Over-current, short-circuit, over-voltage, and over-temperature protection
