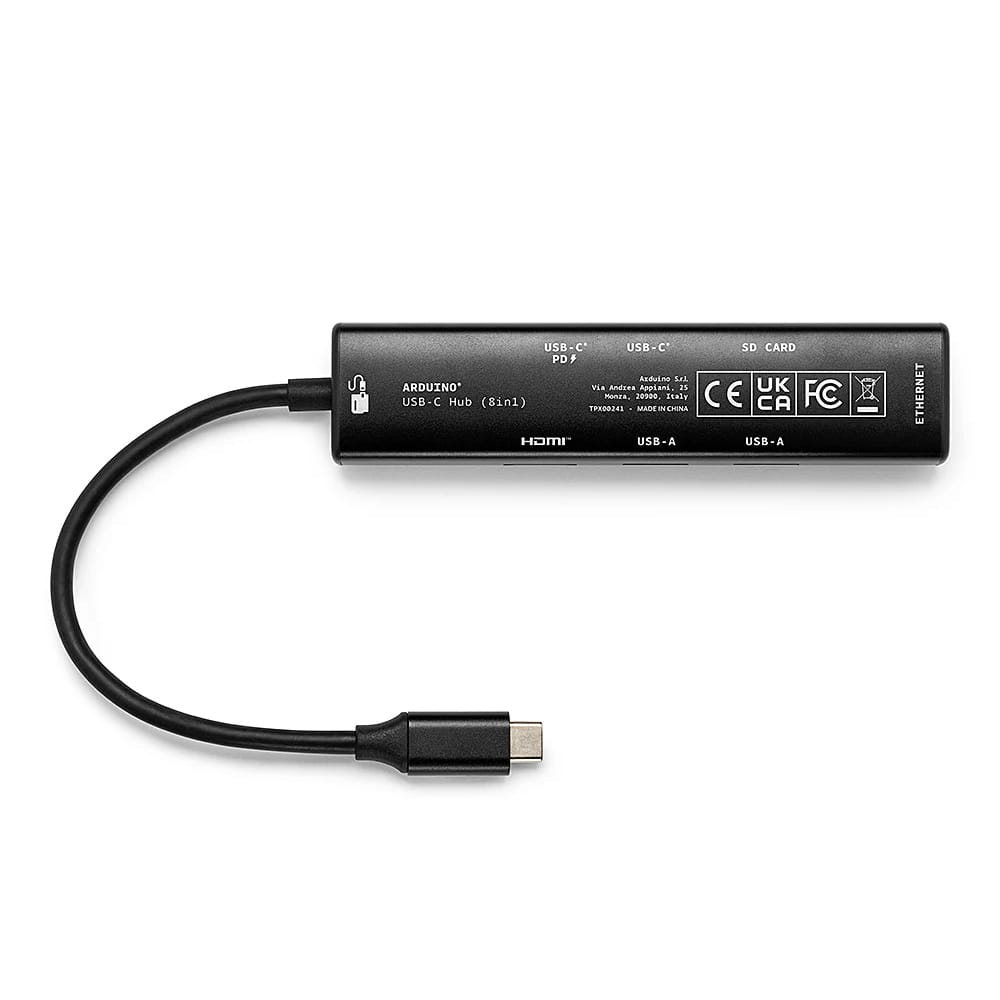

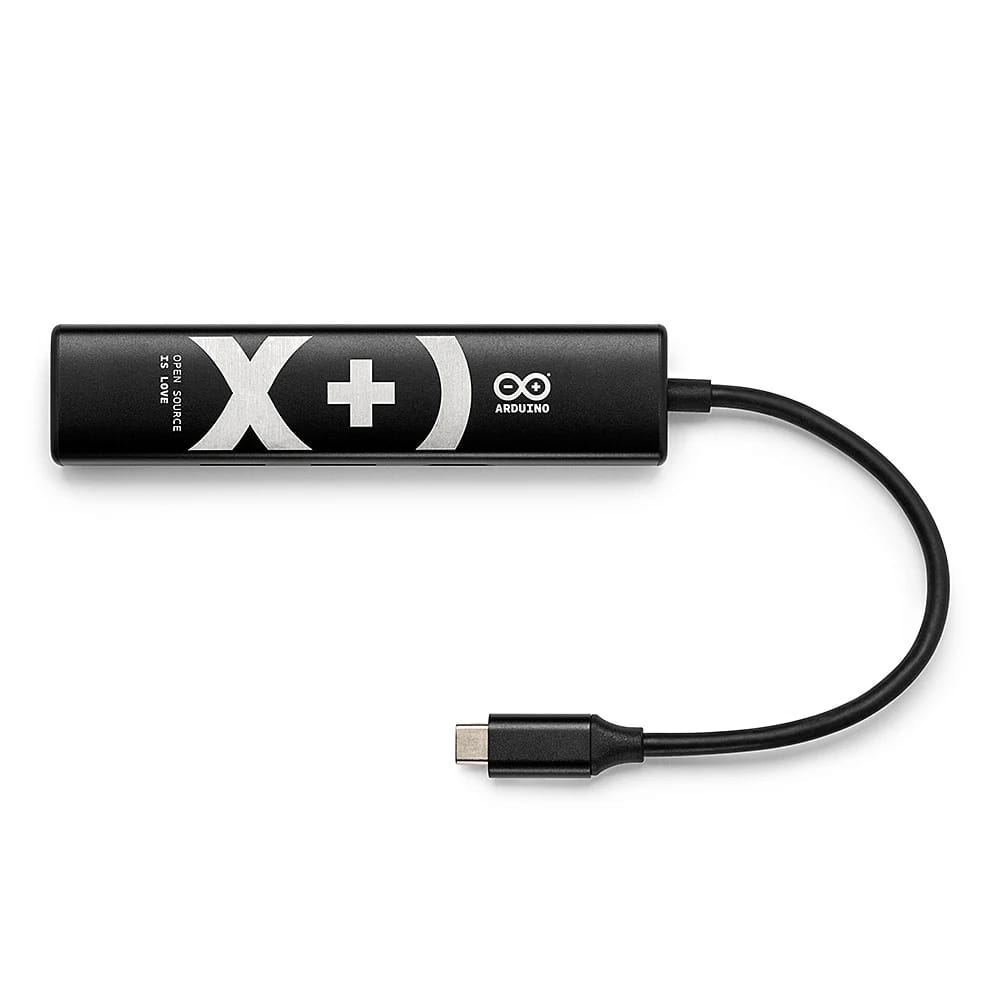

An 8-in-1 hub purpose-built to transform the Arduino UNO Q into a fully connected single board computer, adding HDMI, Ethernet, multiple USB ports, and power passthrough with one compact solution.
Unlock the full potential of the UNO Q and other boards in the Arduino ecosystem with expanded physical interfaces. The Arduino USB-C Hub 8-in-1 hub gives you the ports and connections needed for displays, peripherals, and storage, enabling a complete, ready-to-use single board computer experience straight out of the box!
The hub expands a single USB-C port into eight functional interfaces, including power delivery, USB data ports, HDMI video output, Ethernet connectivity, and SD/TF card readers. With its plug-and-play design and broad OS compatibility, it provides I/O expansion for development, prototyping, and deployment scenarios
Important: The hub requires external power delivery through the USB-C PD port. Ensure your power supply provides at least 5V 3A (15W minimum) for stable operation of connected devices and peripherals. For maximum performance with multiple high-power devices, a 65W PD charger is recommended.
Eight Connections

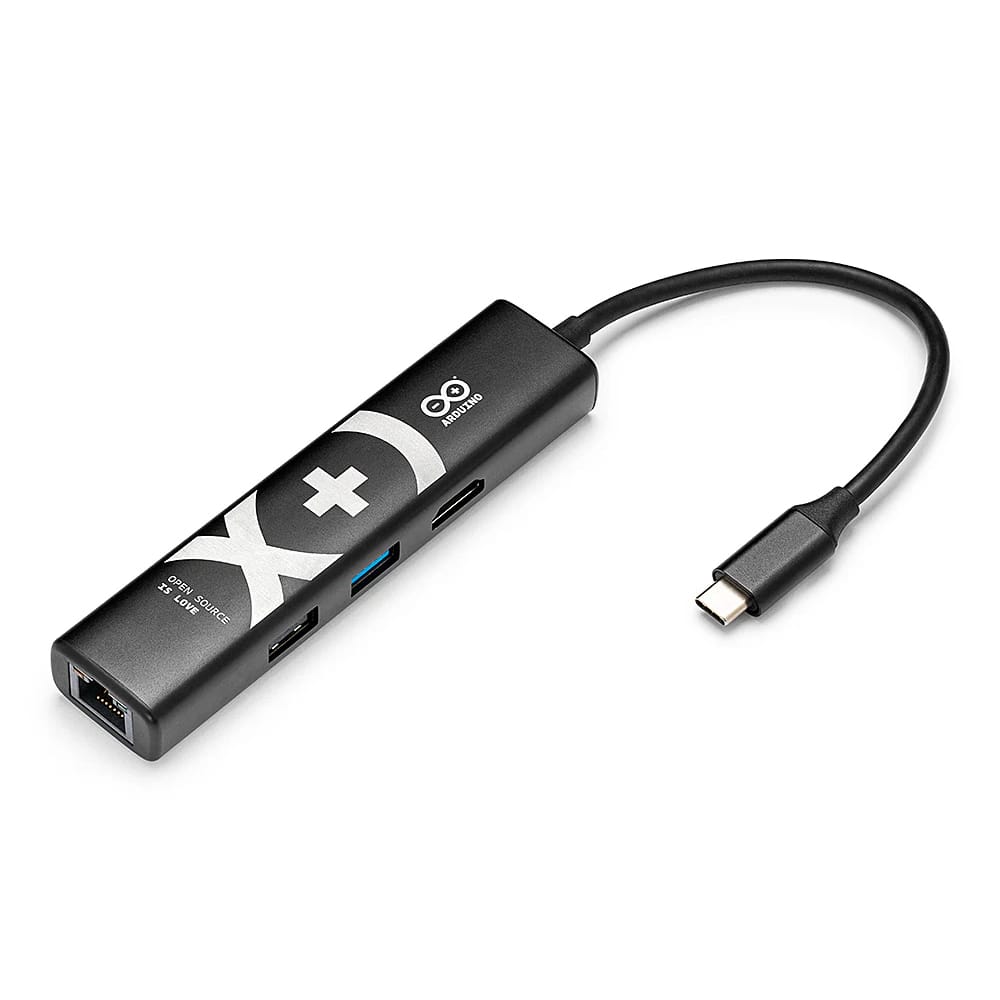

The hub exposes 8 usable connections from a single USB-C port:
USB-C power passthrough (65W)
USB-C data port (480 Mbps)
USB-A 2.0 port (480 Mbps) standard USB device connection
USB-A 3.0 port (5 Gbps) faster USB device connection
HDMI output for an external monitor or display (4K @ 30 Hz)
RJ45 Ethernet port (100 Mbps) for wired network connection
USB2.0 SD card reader
TF card reader
Key Uses
Display Output: Connect HDMI monitors or displays for visual output (up to 4K @ 30 Hz)
Network Connectivity: Wired Ethernet connection via RJ45 port (100 Mbps)
USB Peripherals: Attach keyboards, mice, USB drives, cameras, and other USB devices
Storage Expansion: Read and write SD/TF cards for data logging and file transfer
Power Delivery: Supply power to connected devices while simultaneously using other ports (65 W PD)
Port specifications
USB-C PD (Power) (A1)
65W Power Delivery
USB-C Data (A2)
480 Mbps
USB-A 2.0 (B2)
480 Mbps
USB-A 3.0 (B3)
5 Gbps
HDMI (B1)
4K @ 30 Hz (3840 × 2160)
RJ45 Ethernet (C1)
100 Mbps
SD Card Reader (A4)
USB 2.0, supports SD/SDHC UHS-I-II / SDXC UHS-I-II
