Arduino 4 Relays Shield

ArduinoSKU: A000110
£24.50
incl. VAT
excl. VAT
Only 12 units left

Awesome Extras

Arduino Uno Rev3 - The Pi HutArduino Uno Rev3 - The Pi Hut
ArduinoArduino Uno Rev3
£24.50 incl. VAT excl. VAT
Arduino Uno Rev3 SMD - The Pi HutArduino Uno Rev3 SMD - The Pi Hut
ArduinoArduino Uno Rev3 SMD
£23.50 incl. VAT excl. VAT
The Arduino 4 Relays Shield allows your Arduino driving high power loads.

The Arduino 4 Relays Shield is a solution for driving high power loads that cannot be controlled by Arduino's digital IOs, due to the current and voltage limits of the controller.

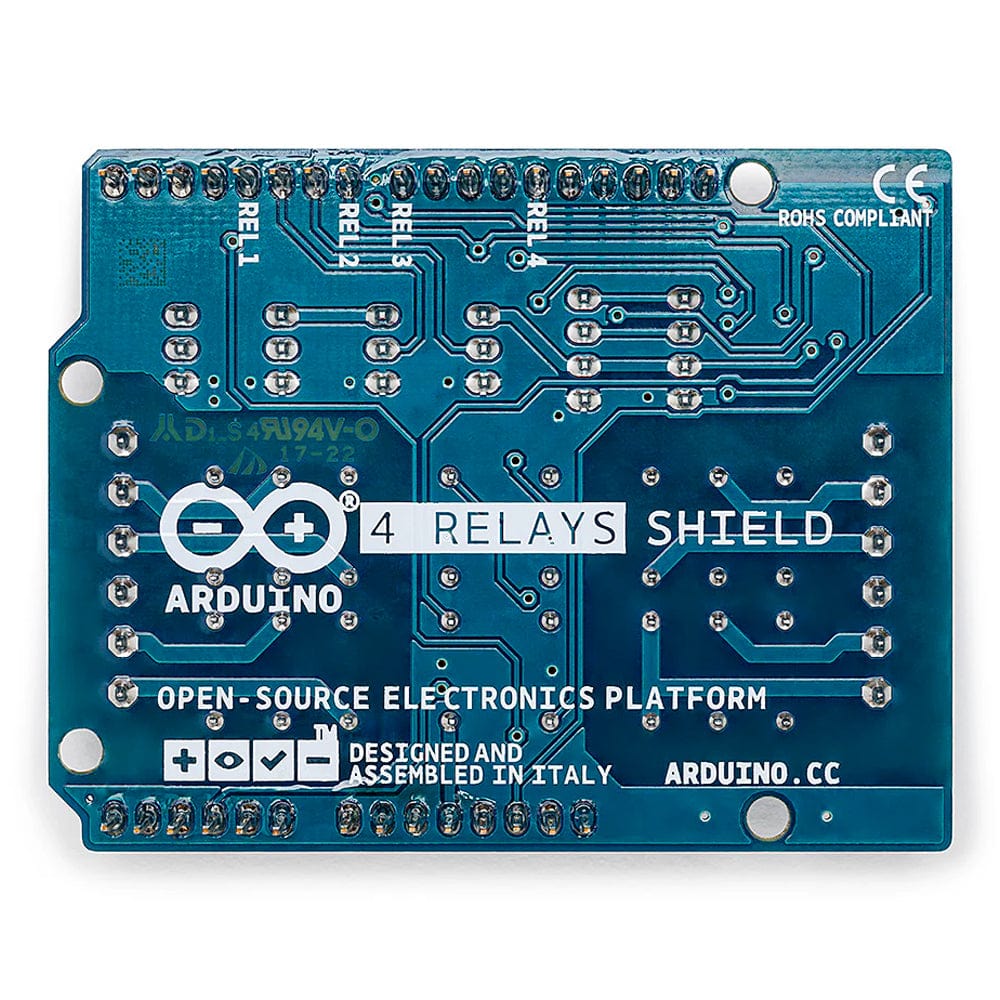

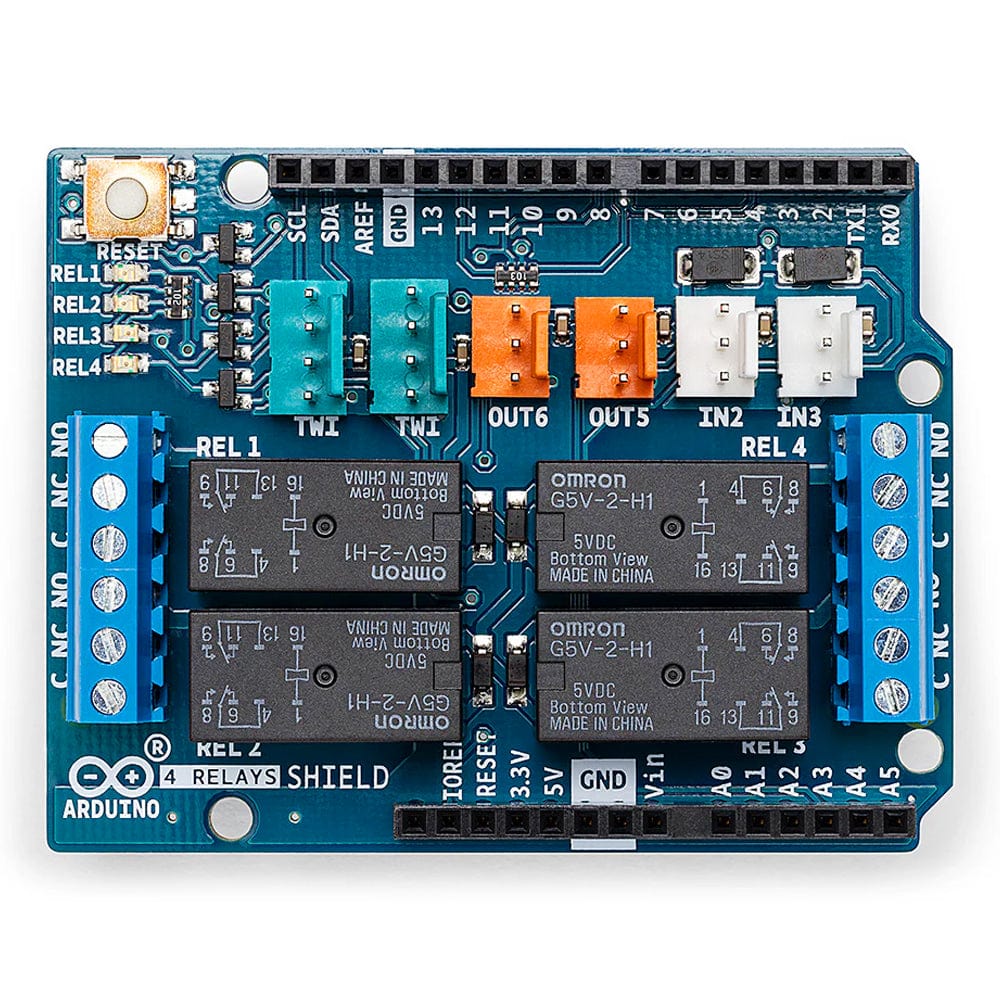

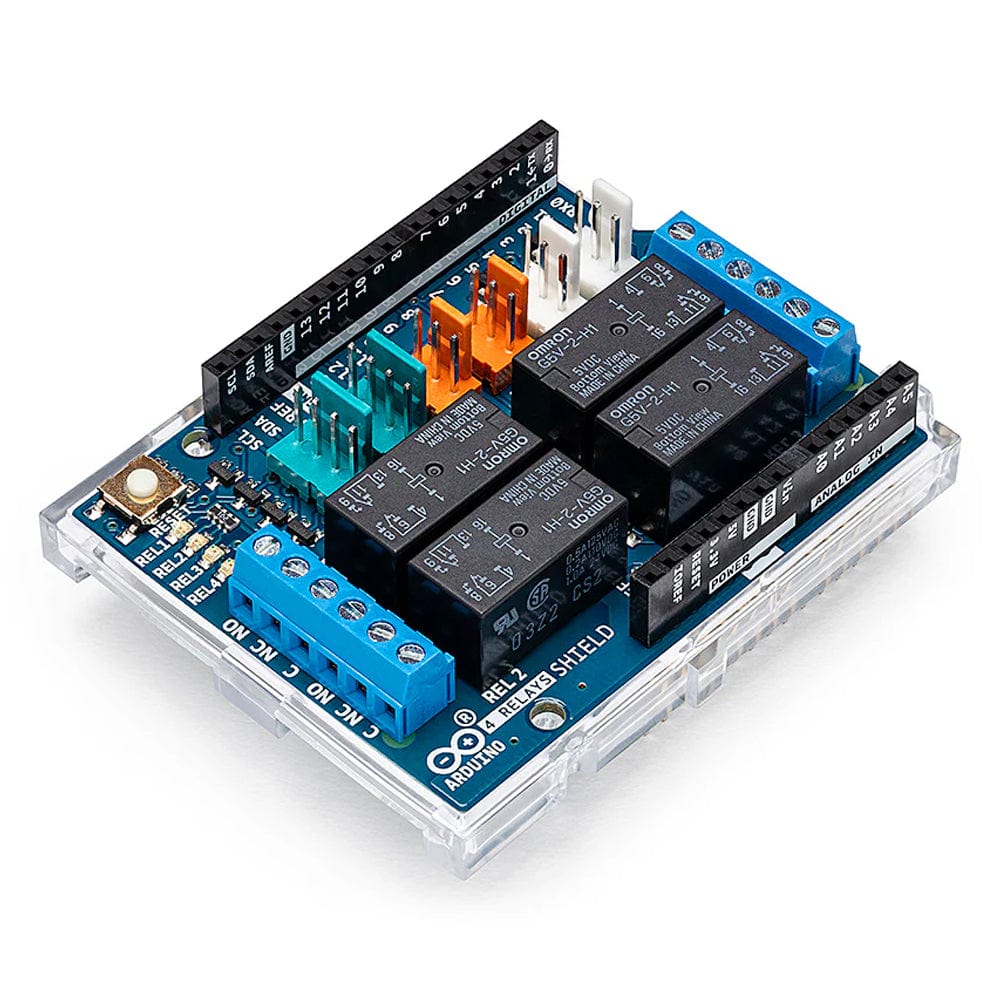

The Shield features four relays, each relay provides 2 pole changeover contacts (NO and NC); in order to increase the current limit of each output the 2 changeover contacts have been put in parallel. Four LEDs indicate the on/off state of each relay.

Getting Started

You can find in the Getting Started section all the information you need to configure your board, use the Arduino Software (IDE), and start tinker with coding and electronics.
Power

The shield doesn't need external power: it will be provided by the base board, through the 5V and 3.3V pins of the Arduino board used as base.

Features

Thinker Kit interface 2x TWI, 2x OUT, 2x IN
Interfaces with Arduino Board DIO
Relays 4 (60W)

General

Operating Voltage 5 V
Current needs 140 mA (with all relays on, about 35 mA each)
PCB Size 53 x 68.5 mm
Weight 0.044 Kg
Product Code A000110

Tech Spec

Operating Voltage

5V

Coil current consumption

140 mA (with all relays on, about 35 mA each)

Single pole chargeover contact maximum current

@ 30 V DC 2A

Maximum load voltage

48 V

Maximum switching capacity

60 W
