3 MP SPI Camera Module with M12 Lens

Options:M12 Lens
Price:
Sale price £26.90
incl. VAT
excl. VAT
Stock:
Coming Soon
Notify me

Awesome Extras

Raspberry Pi 5 - The Pi HutRaspberry Pi 5 - The Pi Hut
Raspberry PiRaspberry Pi 5
Sale priceFrom £46.60 incl. VAT excl. VAT
5 MP SPI Camera Module with M12 Lens - The Pi Hut5 MP SPI Camera Module with M12 Lens - The Pi Hut
Arducam5 MP SPI Camera Module with M12 Lens
Sale price £39.20 incl. VAT excl. VAT
Raspberry Pi Pico 2Raspberry Pi Pico 2
Raspberry PiRaspberry Pi Pico 2
Sale price £4.80 incl. VAT excl. VAT
Arduino Nano ESP32 (with headers) - The Pi HutArduino Nano ESP32 (with headers) - The Pi Hut
ArduinoArduino Nano ESP32 (with headers)
Sale price £19.80 incl. VAT excl. VAT

This SPI Camera Module has a 3-megapixel sensor that delivers crisp and detailed images and allows you to control it through simple API commands, just like clicking buttons on a DSLR. It has a replaceable M12 lens with a 75-degree field of view, giving you the flexibility to swap it for other lenses as needed. It's the perfect fit for your existing projects, whether you're using ArduinoRaspberry PiESP32, or any other microcontroller platform.

With multiplexing support, you can connect up to four cameras on a single MCU using an adapter board, capturing images simultaneously with sequential readout. This makes it ideal for projects requiring multiple camera setups.

Please select which version you want before adding it to your cart

You can find the 5 MP version here

Please note that the lens is now glued into position at the factory to ensure the focus stays accurate during transit. If you need to remove or swap the lens, the advice from Arducam is to heat it gently with a hairdryer or similar to soften the adhesive first.

Features

  • Extremely easy to use. High-level commands were built in so you manipulate the camera through API access like using a DSLR camera via button clicks.

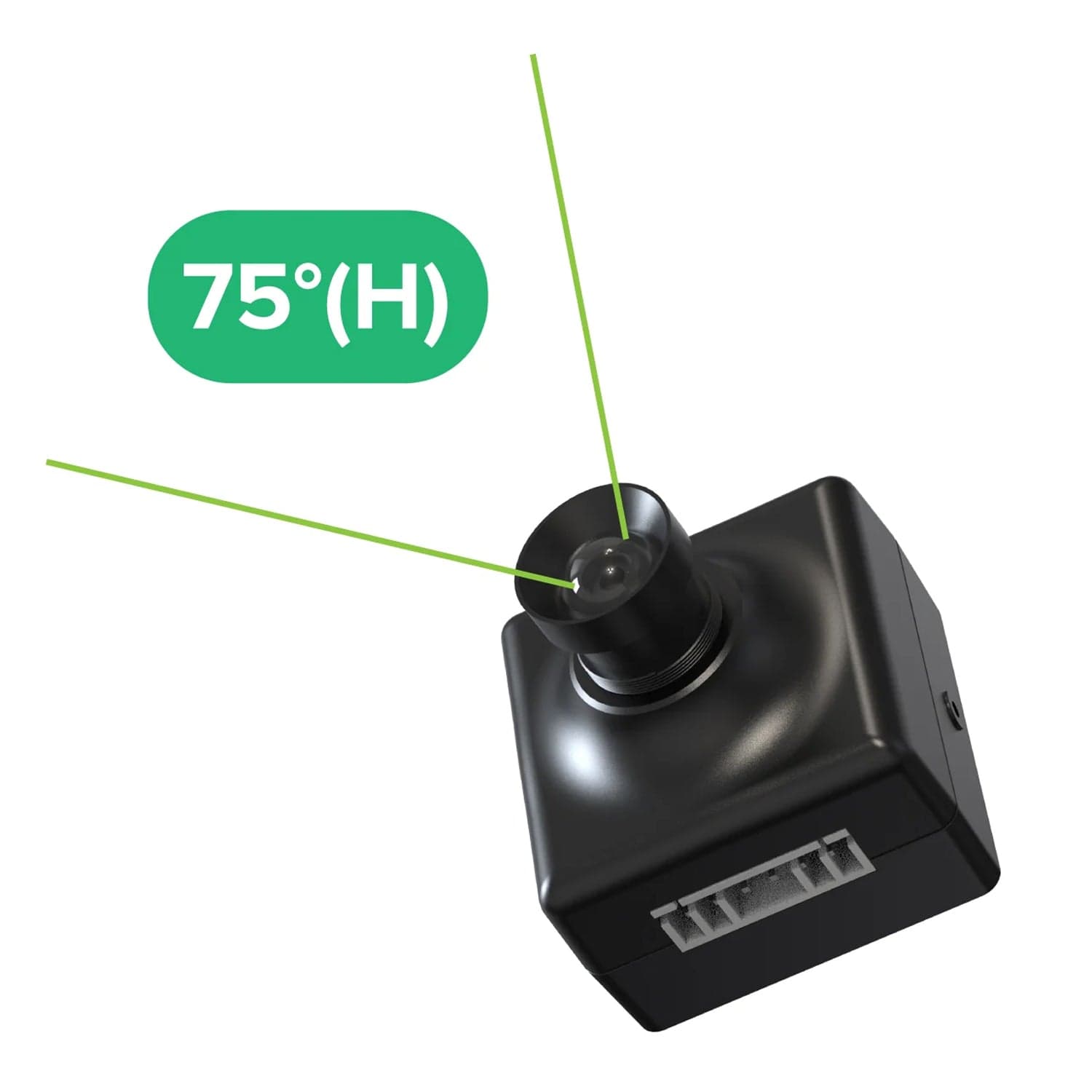

  • Equipped with an alternative M12 Lens with 75-degree HFOV. You can change to another M12 Lens that suits the default Lens Mount.
  • Up to 4 cameras running on a single MCU by using an adapter board. They capture at the same time with sequential readout then.
  • The SDK is fully open-source with an MIT license. A lean architecture with a hardware abstraction layer, allows you to add a new MCU without effort.
  • It fits any microcontroller with a single standard SPI interface (either native or mimic). 8-bit, 16-bit, or 32-bit, ARM, RISC-V, or others. Arduino, STM8/STM32, ESP8266/ESP32, MSP430, Nordic, Renesas, and countless more.

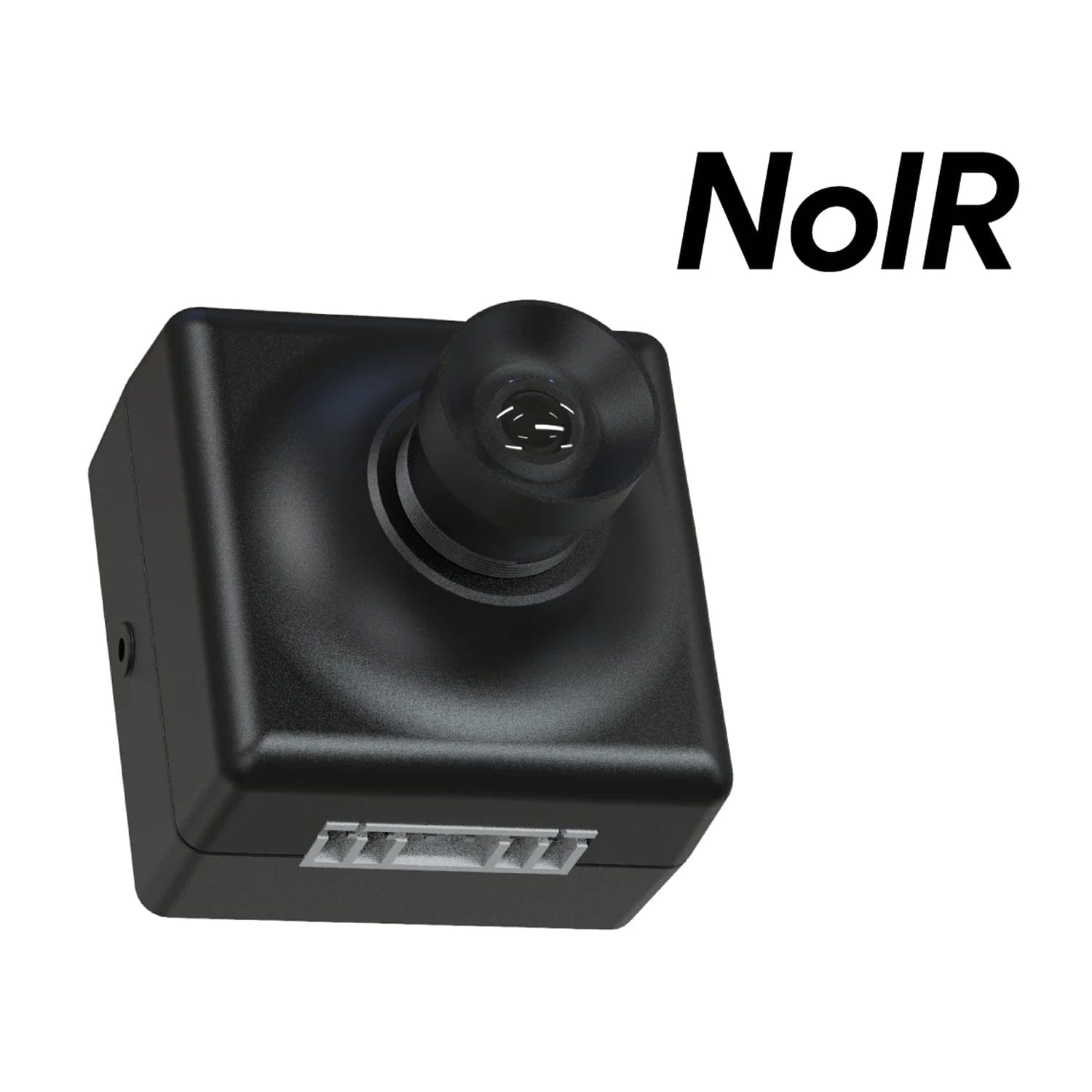

  • M12 NoIR version also available: Product number B0435

Specifications

Optical Size 1/4”
Speed 8Mhz
Number of effective pixels 2048 x 1536
Power Supply 3.3V/5V
Interface SPI (4-wire)
Shutter Type Rolling Shutter
Colour Filter Colour
Power Consumption(idle/Working) 185mW-585mW
Field of View 90°(D) x 75°(H) x 56.4°(V)
F.NO F2.8
Lens Type M12 Lens (Distortion <1.53%)
EFL/BFL 2.8mm / 2.6mm
IR Sensitivity

Integral IR-cut filter, visible light only

Without an IR-cut filter, IR sensitive (NoIR)

Focus Distance 0.6m-INF
Electric Current (Idle/Working) 56mA-136mA
Output Format RGB/YUV/JPEG
Camera Board Size 33 x 33 x 17 mm
Connector No. XH2.54-6P

Resources

Package Contents

  • 1 x Arducam Mega 3MP SPI Camera with M12 Lens or M12 Lens (NoIR) Optional
  • 1 x 300mm 6-pin cable
