This is a 16MP autofocus high-resolution camera board for Raspberry Pi, that takes what the Raspberry Pi V1, V2, and HQ cameras have to offer - and excels in every single aspect!

It makes zero compromises in specs. With a resolution of 16 megapixels (compared to 8MP and 12MP), an autofocus lens, a V2-like form factor, and boatloads of improvements, the camera provides a better choice for a whole world of applications.

It’s compatible with any existing Pi models, works with the latest software from Raspberry Pi, and leverages the same tuning algorithms used in the official camera modules.

Features

  • High-Resolution Camera: Utilises the IMX519 CMOS sensor with a 16MP capacity
  • Crisp Imaging: Delivers stunning still images at a maximum resolution of 4656x3496 pixels and supports various frame rates, including 1080p60, 4656x3496 at 9fps, and 3840x2160 at 20fps
  • Compact Design: Featuring a mini camera board size of 24x25mm
  • Wide Compatibility: Compatible with Raspberry Pi and NVIDIA Jetson platforms
  • User-Friendly Setup: Requires only straightforward driver installation

Specifications

Image Sensor
Sensor IMX519

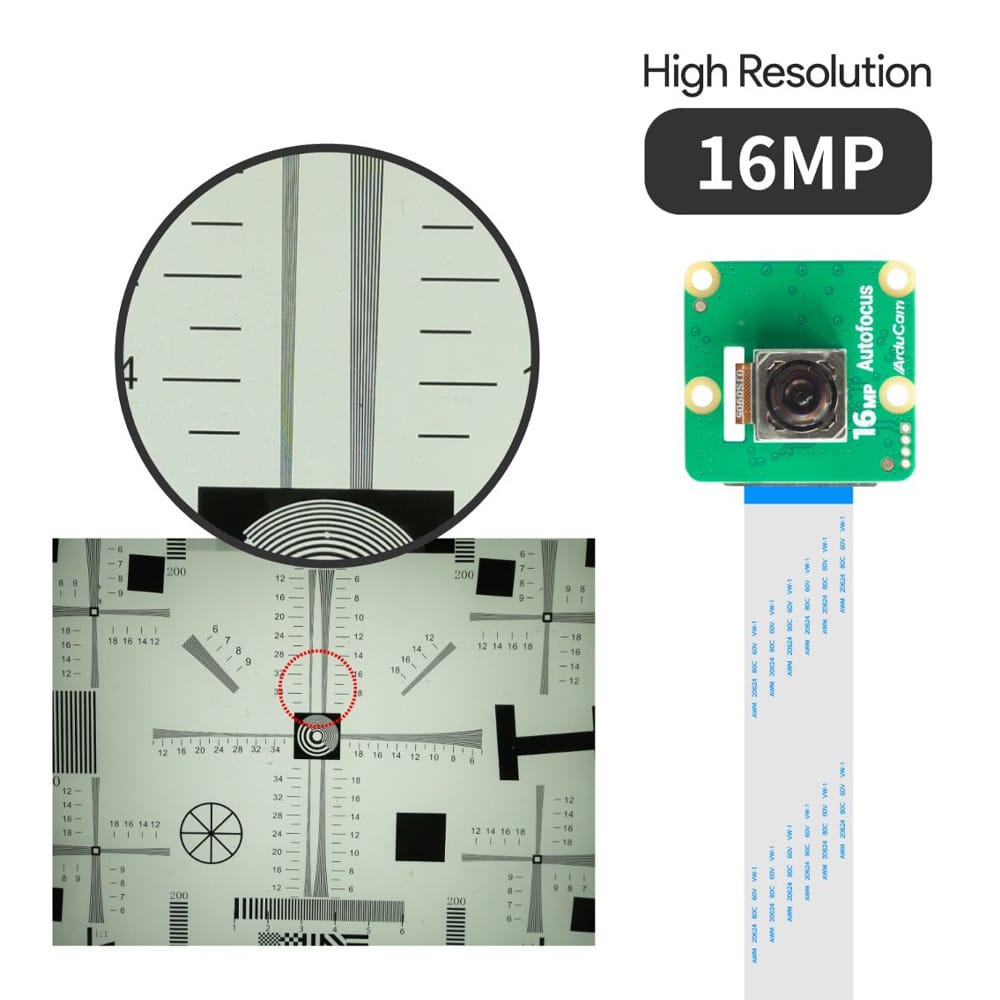

Still Resolution 16 Megapixels
Colour Filter Type Colour
Shutter Type Rolling Shutter
Optical Size 1/2.53"
Sensor Output Format RAW
Platform Output Format JPEG/YUV/RGB/RAW10
Pixel Size 1.12 µm x 1.12 µm
Sensor Active Area 4656 × 3496 pixels
Frame Rate 4656x3496@9fps, 3840x2160@20fps, 1920x1080@60fps, 1280x720@80fps
Lens Specs
Focus Type Auto Focus

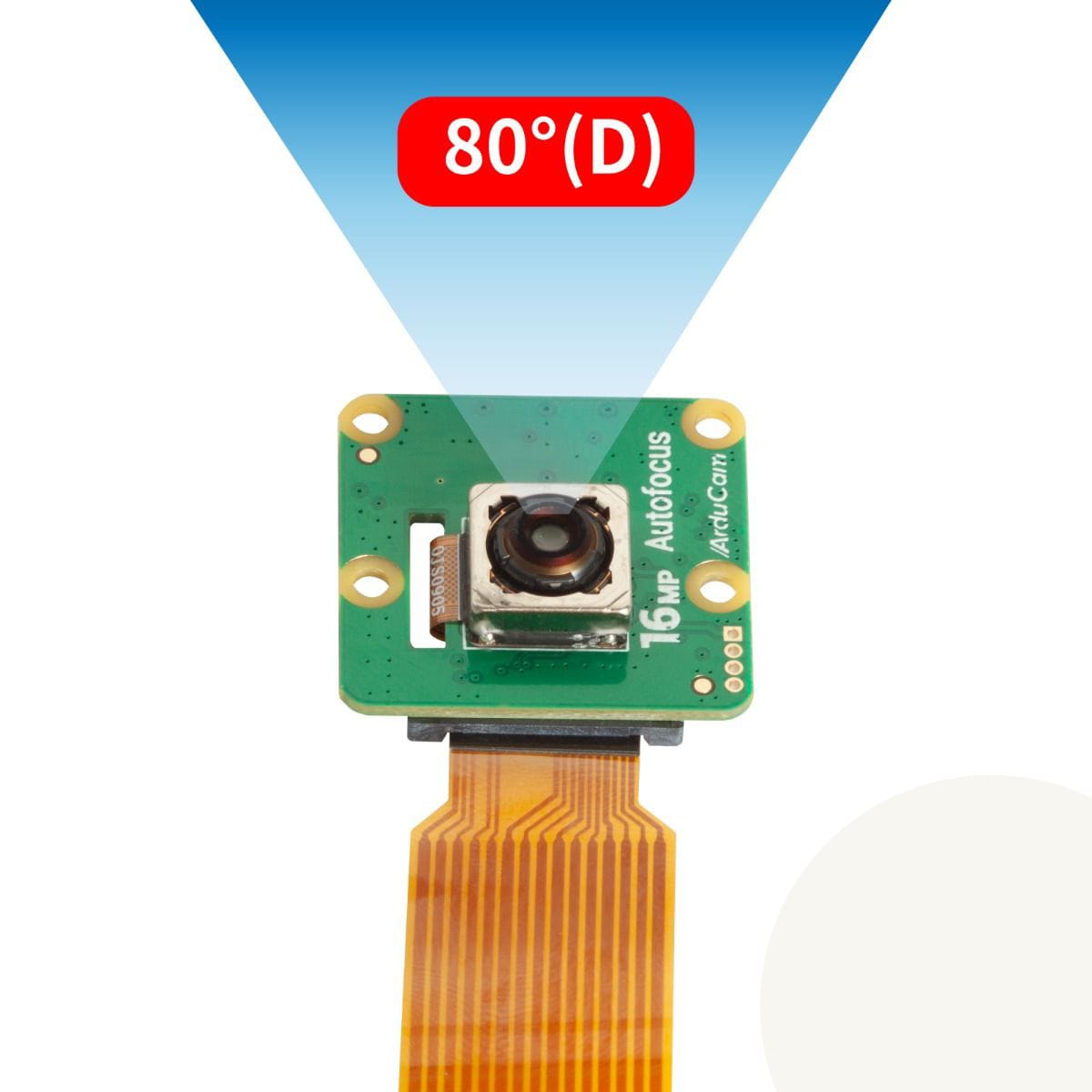

FOV 80°(D)×67°(H)×53°(V)
Lens Mount Stock Lens Mount
F.NO F1.75
E.F.L 4.28
Default Focus Range 10cm to infinity
IR Sensitivity Integrated 650nm IR filter
Electrical and Mechanical
Operating Voltage 3.3V
Temperature Range (Operating) -4°F-167°F (-20°C to +75°C)
Temperature Range (Stable Image) 32°F-122°F (0°C to +50°C)
Power Requirements (Kit) 1W

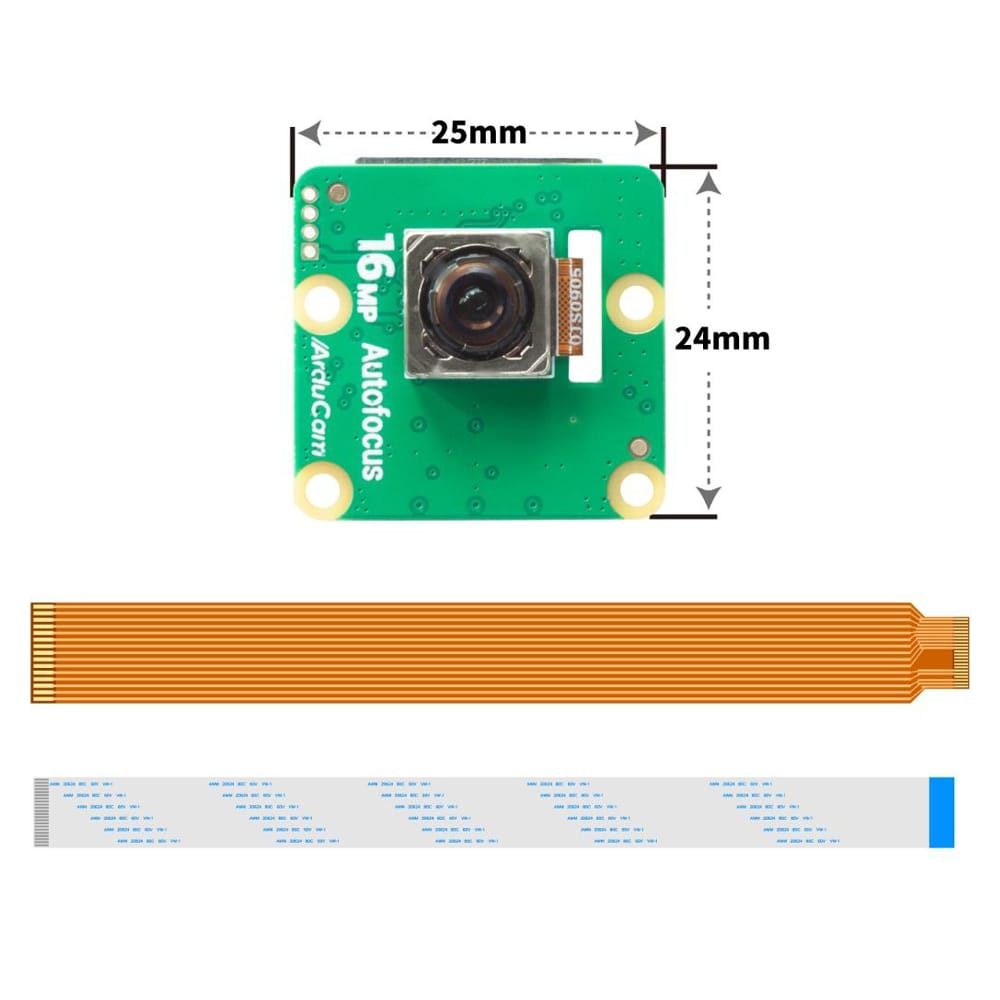

Overall Size 25x24 mm
Functionality and Compatibility
Interface MIPI CSI-2
Supported OS Linux OS
Supported Platform Raspberry Pi, NVIDIA Jetson

Resources

Package Contents

  • 1x Arducam 16MP-AF Camera Module
  • 1x 22pin to 22pin FFC Cable (15cm)
  • 1x 15pin to 22pin FFC Cable (15cm)
