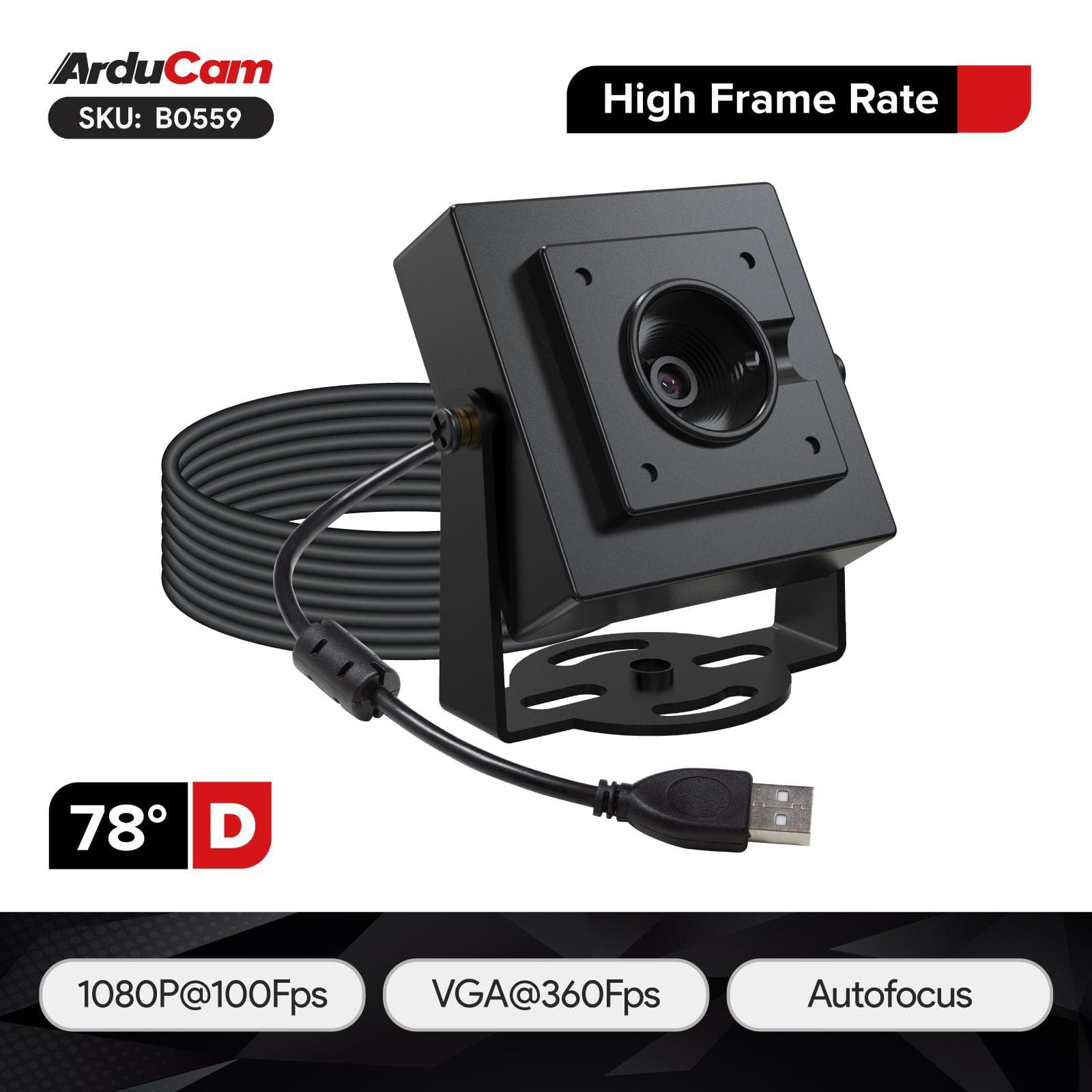

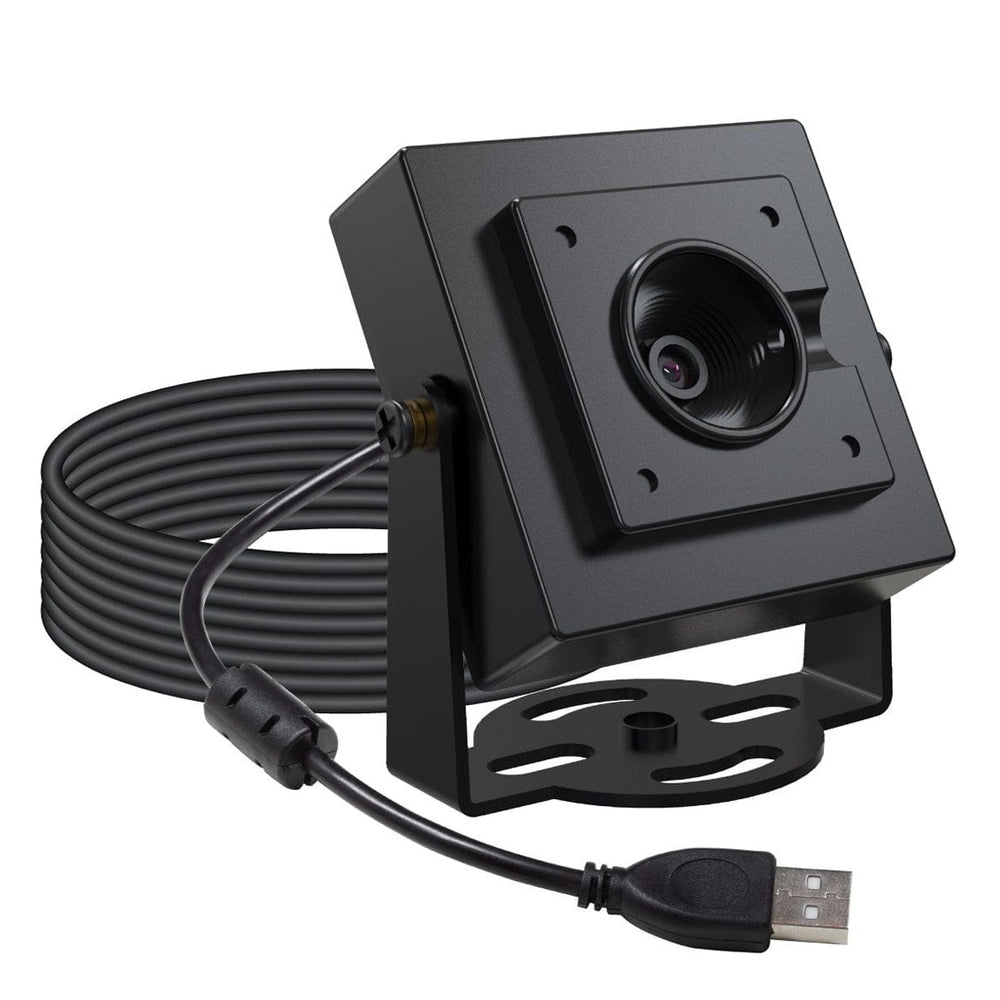

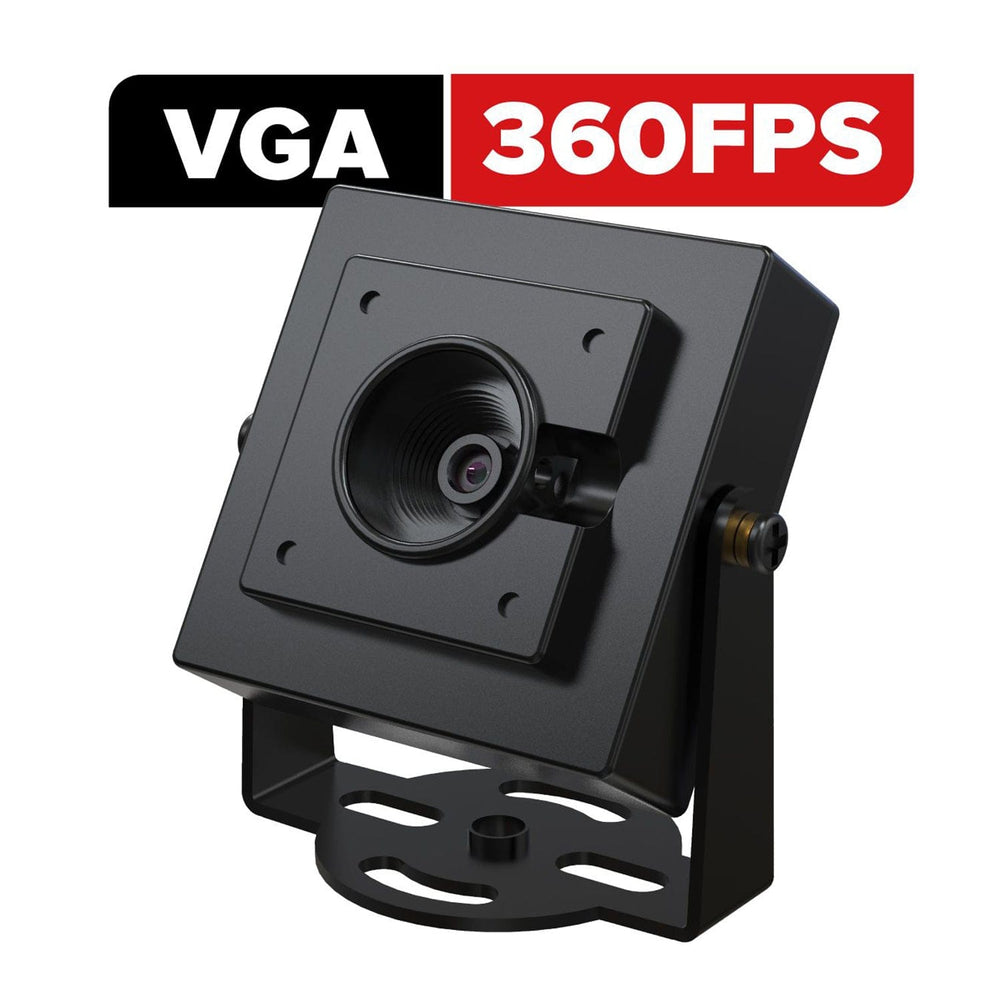

The Arducam ezBOX Swift is a USB 2.0 UVC camera that combines speed and precision, delivering up to 360 FPS at VGA resolution for capturing fast-moving objects with exceptional clarity.
Powered by a Sony 1080P colour sensor, it supports a wide range of FPS-Res combinations, from 1920x1080@100fps to 640x480@360fps, ensuring versatility and high-quality imaging for dynamic applications.

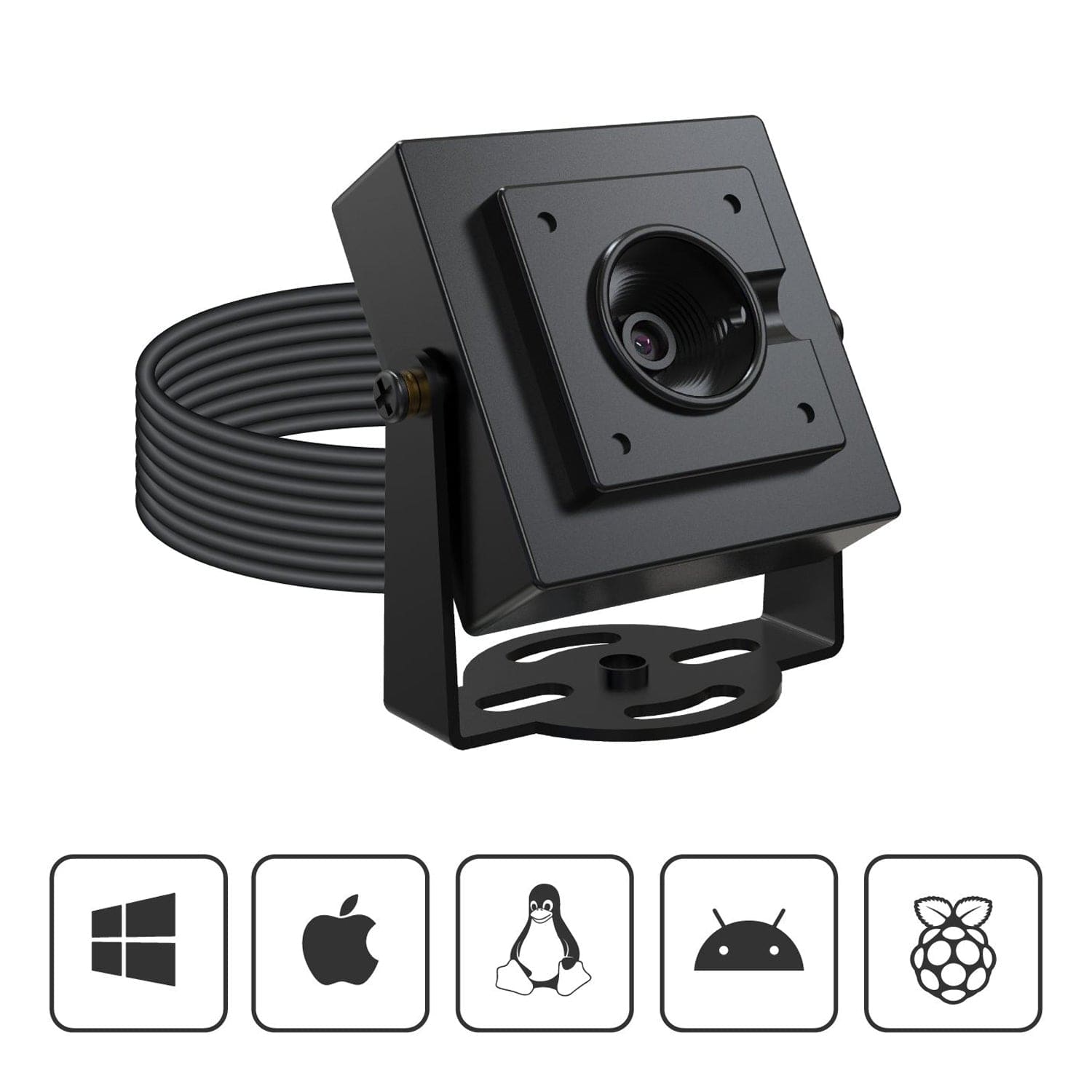

As it's a UVC (USB Video Class) camera, it can work on a range of operating systems and hardware driver-free, such as Windows and Linux (including the Raspberry Pi).

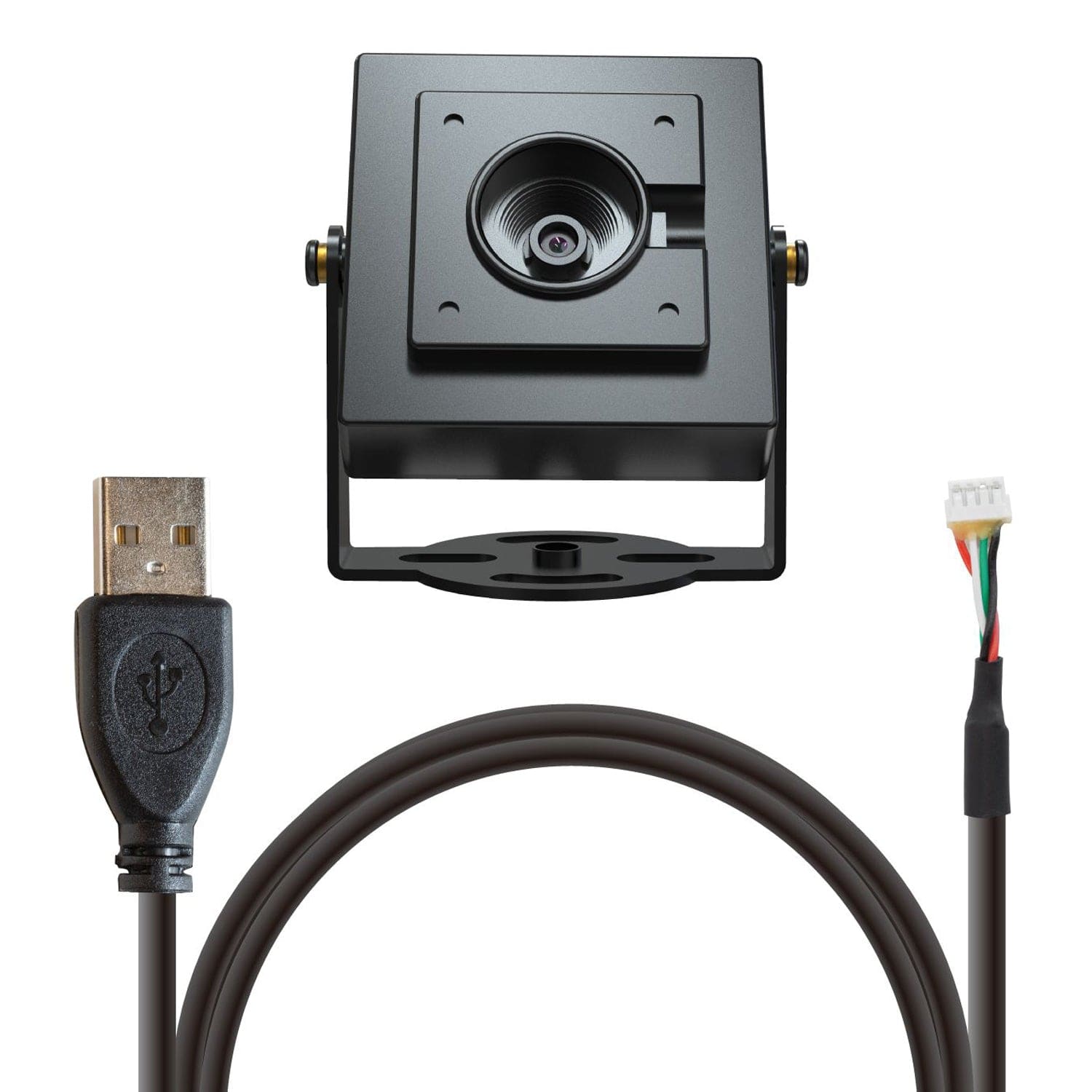

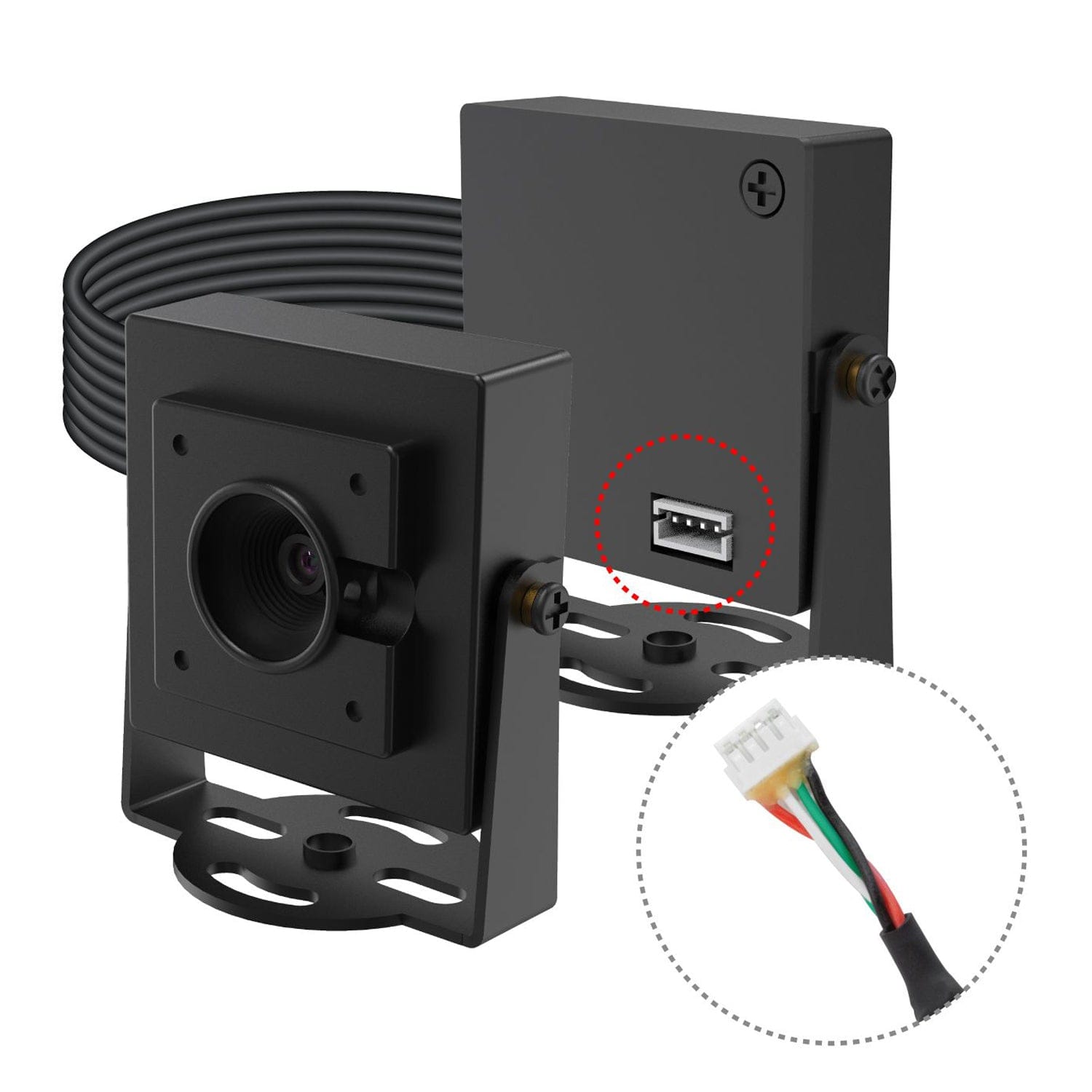

Comes with a USB JST cable.
Features
360 FPS at VGA Resolution - Capture fast-moving objects with exceptional clarity
Versatile FPS-Res Combinations - 9 options, from 1920x1080@100fps to 640x480@360fps, meeting diverse imaging needs
USB 2.0 UVC Compliance - Plug-and-play, no additional drivers needed
Autofocus Lens - Ensures sharp focus for every shot
Proprietary ISP - Full control over brightness, contrast, saturation, white balance, gain, focus, and exposure
Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto)
640x480@360fps*: Due to the limitation of USB2.0 device descriptor, the software can only report a maximum frame rate of 240fps, but the camera can actually reach 360fps (the actual frame rate can be seen during preview).
This camera prioritises high frame rates. At higher frame rates, exposure time is shorter, which may affect image brightness. For best results in low-light conditions, additional lighting is recommended.
