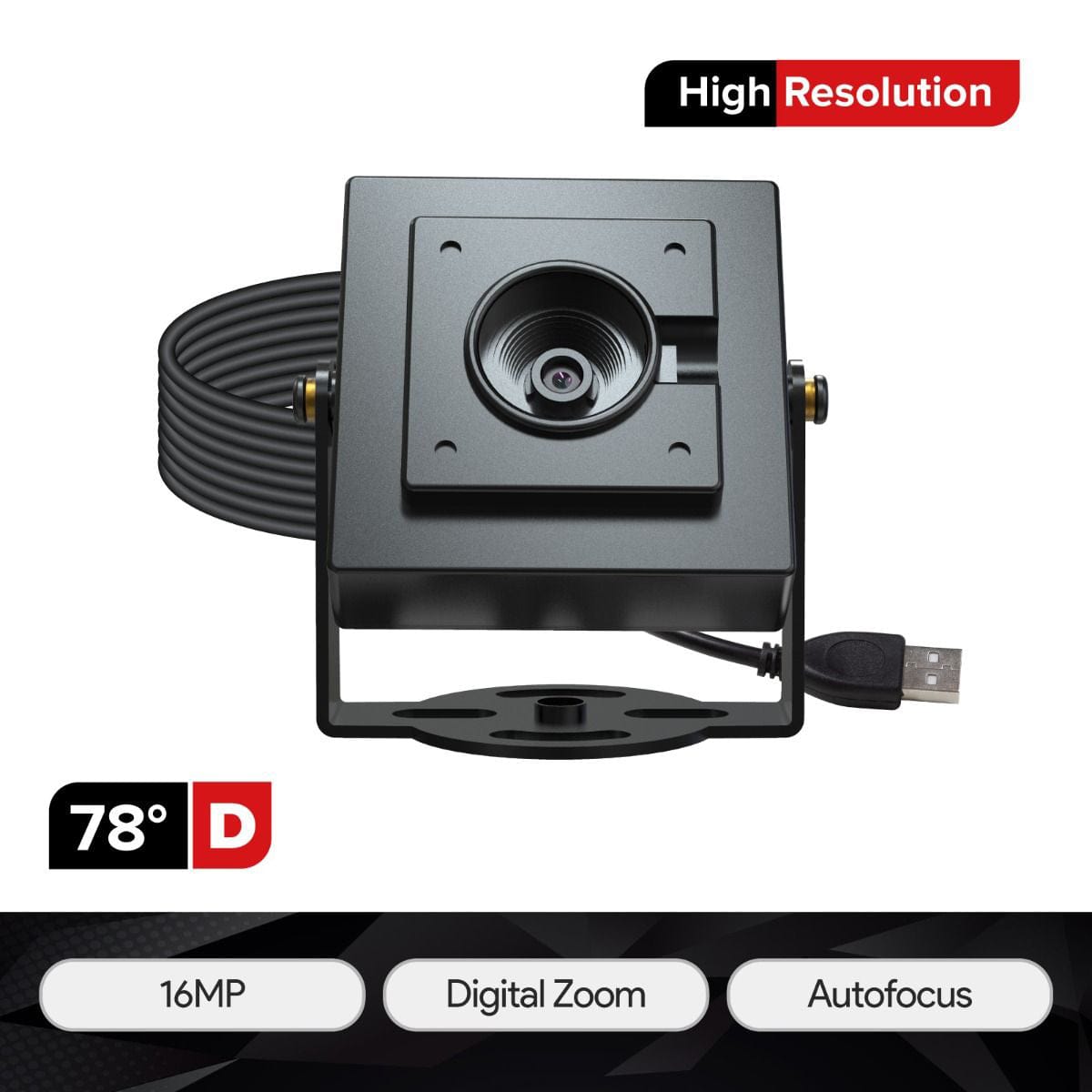

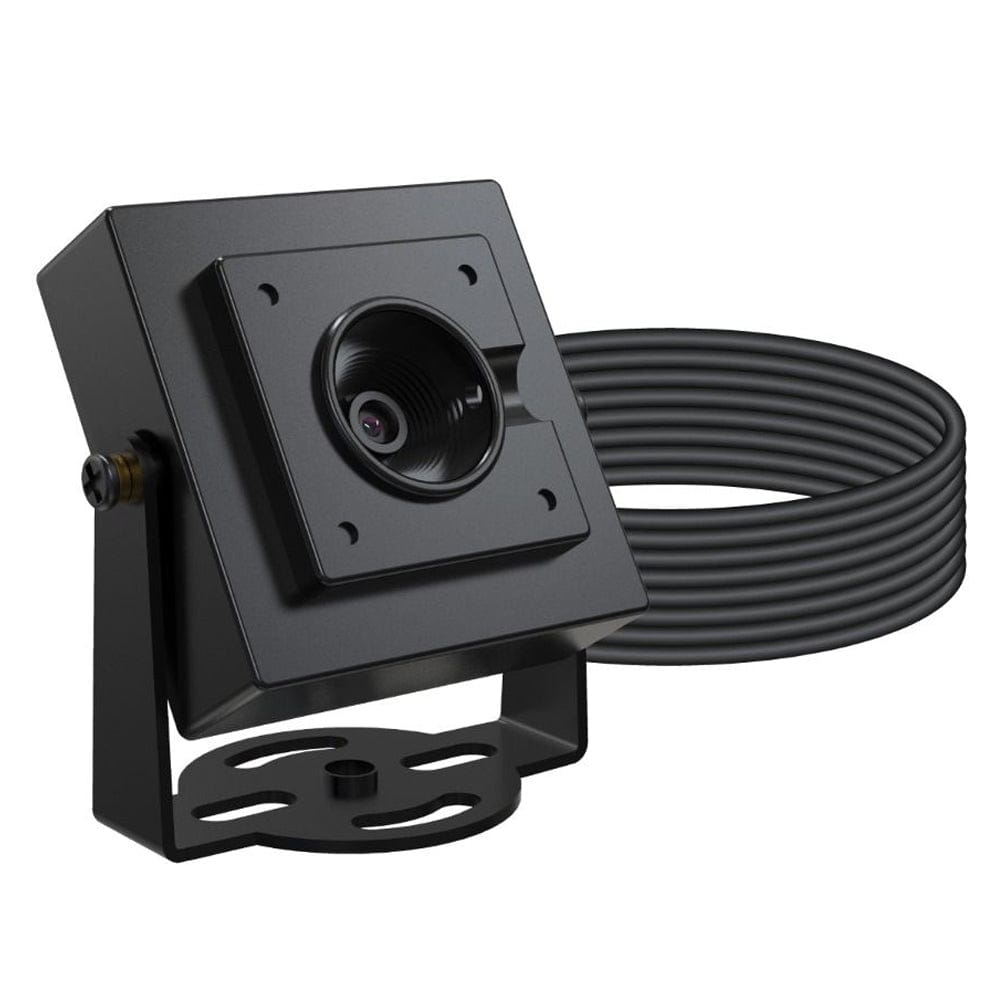

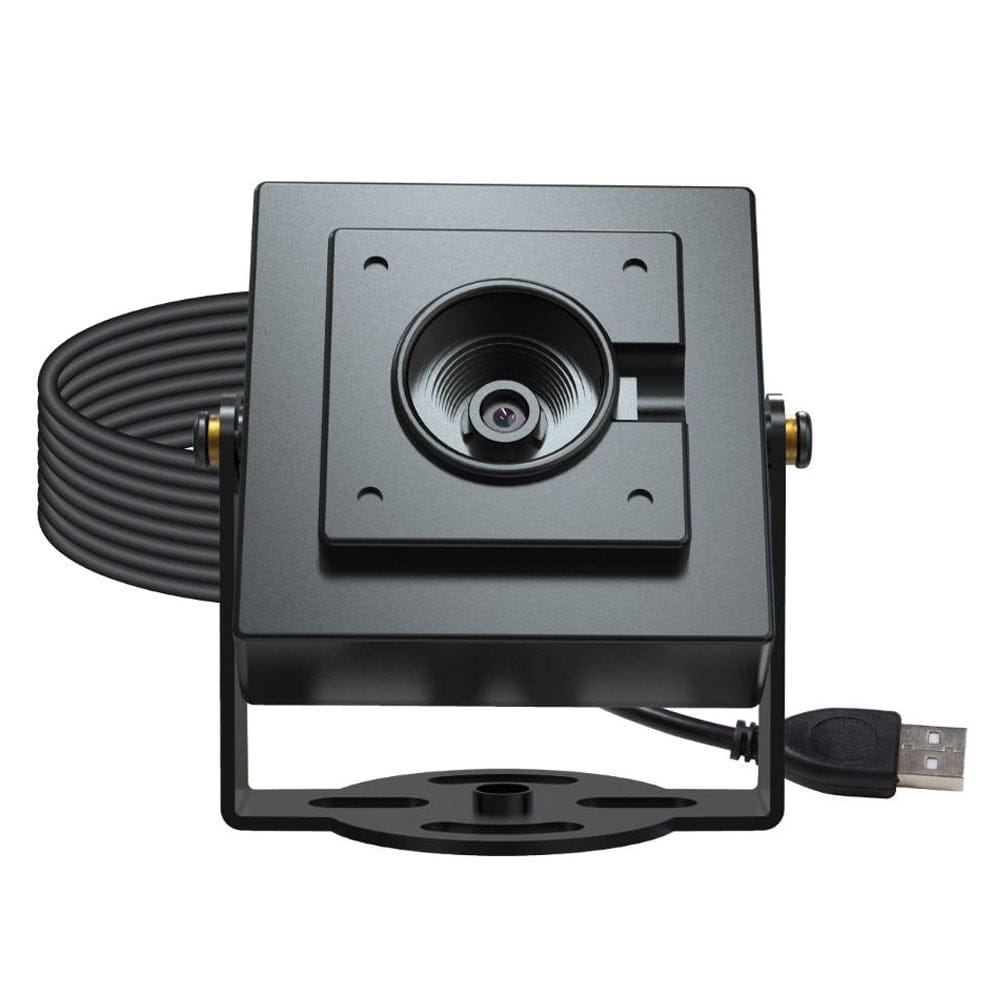

The ArducamezBOX Klarity is a USB 2.0 UVC camera that offers precision in every pixel with its SONY 16MP Colour Sensor, featuring a 1.12um x 1.12um pixel size. It comes in a metal enclosure with mountable base.

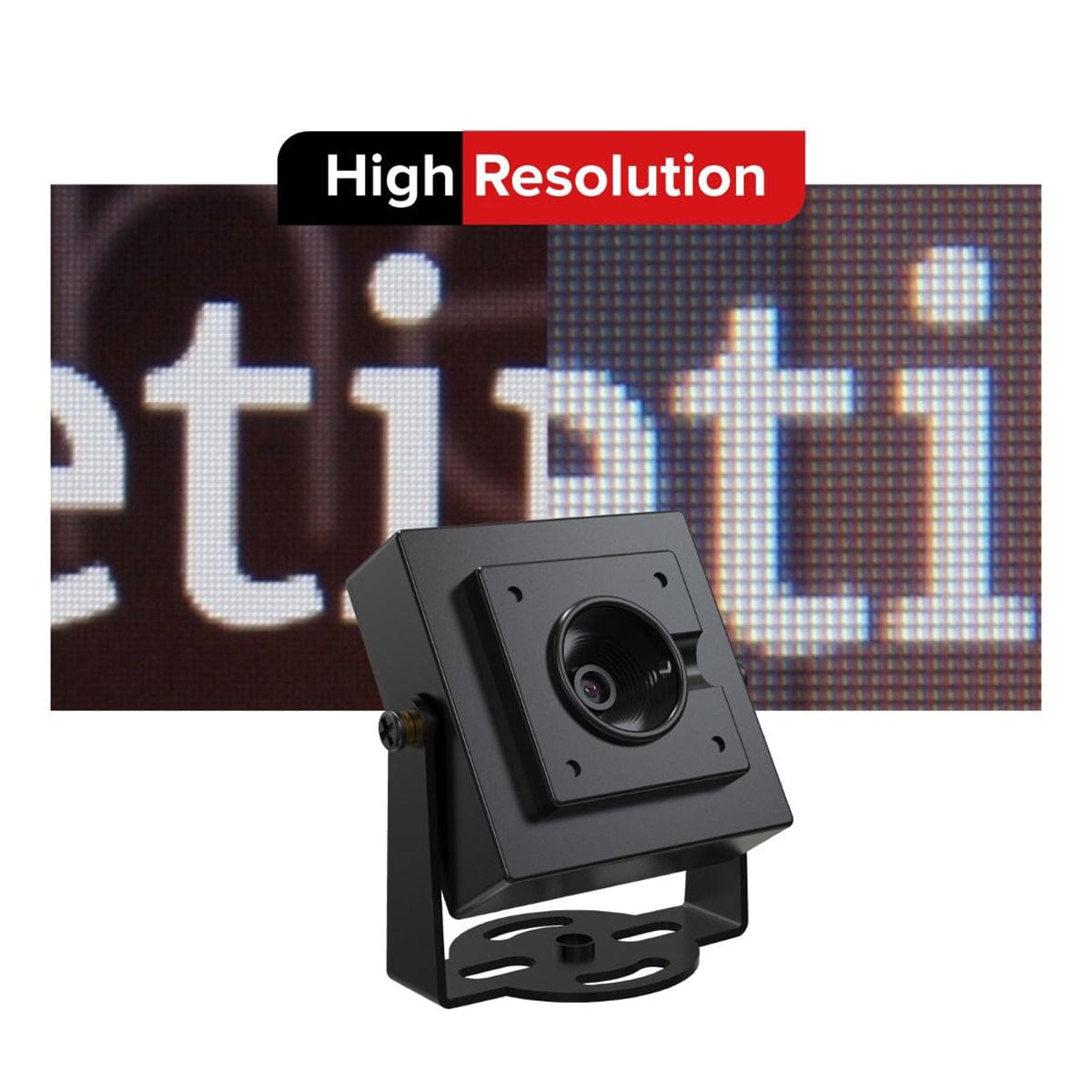

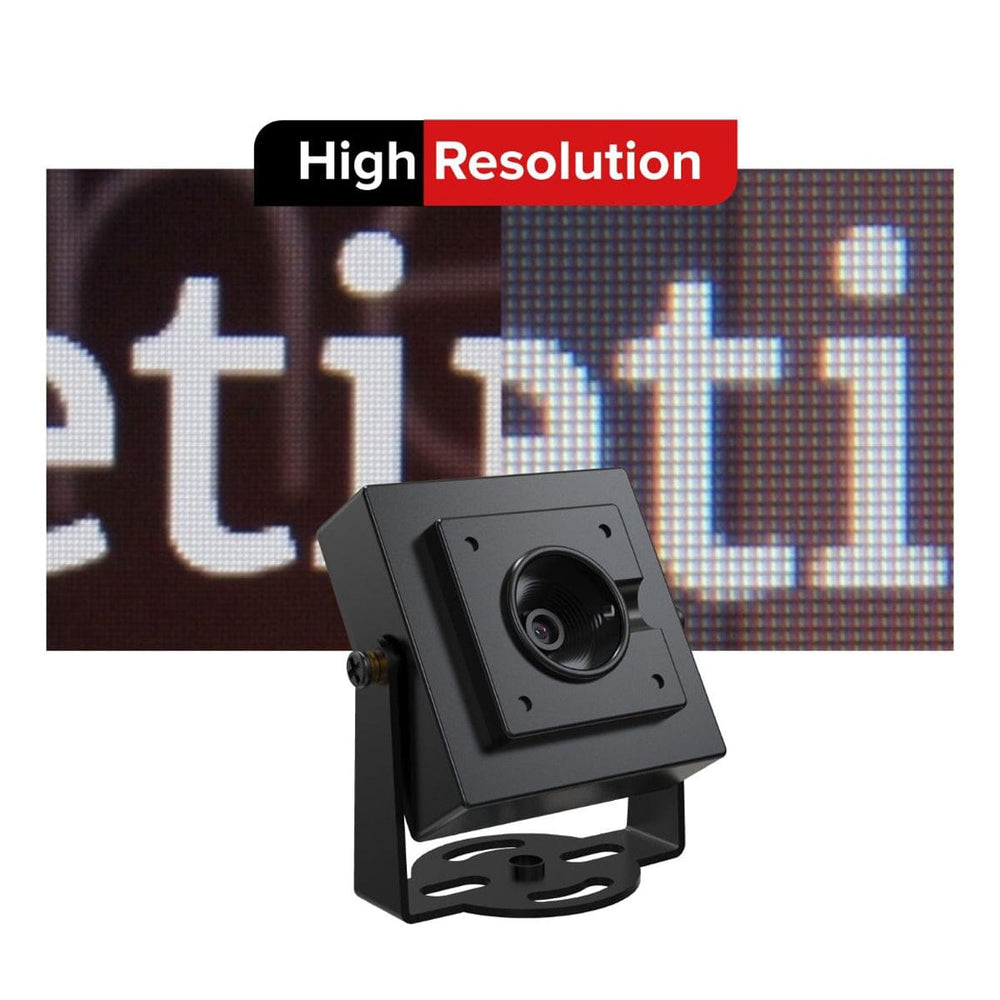

It maximizes the entire active sensor area, ensuring no pixel is wasted and delivering optimal image quality. This camera is perfect for applications requiring exceptional clarity and precision, with resolutions up to 16MP. It also provides enhanced flexibility at lower resolutions (480p, 720p, 1080p), allowing for digital Pan-Tilt-Zoom (PTZ) adjustments to optimise composition.

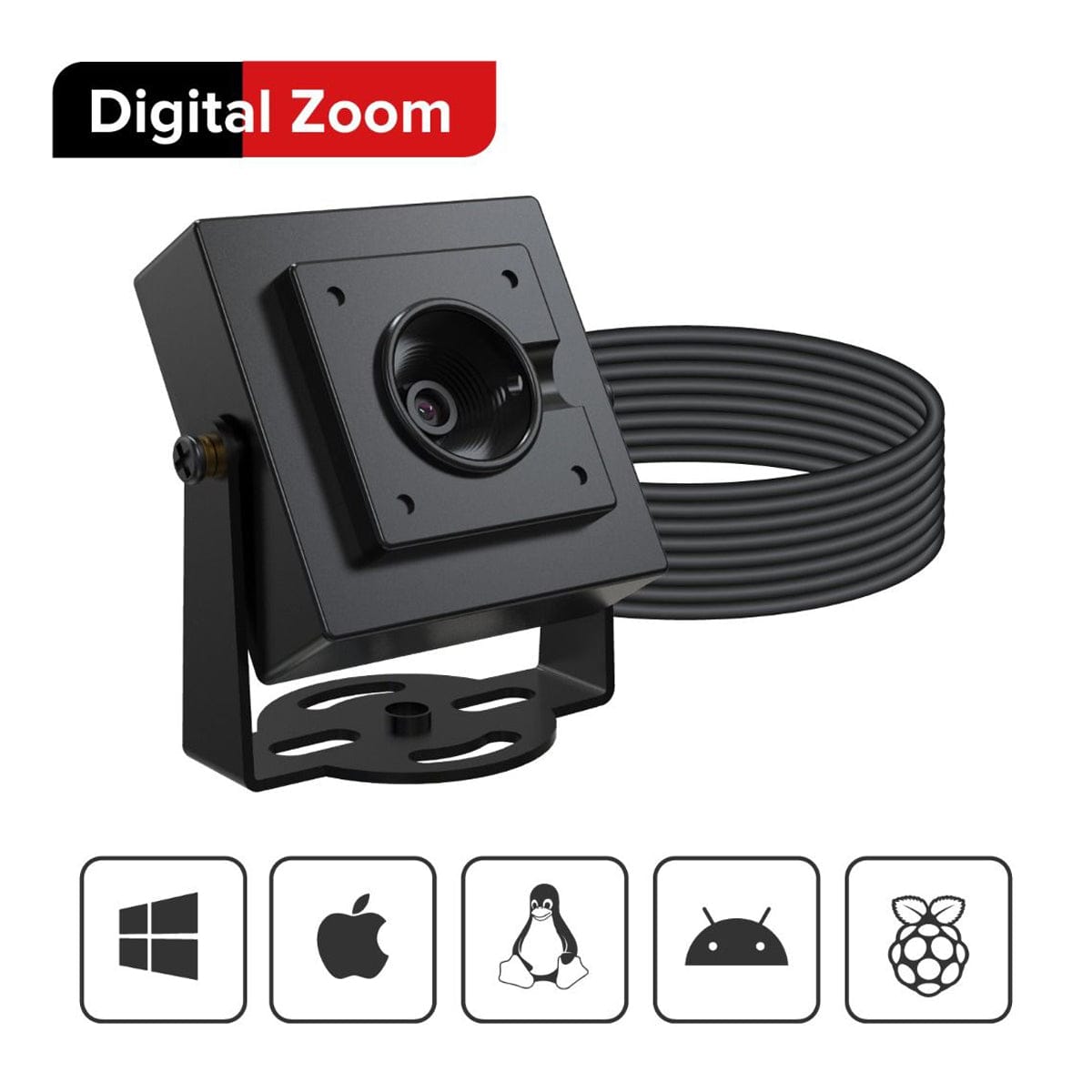

As it's a UVC (USB Video Class) camera, it can work on a range of operating systems and hardware driver-free, such as Windows and Linux (including the Raspberry Pi).

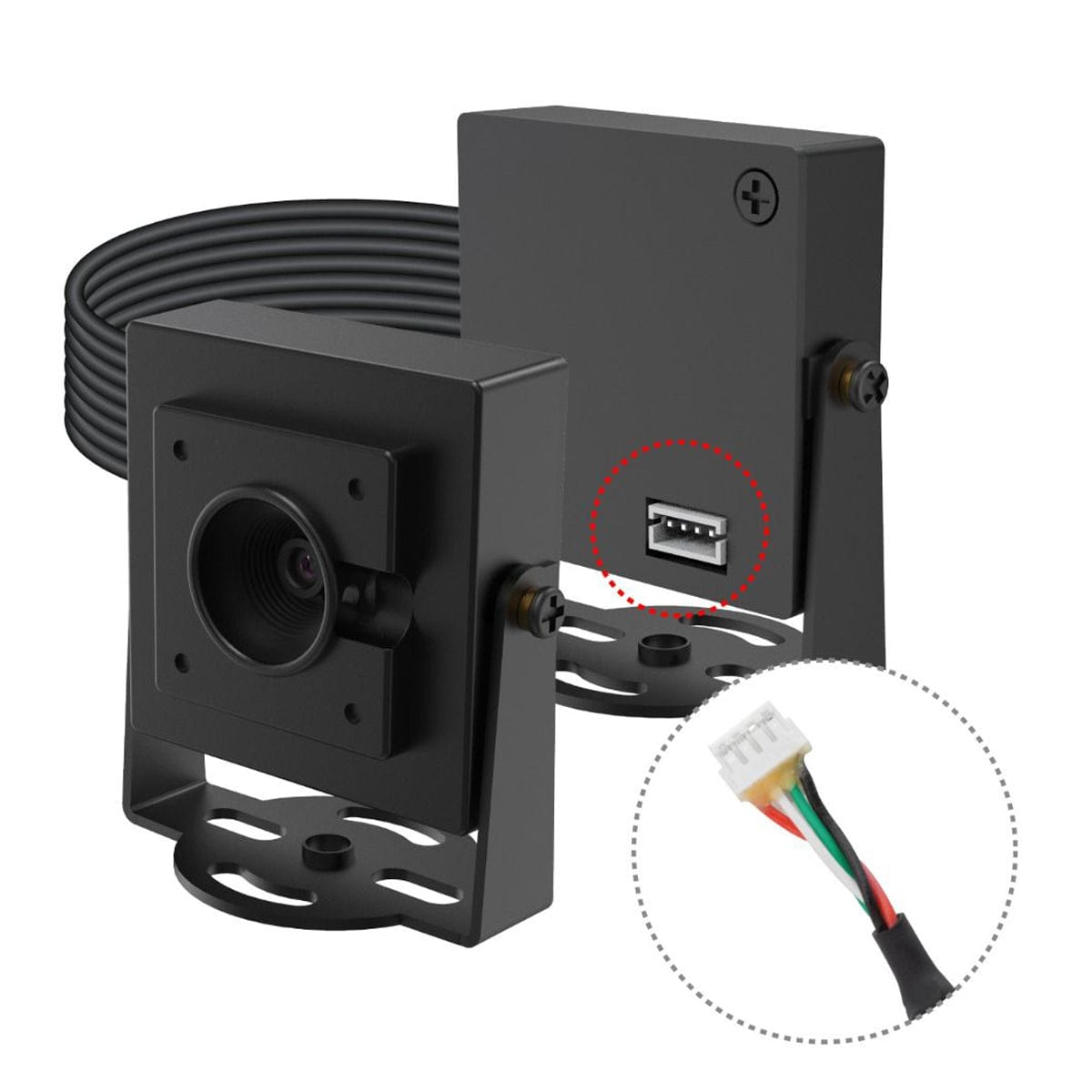

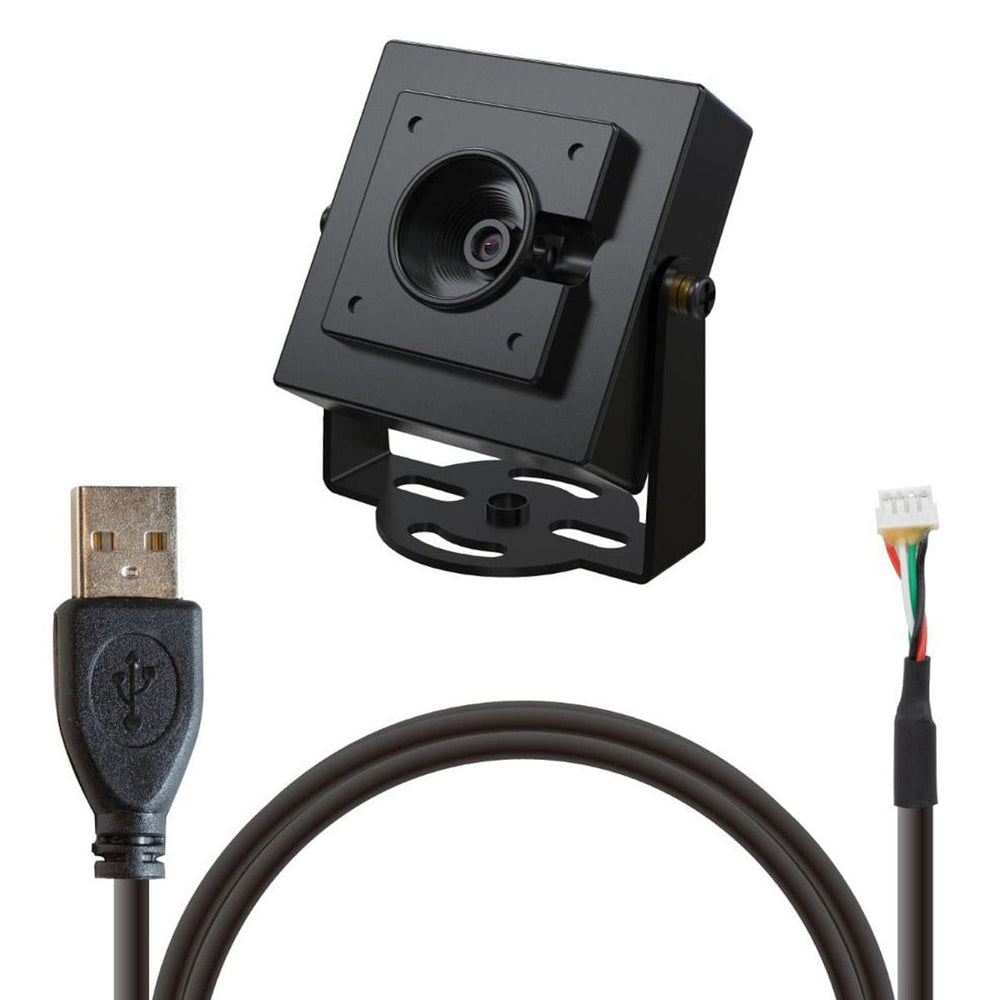

Comes with a USB JST cable.
Features
Sensor: SONY 16MP colour sensor with 1.12 µm x 1.12 µm pixel size
Resolution: Still resolution up to 16 megapixels
Digital PTZ: Digital pan-tilt-zoom adjustments supported at 480p, 720p and 1080p
Lens: Autofocus lens with F1.8 aperture and 3.95 mm EFL

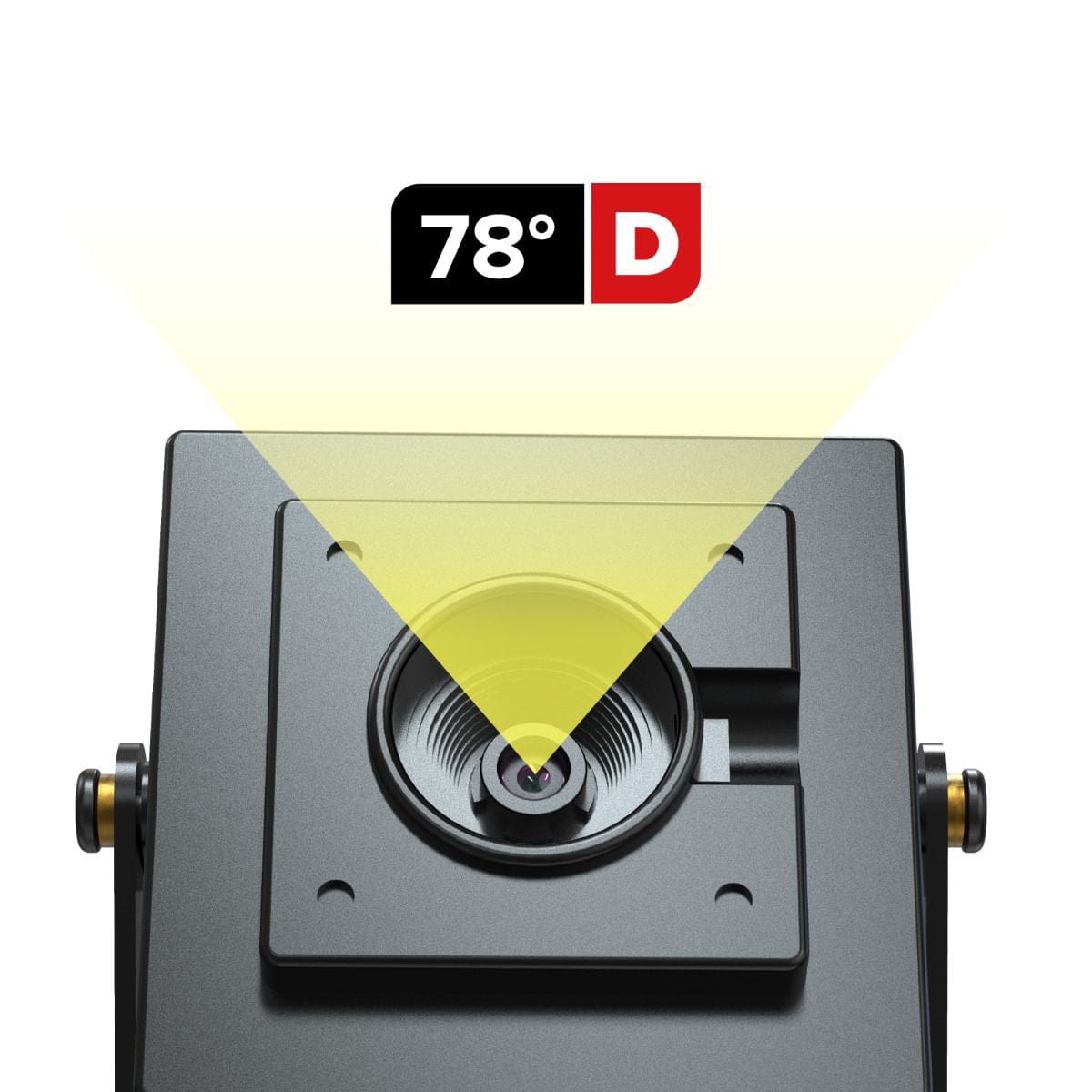

Field of view: 78° diagonal, 65° horizontal and 52° vertical
Focus range: Default focus range from 10 cm to infinity
Output format: MJPG
Frame rates:
4656 × 3496 at 10 fps
4000 × 3000 at 15 fps
3840 × 2160 at 25 fps
3264 × 2448 at 25 fps
2592 × 1944 at 25 fps
1920 × 1080 at 25 fps
USB interface: USB 2.0 UVC device with plug-and-play support
Controls: Proprietary ISP support for brightness, contrast, saturation, white balance, gain, focus and exposure
IR filter: Integral 650 nm IR filter for visible light only
Operating systems: Supports Windows and Linux
Power: 5V operating voltage with 1.75W power consumption
