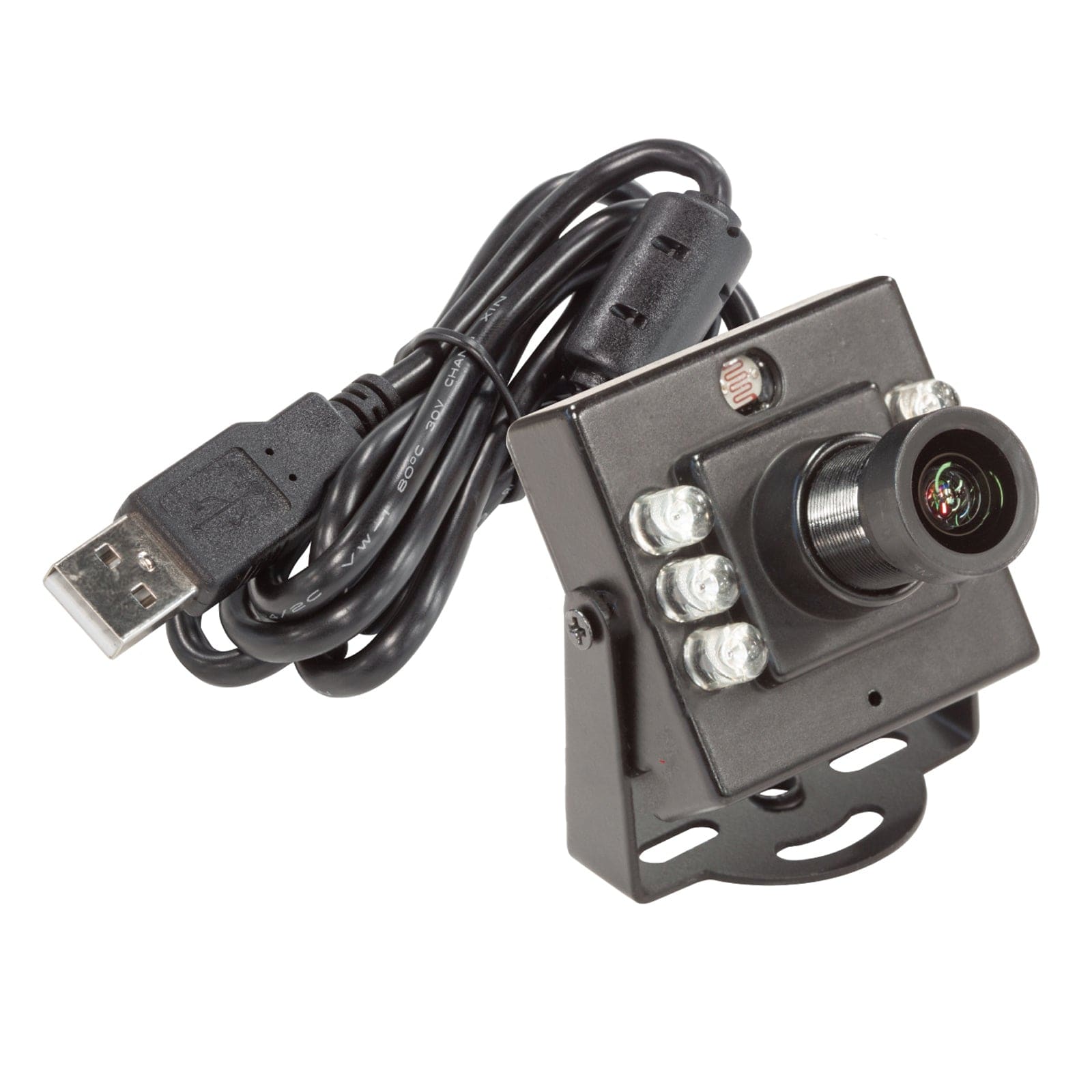

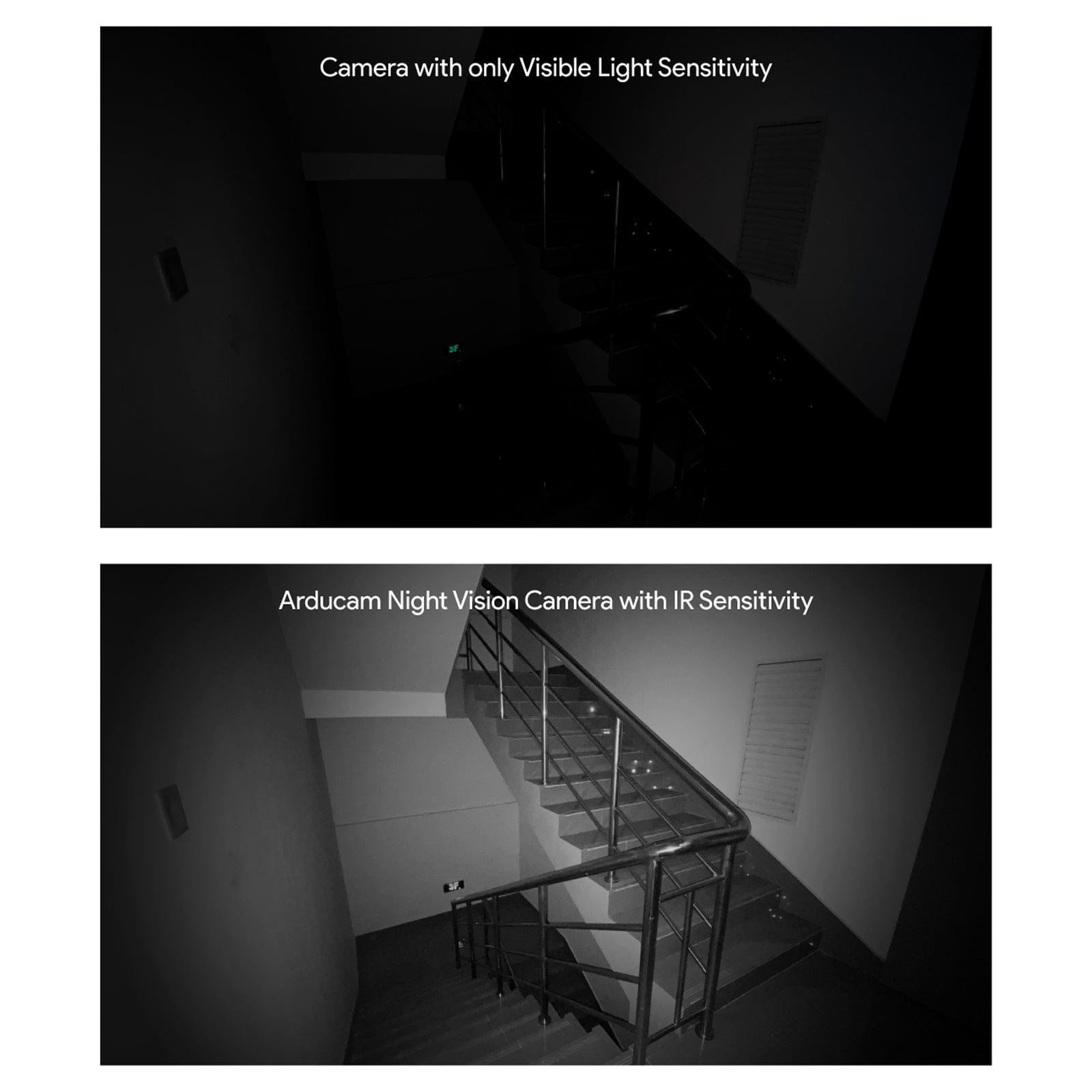

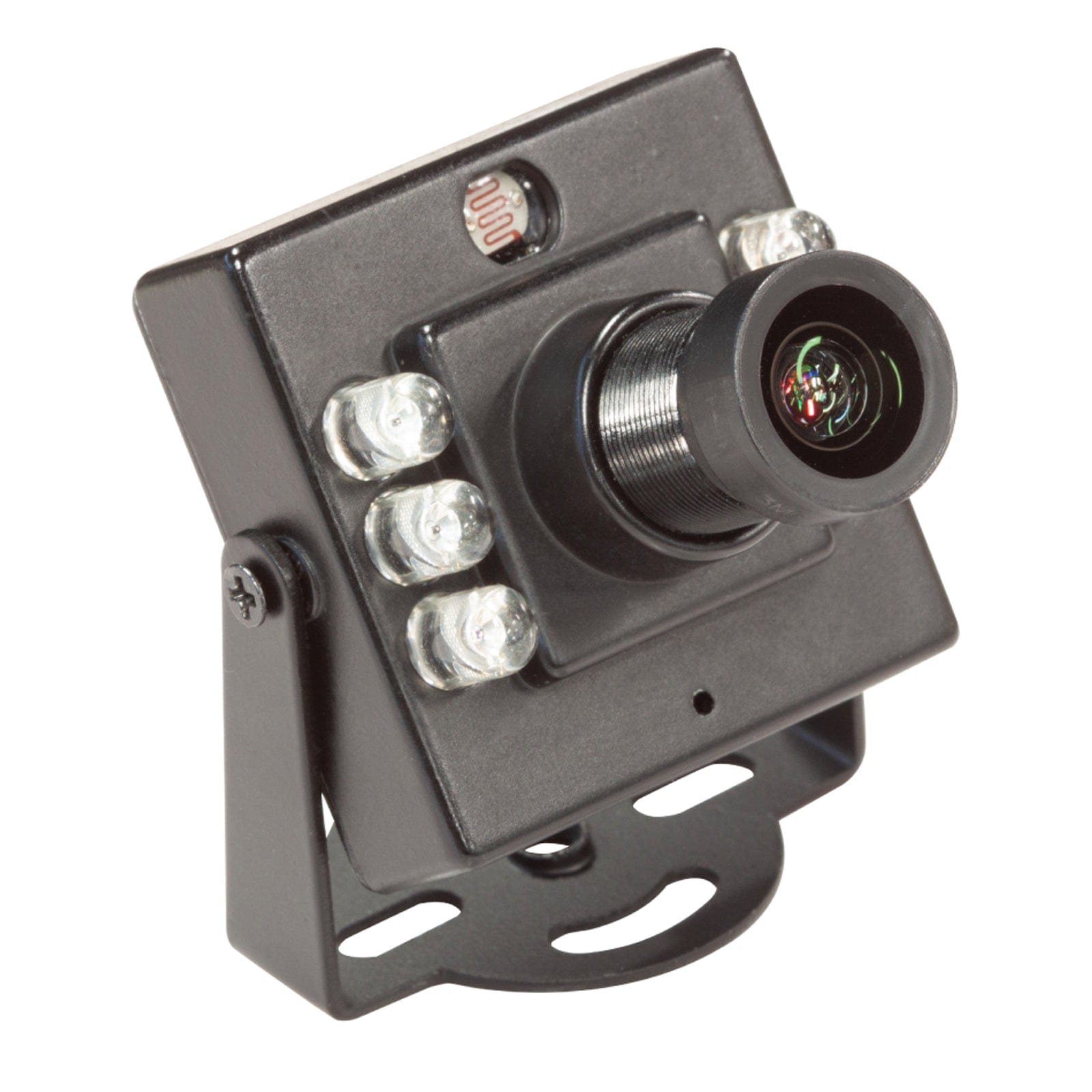

This camera features a 1/2.7" OV2710 FHD CMOS sensor, providing high-quality imagery in both day and night conditions. It automatically switches between day and night modes and includes 6 pieces of 940nm IR LEDs for clear visibility in complete darkness.
It captures video at up to 30fps in 1080p resolution, giving crisp video quality. The camera has a 105° Diagonal Field of View (DFoV) HD lens, manual focus, and is sensitive to both visible and 940nm NIR light. It supports MJPG and YUY2 output formats and is compatible with USB 2.0, requiring no additional drivers. The camera works with Windows and Linux operating systems and is recommended for use with the Amcap application on Windows.
Sensor | OV2710 |
Still Resolution | 2 Megapixels |
Color Filter Type | Colour/Mono |
Shutter Type | Rolling |
Optical Size | 1/2.7″ |
Output Format | MJPG/YUY2 |
Pixel Size | 3 µm x 3 µm |
Sensor Active Area | 1920(H)×1080(V) |
Max Frame Rate |
MJPG: 30fps@320*240, 352*288, 640*480, 800*600, 1024*768, 1280*720, 1280*960, 1280*1024, 1920*1080 |
YUY2: 30fps@320*240,352*288; 15fps@640*480; 20fps@800*600; 10fps@1024*768, 1280*720; 5fps@1280*960,1280*1024,1920*1080 |
|
Lens | |
Focus Type | Manual Focus |
FOV | 105°(D) x 90°(H) x 74°(V) |
Lens Mount | M12 Mount |
F.NO | F1.0 |
E.F.L | 3.9mm |
IR Sensitivity | Dual Bandpass Filter Visible + 940nm NIR |
USB Interface | |
Interface | USB 2.0 Device |
Connector | B4B-ZR |
UVC Compliant | No additional drivers required |
Electrical and Mechanical | |
Operating Voltage | 5 V +/- 5% |
Operating Temp. | 32°F-158°F (0°C to 70°C) |
Power Requirements | Max: 1.6W |

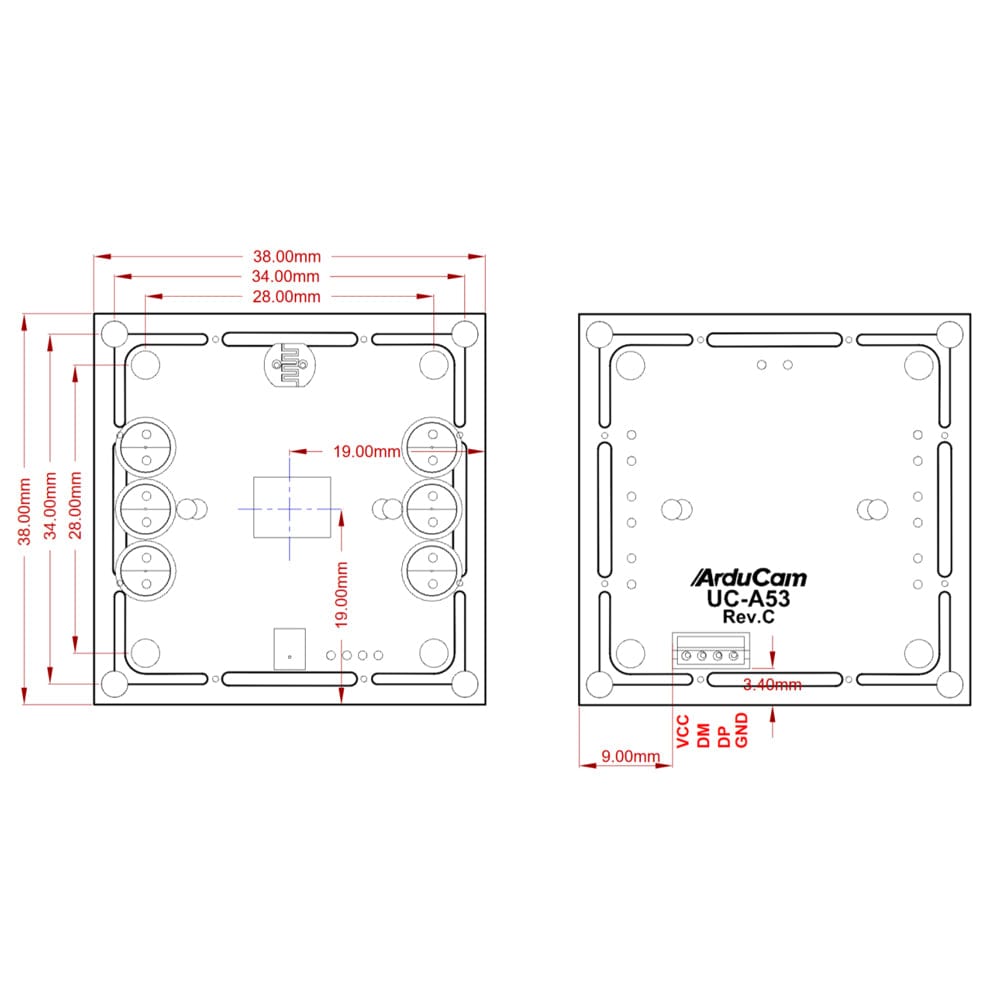

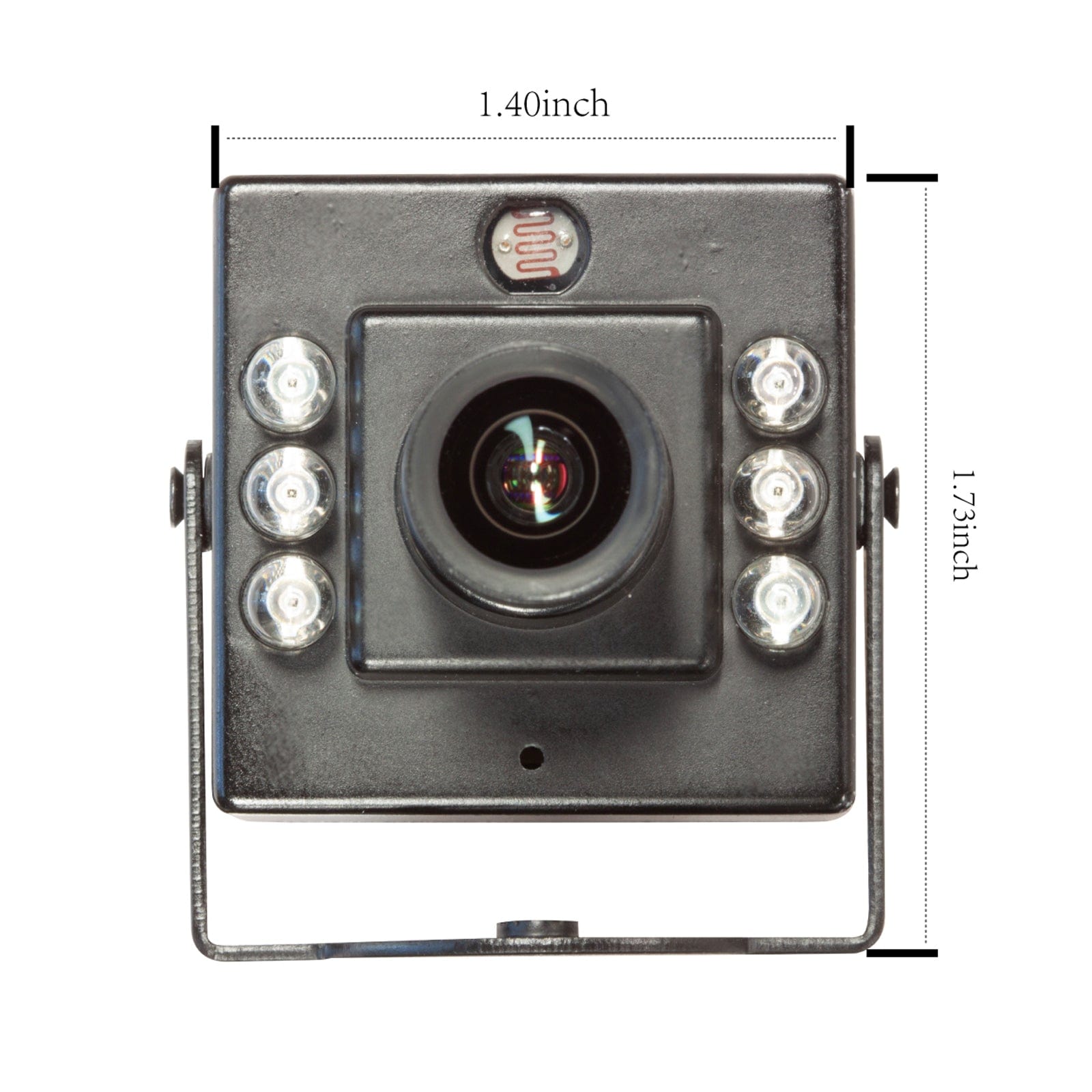

Camera Board Size | 38 x 38mm, 28 x 28mm with case |
Functionality and Compatibility | |
Supported OS | Windows, Linux |
Recommend Sample Application | Amcap for Windows |
UVC Controls | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Backlight Contrast, Gain, Exposure, |
