Arducam 2MP IMX462 Day/IR Night Vision USB UVC Camera with Metal Case

Price:
Sale price £60
incl. VAT
excl. VAT
Stock:
Only 4 units left
Quantity:

Compatible with:

Awesome Extras

USB 2.0 Extension Cable by The Pi Hut - The Pi HutUSB 2.0 Extension Cable by The Pi Hut - The Pi Hut
The Pi HutUSB 2.0 Extension Cable
Sale priceFrom £2 incl. VAT excl. VAT
Raspberry Pi 5 by Raspberry Pi - The Pi HutRaspberry Pi 5 by Raspberry Pi - The Pi Hut
Raspberry PiRaspberry Pi 5
Sale priceFrom £48 incl. VAT excl. VAT
Raspberry Pi 5 Starter Kit by The Pi Hut - The Pi HutRaspberry Pi 5 Starter Kit by The Pi Hut - The Pi Hut
The Pi HutRaspberry Pi 5 Starter Kit
Sale priceFrom £82incl. VAT excl. VAT

An IMX462 1080p USB camera with automatic night vision and built-in infrared LEDs. It’s UVC plug-and-play over USB, works with Raspberry Pi, has a built-in mic for audio, and switches automatically between day/night mode.

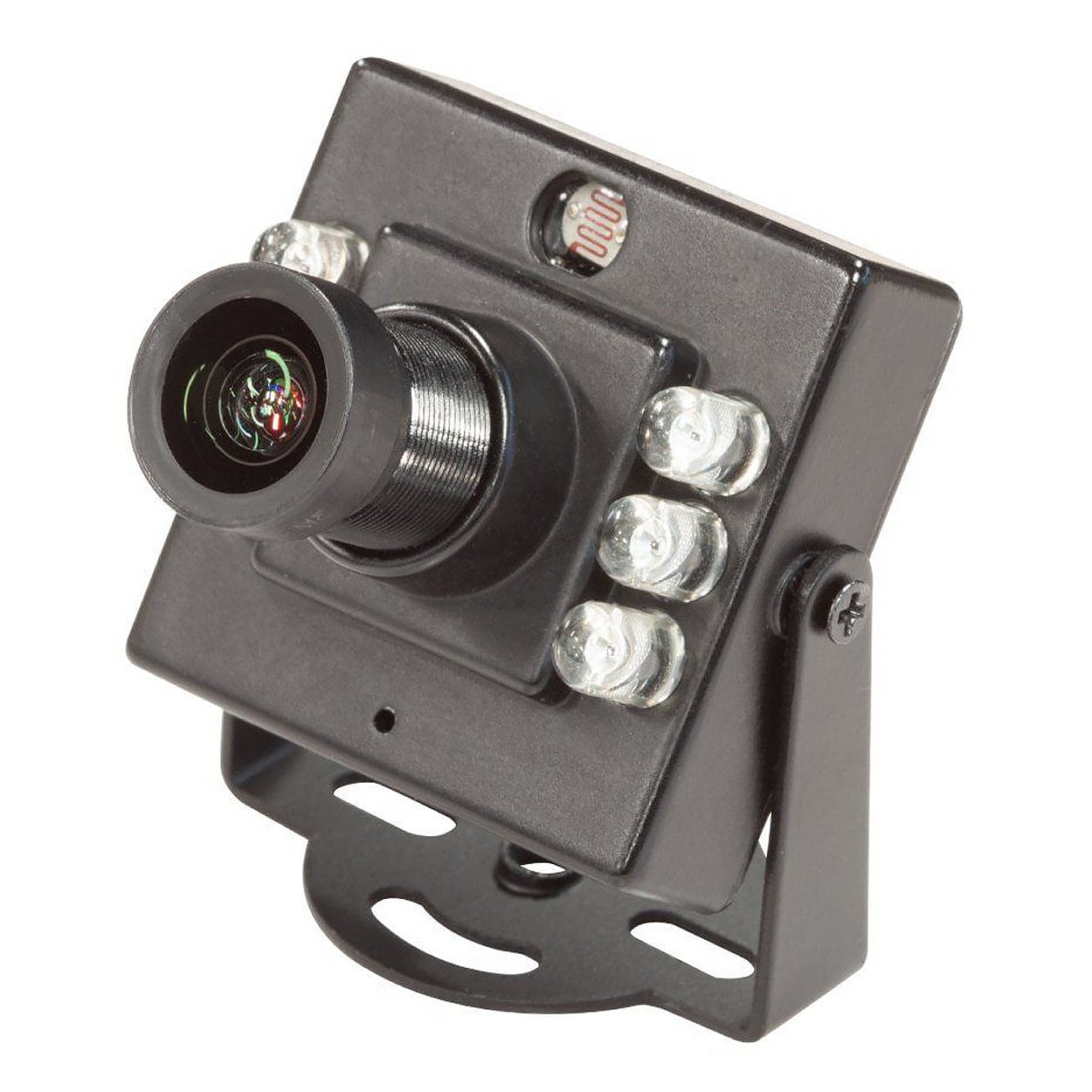

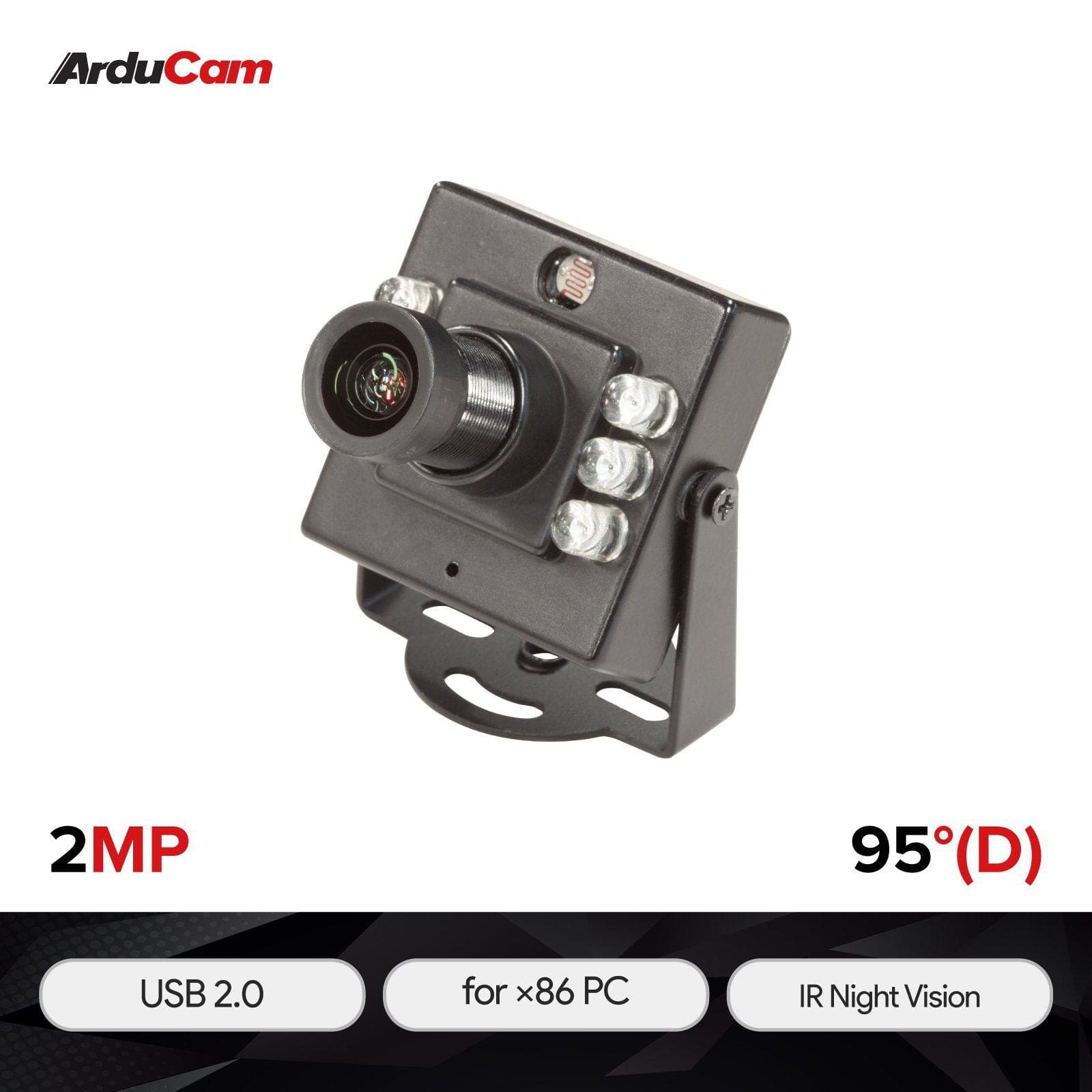

The Arducam IMX462 Day & Night USB Camera is built for clear imaging in all lighting conditions, from full daylight to pitch black. At the heart of the camera is Sony’s IMX462 Starvis CMOS sensor, paired with a wide-aperture M12 lens that captures sharp, vibrant footage with a 95° diagonal field of view. It's UVC too, which means it'll work with a Raspberry Pi plug n' play like a webcam!

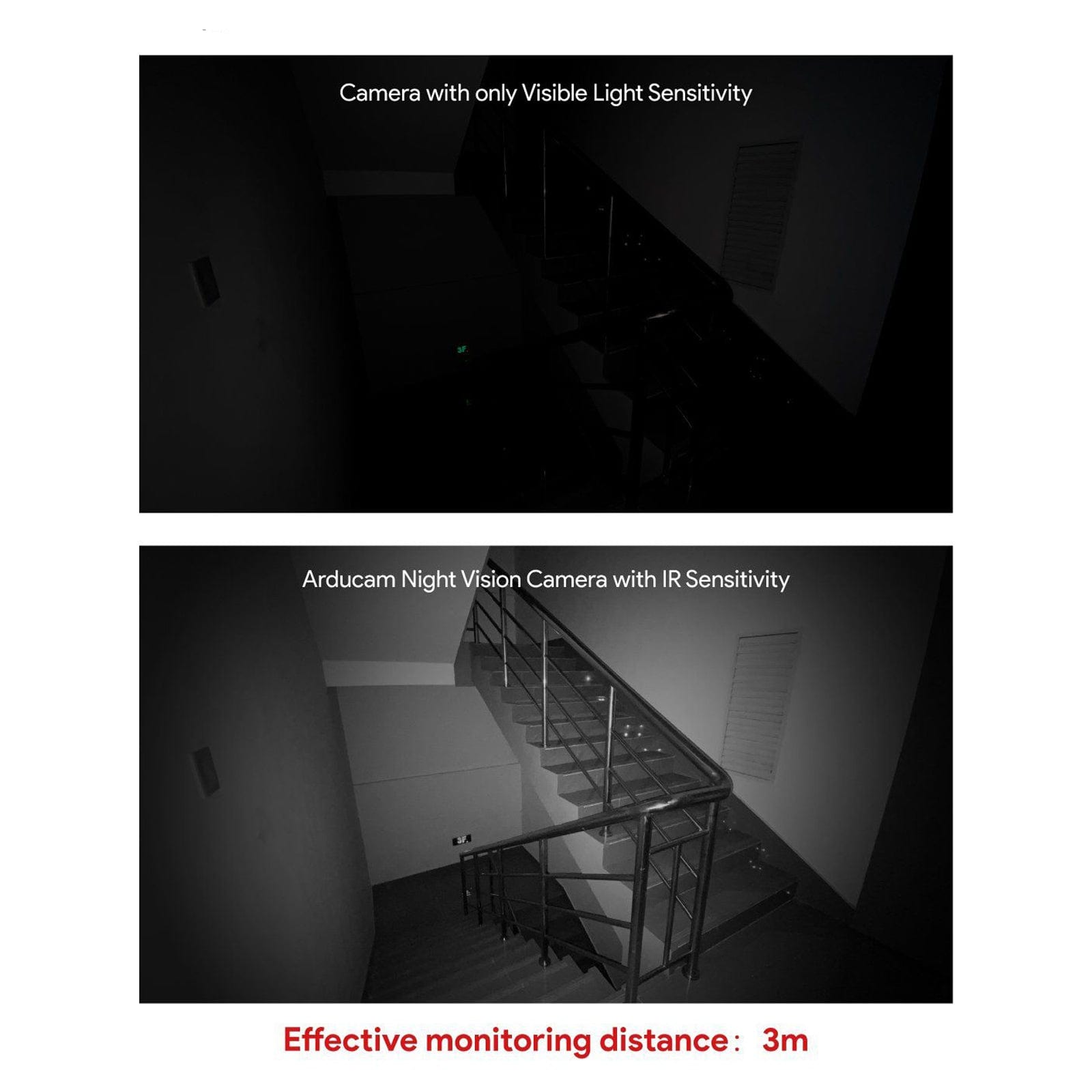

In daylight, it outputs full-colour 1080p video at 30fps. At night, a photosensitive resistor detects low light and automatically switches to infrared mode, activating six 940nm IR LEDs and using a dual-pass 940@650nm filter for detailed black-and-white night vision with a range of up to 3 metres.

This USB 2.0 camera is truly plug-and-play — no drivers required. It outputs in MJPG, YUY2 or H.264, with resolutions up to 1920×1080, and supports both Windows and Linux. Manual focus gives you full control over your image, while onboard UVC controls let you fine-tune settings such as white balance, exposure, gamma, saturation and more. The 32mm x 32mm camera module is compact but fully featured, including a built-in microphone for audio.

A 1-metre USB cable and quick-start guide are included in the box.

Features

  • 1/2.8" IMX462 CMOS Sensor for high-quality day and night vision
  • Intelligent IR Mode ensures automatic colour-to-B&W transition in dark light
  • Powerful Night Vision with 6x 940nm IR LEDs for clear 3m night monitoring
  • Wide-angle clarity with a 95° Diagonal Field of View thanks to the HD lens
  • Smooth 30fps@1080p Video capture, making it ideal for reliable home surveillance

Specifications

Sensor IMX462
Still Resolution 2 Megapixels
Colour Filter Type Colour
Shutter Type Rolling
Optical Size 1/2.8"
Output Format MJPG / YUY2 / H.264
Pixel Size 2.9 µm × 2.9 µm
Sensor Active Area 1920(H) × 1080(V)
Frame Rate YUY2: 30fps @ 320×240, 640×480
MJPG: 30fps @ 320×240, 640×480, 1280×720, 1920×1080
H.264: 30fps @ 1920×1080, 1280×720, 640×480, 640×360
Focus Type Manual Focus
Field of View (FOV) 95°(D) × 83°(H) × 67°(V)
Lens Mount M12 Mount
F.NO F1.6
Effective Focal Length 4.3mm

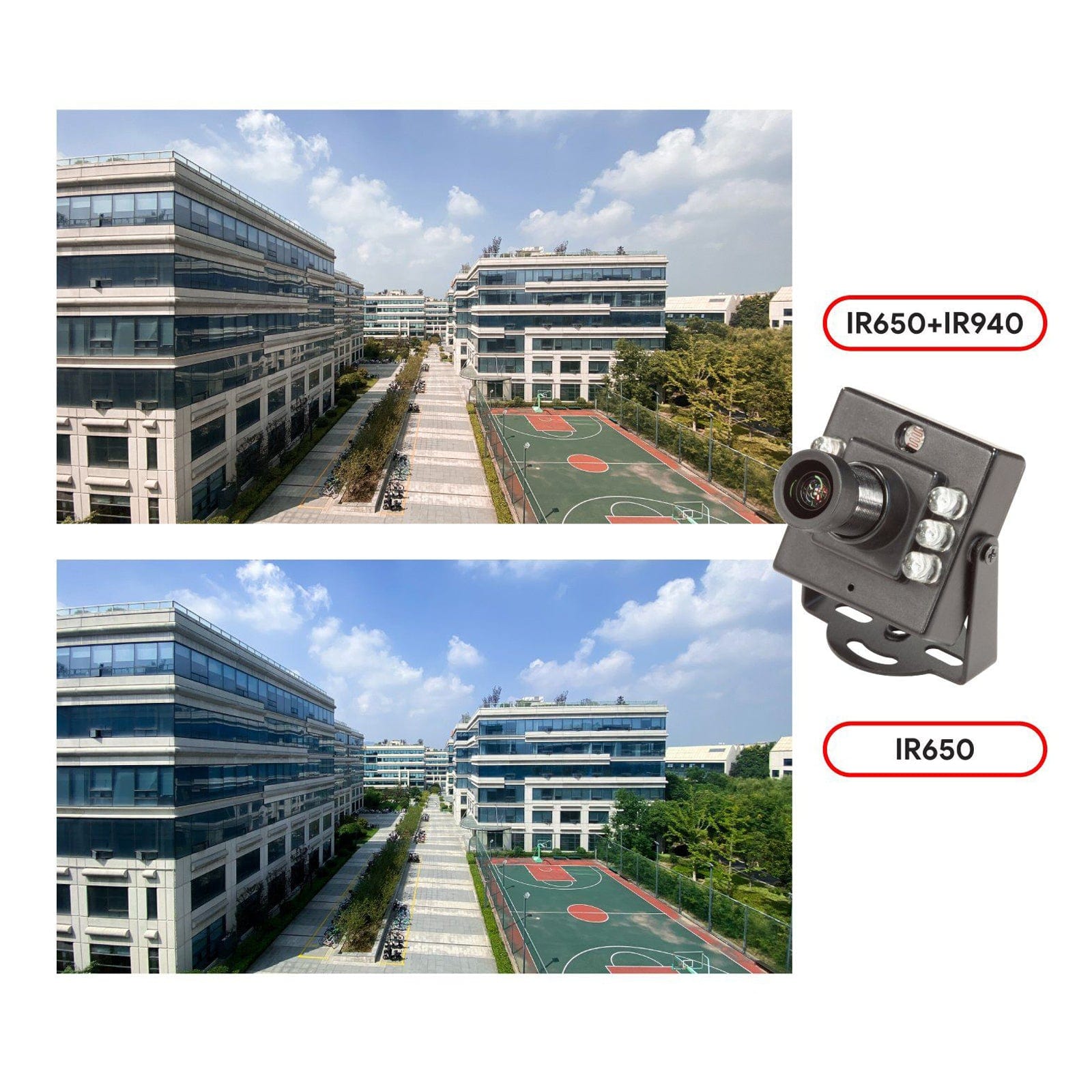

IR Sensitivity Dual Bandpass Filter (Visible + 940nm NIR)
Default Focus Distance 2m – ∞
USB Interface USB 2.0 Device
Connector B4B-ZR
UVC Compliant No additional drivers required
Operating Voltage 5 V ± 5%
Operating Temperature 0°C to 70°C (32°F–158°F)
Power Requirements Max: 1.2W

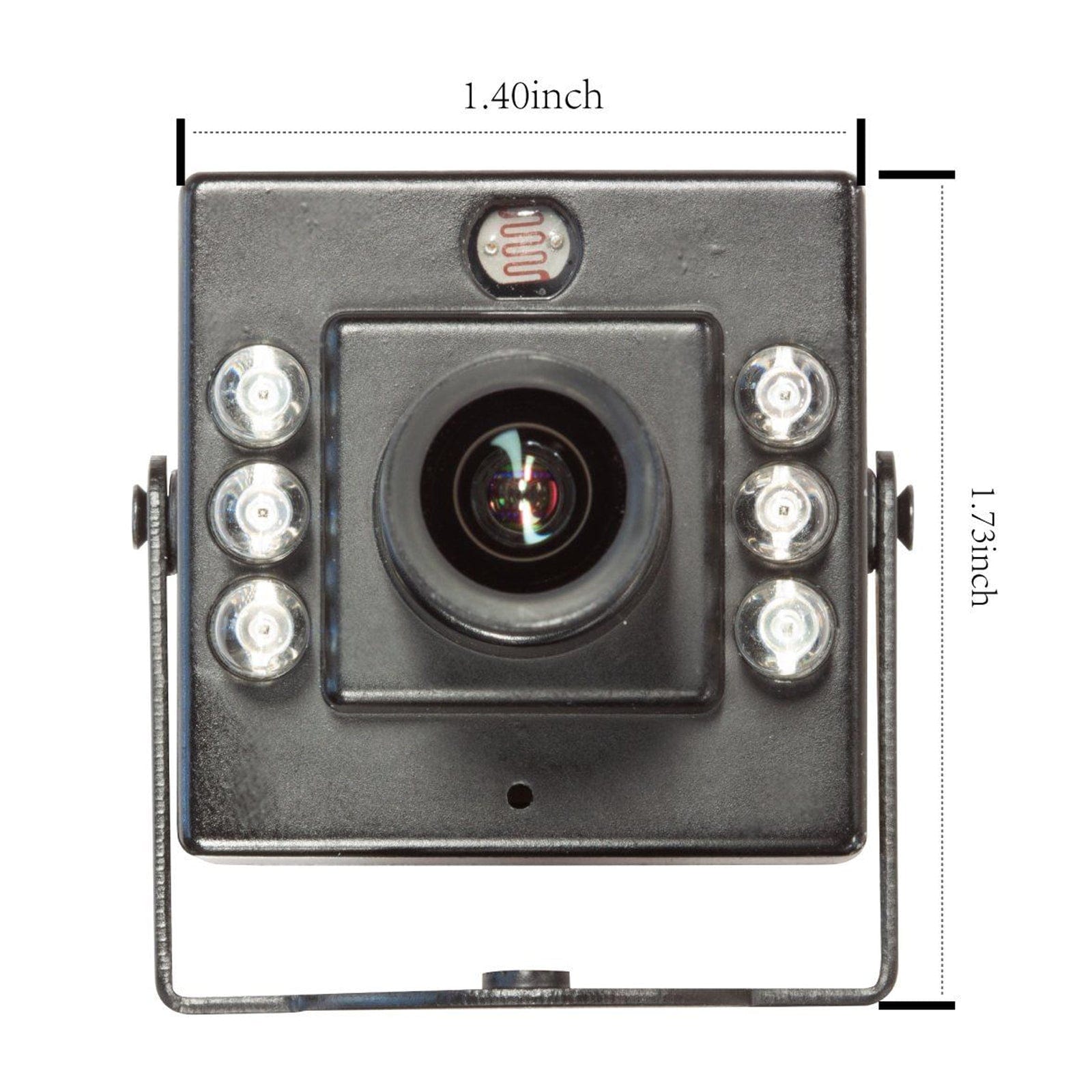

Camera Board Size 32 × 32mm (Hole Pitch: 28 × 28mm)
Audio Single Microphone

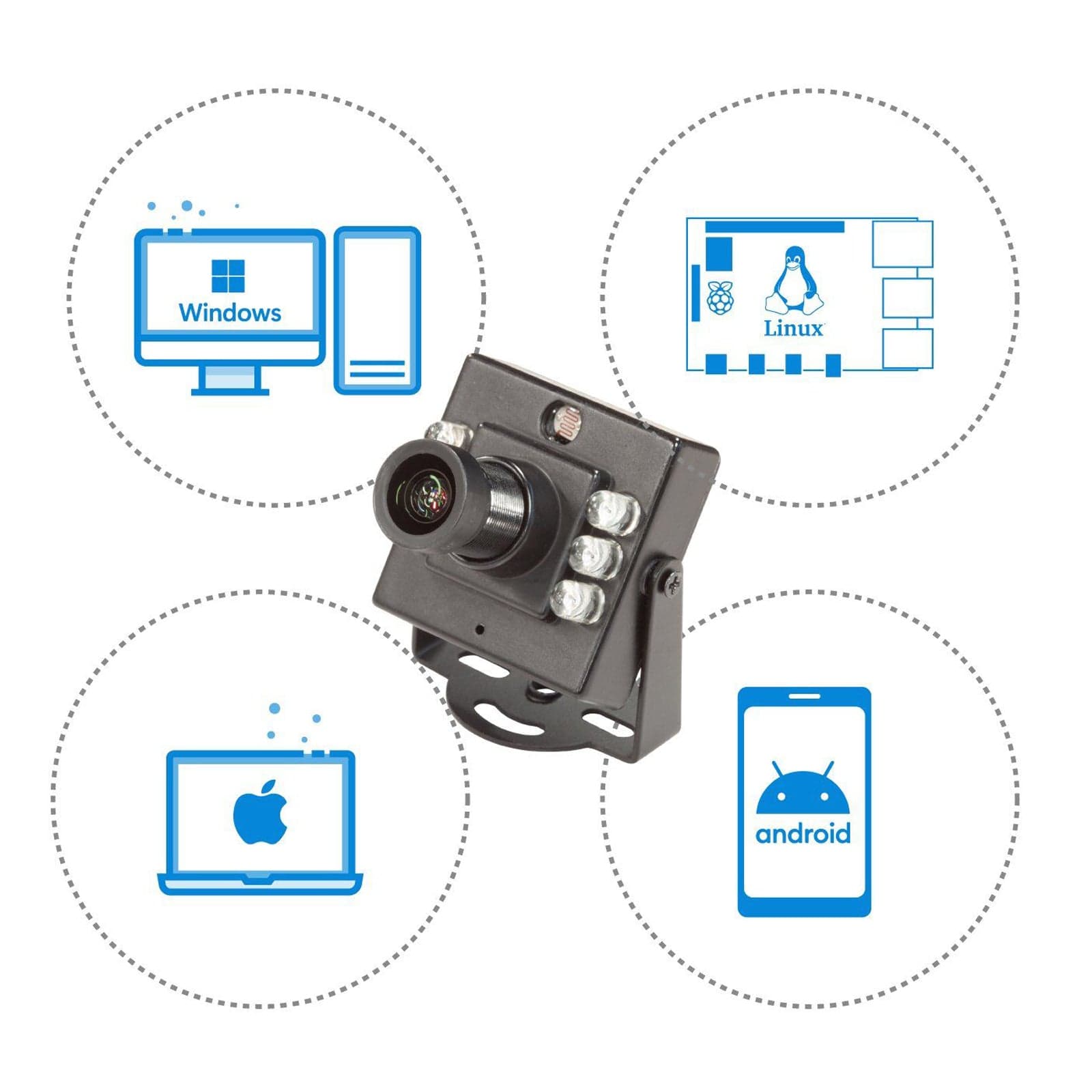

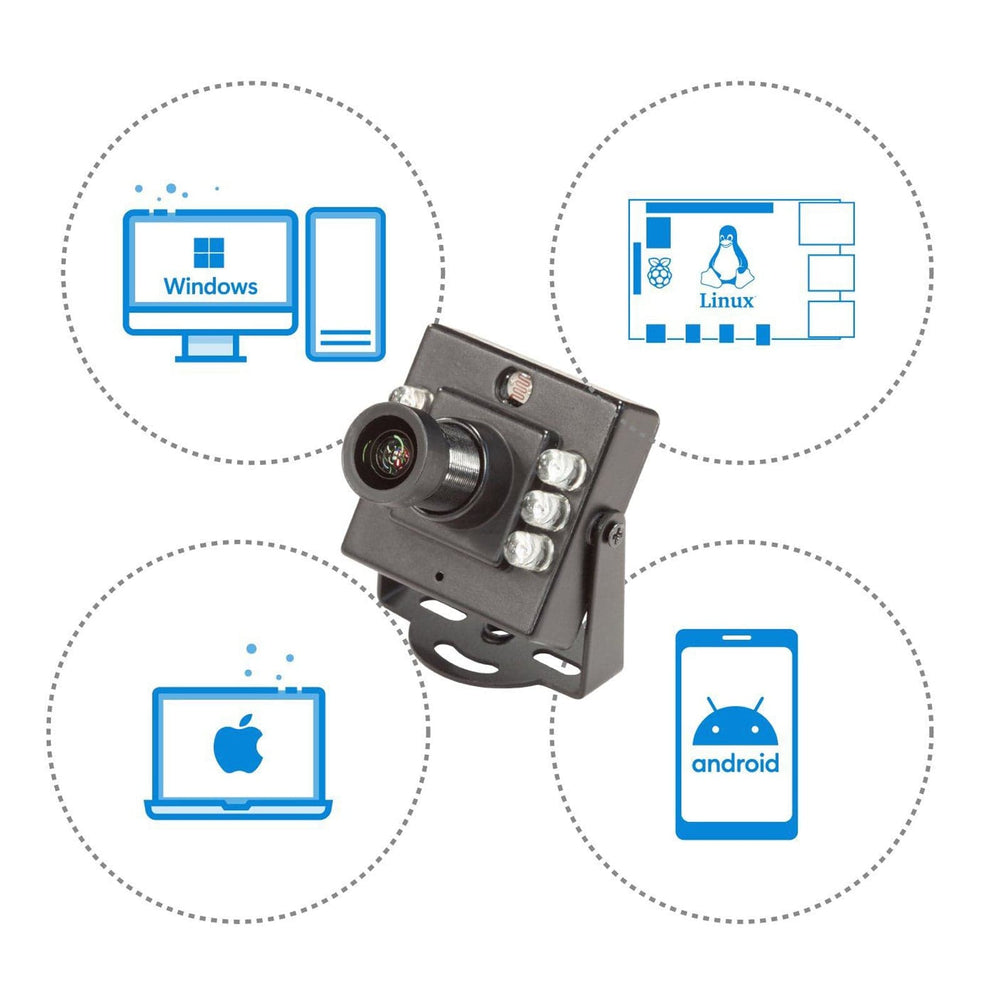

Supported OS Windows, Linux
Recommended Sample Application Amcap for Windows
UVC Controls Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance (Auto/Manual), Backlight Contrast, Gain, Exposure (Auto/Manual)

Resources

Package Contents

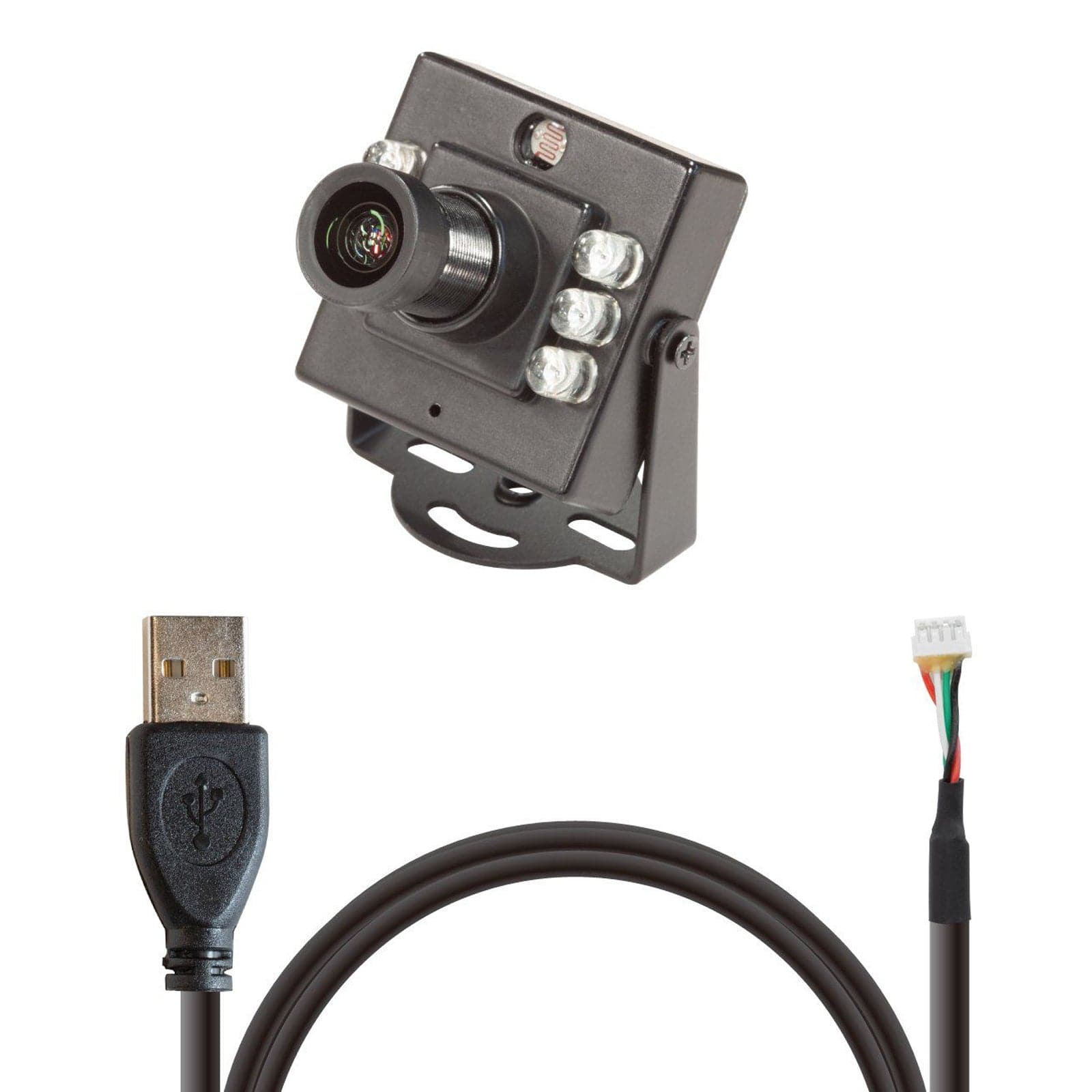

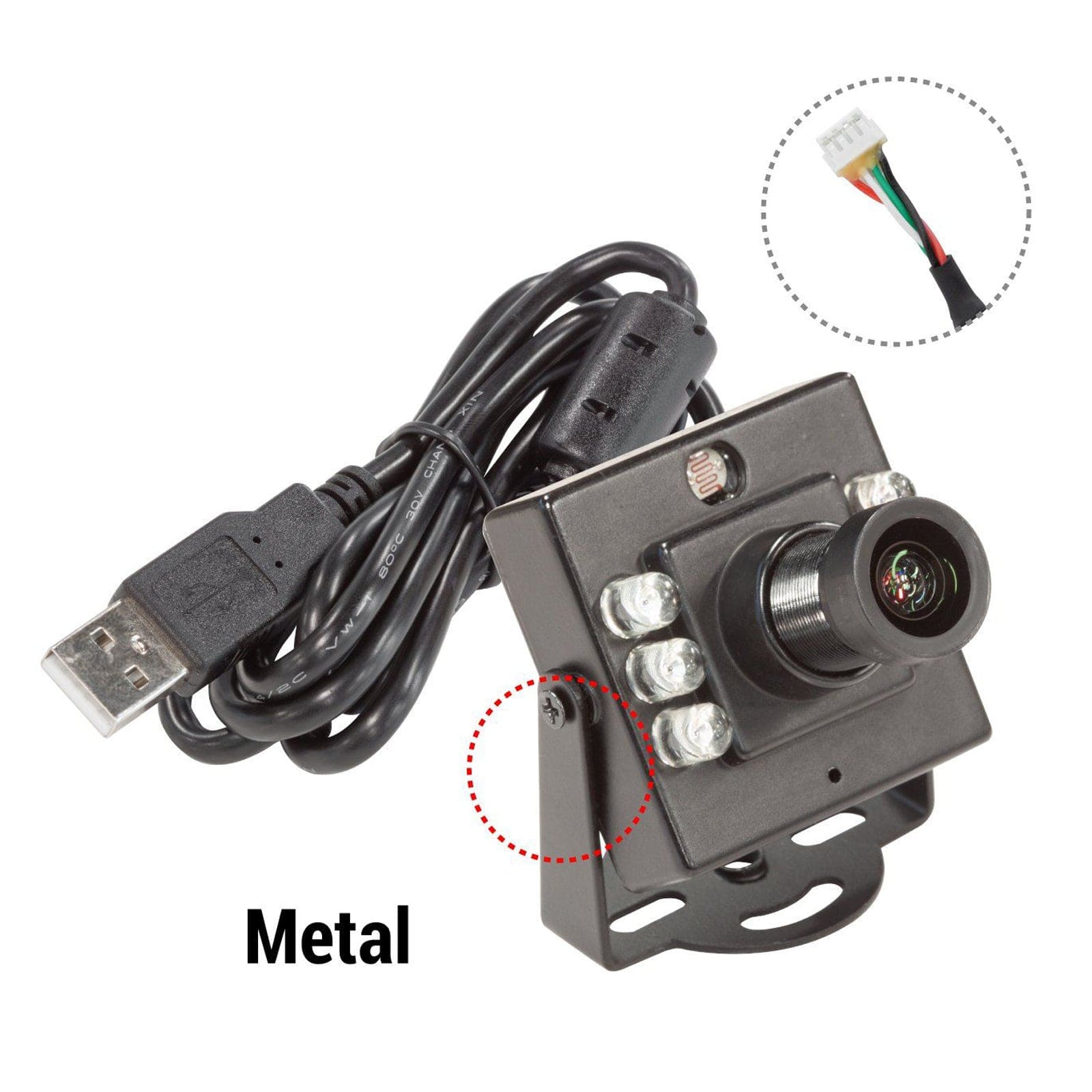

  • 1x IMX462 IR Night Vision USB Camera with Case
  • 1x 1m USB 2.0 Cable
  • 1x Quick Guide Start
